BLACK OUTPUT
PANMASTERIN LEVEL
1
2
3
4
PHONES
OUT L
OUT R
IN4 L
PAN
CV
IN1IN2IN3IN4 R
L
R
L
R
1
2
3
THANK YOU FOR PURCHASING
ERICA SYNTHS BLACK SERIES
MODULE!
These are high-end modules with
unique functionality. Only the highest
quality components are used and
all inputs and outputs are protected
against undesired overvoltage.
When designing the Black Series,
we did not economise on the
module width, we put design and
usability first. Big knobs are assigned
to functions that make dierence
in sound. The Erica Black series are
a range of modules that together
make an entire synthesizer.
Enjoy!
The Erica Black Output Module
is a high quality output mixer and
stereo panner with balanced
outputs and headphone
amplifier for monitoring your
modular masterpieces. All inputs
are buered, we use stereo
potentiometers (found in high
quality studio mixers) for panning,
IN4 is stereo input with simultaneous
level adjustment for both channels,
IN3 has a CV controlled autopan
function. You will find 6.3mm jack
for the balanced outputs and
headphones.
SPECS:
Input level ...............................-10V - +10V
Pan CV input level..................-10V - +10V
Phone amp out power................100mW
Power consumption......+52mA, -43mA
Module width...................................14HP
Module depth................................35mm

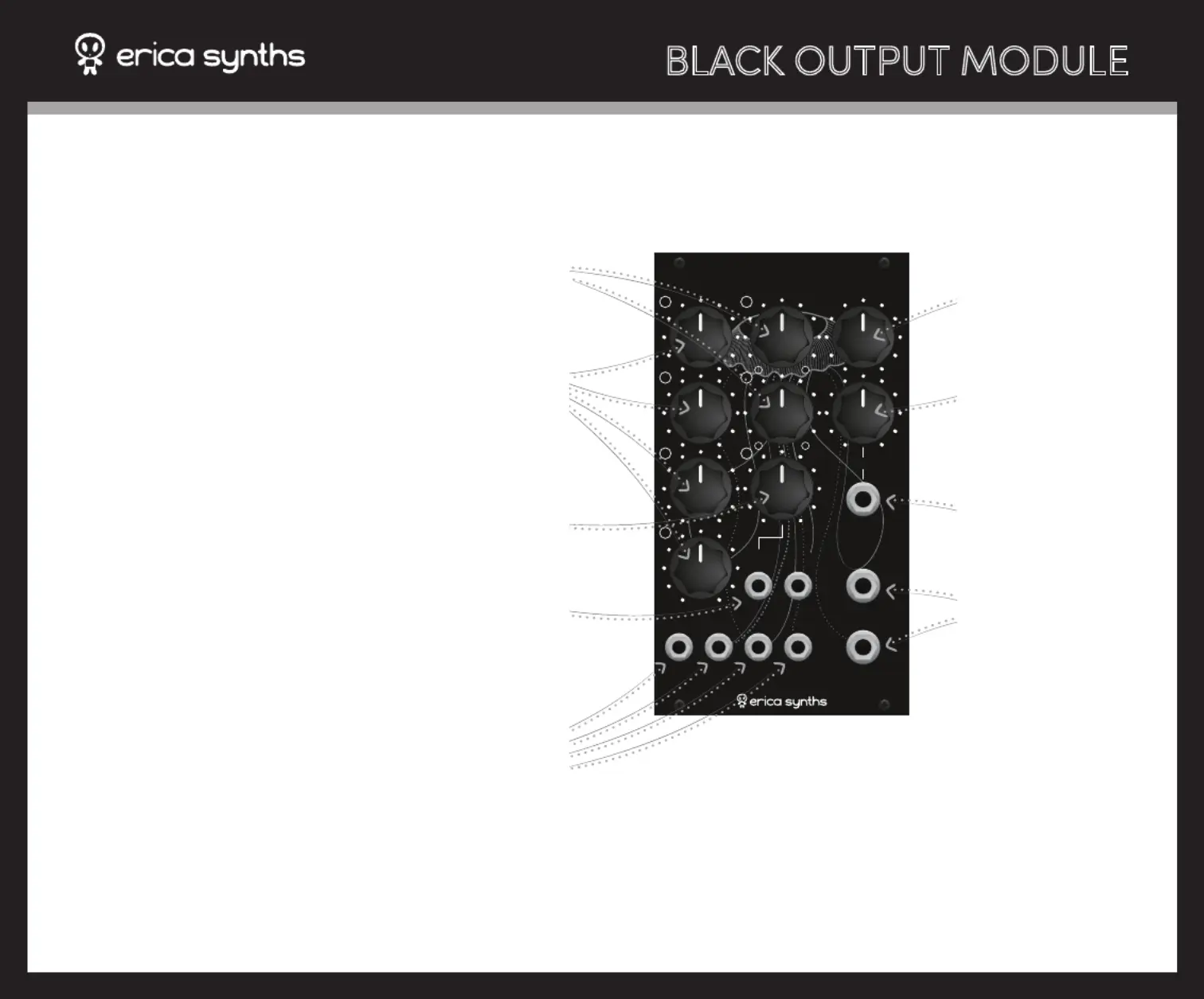

These knobs are
for manual stereo
panning for INPUT1
and INPUT2.
Adjust the master output
level.
Adjust the phones
volume independently
from master level.
Plug monitor
headphones with
6.3mm jack here!
These are balanced
outputs for Left
and Right stereo
channels.
These knobs adjust
input signal level.
INPUT3 has CV
controlled autopan
option, and this knobs
attenuates panning
CV level.
Patch audio signals from
four dierent audio sources
here! INPUT4 is stereo
input, and if you patch only
Left channel, the signal is
automatically routed to the
Right channel
Apply INPUT3 panning
CV here!
BLACK OUTPUT MODULE
