UserManualand

InstallInstructions

 







‐FOROUTDOORUSEONLY.



‐READTHEINSTUCTIONSCAREFULLYAND

BESUREYOURBARBECUEISINPROPERLY

INSTALLEDANDASSEMBLED.

FAILURETOFOLLOWTHESEINSTRUCTIONS

MAYRESULTINSERIOUSINJURYORDAMAGE.



‐PLEASERETAINTHEMANUALFORFUTURE

REFERENCE.



‐CONVERSIONOFNATURALGASONLYTOBE

DONEBYAUTHORIZEDPERSONS.



‐REMOVALOFANYTRANSITPROTECTIONBEFORE

USING

COKBBQEUGABR8

NOTETOINSTALLER:

TESTOPERATIONOFTHEAPPLICANCEANDINSTRUCT

THEUSERBEFORELEAVING.





MillsInternationalTradingPty,Ltd.

2/5 StantonRoad,SevenHillsNSW2147AUSTRALIA



2

USE



OUTDOORS



ONLY



Thisapplianceshallonlybeusedinanabovegroundopen‐airsituationwithnaturalventilation,withoutstagnantareas,

wheregasleakageandproductsofcombustionarerapidlydispersedbywindandnaturalconvection.

Anyoutdoorenclosureinwhichtheapplianceisusedshallcomplywithoneofthefollowing:

l

 Anenclosurewithwallsonallsides,butatleastonepermanentopeningatgroundlevelandnooverheadcover.See

Figure1.

l

 Withinapartialenclosurethatincludesanoverheadcoverandnomorethantwowalls.SeeFigure2&3.

l

 Withinapartialenclosurethatincludesanoverheadcoverandmorethantwowalls ,thefollowingshallapply:

‐Atleast25%ofthetotalwallareaiscompletelyopen;and

‐Atleast30%oftheremainingwallareaisopenandunrestricted.SeeFigure4&5.

l

 Inthecaseofbalconies,atleast20%ofthetotaloftheside,backandfrontwallareasshallbeandremainopenand

unrestricted.

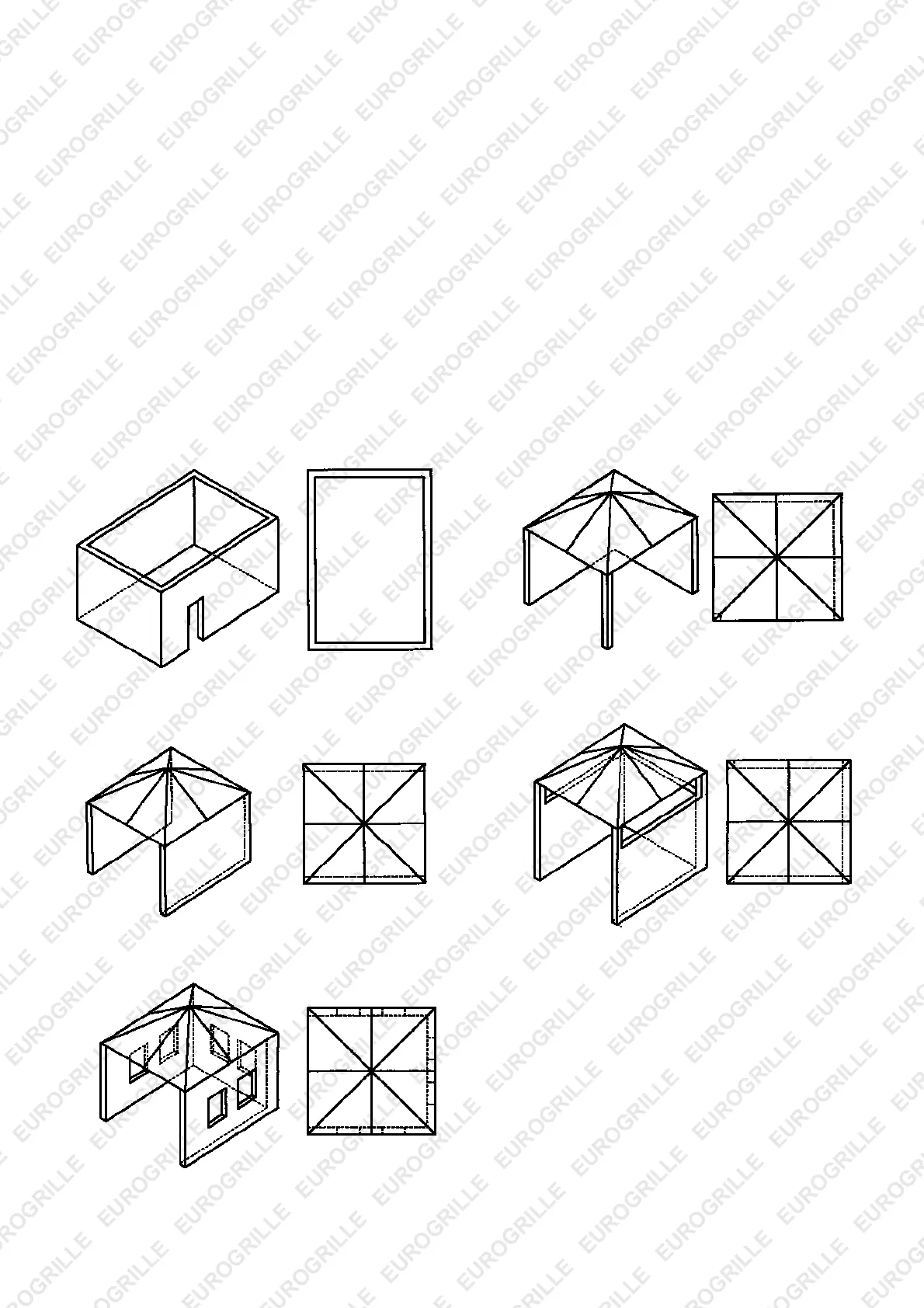

Thefollowingdiagramsprovideadiagrammaticrepresentationofoutdoorareas.Rectangularareashavebeenusedinthese

figures‐thesameprinciplesapplytoanyothershapedarea









Figure1‐Enclosurewithwallsonallsides butFigure2‐PartialEnclosurewithoverheadcoverand 



nooverheadcovernomorethantwowalls









Figure3‐PartialEnclosurewithoverheadcoverandFigure4‐Opensideatleast25%oftotalwallarea.



nomorethantwowalls30%ormoreintotalof theremainingwallareais



openandunrestricted.







Figure5‐Opensideatleast25%oftotalwallarea.30percentor

moreintotaloftheremainingwallareais

openandunrestricted



EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE

3

GASCYLINDERINFORMATION



• Thisapplianceisdesignedtobeusedwithagascylindernotexceeding(Australia9KG)

• Thegascylindersupplyvalvemustbeturnedoffwhentheapplianceisnotinuse.

• Gascylindersmustbe storedoutdoors,outofreachofchildrenandmustnot bestoredin abui

lding,gara

geor

anyotherenclosedarea.

• Thegascylinderusedmustincorporateasafetycollartoprotectthevalveassembly.

*Neverstoreasparecylinderunderthebarbecueshelvesorinsidethetrolleyhousing.Any

LPGcylindernotattachedtotheBBQforuseshouldbesto

redoutdoorsand

wellawayfromthisappliance.

Important:

• When disconnecting and removing the gas cylinder for the purpose of refilling, always observe the following

procedure.

• Ensurethatall gas controlvalves on theappliance andthe gas cylinder areturnedoff beforedisconnecting the

regulatorfromthecylinder.

• Dono

tsmoke

oruseanakedflameneartheapplianceorgascylinderwhiledisconnectingthegaslinebetween

theapplianceandgascylinder.

• Removethegascylinderfromtheenclosurebeforedisconnectingtheregulatorfromtheappliance.

• Tightenallconnectionsbeforeplacingthegascylinderbackinitsenc

losure.



• Thegasleaktestingprocedureshouldbeconductedeverytimethegascylinderisrefilledandreconnectedtothe

appliancebeforeusingtheappliance.



RegulatorConnection

1.Checkthatallcontrolknobsareinthe‘O ff’position.

2.Makesurethecylindervalveisoff.

3.

Removetheprotectivecapfromthecylinderifpresent.

4.Leaktesttheconnectionwithasoapywatersolution.



GasLeakTestProcedure

Neveruseanakedflametocheckforgasleaks.

Alwaysusethefollowingproceduretocheckforgasleaks.

1.Inasmallcontainer,mixupasolutionofwate

rand

de

tergentorsoap.Mixthesolutionwell.

2.Makesurethatthegassupplyvalveonthegascylinder

 isturnedon.

3.Makesurethatthegascontrolvalvesontheappliance

areallturnedoff.

4. Usingabrushorspraybottleapplythesolutiontothe

ga

slineandea

chjoininthegasline.

5.Bubblingofthesolutionwillindicatethatthereisaleak

present.

6.Re‐tightenorre‐sealanyjointsthatareleaking.

7.Ifaleakpersiststhencontactyourdistributororthe

manufacturerforassistance.


