EVERFOCUS

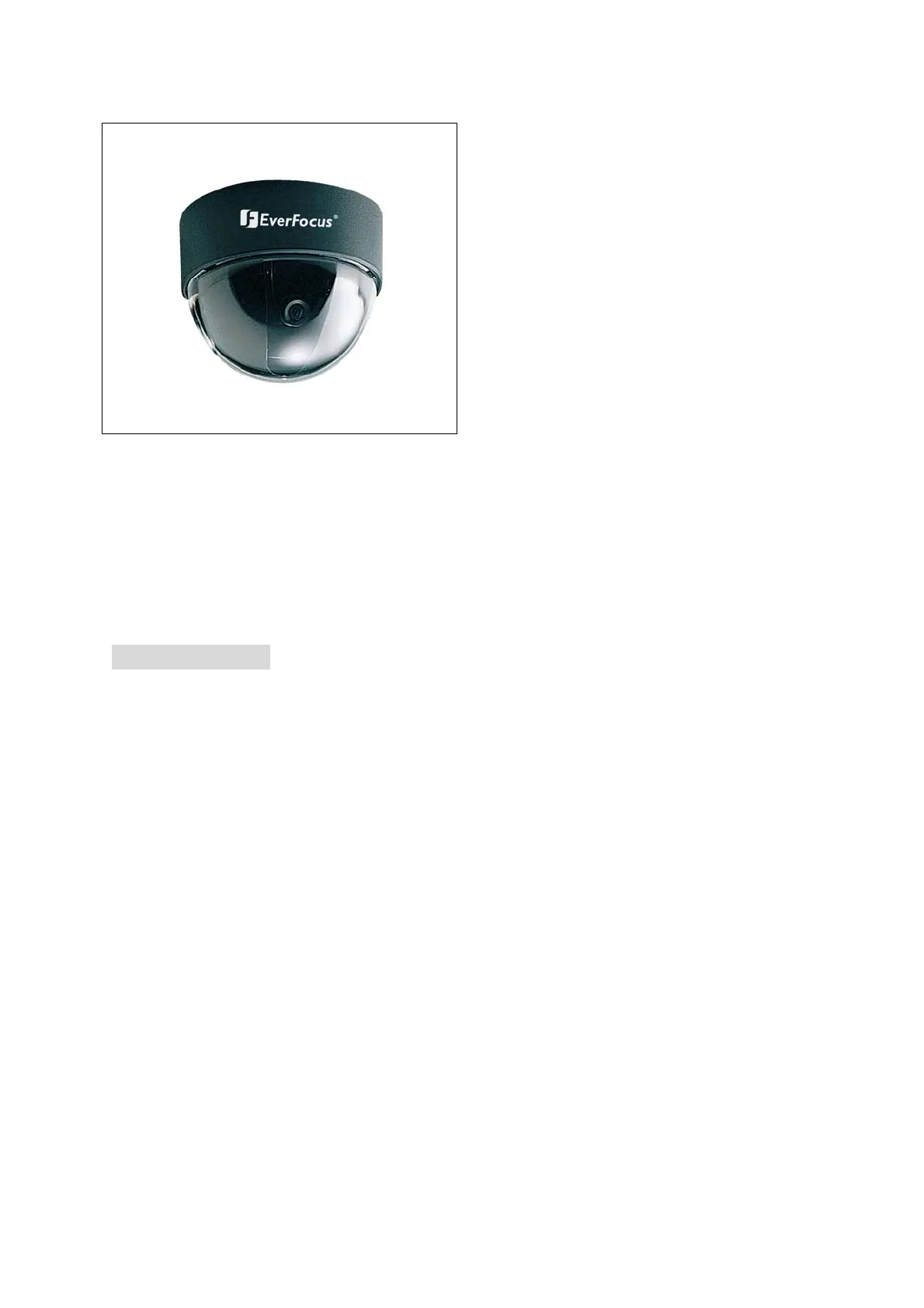

Color Dome Camera
Operation Instructions
Model No. ED200
Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1. Do not have camera immersed in water.
2. Do not disassemble it or place it on an unstable base.
3. Do not touch the surface of CCD sensor by hand directly.
4. Never face the camera toward the sun.
5. Use proper power source otherwise the camera will not function correctly.
6. Use the camera at temperatures within 0℃ ~ 50℃/32℉ ℉~122 and humidity between 20%~
80%. The input power sources is 12VDC only.
1
PREFACE
The ED200 Series Camera is a compact, full functioned CCD Camera. Their stylish appearance
can be applied as per installer's ideal locations. These dome cameras can be mounted either on
the ceiling or on the wall easily. ED200 uses high sensitive 1/3" color interline transfer CCD
sensor with DSP. The sensor is featured with Auto Electronic Shutter, Automatic Gain Control,
and Auto White Balance function.
FEATURES
z Designed with advance digital signal processing circuitry for high image quality
z The high sensitivity is achieved by using 1/3” SONY Super HAD interline transfer color
CCD
z Built-in vari-focal type, mechanical auto iris lens
z Built-in fixed lens
z Able to adjust the viewing range with manual zoom lens (for vari-focal lens only)
z Back Light Comp., Auto Gain Control and Auto White Balance functions
z Compact size: 108 mm O.D. x 80 mm H / 4.3” O.D x 3.2” H
z System available for NTSC or PAL
STANDARD ACCESSORIES
z Camera Unit
z Operation Instructions (this document)
2
LENS AVAILABLE
* Standard board lens f=3.6 mm, F=2.0 mm.
* Other available lens : 2 Lens f=2.5 mm, F=2.0 mm
4 Lens f=4.3 mm, F=2.0 mm
6 Lens f=6.0 mm, F=2.0 mm
8 Lens f=8.0 mm, F=2.0 mm
3P Pinhole lens f=3.7 mm, F=3.0 mm
INSTALLATION
1. Remove the plastic dome cover.
2. Loosen the two screws of the supporting bracket to remove the camera body.
3. Using four screws to fix the camera base on the ceiling.
4. Put the camera body back to the supporting bracket, the connector of the back panel
should always be placed to camera’s left lower corner, in order to obtain the image of best
quality. Tighten the 2 screws to fix the camera. Please refer to the back panel diagram
shows as below:
a. Floor Mount b. Ceiling Mount
c. Wall mount, aim to the right d. Wall mount, aim to the left
