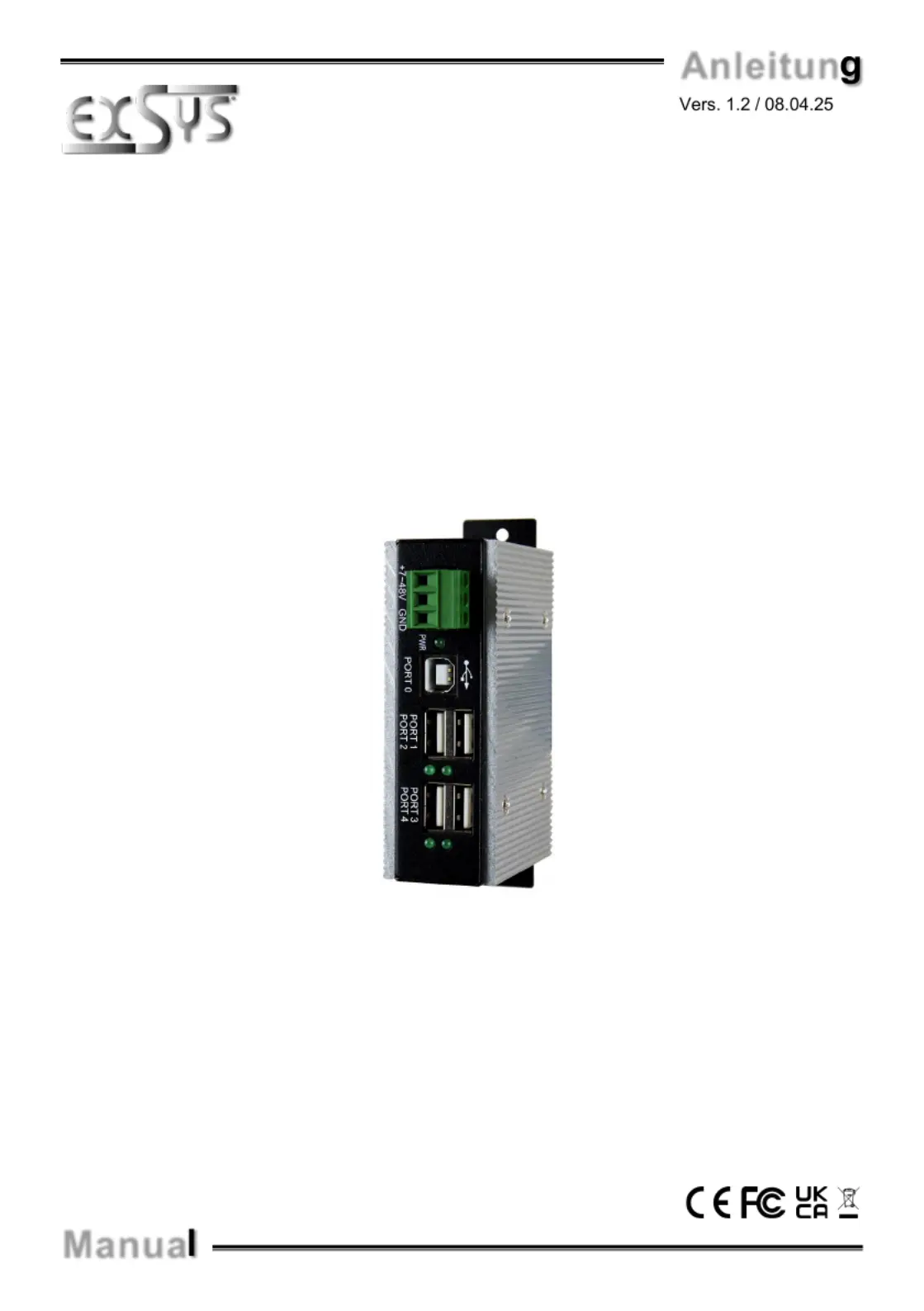

4 Port USB 2.0 Metal HUB (DIN Rail) - -

with 15KV ESD Surge Protection

and extended Temperature Range

EX-1163HMS-WT

4 Port USB 2.0 Metall HUB (DIN Rail) - -

mit 15KV ESD Überspannungsschutz

und erweitertem Temperaturbereich

Anleitun

Manua

Schweiz:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Deutschland:

EXSYS Vertriebs GmbH

Industriestraße 8

61449 Steinbach

www.exsys.de

Italia:

EXSYS Italia Srl

Via Belvedere, 45/B

I 22100 Como -

www.exsys.it

- - EX 1163HMS WT

1. Beschreibung···································································································· 3

2. Lieferumfang····································································································· 3

3. Aufbau & Anschlüsse ························································································ 4 5-

3.1 Aufbau································································································ ························ 4

3.2 Anschlüsse················································································································4 5-

4. Hardware Installation ··························································································· 5

5. Treiber Installation ······························································································ 6

6. Reinigung·········································································································· 6

7. Technische Daten ······························································································· 7

8. Technische Zeichnung ························································································· 7

1. Description ······································································································· 8

2. Extent of Delivery ······························································································· 8

3. Layout & Connections ····················································································· 9-10

3.1 Layout ························································································································ 9

3.2 Connections ············································································································ 9-10

4. Hardware Installation ························································································· 10

5. Driver Installation ······························································································· 11

6. Cleaning ·········································································································· 11

7. Technical Information ························································································· 12

8. Technical Drawing ····························································································· 12

Inhaltsverzeichnis

Index

EX- -1163HMS WT Deutsch

Der EX 1163HMS WT ist ein USB 2.0 HUB für bis zu vier Endgeräte. Er ist mit vier USB 2.0 A- - -

Ports für Endgeräte und einem USB 2.0 B Port Port für den Anschluss an den PC ausgestattet und -

unterstützt alle USB Standards von 1.1 bis 3.2. Durch die Stromversorgung über den Terminal

Block stehen an jedem Port die vollen 500mA zur Verfügung. Der EX 1163HMS WT garantiert - -

eine sichere Datenübertragung und volle USB 2.0 Performance von bis zu 480Mbit/s. Er

unterstützt nur den Self Powered Modus und somit ist es zwingend notwendig ein externes Netzteil

anzuschließen. Der EX 1163HMS WT kann in einem Temperaturbereich von 40°C bis 85°C - - -

betrieben werden und eignet sich ideal für den Einsatz in stark temperaturabhängigen Bereichen.

Zusätzlich ist der EX 1163HMS WT mit einem 15KV ESD Überspannungsschutz für jeden USB - -

Port ausgestattet. Zum Lieferumfang gehört ein DIN Rail Kit für die Hutschienenmontage, das -

einfach mit vier Schrauben an der Rückseite befestigt wird.

Merkmale:

• Kompatibel zu USB 1.1, 2.0 & 3.2

• Bis zu 480Mbit/s

• Es werden alle Betriebssysteme unterstützt

• 15KV ESD Überspannungsschutz

• Erweiterter Temperaturbereich von 40°C bis 85°C -

Bevor Sie den 1163HMS WT an Ihren PC anschließen, überprüfen Sie bitte zuerst den Inhalt EX- -

der Lieferung:

• EX-1163HMS-WT

• USB 2.0 Kabel

• DIN Rail Kit-

• Anleitung

1. Beschreibung

2. Lieferumfang

Produktspecifikationer

Varumärke:	EXSYS
Kategori:	USB-hubb
Modell:	EX-1163HMS-WT
Vikt:	200 g
Bredd:	114.5 mm
Djup:	73 mm
Höjd:	26.3 mm
LED-indikatorer:	Energiljus
Överspänningsskydd:	Ja
Hub-gränssnitt:	USB 2.0
Produktens färg:	Svart
bruksanvisning:	Ja
Temperatur vid drift:	-40 - 85 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Material, hölje:	Metall
Kabel inkluderad:	USB
Antal USB 2.0 anslutningar:	4
Linux operativsystem som stöds:	Ja
Faktisk dataöverföringshastighet:	480 Mbit/s
Antal anslutningar:	4
