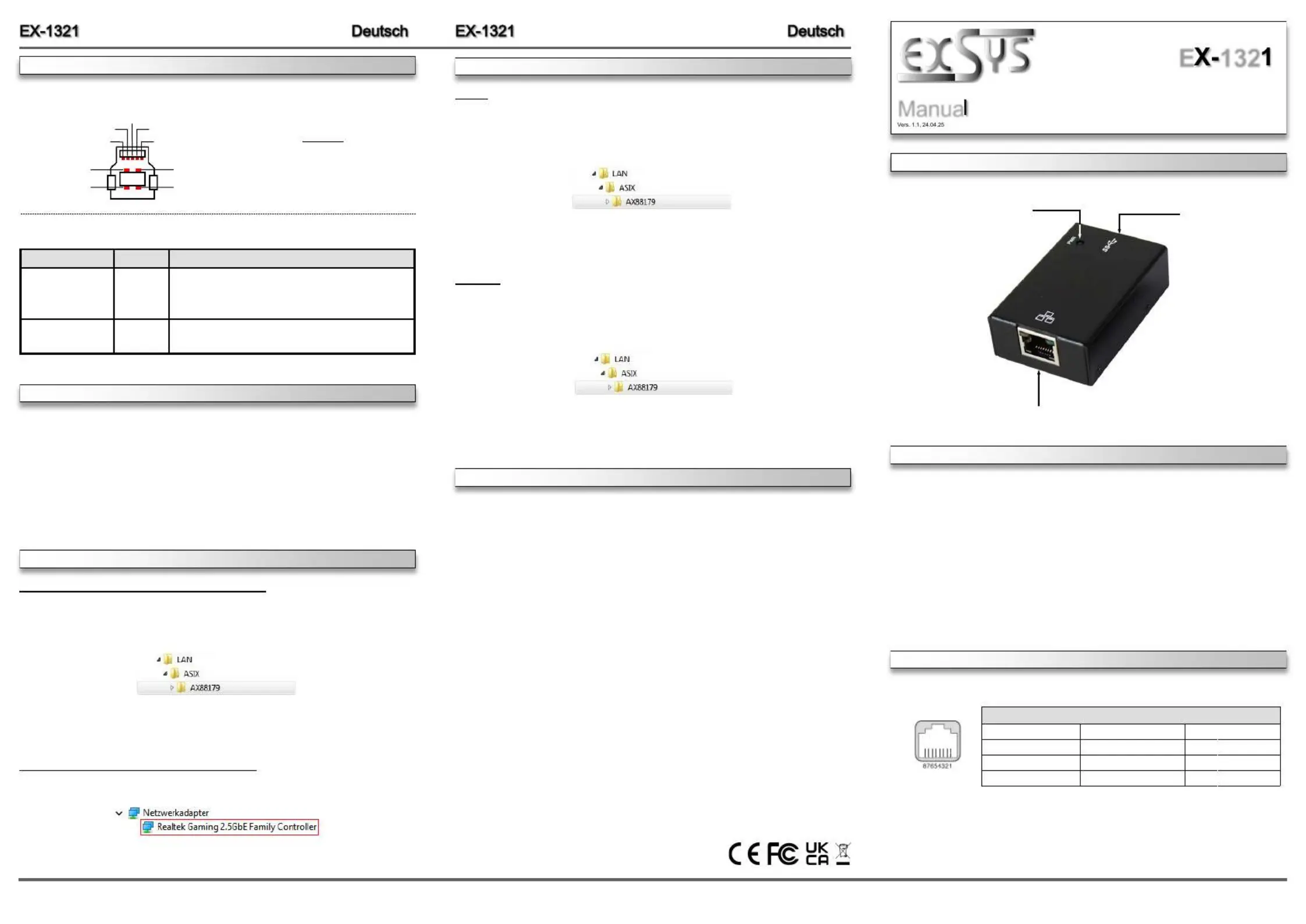

Sida 1/2

6 5

Mit dem EX 1321 können Sie Notebook, Desktop Rechner oder Server im 19 Zoll Rack über - -

den USB 3.2 Gen 1 oder 2.0 Ausgang in ein 10/100/1000Mbps Netzwerk einbinden. Der EX-

1321 kann gleichzeitig zu einer bestehender Netzwerkkarte installiert werden. Die Installation ist

sehr einfach ohne, dass die Systeme geöffnet werden müssen. Die Bauform des EX 1321 ist -

sehr kompakt und robust und bietet somit einen optimalen Einsatz in rauen Umgebungen. Mit

dem EX 1321 wir ein DIN Rail Kit mitgeliefert, für die Installation in ein 19 Zoll Rack. - - -

Kompatibilität: USB 1.1, 2.0, 3.2 Gen 1 / TCP/IP 10/100/1000

Betriebssysteme: Windows XP/ Vista/ 7/ 8.x/ 10/ 11/ Server 20xx/ Linux/ Mac OS

Anschlüsse: 1x USB 3.2 Gen 1 B Buchse, 1x RJ45 Gigabit Ethernet Anschluss -

Lieferumfang: 1321, USB 3.2 Gen 1 Kabel (verschraubbar), EX-

-Wandmontagehalterung, DIN Rail Kit, Anleitung

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

ANSCHLUSS & STATUS L sED

RJ45 Anschluss:

RJ45 Anschluss

Pin Signal Pin Signal Pin Signal

1 BI_DA+ 4 BI_DC+ 7 BI_DD+

2 BI_DA 5 BI_DC 8 BI_DD - - -

3 BI_DB+ 6 BI_DB -

Anleitun

E 132

Switzerland:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Germany:

EXSYS Vertriebs GmbH

Industriestrasse 8

61449 Steinbach

www.exsys.de

Italy:

EXSYS Italia Srl

Via Belvedere, 45/B

I 22100 Como -

www.exsys.it

USB 3.2 B Buchse zum-

Anschluss an den PC

Betriebs LED

RJ45 Anschluss

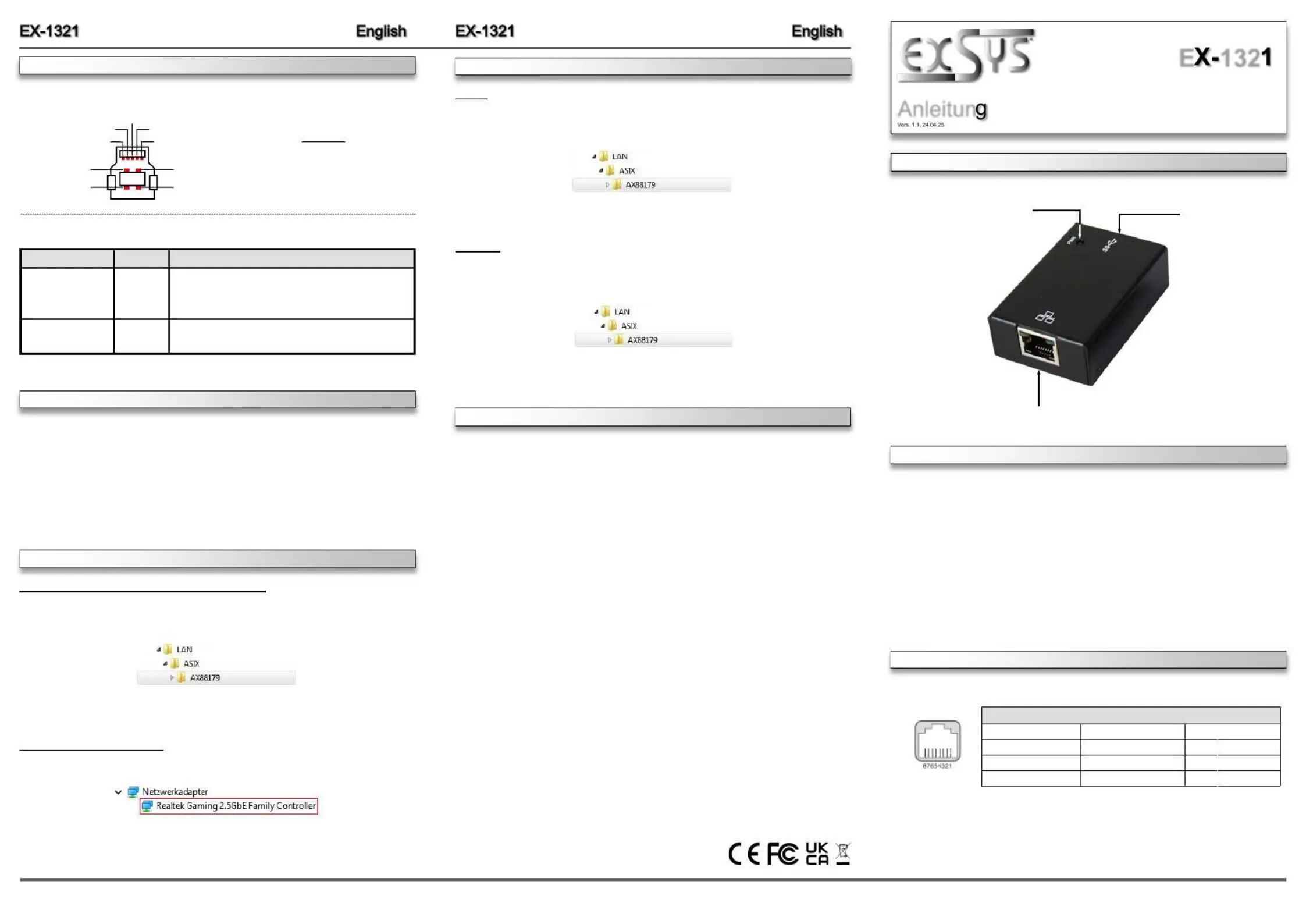

HARDWARE INSTALLATION

DRIVER INSTALLATION

Because there are large differences between PC s, we can give you only a general installation ’

guide for the EX 1321. Please refer your computer s reference manual whenever in doubt.-’

1. 1321. - -Connect the supplied USB 3.2 Gen 1 cable to the USB B Port of the EX

2. -Now connect the other end of the supplied USB 3.2 Gen 1 cable to a USB A Port on your

PC.

3. Now you can connect a network cable at the EX-1321.

CLEANING

Windows XP/ Vista/ 7/ 8.x/ 10/ Server 20xx

Once the hardware installation is complete, the operating system automatically recognizes the

EX-1321 and installs it. If the drivers are not installed automatically, you can download the

drivers from our website (www.exsys.de or www.exsys.ch) under Downloads for your product. “ ”

Now open the folder of your operating system and start the application located there. „ “setup

Now follow the installation instructions and complete the installation.

CHECK INSTALLED DRIVER

Open the >Device manager< Ethernet Adapter. Now you should see at „ “ the following new

entry:

If you see this or a similar information the device is installed correctly.

For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In

the area of the connectors please make sure that no fibres from the cloth remain in the connect-

ors. Attention! Never use a moist or wet cloth for cleaning!

CONNECTOR & STATUS L sED

Status LED‘s:

LED Name

Color

LED Function

Link/Act

Green

Continuously on: The Connection on the Ethernet port

is built and Active

Flash: Transmit Data

Off: Network connection is disconnected

Speed

Yellow

Off: 10/100Mbps Mode

Continuously on: Gigabit (1000Mbps) Mode

Attention!

Never plug in with

force or in wrong

direction

USB 3.2 Gen 1 B Port:-

StdB_SST

D-

StdB_SSTX

GND_DRAI

StdB_SST

D+

VBus

DRIVER INSTALLATION

Linux

Once the hardware installation is complete, the operating system automatically recognizes the

EX-1321 and installs it. If the drivers are not installed automatically, you can download the

drivers from our website (www.exsys.de or www.exsys.ch) under Downloads for your product. “ ”

Now open the folder of your operating system and remove the drivers for installing the EX-1321.

Mac OS

Once the hardware installation is complete, the operating system automatically recognizes the

EX-1321 and installs it. If the drivers are not installed automatically, you can download the

drivers from our website (www.exsys.de or www.exsys.ch) under Downloads for your product. “ ”

Now open the folder of your operating system and remove the drivers for installing the EX-1321.

Produktspecifikationer

Varumärke:	EXSYS
Kategori:	Nätverkskort/adapter
Modell:	EX-1321
Vikt:	300 g
Bredd:	75 mm
Djup:	42.5 mm
Höjd:	20.5 mm
LED-indikatorer:	Power, Status
Gränssnitt:	Ethernet
Kabelteknik:	10/100/1000BaseT(X)
Kompatibla operativsystem:	Windows XP/Vista/7/8/8.1/10 (32/64-Bit), \nWindows Embedded Compact 7 (CE 7.0/6.0/5.0)\nLinux 2.6.x oder höher, MAC OS 10.x
Värdgränssnitt:	USB
Maximal dataöverföringshastighet:	1000 Mbit/s
Produktens färg:	Svart
Antal USB-portar:	1
bruksanvisning:	Ja
Datahastighet för Ethernet-LAN:	100,1000,10000 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Temperatur vid drift:	0 - 55 ° C
Temperaturintervall (förvaring):	-40 - 75 ° C
Hållbarhetscertifiering:	RoHS
Material, hölje:	Metall
Kabel inkluderad:	USB
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Ja
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Intern:	Nej
Relativ fuktighet:	5 - 95 %
Drivrutiner medföljer:	Ja
