NetPA 204 POE • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com for the complete NetPA 204 POE user guide, and specications before
connecting the product to the power source.
This guide provides quick start instructions for an experienced installer to set up and operate the Extron NetPA 204 POE network
power amplier. The Dante-enabled amplier receives up to four channels of audio via its AT (PoE++) port and drives up to
20 watts per channel into 8Ω or 4Ω speaker loads. The amplier is powered via Power over Ethernet (PoE).
Installation
Step 1 — Mounting
Turn o or disconnect all equipment power sources and mount the unit as required with either the included MBU 123 Low-Prole
Mount Kit or the optional ATB 100 Amplier Tile Bridge Ceiling Mount Kit (which can mount the amplier above ceiling tiles, out of
sight and near the speakers).
Step 2 — Making Rear Panel Connections
NetPA 204 POE
R
CLASS 2 WIRING
8Ω/4Ω OUTPUTS
REMOTE
PoE POWER
+
+
+
CONFIG
G
MUTE
LINK
A T (PoE++)
4
3
2
1
AAACCC DDD BBB EEE

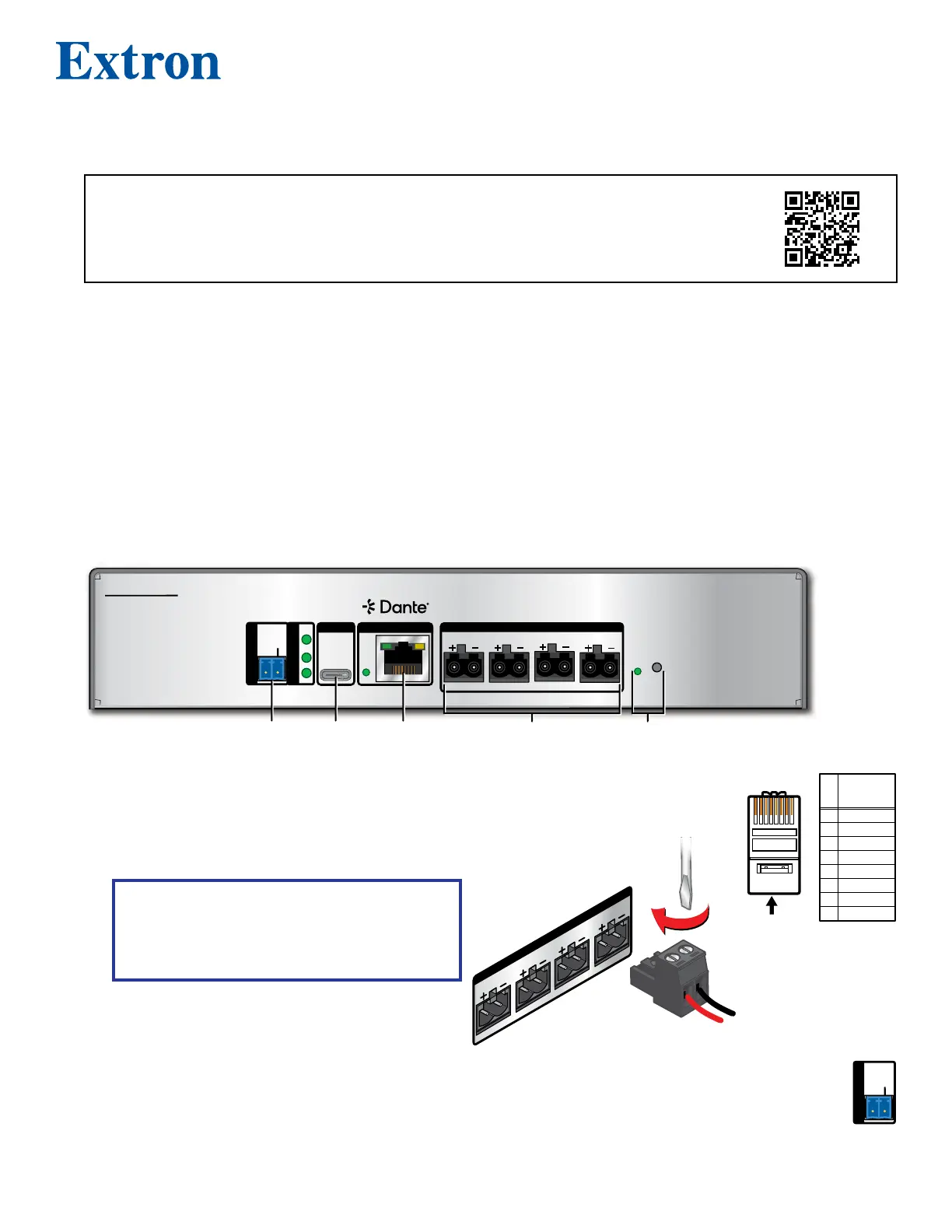

Figure 1. NetPA 204 POE Rear Panel
A
AT (PoE++) — Connect an RJ-45 connector to communicate with both the Dante network and a
5
Pin
1
2
3
6
7
8
4
Wire color
White-green
Green
White-orange
White-blue
Orange
White-brown
Brown
Blue
TIA/EIA T
568B
TP Wires
12345678
Pins:
computer running the Extron DSP Configurator Pro software. The Link LED indicates when a Dante
sync connection is made.
B
8Ω/4Ω OUTPUTS 1 through 4 — Connect up to four 2-pin,
CLASS 2 WIRING
8Ω/4Ω OUTPUTS
1
2
3
4
5mm captive-screw connectors to the speaker outputs.
ATTENTION:
• Use ‘Class 2 Wiring’ to connect speakers to
the amplier output.
• Utilisez un câblage de classe 2 pour connecter
les enceintes à la sortie de l’amplicateur.
C
REMOTE port — To mute all four outputs, jump the MUTE pin to the ground (G) pin on this 2-pole 3.5mm captive
REMOTE
G
MUTE
screw connector. Remove the jump to unmute the output (output audio).
D
CONFIG(uration) port — Connect a PC or other controlling device into the amplifier via this USB-C connector for
configuration of the amplifier using Extron DSP Configurator Pro software.
E
Reset button and LED — Initiates reset modes (see the NetPA 204 POE User Guide for details).
