1

RM 7, 8, 9 - Rack Mount TLP Accessories • Setup Guide

IMPORTANT NOTE:

Go to www.extron.com for the complete RM 7, RM 8, or RM 9 specications, and related TLP Pro series

(535M, 835M, 1035M, or 1535M) installation instructions and specications.

Rack Mount Overview

This guide provides instructions for experienced installers to utilize

the following rack mount TLP accessory options:

•RM 7 — to mount and install the Extron TLP Pro 535M (see

gure 3 on page 2) or 835M (see gure 1) touchpanel in a

standard 19-inch equipment rack with 3U of vertical space.

•RM 8 — to mount and install the Extron TLPPro 535M (portrait-

style, see gure 4 on page 2) or 1035M (see gure 2) in a

standard 19-inch equipment rack with 4U of vertical space.

•RM 9 — to mount and install the Extron TLPPro 1535M

touchpanel (see gure 5on page 2) in a standard 19-inch

equipment rack, with 6U of vertical space.

Preparing and Installing

Secure the RM 7, RM 8, or RM 9 to the rack using the provided

#10-32 screws (see gures on the right and page 2,

1

). Ensure the

correct orientation (the top and bottom of the RM has a lip that faces

backwards).

For the location of the screws on any of the TLP mounting plate

options, see their respective mounting diagram.

Each RM includes ease-of-access openings for the status LEDs, reset

button, and menu button of their respective TLP Pro touchpanels.

Mounting the Touchpanel

Use the following steps to mount the TLP Pro touchpanel with their

respective TLP Pro mounting plate:

1.Attach the TLP mounting plate to the RM, using the four

provided M3 screws (

2

). Ensure the mounting plate is in the

correct orientation with the hooks on the mounting plate pointing

upwards (

3

) and facing outwards from the RM.

2.Run an Ethernet cable to the rack. Pass it through the RM and

mounting plate.

3.Connect the cable to the LAN/PoE input behind the touchpanel

(see the TLP Pro Series User Guide at www.extron.com).

4.Align the TLP Pro so that the four hooks on the mounting plate

fit into the four slots behind the touchpanel. The TLP Mounting

Plate has only two hooks to fit into the touchpanel (see the TLP

Pro Series User Guide).

5.Press the touchpanel onto the hooks and slide it downwards so

that the hooks sit securely in the slots.

6.The tongue at the bottom of the mounting plate (

4

) sits in the

groove in the bottom of the touchpanel (see inset,

5

). Fasten

the two together by tightening the lock screw (

6

).

RM 7

TLP Mounting Plate

TLP Pro 835M

Back View

5

44

1

2

4

3

5

6

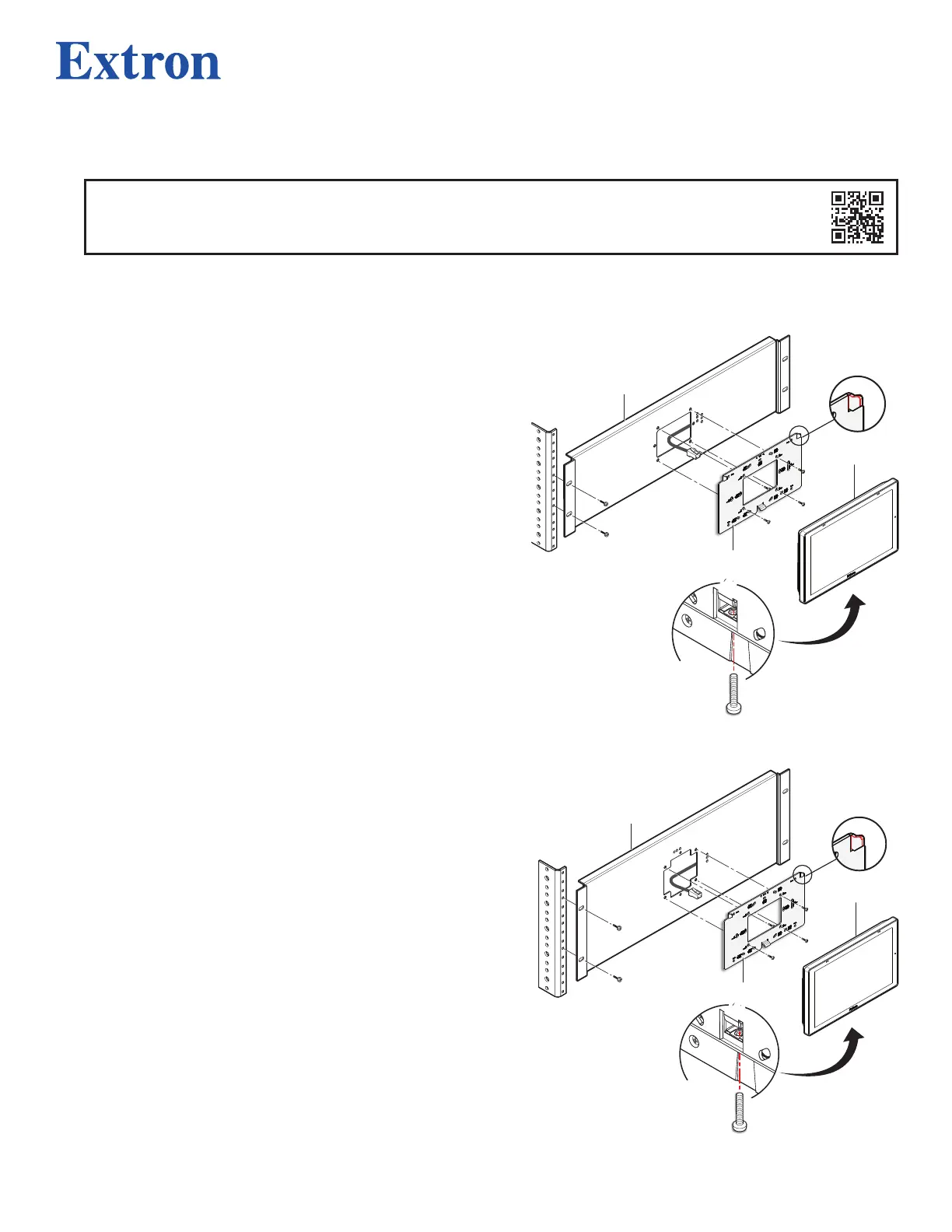

Figure 1. RM 7 and TLP Pro 835M Installation

RM 8

TLP Mounting Plate

TLP Pro 1035M

Back View

44

1

2

4

3

5

6

Figure 2. RM 8 and TLP Pro 1035M Installation
