1

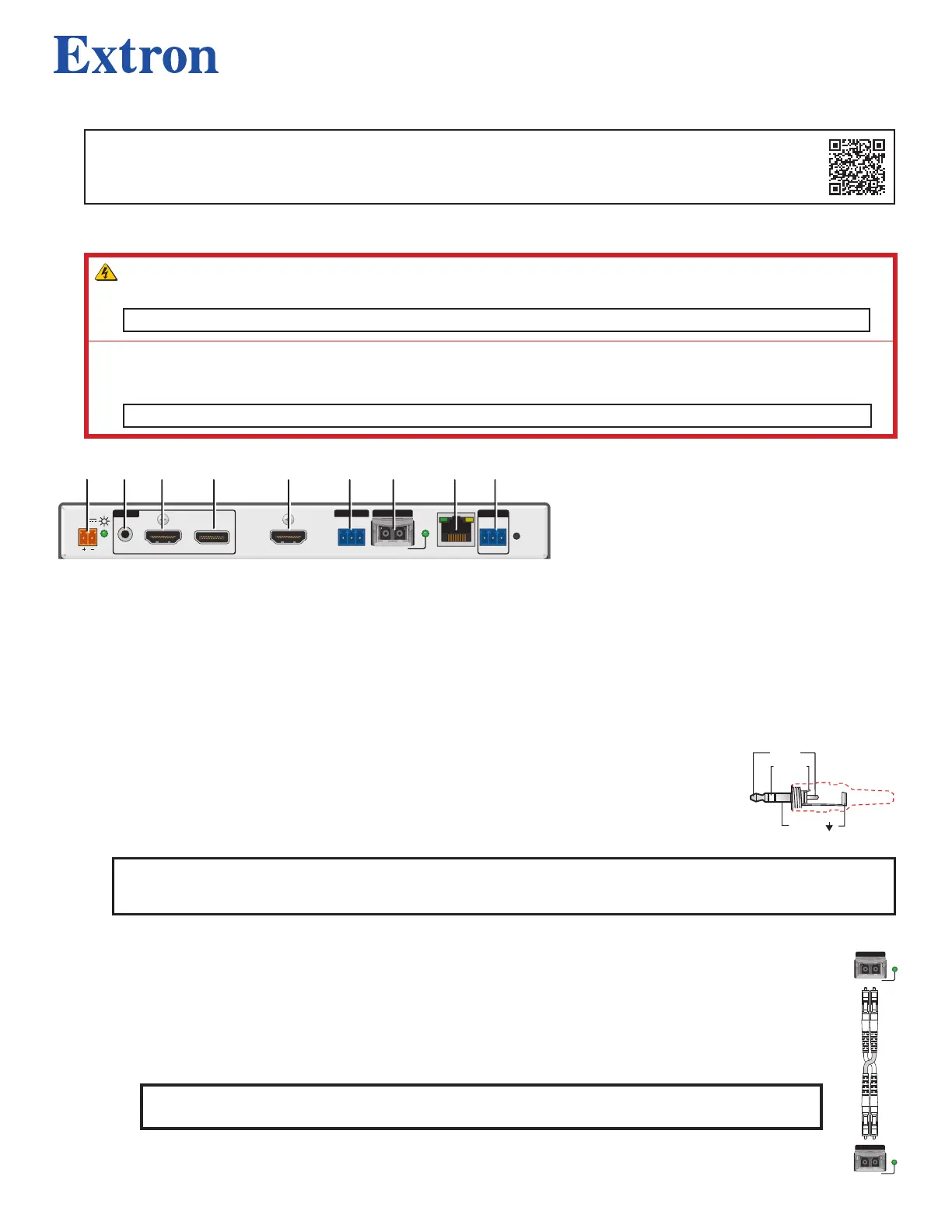

XTP II FT 402 8K • Setup Guide

IMPORTANT NOTE:

Go to www.extron.com for the complete user guide, installation instructions, and specications before

connecting the product to the power source.

The Extron XTP II FT 402 8K is an XTP

®

transmitter for video, audio, bidirectional control, and Ethernet transmission over two ber

optic cable. This guide provides instructions for an experienced installer to install and connect the XTP II FT 402 8K.

WARNING:The XTP II FT 402 8K outputs continuous invisible light (Class 1 rated), which may be harmful to the eyes;

use with caution. Plug the attached dust caps into the optical transceivers when the ber cable is unplugged.

CLASS 1 LASER PRODUCT, see the XTP II FT 402 8K User Guide, at www.extron.com.

AVERTISSEMENT :Le XTP II FT 402 8K émet une lumière invisible en continu (conforme à la classe 1) qui peut être

dangereux pour les yeux, à utiliser avec précaution. Branchez les protections contre la poussière dans l’ensemble

émetteur/récepteur lorsque le câble bre optique est débranché.

Produit laser de classe 1, voir le XTP II FT 402 8K User Guide sur www.extron.com (en anglais).

OVERXTPXTP OUT

RS-232

TxRxG

RS-232

TxRxG

REMOTE

LAN

R

POWER

--A MAX

12V

INPUTS

1

HDMI

HDMI OUT

OUTIN

2

DISPLAYPORT

AUDIO

XTP II FT 402 8K

A

BCDEFGHI

Figure 1. Rear Panel Connectors

Installation

Step 1 — Mount the Device

Turn o󰀨 or disconnect all equipment power sources and mount the transmitter on a tabletop or in a rack.

Step 2 — Connect Input and Output Devices

1. Connect an unbalanced analog audio source to the 3.5 mm, TRS connector (see gure 1,

B

). Wire

the connector as shown to the right. Audio from this input can be transmitted with any of the two

video inputs. By default, HDMI embedded audio is given priority.

2. Connect a digital video source to the female HDMI connector (

C

). It can accept HDMI, DVI (with an

appropriate adapter), or dual mode DisplayPort video signals.

NOTES:

• Use an Extron LockIt

®

Plus lacing bracket to secure HDMI cables to the rear panel connectors.

• Video input from a DisplayPort source must be a dual mode DisplayPort source.

3. Connect a DisplayPort video source to the female DisplayPort connector (

D

).

4. Connect a digital video display to the HDMI output connector (

E

).

Step 3 — Connect Throughput Devices

1. Connect a ber optic cable between the XTP connector on the transmitter (

G

) and the receiving device as

follows (see the image on the right for ber cable connections):

a. Connect the fiber cable between the transmitter Out port and the receiver In port (

1

).

NOTE:Ensure that the transmitter and connected receiver are in the same transmission mode,

singlemode (SM) or multimode (MM) and use the correct SM or MM ber cable to connect the devices.

b. To return serial data from the receiver to the transmitter, connect a cable between the receiver Out port

and the transmitter In port (

2

). The IN LED indicator lights green when light is present on the conductor.

A

DC power connector

B

Analog audio input

connector

C

HDMI input connector

D

DisplayPort input

connector

E

HDMI output connector

F

Over XTP (RS-232)

connector

G

XTP output connector

H

LAN connector

I

Remote RS-232

connector

Sleeve ( )

Ring(R)

Tip(L)

3.5 mm Stereo Plug Connector

(balanced)

Receiver

Transmitter

11

22

22

11

XTP OUT

OUTIN

XTP IN

OUTIN
