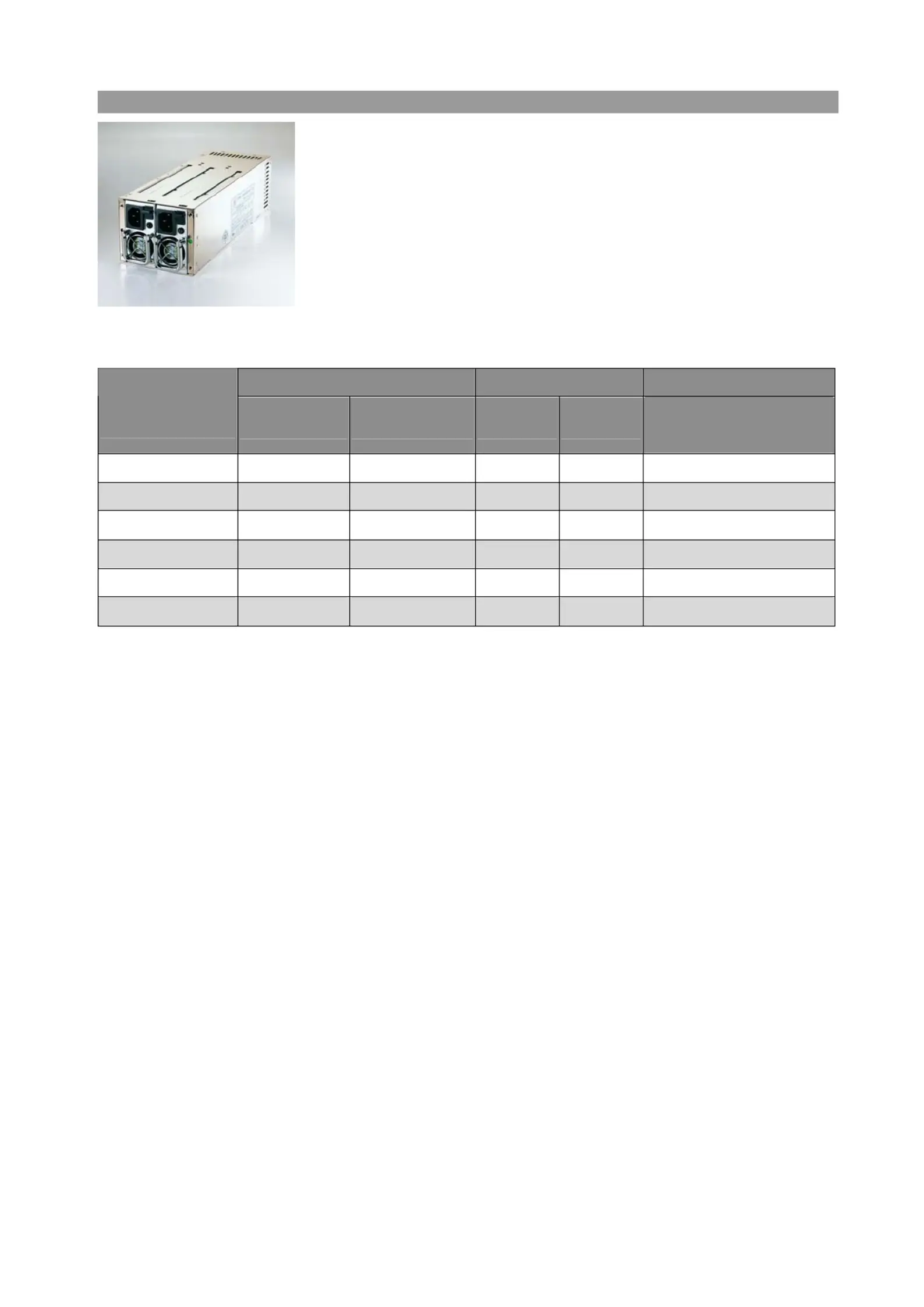

I-Star Computor Co., Ltd TC-400R2U 400W 2U redundant

PrProfessional P

ofessional P

ofessional Pofessional Power supply …… Industrial PC, Ser

ower supply …… Industrial PC, Ser

ower supply …… Industrial PC, Serower supply …… Industrial PC, Server

ver

verver, Storage

, Storage

, Storage , Storage

Best Solution Guide

Best Solution Guide Best Solution Guide

AC Input

tt：

：

：：

VOLTAGE：100～240V(Active PFC/Full Range)

FREQUENCY：47～63Hz

POWER FACTOR CORRECTION：0.95

INPUT CURRENT：8A/4A For 115/230VAC

INRUSH CURRENT：60A/80A MAX FOR 115/230

DC Output：

：

：：

OUTPUT CURRENT REGULATION OUTPUT

OUTPUT

VOLTAGE

MIN MAX（）A （）A

LOAD LINE

RIPPLE & NOISE

MAX.［P-P］

+5V 3 40 ±5% ±1% 50mV

+12V 2 28 ±5% ±1% 120mV

-5V 0.1 0.5 ±10% ±1% 150mV

-12V 0.1 0.8 ±10% ±1% 150mV

+3.3V 1 20 ±5% ±1% 50mV

+5VSB 0.1 2 ±5% ±1% 50mV

The combined output power +5V&+3.3V shall not exceed 40A.

The total power shall not exceed 400W.

Features…

◎ TEMPERATURE RANGE：Operation 0℃～50 ℃

◎ HOLD UP TIME：16ms at maximum load & normal input voltage

◎ EFFICIENCY：（）70% TYPICAL Normal Line

◎ POWER GOOD SIGNAL：Should be asserted high to indicate that+5VDC and +3.3VDC

output are above the low voltage thresholds. Compatible signal out with 100ms to 500ms.

◎ OVER POWER PROTECTION：The power supply shall shout down output power

exceeds 130% to 160%

◎ OVER VOLTAGE PROTECTION：+5V, +3.3V and +12V DC outputs set at 110%-130%

◎ SHORT CIRCUIT PROTECTION：A short circuit placed between the DC return and

the output shall cause no damage and the power supply shall shutdown.

◎ EMI：FCC part 15, subpart B, Class B, EN55022 CISPR22 Class B.

◎ Meet EN-61000-3-2 CLASS D ( Active PFC )

◎ GAENCY APPROVALS：UL60950, CAN/CSA22.2 No.60950, TUV(IEC60950)

◎ MTBF OF POWER SUPPLY ELECTRONNIS：100,000 hours at 25℃.

LIFE EXPCTANCY OF FAN 40,000 hours at 40℃

◎ COLLING：By forced air 1x40mm Fan (Each module)

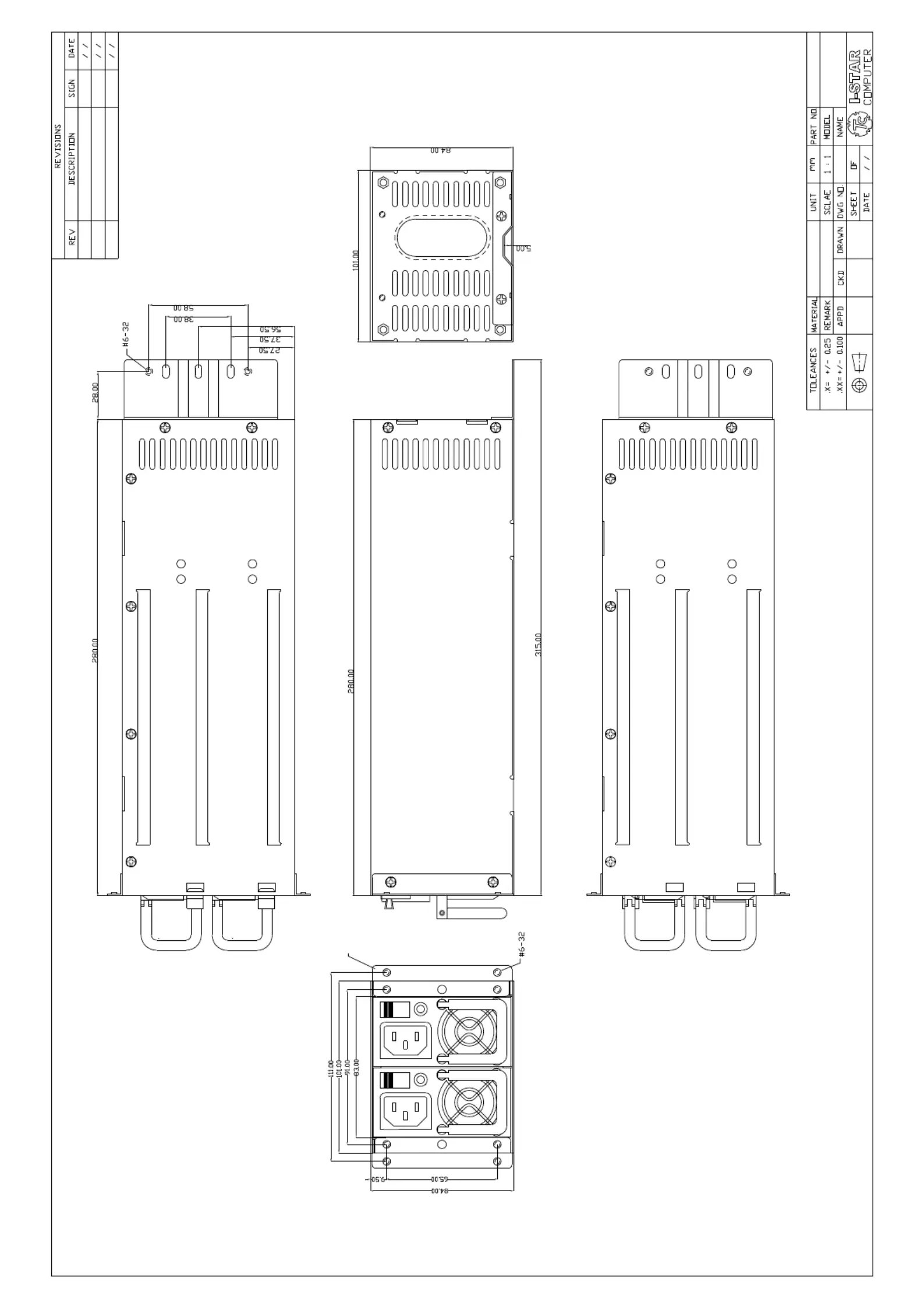

◎ DIMENSION：D280 X W101 X H84mm

I-STAR

TC-R2U

OPTION

+3.3VDC +3.3VDC

-12VDC

-5VDC

+5VDC

COM

PS_ON#

+3.3VDC

+5VDC

+12VDC

+5VDC

+12VDC

+5VDC

+3.3VDC

+5VSB

PWR_OK

COM

Pin1 Pin1

Pin1

Pin4

Pin5Pin13

+12V 8P Power Connector

Peripheral Power

Connector

Floppy Drive

Power Connector

Main Power Connector

+12V = yellow

+5V = red

+3.3V = purple

+5VSB = brown

PS_ON# = gray

PWR_OK = orange

-5V = white

-12V = blue

COM = black

PINOUTS OF CONNECTORS

Produktspecifikationer

Varumärke:	Fantec
Kategori:	Dator strömförsörjning
Modell:	1562
Medeltid mellan fel (MTBF):	100000 h
Produktens färg:	Silver
Produktstorlek (BxDxH):	101 x 280 x 84 mm
ATX strömkontakt (24-pin):	Ja
EPS strömkontakt (8-polig):	Ja
Total effekt:	400 W
Periferiska (Molex) strömkontakter (4-pin):	5
Antalet SATA strömkontakter:	2
Diskettenhet strömkontakt:	1
ATX strömkontakt (20 4 stift):	Ja
