cod. 3541M121EN — Rev. 00 - 01/2020

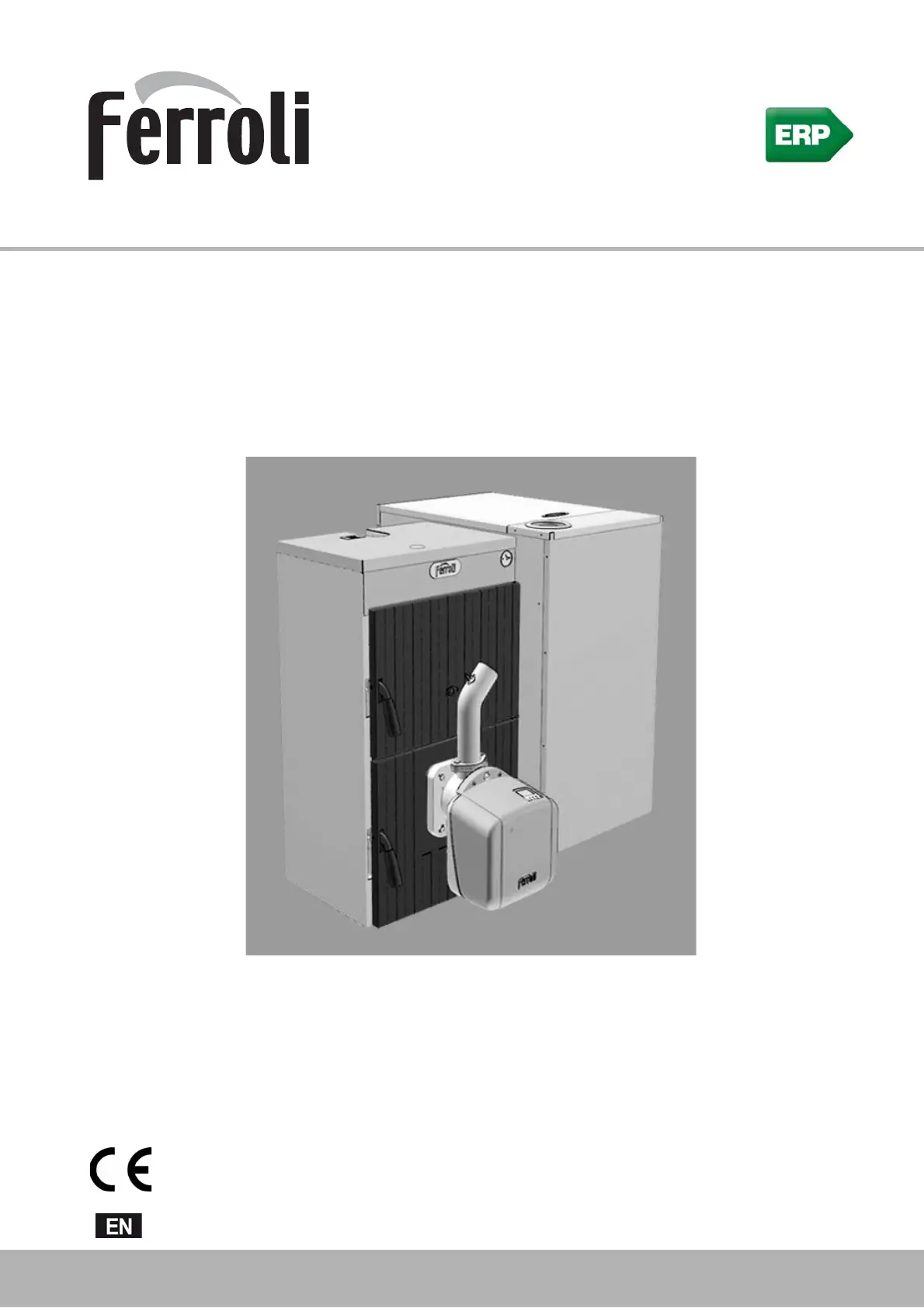

SUNPELLET

INSTRUCTIONS FOR USE, INSTALLATION AND MAINTENANCE

SUNPELLET

2EN

The CE marking certifies that the products meet the essential requirements of the rele-

vant directives in force.

The declaration of conformity may be requested from the manufacturer.

COUNTRIES OF DESTINATION: IT - RO - CZ - HU

This symbol indicates “CAUTION” and is placed next to all safety warnings. Strictly follow these instructions in order to avoid

danger and damage to persons, animals and things

This symbols calls attention to a note or important notice.

This symbol, which is used on the product, packaging or documents, means that at the end of its useful life, this product must

not be collected, recycled or disposed of together with domestic waste.

Improper management of electric or electronic waste can lead to the leakage of hazardous substances contained in the pro-

duct. For the purpose of preventing damage to health or the environment, users are kindly asked to separate this equipment

from other types of waste and to ask for it to be dealt with by the municipal waste service or dealer under the conditions and

according to the methods set down in national and international laws transposing the Directive 2012/19/EU.

Separate waste collection and recycling of unused equipment helps to save natural resources and to guarantee that this waste

is processed in a manner that is safe for health and the environment.

For more information about how to collect electric and electronic equipment and appliances, please contact your local Council

or Public Authority competent to issue the relevant permits.

cod. 3541M121EN - Rev. 00 - 01/2020

• Read the warnings in this instruction booklet ca-

refully since they provide important information

on safe installation, use and maintenance.

• This instruction booklet is an integral and essen-

tial part of the product and must be kept with care

by the user for future reference.

• If the unit is sold or transferred to another owner

or if it is to be moved, always make sure the bo-

oklet stays with the boiler so that it can be consul-

ted by the new owner and/or installer.

• Installation and maintenance must be carried out

by professionally qualified personnel, according

to current regulations and the manufacturer's ins-

tructions.

• Incorrect installation or inadequate maintenance

can result in damage or injury. The manufacturer

declines any liability for damage caused by errors

in installation and use or by failure to follow the

instructions provided.

• Before carrying out any cleaning or maintenance

operation, disconnect the unit from the power su-

pply using the system switch and/or the special

cut-off devices.

• In case of a fault and/or poor operation, deactiva-

te the unit and do not try to repair it or directly in-

tervene. Contact professionally qualified

personnel. Any repair/replacement of the pro-

ducts must only be carried out by qualified per-

sonnel using genuine parts. Failure to comply

with the above can compromise the safety of the

unit.

• Periodic maintenance performed by qualified

personnel is essential in order to ensure proper

operation of the unit.

• This unit must only be used for its intended pur-

pose. Any other use is deemed improper and the-

refore hazardous.

• After unpacking, check the good condition of the

contents. The packing materials are potentially

hazardous and must not be left within the reach

of children.

• The unit can be used by children aged at least 8

years and by persons with reduced physical, sen-

sory or mental capabilities, or lacking experience

or the necessary knowledge, only if under super-

vision or they have received instructions on its

safe use and the related risks. Children must not

play with the unit. Cleaning and maintenance in-

tended to be done by the user can be carried out

by children aged at least 8 years only if under su-

pervision.

• In case of doubt, do not use the unit. Contact the

supplier.

• The unit and its accessories must be appropria-

tely disposed of in compliance with current regu-

lations.

• The images given in this manual are a simplified

representation of the product. In this representa-

tion there may be slight and insignificant differen-

ces with respect to the product supplied.

SUNPELLET

cod. 3541M121EN - Rev. 00 - 01/2020

1 Operating instructions ............................................................................................................ 4

1.1 Introduction............................................................................................................................................. 4

1.2 Control panel ..........................................................................................................................................4

1.3 Lighting and shutdown ........................................................................................................................... 5

1.4 Adjustments............................................................................................................................................6

1.5 Operating instructions .......................................................................................................................... 12

1.6 Cleaning the burner grille .....................................................................................................................12

2 Installation.............................................................................................................................. 13

2.1 General Instructions ............................................................................................................................. 13

2.2 Installation in boiler...............................................................................................................................13

2.3 Electrical connections........................................................................................................................... 17

2.4 Fuel supply ........................................................................................................................................... 17

2.5 Connection to an external hot water tank ............................................................................................. 18

3 Service and maintenance...................................................................................................... 19

3.1 Commissioning..................................................................................................................................... 19

3.2 Maintenance......................................................................................................................................... 20

3.3 Troubleshooting.................................................................................................................................... 22

4 TECHNICAL DATA AND CHARACTERISTICS ..................................................................... 23

4.1 Dimensions........................................................................................................................................... 23

4.2 General view and main components .................................................................................................... 25

4.3 Technical data table .............................................................................................................................25

4.4 Wiring diagram ..................................................................................................................................... 27
