Sida 1/2

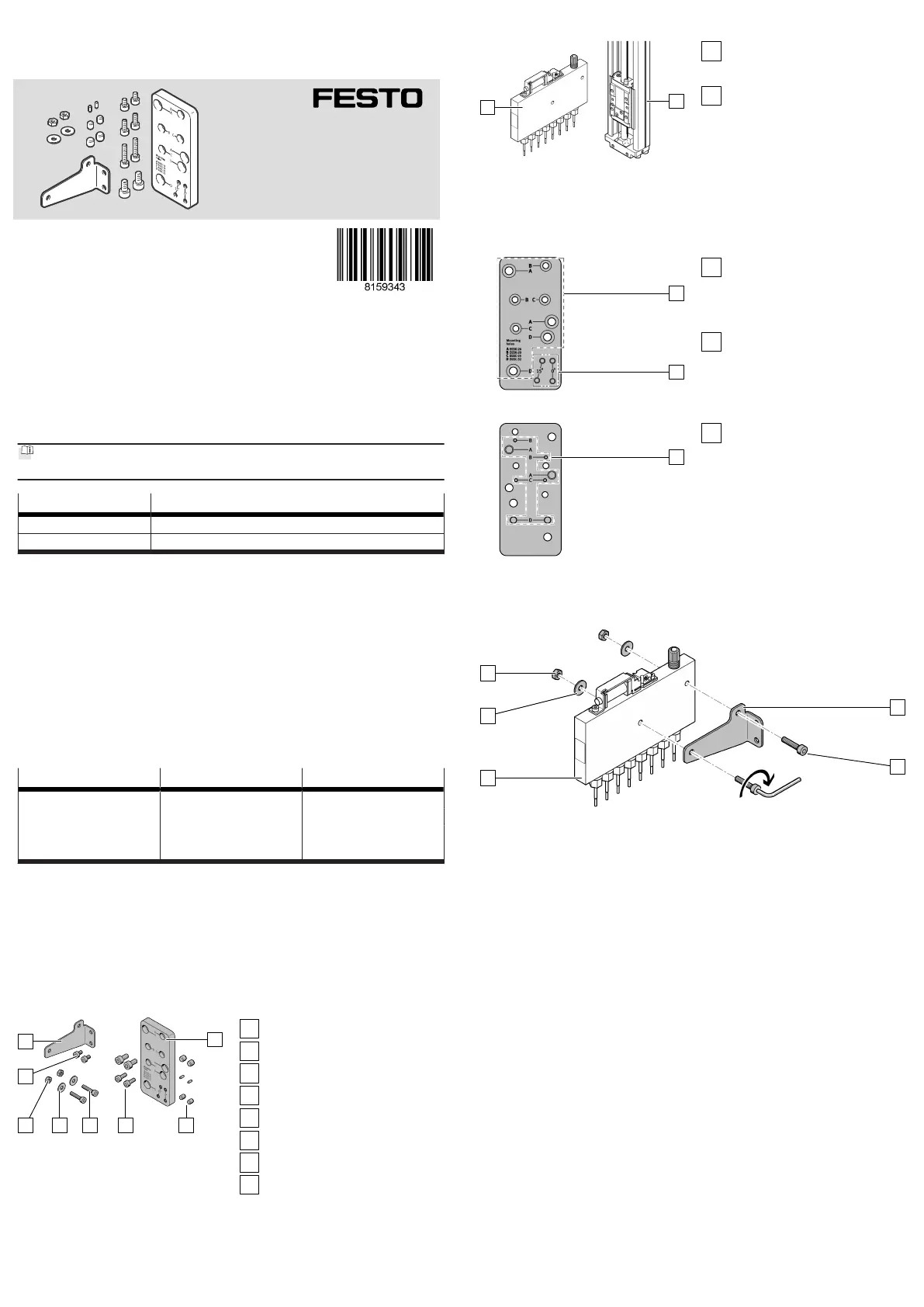

EHAM-MA-E19-25-C14
Adapter plate kit
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Assembly instructions
8159343
2021-08
[8159345]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
Document Product
User documents Actuators
User documents Modules
Tab. 1:
Applicable documents
2 Safety
2.1
Safety instructions
– Before working on the product, switch off the power supply and secure it
against being switched on again.
–
Observe further applicable documents.
– Observe tightening torques.
2.2 Intended use
2.2.1 Use
Connection of modules and actuators.
2.2.2 Permissible components
Module Adapter plate kit Actuator
VTOI EHAM-MA-E19-25-C14 EGSC-...-25
EGSC-...-32
EGSK-20
EGSK-26
Tab. 2:
Permissible components
3 Additional information
–
Contact the regional Festo contact if you have technical problems
è
www.festo.com.
–
Accessories and spare parts
è
www.festo.com/catalogue.
4 Product Range Overview
4.1 Scope of delivery
1
23456
7
8
Fig.1
1
Adapter plate (1x)
2
Centring pin (6x)
3
Screw (4x)
4
Screw (2x)
5
Washer (2x)
6
Hex nut (2x)
7
Screw (2x)
8
Mounting bracket (1x)
The kit contains all the mounting attachments that may be required. Some
mounting attachments will be left over.
4.2 Not in scope of delivery
9
10
Fig.2
9
Actuator (1x)
Mini slide EGSC
Electrical slide EGSK
10
Modul (1x)
Dispense head VTOI
5 Assembly
5.1 Preparation
•
Observe the labelling on the adapter plate.
P
Q
Fig. 3: Front side of the adapter plate
P
Drilled holes for screws
A EGSK-26
B EGSK-20
C EGSC-...-25
D EGSC-...-32
Q
Drill holes for VTOI
S
Fig. 4: Rear side of the adapter plate
S
Drilled holes for centring pins
A EGSK-26
B EGSK-20
C EGSC-...-25
D EGSC-...-32
5.2 Assembly
5.2.1 Preassembly
8
4
5
6
10
Fig. 5:
Mounting bracket on VTOI
•
Attach the mounting bracket 8 with the screws 4, the washers 5 and the
nuts 6 to the module aJ. Tightening torque: 0.5 Nm ± 10%
5.2.2 Connection VTOI with EGSC/EGSK
9
3
2
1
S
P

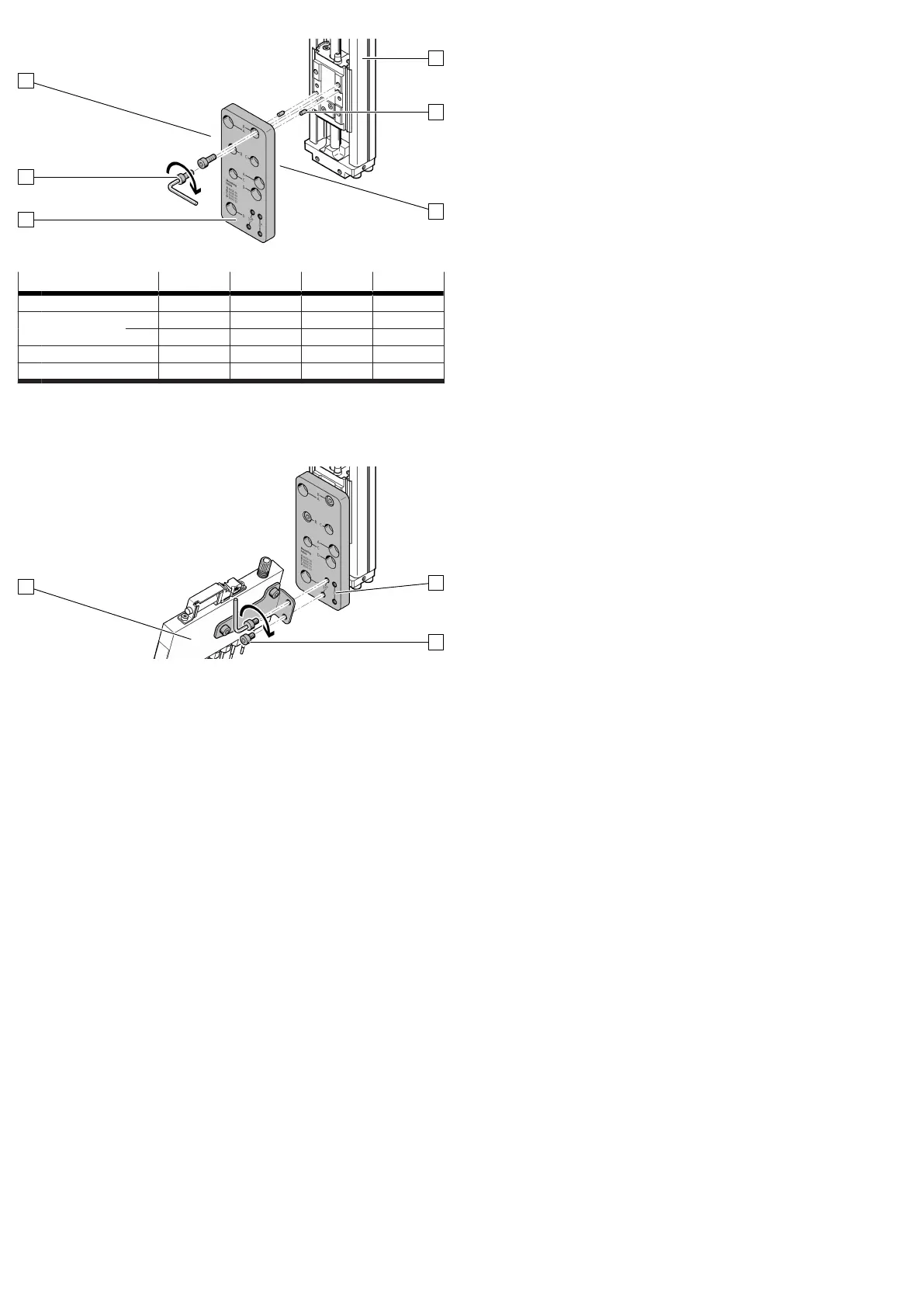

Fig. 6: Mounting adapter plate on actuator
EGSC-...-25 EGSC-...-32 EGSK-20 EGSK-26
2 Centring pin ZBS-2 ZBS-4 ZBS-2 ZBS-5
3 Screw M3x8 M4x8 M3x8 M4x8
[Nm] 1.2 ± 20% 2.9 ± 10% 1.2 ± 20% 2.9 ± 10%
[P] Drilled hole C-C D-D B-B A-A
[S] Drilled hole C-C D-D B-B A-A
Tab. 3: Screw sizes and tightening torques
1.
Position two centring pins 2 in the corresponding drilled holes [S].
2.
Place the adapter plate 1 over the centring pins 2 on the actuator 9.
3.
Fasten the adapter plate 1 with the screws 3 over the corresponding drilled
holes [P] on the actuator 9.
Q
7
10
Fig. 7:
Mounting module on adapter plate
1.
Select the desired mounting position of 0° or 15° at the drilled holes [Q].
2.
Use the screws 7 to mount the module aJ in the corresponding drilled
holes [Q]. Tightening torque: 1.2 Nm ± 20%
