Sida 1/36

Contact Information

FETCO ®

Food Equipment Technologies Company

600 Rose Road

Lake Zurich • IL USA • 60047-0429 •

Internet: www.fetco.com

PATENTS: WWW.fetco.com/patents

Phone: (800) 338-2699 (US & Canada)

(847) 719-3000

Fax: (847) 719-3001

Email: sales@fetco.com

techsupport@fetco.com

P141 REV:002 [1/16] ©December 2015

www.fetco.com

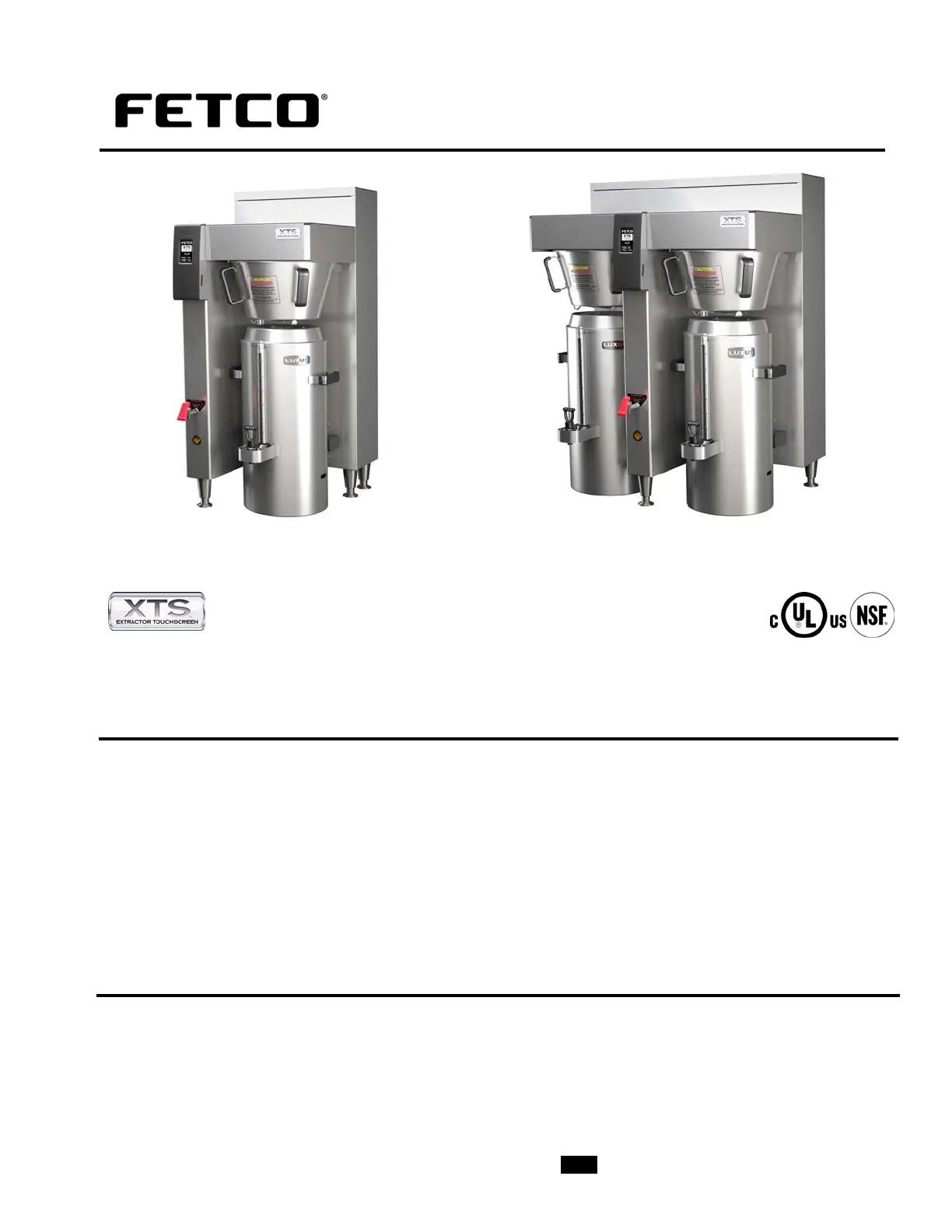

User’s Guide and Operator Instructions

Models: CBS-2161XTS CBS-2162XTS

Three gallon single and twin brewers.

Shown with D012: 3.0 Gallon LUXUS® Thermal Dispenser (TPD-30), not included

Extractor Touch Screen Commercial Hot Beverage Equipment

Table of Contents

Specifications and Requirements...................................2

-f

w .......................4

Service Menu: Access and XTS menu tree....................6

Menu Features: Batch Parameters.................................7

How to calibrate the flow rate .......................................11

Error Codes ..................................................................13

Operator Training..........................................................14

Service Guide to a Successful Installation ...................15

Installation Directions....................................................16

Cleaning & Maintenance...............................................20

Go to fetco.com for the latest version of all information 2 P141 REV:002 revised 1/2016 ©December 2015

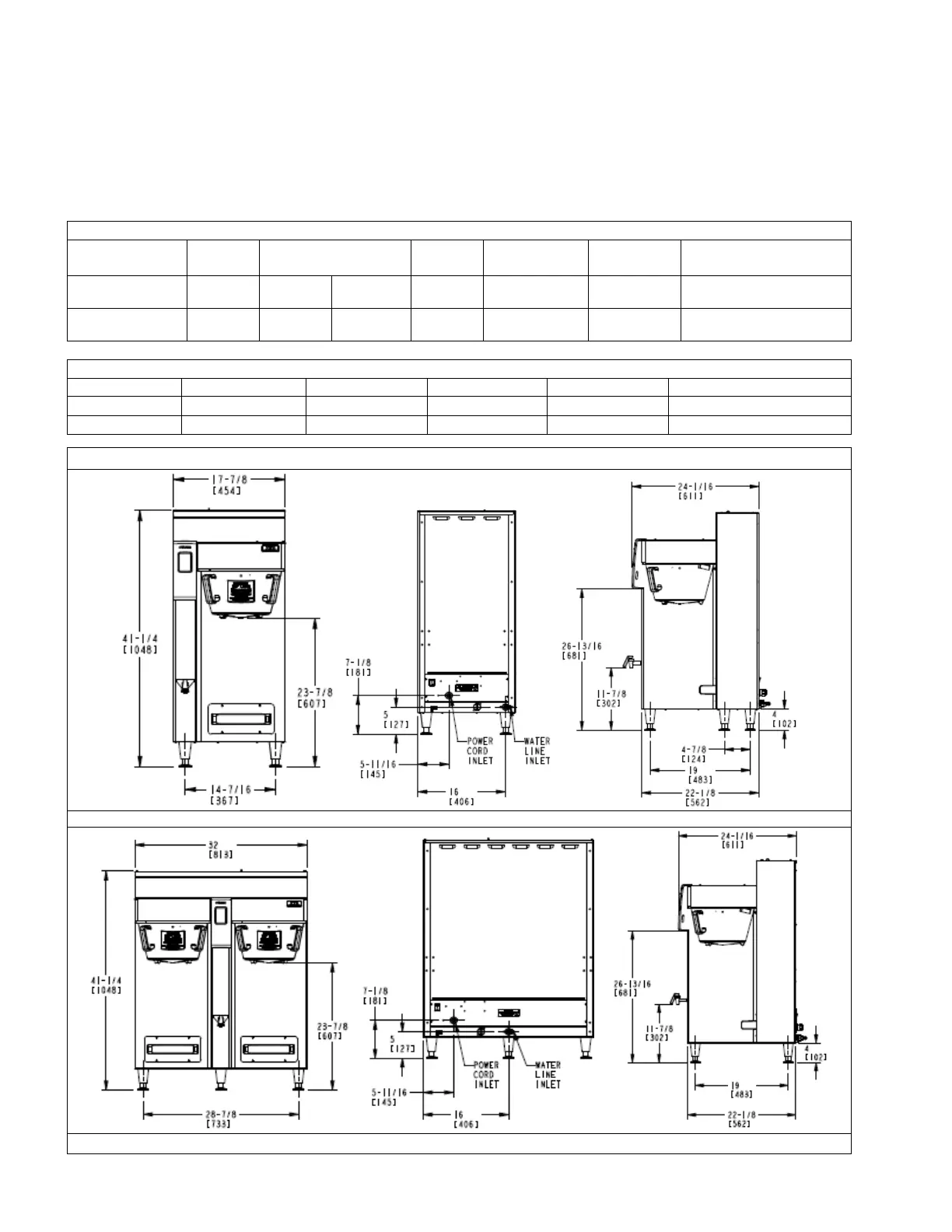

Specifications and Requirements

Water Requirements: Coffee Filter Size:

CBS-2160XTS: 20-75 psig, (138-517kPa) 2 gpm (7.60 lpm) 20” X 8” – standard FETCO # F004

Cold Water Supply Only 18” X 7½” - optional half batch FETCO # F005

Water inlet fitting is a 3/8 inch male flare. Electrical: See electrical configuration chart.

Brew Volume: Temperature, as set by factory:

Full Batch 3 gal. (11.4 lit.) All batches are user configurable 200°F (93°C) inside water tank (at sea level)

Total Brew Cycle—Factory setting: CBS-2162XTS: 6 1/2 Minutes CBS-2161XTS 6 Minutes

Weights and Capacities

Brewer Model Weight

(empty)

Water tank

Capacity & Weight.

Weight

(filled)

*Dispenser

Weight, ea.

*Dispenser

Filled, ea.

*Total Weight Brewer

& Dispensers, Filled

CBS-2161XTS 88 lbs.

(40kg)

8.7 gal.

(33 l)

72 lbs.

(32.7kg)

160 lbs.

(72.5kg)

18 lbs

(8.2kg)

42.5 lbs

(19.3kg)

202.5 lbs.

(92kg)

CBS-2162XTS 130 lbs.

(59kg)

16.3 gal.

(62 l)

136 lbs.

(62.1kg)

266 lbs.

(120.7kg)

18 lbs.

(8.2kg)

42.5 lbs

(19.3kg)

349 lbs.

(158.3kg) (2 dispensers)

* Based on TPD-30 Series Dispensers

Measurements

Brewer Model Height Width Depth Empty weight Shipping weight

CBS-2161XTS 41 ¼ in. (1048mm) 17 in. (454mm) 22½ in. (57cm) 88 lbs. (40kg) 96 lbs. (44kg)

CBS-2162XTS 41 ¼ in. in. (1048mm) 32 (813mm) 22½ in. (57cm) 130 lbs. (59kg) 140 lbs. (63.6kg)

CBS-2160XTS—3-gallon version Dimensions & Utility Connections Rough-in Drawings

Rou

h-in CBS-2161XTS —Sin

le station version 3-

allon version Drawin

#1201.00025.00

Rough-in CBS-2162XTS—Dual station 3-gallon version Drawing#1201.00024.00

Go to fetco.com for the latest version of all information 3 P141 REV:002 revised 1/2016 ©December 2015

All brewers HARDWIRE to an internal TERMINAL BLOCK See wiring diagrams for connections

North America CBS-2161XTS—Single 3 gallon version Electrical Configurations

Configuration

Code

Heater

Configuration Voltage Phase Wires KW Amp Draw Gallon/[liter]Hour

(3 gallon per batch)

E216151 3 X 3.0 kW 200-240 3 3L+G 6.4-9.1 18.6-22.5 16.4-23.4 [62-88]

(*Optional) 2 X 3.0 kW 200-240 1 2L+G 4.6-6.1 21.2-25.8 11.8-15.7 [44-59]

E216152 3 X 4.0 kW 200-240 3 3L+G 8.4-12.1 24.7-28.9 21.6-30 [82-113]

(*Optional) 2 X 4.0 kW 200-240 1 2L+G 6.1-8.1 28.1-33.8 15.6-20.8 [59-79]

E216153 3 X 5.0 kW 200-240 3 3L+G 10.5-15.1 30.7-36.1 27-30 [102-113]

(*Optional) 2 X 5.0 kW 200-240 1 2L+G 7.6-10.1 35.1-42.2 19.6-26 [74-98]

*Sold as three phase, highest power version

ment ma

be field confi

urable to sin

hase, lowe

ower, sin

le-

hase confi

uration usin

two heaters.

North America CBS-2162XTS—Twin 3 gallon version Electrical Configurations

Configuration

Code

Heater

Configuration Voltage Phase Wires KW Amp Draw Gallon/[liter]Hour

(3 gallon per batch)

E216251 3 X 3.0 kW 200-240 3 3L+G 6.4-9.1 18.6-22.5 16.4-23.4 [62-88]

E216252 6 X 3.0 kW 200-240 3 3L+G 12.6-18.1 36.4-43.7 32.4-46.5[123-176]

E216253 3 X 4.0 kW 200-240 3 3L+G 8.4-12.1 24.7-28.9 21.6-28.9 [82-113]

E216254 6 X 4.0 kW 200-240 3 3L+G 16.8-24.1 48.4-58.1 43.1-60 [163- 227]

E216272 6 X 3.0 kW 440-480 3 3L+G 13.6-18.1 19.4-22.2 33.2-44 [126-167]

E216271 6 X 4.0 kW 440-480 3 3L+G 20.3-24.1 26.6-29.4 52.2- 60 [197- 227]

International, North America and Japan CBS-2161XTS—Single 3 gallon version Electrical Configurations

Configuration

Code

Heater

Configuration Voltage Phase Wires KW Amp Draw Gallon/[liter]Hour

(3 gallon per batch)

E216151* 3 X 3.0 kW 200-240 3 3L+G 6.4-9.1 18.6-22.5 16.4-23.4 [62-88]

E216152* 3 X 4.0 kW 200-240 3 3L+G 8.4-12.1 24.7-28.9 21.6-28.9 [82-113]

E216153* 3 X 5.0 kW 200-240 3 3L+G 10.5-15.1 30.7-36.1 27-30 [102-113]

*Sold as three phase, highest power version

Equipment may be field configurable to single phase, lower-power, single-phase configuration using two heaters as in domestic version

International CBS-2161XTS—Single 3 gallon version Electrical Configurations

Configuration

Code

Heater

Configuration Voltage Phase Wires KW Amp Draw Gallon/[liter]Hour

(3 gallon per batch)

E216191 3 X 3.0 kW 220-240/380-415 3 3L,N+G 7.6-9.1 11.7-12.7 19.6-23.4 [74-88]

E216192 3 X 4.0 kW 220-240/380-415 3 3L,N+G 10.2-12.1 15.5-16.9 26.2-28.9 [99-113]

E216193 3 X 5.0 kW 220-240/380-415 3 3L,N+G 12.7-15.1 19.3-21.0 32.6-37.8 [116-125]

CE CBS-2161XTS—Single 3 gallon version Electrical Configurations

E216161 3 X 3.0 kW 230/400 3 3L, N+PE 8.6 12.4 22.2 [84]

E216162 3 X 4.0 kW 230/400 3 3L, N+PE 11.3 16.4 30 [114]

International, North America and Japan CBS-2162XTS—Twin 3 gallon version Electrical Configurations

Configuration

Code

Heater

Configuration Voltage Phase Wires KW Amp Draw Gallon/[liter]Hour

(3 gallon per batch)

E216252 6 X 3.0 kW 200-240 3 3L+G 12.6-18.1 36.4-43.7 32.4-46.5[123-176]

E216254 6 X 4.0 kW 200-240 3 3L+G 16.8-24.1 48.4-58.1 43.1-60 [163- 227]

E216291 3 X 5.0 kW 220-240/380-415 3 3L,N+G 12.7-15.1 19.3-21.0 32.6-37.8 [116-125]

E216292 6 X 3.0 kW 220-240/380-415 3 3L,N+G 15.1-18.1 22.9-25.0 38-44 [144-167]

CE CBS-2162XTS—Twin 3 gallon version Electrical Configurations

E216261 3 X 4.0 kW 230/400 3 3L, N+PE 11.3 16.4 30 [114]

E216262 3 X 5.0 kW 230/400 3 3L, N+PE 14.1 20.4 36.2 [137]
