Sida 1/5

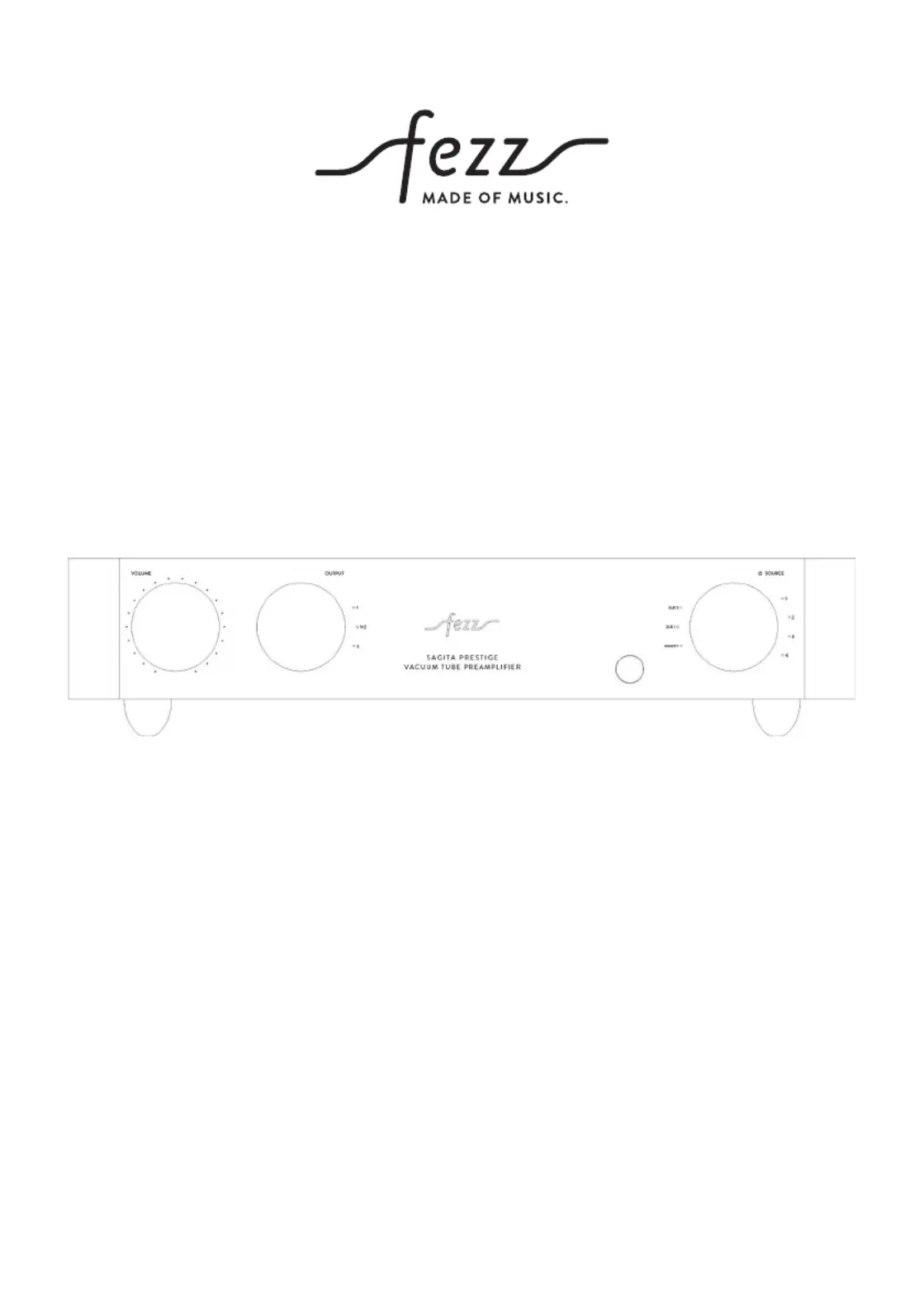

USE R ` S MA N UAL
SAG I TA PREST I G E
VAC UU M T UBE P R EAM PLIFIER
2
1
2
3
4
5
6
7
Technical data
–
2
Safety tips
Introduction
–
3
Installation
–
3
Unpacking
–
3
Package content
–
3
Interconnections
–
4
Interconnection
–
4
Hook up the signal source
–
5
Power cord hook up
–
5
Getting started
–
5
TROUBLE-SHOOTING GUIDE
–
5
TECHNIC AL DATA
TABL E OF CONT E N TS
Type: Vacuum tube line preamplier
Model: Sagita Prestige, Line: Evolution
Unbalanced inputs: 4x RCA + 1 direct
Balanced inputs: 2x XLR
Unbalanced outputs: 2x RCA
Balanced outputs: 2x XLR
Harmonic distortion THD: <0,005%
Vacuum tubes: 2x 12AU7/ECC82
AC fuse: 230-240V - 0,8A T, 115-120V - T1,6 A
Power consumption: 25W
Net weight: 11 kg
Dimensions 420x380x95mm
Optional equipment: remote control
1
3
- Never place the preamplier near heat sources, such as radiators, heaters or direct sunlight. Ensure adequate ventilation
and airow
- We also warn against exposure of the preamplier to conditions such as very low temperatures and/or high humidity.
- The preamplier should be plugged directly into a wall socket. If you must use an extension cord, please make sure that it
has load parameters sucient to ensure proper handling of current delivery to the device.
- When cleaning, always disconnect the preamplier from the power source. Use a dry, soft cloth. Do not use water or
cleaning agents.
- If your preamplier starts to misbehave or to work incorrectly, if it’s temperature gets too high or you start smell smoke -
immediately disconnect the device from the mains.
- Due to the risk of exposure to high voltages – please do not open the lid of the preamplier. ATTENTION: This warning
remains in force also in a situation where the device is already disconnected from the wall outlet.
- Always replace fuses in accordance with the original, intended specication.
- Do not make repairs on your own, or adjustments beyond those as described in this manual. Execution of any
unauthorized repairs or modications of the device result in a loss of warranty
Introducing the Sagita Prestige Vacuum Tube Line Preamplier marking our debut into the world of fully balanced XLR
connectivity. Sagita will elevates your listening experience with the warm and immersive tones, that only vacuum tubes
can deliver. Sagita precisely denes your audio path, oering a harmonious blend of precision and musicality. Featuring
hand-selected vacuum tubes, the Sagita brings a distinctively rich and vibrant character to your music. It`s special designed
balanced circuit, ensures low noise and optimal signal integrity, allowing every nuance of your favorite records to shine
through.
INTRODUCTION
SAFE T Y TIPS
3
2
In order to obtain the highest possible sound reproduction quality and for the sake of your own safety,
please kindly refer to the following.
Please kindly check if the packaging of the Sagita Prestige preamplier has not been damaged during transit. If you nd any
damages, please immediately contact your dealer. Remove the preamplier and accessories from the packaging. Make sure
that the content is not damaged.
Do not connect the device to the power supply if it has visible signs of damage on it. Please do not
dispose the original packaging, so as to facilitate possible shipment of the device in the future.
INSTALLATION
UNPAC K IN G
4
Package contains:
• Sagita Prestige preamplier
• Power cord
• User`s manual
If any of the above items are missing in your package, please contact your Fezz dealer .
CON T E NTS OF THE PA C K AG E
