AS Version:24-V2

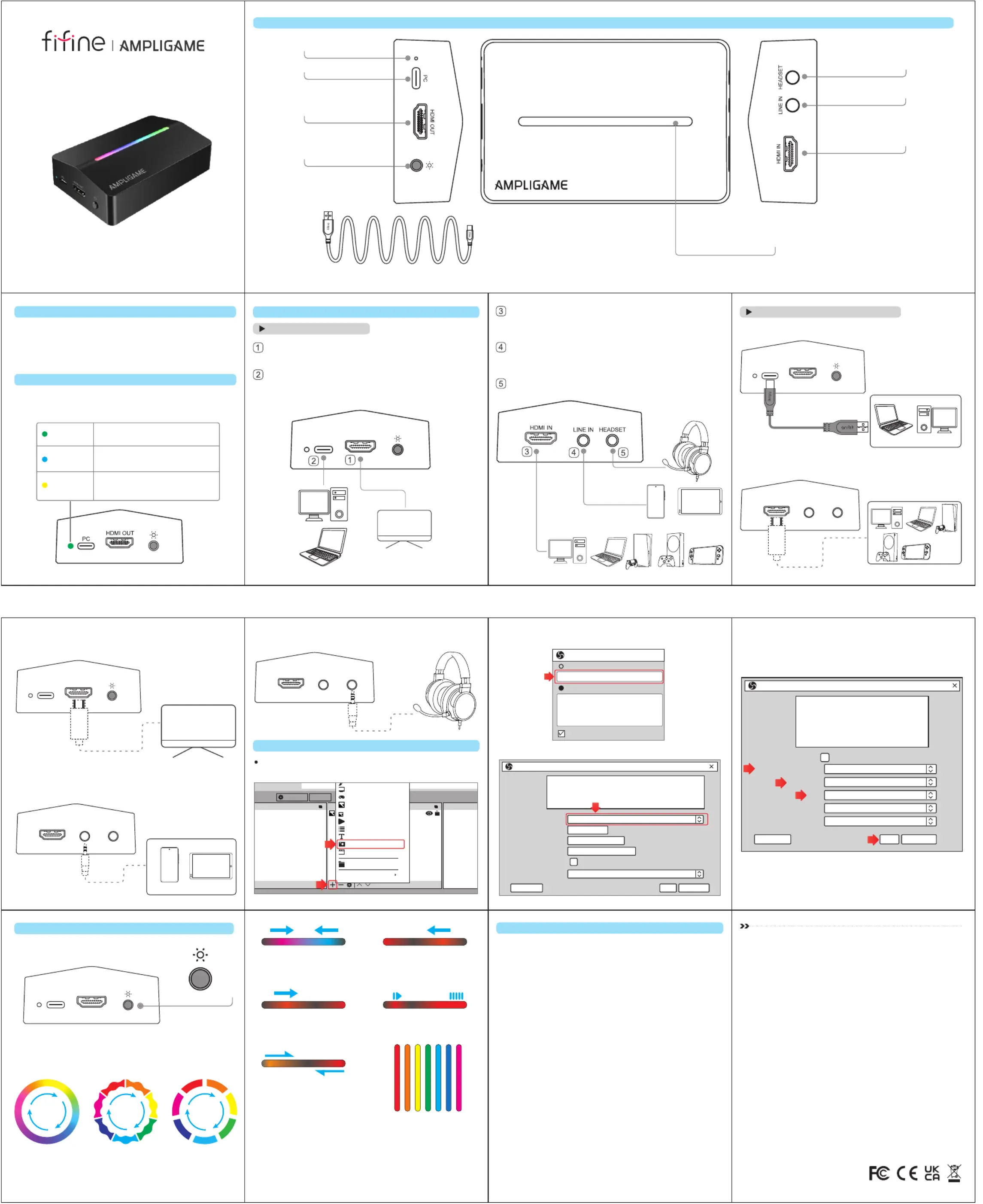

V3USER’S GUIDE

RGB Button

HDMI Output Port

Type-C Port

LED Indicator

RGB Lighting

Headset Port

Audio Input

HDMI Input Port

3.3ft (1m) USB Cable

PRODUCT DESCRIPTION

WHAT’S IN THE BOX?

1X Video Capture Card

1X 3.3ft (1m) USB-C to USB-A Cable

1X User’s Manual

LED INDICATOR

Indicate the working status of video capture card

with 3 lighting colors

Green Light

Blue Light

Yellow Light

Power Supplying

Video Capturing

Game Console Copyright Protection

(Video will not be transmitted

through USB).

GUIDELINE FOR USE

Interface Instruction

HDMI Output Port-Connect to monitor to output

passthrough video.

Type-C Port-Connect to USB 3.0 port of computer

for power supply and data transmission for live

streaming.

Setup of Interface Connection

1. Connect type-c port and computer via USB cable.

2. Connect HDMI Input Port and the video signal

source via HDMI cable (not included).

3. Connect HDMI Output Port and monitor via HDMI

cable (not included).

4. Connect to external audio input devices (like

cellphone/tablet).

5. Connect to headset.

WARRANTY

Every Fifine product comes with a Limited Warranty

that in normal use of product will be free of any

defects in material or workmanship for a period of

one year from its original date of purchase. For

detailed warranty info, please refer to the warranty

policy on our website, or contact us directly.

Eligible to bear CE Marking.

Authorized European Representative:

Name: AOCE INFORMATION TECHNOLOGY

Address: 61 rue de Lyon 75012 Paris France

Tel: +33-633297410

Authorized British Representative:

Name: AOCE LIMITED

Address: Office Suite 29a 3/F 23 Wharf Street,

London, England, SE8 3GG

Tel: +44-759 7659 775

CERTIFICATION

SPECIFICATION

Item Model: V3

Highest Capture Resolution: 1920*10801080P/60Hz ()

Highest Passthrough Resolution: 3840*21604K /30Hz ()

Data Transmission: USB 3.0

Power Supply: 5V

System Supported: Windows Win7 and above, Mac OS

10.13 and above

RGB Button and RGB Modes

MODE2MODE1MODE3

Long press and hold for 3 seconds to turn on or off

RGB lighting. Short press to select RGB modes and

colors.

Memory Function:

After the video capture card is powered on again, the

RGB will stay in the same RGB effect before it was

powered off.

Broadcasting Software Settings (Capture End)

Take OBS for example

1. Click “+” and choose “Video Capture Device”.

Create/Select Source

Create new

Video Capture Device

Add Existing

Mic/Aux

Make source visible

2. Create the name whatever you want.

3. Choose “fifine Video Capture” as capture device.

Propertiesfor 'Video Capture Device’

Device

fifine Video Capture

Deactivate

Configure Video

Configure Crossbar

Deactivate when not showing

Resolution/FPS Type

Device Default

Defaults

OK

Cancel

Propertiesfor 'fifine SC3'

Custom

Deactivate when not showing

Defaults

OK

Cancel

Resolution/FPS Type

Resolution

FPS

Video Format

1920x1080

Highest FPS

Any

DefaultColor Space

4. Choose “Custom” under Resolution/FPS Type.

Choose “1920x1080” under Resolution and

“Highest FPS (or 60 fps)” under FPS.

LINE IN

HDMI IN

HEADSET

HDMI Input Port-Connect to computer or games

console (PS4/ PS5/XBOX/Switch) to capture input

signal.

Audio Input (LINE IN)-Connect to external audio

input devices with 3.5mm audio jack (like

cellphone/tablet) as auxiliary sound source.

Headset Output-Connect to headset to input

audio and monitor sound from signal source.

PC

HDMI OUT

PC

HDMI OUT

(RGB Button)

PC

HDMI OUT

PC

HDMI OUT

LINE IN

HDMI IN

HEADSET

LINE IN

HDMI IN

HEADSET

Filters

Soenes

Properties

Color Source

Display Capture

Game Capture


Image Slide Show

Media Source

Scene

Video Capture Device

Window Capture

Group

Deprecated

Text (GDI+)

MODE4

MODE9

MODE5

MODE8

MODE6

MODE7

12

3

4

56

7

8

910

1112
