ENGLISH

www.ndernet.com

12.61 - 12.62

IB1261VXX - 09/16 - FINDER S.p.A. - 10040 ALMESE (TO) - ITALY

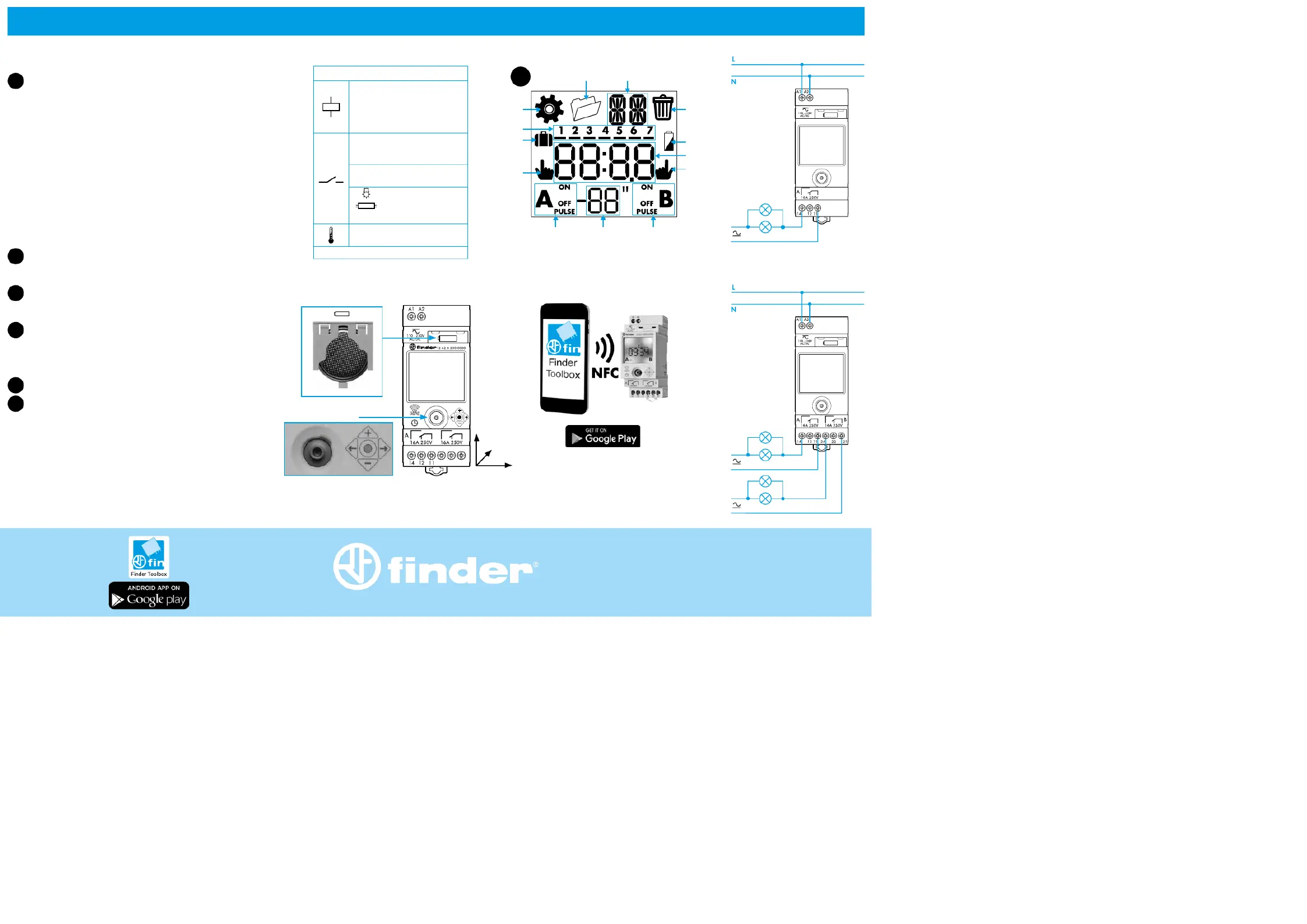

12.61/62DIGITAL TIME SWITCH DAILY/ WEEKLY PROGRAMMING

Programmable with NFC technology with the App FINDER TOOLBOX

downloaded from Google Play™

DISPLAY INDICATORS

ASetting Menu

BDays of the week (1=Mon...7=Sun)

CHoliday program

DPermanent Manual over-ride activated - channel A

EChannel A functions (ON, OFF, Pulse)

FDay - seconds/minutes

GChannel B functions (ON, OFF, Pulse) (12.62 only)

HPermanent Manual over-ride activated - channel B (12.62 only)

ITime, day, month, hours, minutes, daylight saving ON/OFF, holiday

program (Start: day/month. Finish: day/month) PIN ON/OFF, End

LTime switch without power supply (powered by battery) - Low battery

(with power supply)

MCancel

NProgram number (max 50) - Y(year), D(day), M(month), H(hour),

M(minutes), Daylight saving ON/OFF (EU=Europe − BR=Brazil −

AU=Australia) Holiday program (Start: day/month. Finish: day/month)

OProgramming

SETTINGS (examples)

2aSetting: year, day, month, hour, minutes, EU (daylight saving)

2bHoliday program (Start: day/month. Finish: day/month), PIN, END

PROGRAMMING (examples)

3aON - OFF Function (6:25 ON - 19:15 OFF, Mon, Wed, Fri, Sun)

3bPULSE function (11:00 pulse 5 s, Mon Wed Fri)

MANUAL MODE

4aManual ON/OFF channel A

4bManual ON/OFF channel B (12.62 only)

4cPermanent Manual over-ride ON/OFF - Channel A

4dPermanent Manual over-ride ON/OFF - Channel B (12.62 only)

DELETION of all program

DELETION of single program

NOTE

- Battery replacement: BATTERY CR 2032 (LiMnO

2

) 3V, 230mAh.

Complies with Article 11, EU directive 2006/66/CE.

Dispose of batteries according to local regulations

- Back-light display (only with power supply)

- Minimum switching interval: 1 second (pulse function)

1

2

3

4

5

6

G

A

B

C

D

E

FF

N

O

M

L

I

H

1

88.8 mm

60.8 mm

35 mm

JOYSTICK

B

242221

EN 60669-1 / EN 60669-2-1

12.6.8.230.0000x

U

N

110...230 V AC (50/60 Hz) / DC

U

min

90 V AC / DC

U

max

264 V AC / DC

P 2.8 VA (50 Hz) / 0.9 W

1 CO (SPDT) ()12.61

2 CO (DPDT) ()12.62

16 A 250 V AC

AC1 4000 VA

AC15 (230 V AC) 750 VA

(230 V) 2000 W

(230 V) 750 W

CFL-LED (230 V) 400 W

(–20…+50)°C

IP20

12.61

12.62
