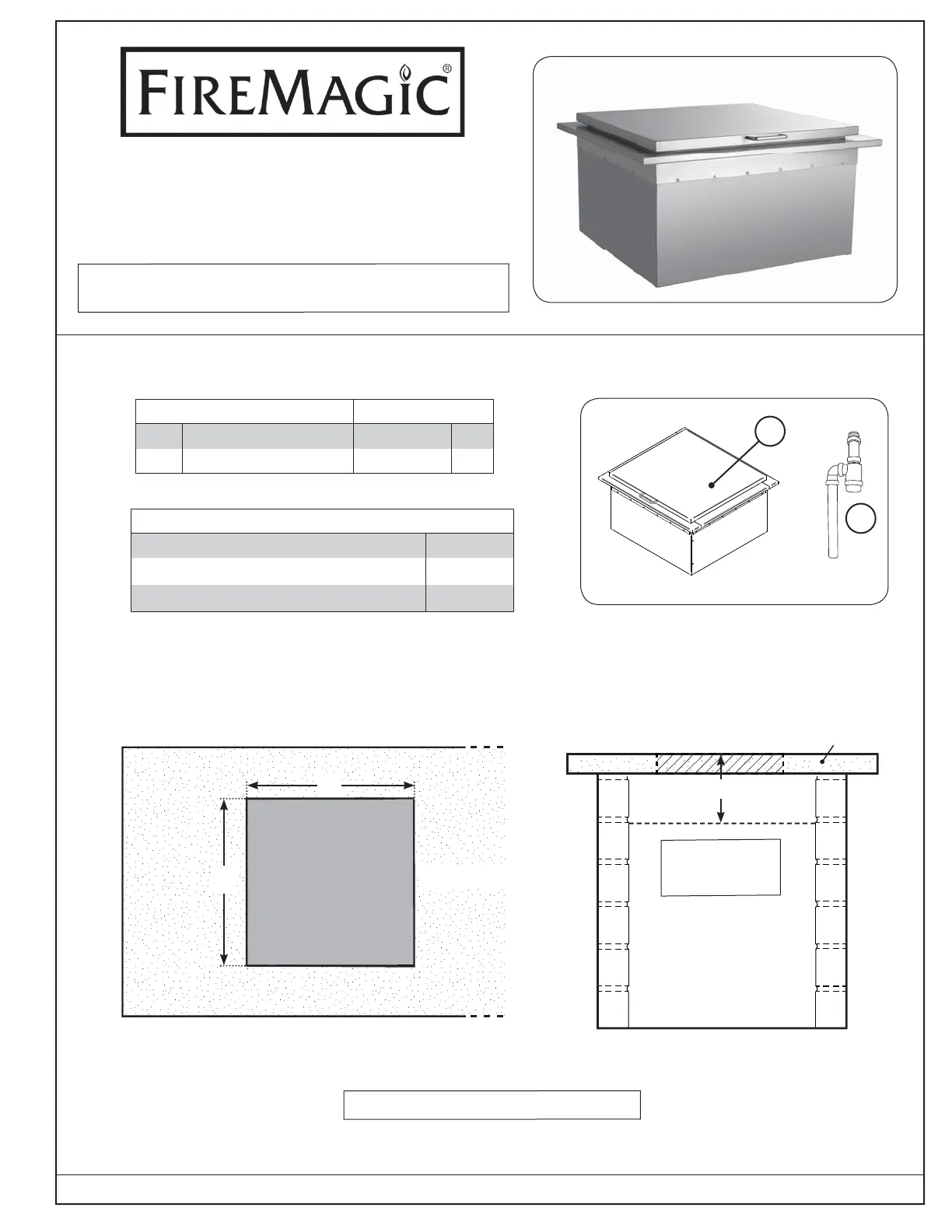

Sida 1/2
REV 0 - 1501270830
L-C2-460
1
INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.
ROBERT H. PETERSON CO. • 14724 East Proctor Avenue • City of Industry, CA 91746
Drop-in
Refreshment Center
Model # 33596
Table 2 Cut-out dimensions
Counter Cut-out Dimensions
A Countertop to unit bottom clearance* 12
3
/
4
"
B Side to side cut-out 25"
C Front to back cut-out 23
3
/
8
"
Fig. 1-1 Replacement parts list
*
Drain assembly clearance must also be provided.
1
2
Item Description Part No. Qty.
1. Insulated lid 33596-05 1
2. Drain kit 3596-11 1
Table 1 Replacement parts list
Fig. 1-2
Fig. 1-3
B
C
(Countertop)
TOP VIEW SIDE VIEW
A
Countertop
ENCLOSURE
CUT-OUT
DIMENSIONS
See opposite side for installation
Drain assembly
clearance must
also be provided
REV 0 - 1501270830
L-C2-460
2
Fig. 2-1 Plumbing installation
To drain
To unit
INSTALLATION
To install your Fire Magic Refreshment Center, follow the steps
below:
1. Create a cut-out in the countertop as specifi ed in Table 2
(reference fi gures on previous page).
Important: Clearance below the unit must be provided for the
drain assembly.
2. Drop the unit into the cut-out opening.
Note: If installing a countertop with an irregular/textured
surface, a bead of silicone sealer may be needed.
Important: Use care when handling the unit, so as to not
damage the pre-installed drain spout assembly.
DO NOT place the unit on a fl at surface prior to
installation.
3. Assemble and attach the supplied drain kit to the unit as
shown in Fig. 2-1. Plumb to a drain or as appropriate for
your installation. Observe all local codes.
REMOVABLE LID (OPTIONAL)
1. Remove screws from the soft down hinges on the inner left
and right side (see Fig. 2-2, A).
2. Firmly press the soft down hinges to the left until they clear
the bracket pins (see Fig. 2-2, B).
3. Slide the lid to the left to remove it from the unit (see Fig. 2-3).
To reattach the lid reverse the previous steps.
ROBERT H. PETERSON CO. • 14724 East Proctor Avenue • City of Industry, CA 91746
Fig. 2-2 Remove hinges
A
B
Fig. 2-3 Remove lid
