Sida 1/1

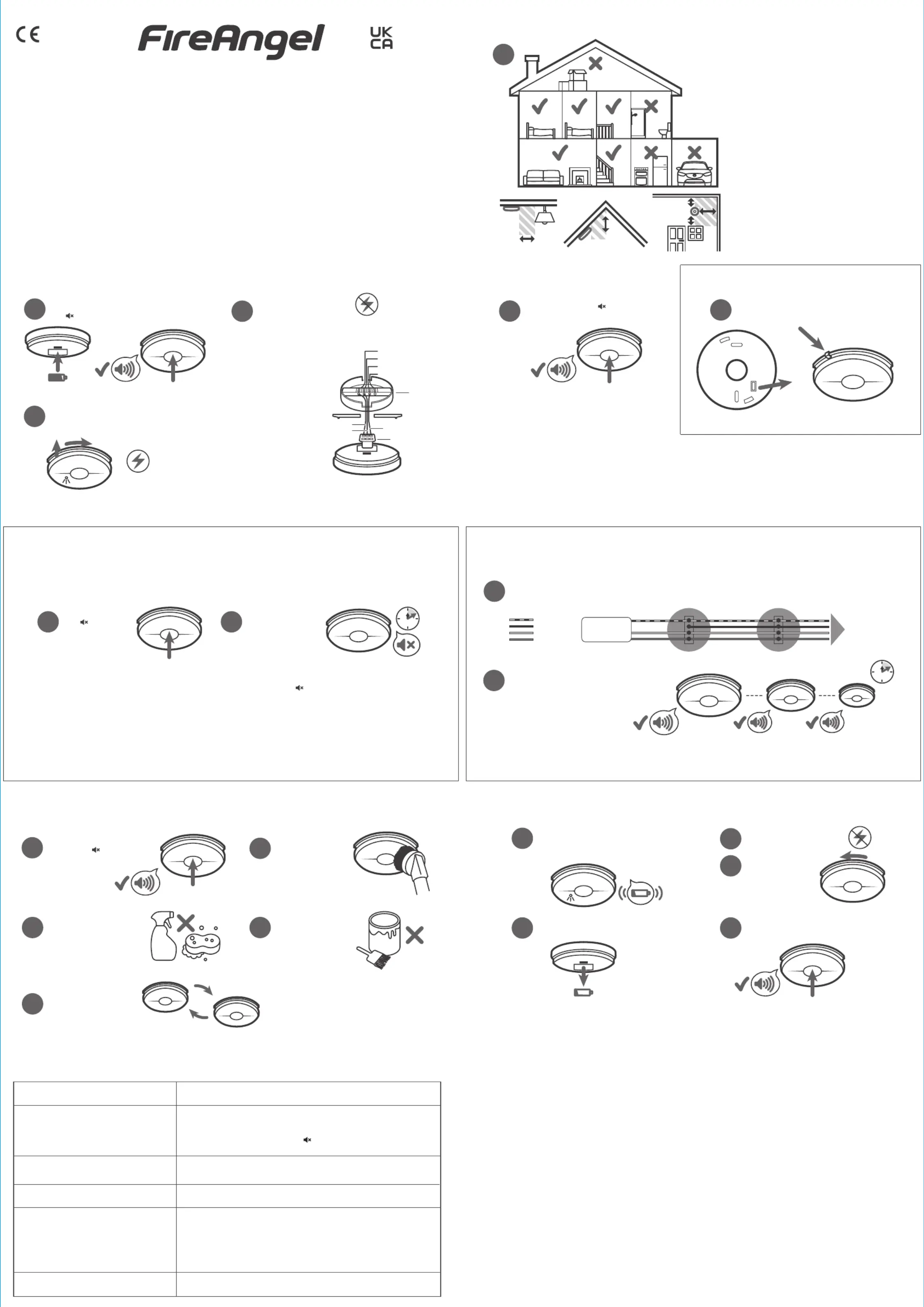

1. POSITIONING
1
2. INSTALLATION
TROUBLESHOOTING GUIDE WARRANTY AND DISPOSAL
220-240 V AC 50-60 Hz mains powered smoke alarm. Replaceable non-rechargeable 9V lithium battery back-up.
WARNING: Wiring should be installed by a qualified electrician in accordance with either BS 7671 or local building standards. The wiring must conform to
current regulations for electrical installations. Check with local building and fire regulations for your property, to ensure compliance.
Optical smoke alarms are suitable for detecting slow smouldering fires. Like other smoke alarms, they can be subject to nuisance alarms from steam and
should not be placed near bathrooms.
For the earliest warning, we recommend smoke alarms are fitted in all rooms where the temperature is between 0°C (32°F) and 40°C (104°F).
Prolonged exposure to temperatures outside those stated above will reduce product life.
This smoke alarm is not intended for any non-residential, commercial or industrial application, nor for any other purpose than described above.
SW10 OPTICAL SMOKE ALARM
WITH LONG LIFE BATTERY BACK-UP
USER MANUAL
0359
EN 14604:2005 +AC:2008
Smoke alarm devices
DOP: FSTDOP21005
21
2d
IMPORTANT: The circuit used to Power the alarm must be a 24 hour voltage circuit that cannot be turned off by a switch.
In accordance with BS 5839: Part 6, we recommend: For mains powered alarms, each with an integral standby supply, the mains
electricity supply should take the form of either a) an independent circuit at the dwelling’s main circuit board, in which case no
other electrical equipment should be connected to this circuit (other than a dedicated monitoring device installed to indicate failure
of the mains electricity supply to the alarms); or b) a separately electrically protected, regularly used local lighting circuit. Check
with local building and fire regulations for your property, to ensure compliance.
Ensure dust cover is removed before operation.
The red LED on the front of the alarm should flash once every 32 seconds (approx.) to show that the alarm sensor is in actively
monitoring for smoke. When the test button is pressed, the alarm will flash once every 8 seconds for 8 minutes.
If desired, the alarm can be interconnected with up to 11 other smoke, heat or carbon monoxide alarms
from the FireAngel range via the 'I' connector. (See Optional Interconnecting Feature).
FireAngel Safety Technology Limited warrants to the original purchaser that its enclosed smoke alarm be free from defects in materials and
workmanship under normal residential use and service for a period of 5 (five) years from the date of purchase (not including the replaceable
battery). Provided product is sent back to FireAngel Safety Technology Limited with proof and date of purchase, FireAngel Safety Technology
Limited hereby warrants that during the 5 (five) year period commencing from the date of purchase FireAngel Safety Technology Limited, at its
discretion, agrees to replace the unit free of charge. The warranty on any replacement SW10 alarm, will last for the remainder of the period of
the original warranty in respect of the alarm originally purchased – that is from the date of original purchase and not from the date of receipt of
the replacement product. FireAngel Safety Technology Limited reserves the right to offer an alternative product similar to that being replaced if
the original model is no longer available or in stock. This warranty applies to the original retail purchaser from the date of original retail purchase
and is not transferable. Proof of purchase is required.
This warranty does not cover damage resulting from accident, misuse, disassembly, abuse or lack of reasonable care of the product, or
applications not in accordance with the user manual. It does not cover events and conditions outside of FireAngel Safety Technology Limited’s
control, such as Acts of God (fire, severe weather etc.). It does not apply to retail stores, service centres or any distributors or agents. FireAngel
Safety Technology Limited will not recognise any changes to this warranty by third parties.
FireAngel Safety Technology Limited shall not be liable for any incidental or consequential damages caused by the breach of any expressed or
implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is
limited in duration for 5 (five) years.
This warranty does not affect your statutory rights. Except for death or personal injury, FireAngel Safety Technology Limited shall not be liable
for any loss of use, damage, cost or expense relating to this product or for any indirect, or consequential loss, damages or costs incurred by
you or any other user of this product.
DISPOSAL
Waste electrical and electronic equipment should not be disposed of with your other household waste. The alarm is ideally suited for disposal
within the waste electrical and electronic equipment (WEEE) recycling scheme.
Please recycle where facilities exist. Check with your local authority, retailer or contact our Technical Support team for recycling/disposal advice
as regional variations apply.
Once the battery is removed, the low battery warning chirp will stop. The battery should always be removed before disposal.
Do not attempt to open. Do not burn.
6. LOW BATTERY WARNING
Your alarm requires 1 x 9V Lithium (PP3) battery. Under normal use, the battery should last the lifetime of the alarm.
Use of a battery other than the recommended battery may have a detrimental effect on the alarm:
EVE CR9V/P Lithium / Energizer L522.
6a
When the alarm battery is low, the alarm will ‘chirp’
and the LED will flash every 32 seconds.
6c
Twist alarm
anti-clockwise to
remove from base
plate and disconnect
power adapter.
6d
Replace the battery and re-install.
(See 'Installation')
6e
Always test the alarm after replacing
the battery.
2b
Switch off electricity supply.
6b
4a
For multiple alarm installations use a ‘three core and earth’ style cable between all the alarms to be interconnected.
Connect the interconnect cable between each alarm's power connector from the white wire.
4b
Test each alarm and ensure every connected alarm
sounds within 10 seconds.
Up to 12 FireAngel mains smoke (SW1/SW10), heat (HW1/HW10) or carbon monoxide (CW1) alarms
can be interconnected on a single network.
4. OPTIONAL INTERCONNECTING FEATURE
10
On an interconnected network, only the alarm that senses the fire will sound and flash its LED. Other connected alarms will sound a
warning but will not flash their LED. Do not connect more than 12 devices.
The interconnect wire (minimum 0.75 mm2 cable) must be treated as Live, it should be insulated and sheathed.
Mains 230V AC
Power Supply
WIRING KEY
= Live
= Interconnect
= Neutral
= Earth
To other alarms
if fitted
Press and hold the Test / button for
5 seconds. The alarm will sound.
Switch o electricity supply.
Remove the baseplate by twisting the alarm anti-clockwise.
Connect the house wiring to the power connector provided.
Ensure a permanent connection is made in a suitable junction
box (not provided).
No connection should
be made to the mains
electricity supply
earth terminal.
Terminate house
wiring earth in spare
connector.
Fit the base to ceiling
using the screws
provided. Feed the
wiring through the
hole in the base plate
and connect the
power adapter to
the alarm.
2a
Unwrap battery. Insert battery into battery compartment
(match ‘+’ to ‘+’). Remove dust cover. Press and hold the
Test / button for 5 seconds. The alarm will sound.
3a
Press and hold the
Test / button for 5
seconds.
In a known false alarm, the alarm can be silenced temporarily.
3. SILENCE FEATURE
Smoke alarms can react to cooking fumes or other non emergency situations. Your alarm features ‘Silence’ technology.
In the event of a known false alarm you can temporarily silence it by pressing the Test / button. After 8 minutes your alarm will
automatically return to full sensitivity.
The red LED on the front of the alarm will flash once every 8 seconds to show that it is in Silence mode.
The alarm will sound continuously and the red LED will flash every second when the alarm senses smoke.
NEVER IGNORE ANY ALARM. If an alarm is sounding, it is warning you of a potentially hazardous situation. Do not ignore it.
Ignoring the alarm may result in injury or death. If your smoke alarm activates and you are not absolutely certain of the source of
smoke, get everyone out of the house immediately.
The alarm will silence for
8 minutes.
3b
8
Technical Support
Online: www.fireangeltech.com/support
E-mail: technicalsupport@fireangeltech.com
Phone: 0330 094 5830 (EIRE Phone: 1-800 523 171)
GN5594R8
© FireAngel Safety Technology Limited
Vanguard Centre, Coventry CV4 7EZ, United Kingdom.
www.fireangeltech.com
Note: This user manual is also available in large text and other formats.
Please email: technicalsupport@fireangeltech.com or call 0330 094 5830 for further information.
Push and twist the alarm clockwise onto the base plate.
Turn the electricity supply back on and check that the
green LED is on.
2c
5. MAINTENANCE
5a
Test the alarm every month.
Press the Test / button for 5
seconds. The alarm will sound.
5b
Vacuum your alarm
every 3 months.
5c
Do not use cleaners or solvents.
5d
Do not paint the alarm.
Replace the alarm every
10 years.
5e
Do not use any other test method except
the process described in this manual.
2e
Remove locking plug from baseplate.
Insert into hole between base plate and alarm
OPTIONAL LOCKING FEATURE
Brown (live)
Blue (neutral)
Black or grey (interlink)
Earth
White
Baseplate
Brown
Blue
Power connector
Junction box
(not provided)
To enable removal of the alarm,
withdraw the locking plug with a
pair of pliers.
300mm
300mm
150mm
150mm
600mm
Your smoke alarm is suitable for the landing,
hallway, bedroom, living room and dining room
Smoke alarms should be sited at least 300mm
from light fittings and walls. Ideally as central
as possible in the room.
If there is fluorescent lighting, smoke alarms
should be installed at least 1500mm from
these fittings and wiring. Keep any wiring at
least 1000mm from fluorescent lighting. Do
not use circuits containing fluorescent light
fittings or dimmer switches.
Smoke alarms should be positioned at no
more than 600mm vertically below the highest
point in the room.
If positioning your smoke alarm on the wall,
the top of the alarm must be between 150mm
and 300mm below the ceiling, and at least
300mm from a neighbouring wall.
Locations of alarms must be compliant
with either BS 5839: Part 6 or relevant
Building Regulations if in any doubt.
0905-CPR-00650
EN 14604:2005 +AC:2008
Smoke alarm devices
DOP: FSTDOP19005
19
• Check the location of your smoke alarm.
• Clean the smoke alarm.
• Check the location of your smoke alarm.
• Clean the smoke alarm.
• Check that your alarm is connected to the power supply and that the battery is
installed correctly.
• If testing after installation, allow a few seconds for the alarm to settle.
• Push and hold the centre of the Test / button firmly for 5 seconds.
• Check that the alarm is properly connected to the mains power.
• Check the location of your smoke alarm.
• Check that your smoke alarm is definitely the source of the chirping; make sure
the noise isn’t coming from another alarm.
• If the alarm ‘chirps’ every 32 seconds and the red LED flashes at the same time -
replace the battery.
• If the alarm ‘chirps’ every 32 seconds without a red LED flash, a fault is indicated
- contact Techincal Support.
• Check that your smoke alarm is connected to the power supply and that the
battery is correctly installed.
If the green LED does not light when the alarm
is connected to power:
If your smoke alarm does not sound during
testing:
If your smoke alarm activates when no smoke
is visible:
If your smoke alarm sounds unusual or
‘chirps’ intermittently:
If you experience frequent unwanted alarms:
• It might take a few seconds for all the hardwired interconnected alarms to respond
to the test button press or an alarm event. When testing the alarm please ensure
that you keep the test button pressed until all units emit a sound.
If all interconnected alarms do not test or
sound immediately:
