Sida 1/38

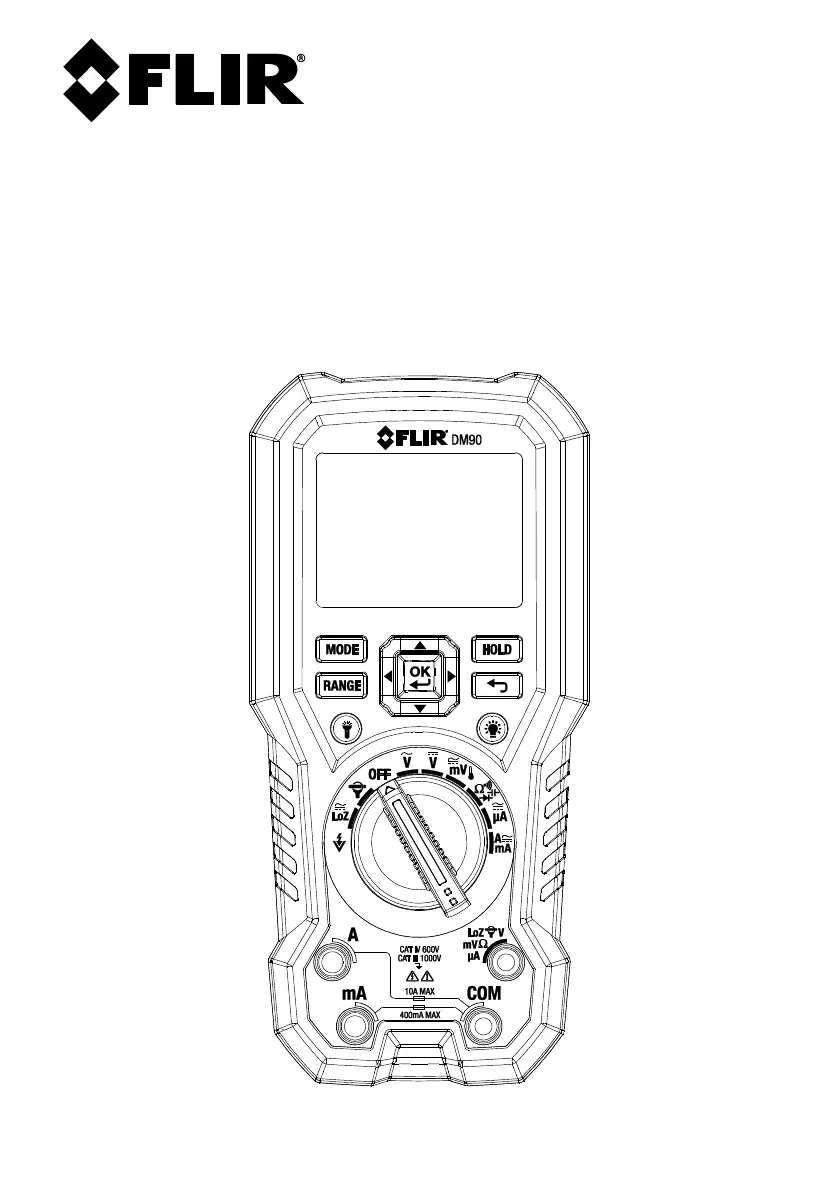

USER MANUAL
FLIR MODEL DM90
True RMS Industrial Mulmeter
FLIR DM90 USER MANUAL Document Idenfier: DM90- - _AA en US
2
Table of Contents
1. ADVISORIES 4
1.1 Copyright 4
1.2 Quality Assurance 4
1.3 Documentaon 4
1.4 Disposal of Electronic Waste 4
2. SAFETY 4
3. INTRODUCTION 6
3.1 Key Features 6
4. METER DESCRIPTION 7
4.1 Front and Back Descripons 7
4.2 Funcon Switch Posions 8
4.3 Funcon Buons and Selector/Navigaon Pad 9
4.3.1 MODE Buon Operaon 9
4.3.2 Selector/Navigaon Pad Operaon 10
4.4 Display Descripon 10
4.5 Display Icons and Indicators 11
4.5.1 Probe Detecon Alert 12
4.5.2 Out- -range warning of 12
4.6 Menu Icon Bar 13
5.OPERATION 14
5.1 Powering the Meter 14
5.1.1 Auto Power O (APO) 14
5.2 Auto/Manual Range Mode 14
5.3 Voltage and Frequency Measurements 15
5.4 Resistance Measurements 16
5.5 Connuity Test 16
5.6 Classic Diode Test 17
5.7 Smart Diode Test 18
5.8 Capacitance Measurements 19
5.9 Type K Temperature Measurements 20
5.10 Current and Frequency Measurements 20
FLIR DM90 USER MANUAL Document Idenfier: DM90- - _AA en US
3
5.10.1 Test Lead Current Measurements (A, mA, and µA) 21
5.10.2 FLEX Clamp Adaptor Current Measurements 24
5.11 Non-Contact Voltage Detector 25
5.12 Mode Icons and the Menu Bar 26
5.12.1 Selecng Modes using the Mode Menu Bar 26
5.12.2 VFD Mode (ACV and ACA only) 26
5.12.3 Peak Mode (ACV and ACA only) 26
5.12.4 Min/Max/Avg Mode 26
5.12.5 Frequency mode (ACV and ACA only) 27
5.12.6 Relave mode 27
5.12.7 Sengs Menu 27
5.13 Data Hold and Auto Hold 28
5.13.1 Data Hold Mode 28
5.13.2 Auto Hold Mode 28
6. MAINTENANCE 29
6.1 Cleaning and Storage 29
6.2 Baery Replacement 29
6.3 Fuse Replacement 29
6.4 Disposal of Electronic Waste 29
7. SPECIFICATIONS 30
7.1 General specicaons 30
7.2 Electrical Range Specications 31
8. TECHNICAL SUPPORT 36
9. WARRANTY 37
9.1 FLIR Global Limited Lifeme Warranty 37
