WARNING - A REGULATED UL / CSA APPROVED 12V DC power

supply is REQUIRED for use with this camera. Use of a non-regulated,

non-conforming power supply can damage this product and voids the

warranty.

Product Information

User Manuals Quick Start Guides

Specification Sheets

Video Tutorials & Demos

Latest News

Contents

900 TVL OUTDOOR

IR DOME CAMERA

MODEL: DBV533TL

QUICK START GUIDE

English Version 1.0

www.flirsecurity.com/pro

IT’S ALL ON THE WEB!

www.flirsecurity.com/pro

VISIT

Outdoor IR Dome Camera

Mounting screws x 4

Features

Safety Precautions

• Use an appropriate low voltage power cable to prevent

fire or electrical shock.

• Make sure to install the camera in an area that can

support the camera weight.

• There are no user serviceable parts inside the camera.

Please do not disassemble the camera.

• Do not clean the lens cover with an abrasive cleaning

material. Please use a soft cloth to clean the lens cover.

• 1/3” Sony Exmor™ Megapixel sensor with 960H DSP

• Outstanding image clarity in low light conditions

• Advanced 3D Digital Noise Reduction (3D-DNR)

• 90ft (27m) Smart IR Night Vision

• 3.6mm wide angle lens

• IP66 Weatherproof rating

• 3-Axis design for Wall/Ceiling mounting

• 12V DC operation

* IR Illumination range under ideal conditions. Objects at or beyond

this range may be partially or completely obscured, depending on

the camera application

** Not recommended for submersion in water

FLIR Systems Inc.

As our products are subject to continuous improvement, FLIR Systems

Inc. reserves the right to modify product design, specifications and

prices, without notice and without incurring any obligation. E&OE

1 x Allen key

Drywall anchors x 4

Dimensions

Camera SpecificationsInstalling the Camera

Setting up the Camera

1. Connect the BNC connector of the camera to

the video cable.

2. DC Power— : Connect a Power Adapter

12V DC Power Adapter (not included) to the

camera. Plug the Power Adapter into a local

power outlet.

• DC Power— (not included): Power Pigtail

Connect a Power Pigtail to the camera.

Connect the terminating wires of the cable

directly to the DC power source.

NOTE: For pigtail connection with 12V DC, make sure

to check polarity specifications on the power adapter.

Image Sensor 1/3” Sony Exmor™ Megapixel CMOS

Video Format NTSC

Effective Pixels H: 1305 V: 1049

Horizontal Resolution 900 TVL

Scan System 2:1 Interlace

Sync System Internal

S / N Ratio 48dB (AGC Off)

Iris AES

AES Shutter Speed 1/60 ~ 1/100,000 sec.

Min. Illumination 0.01 Lux without IR LED

0 Lux with IR LED

Video Output Composite 1.0Vpp @ 75ohm

Lens Focal Length / Type 3.6mm F2.0 / Fixed

FOV (Diagonal) 92°

Termination BNC Type

IR Range / Qty. 90ft / 27m; 24 IR LED’s

Power Requirement 12V DC ±10%

Power Consumption 12V: 340mA Max with IR LED

Operating Temp. Range –4° ~ 122°F / –20° ~ 50°C

Environmental Rating IP66

Dimensions (LxH) 3.7” x 2.8”

93mm x 70mm

Weight (including stand) 0.7lbs / 0.3kg

ATTENTION - Test the camera prior to selecting a permanent

mounting location by temporarily connecting the camera(s) and

cables to the DVR.

ATTENTION - This camera includes an Auto Mechanical IR Cut Filter.

When the camera changes between Day/Night viewing modes, an

audible clicking noise may be heard from the camera. This clicking is

normal, and indicates that the camera filter is working.

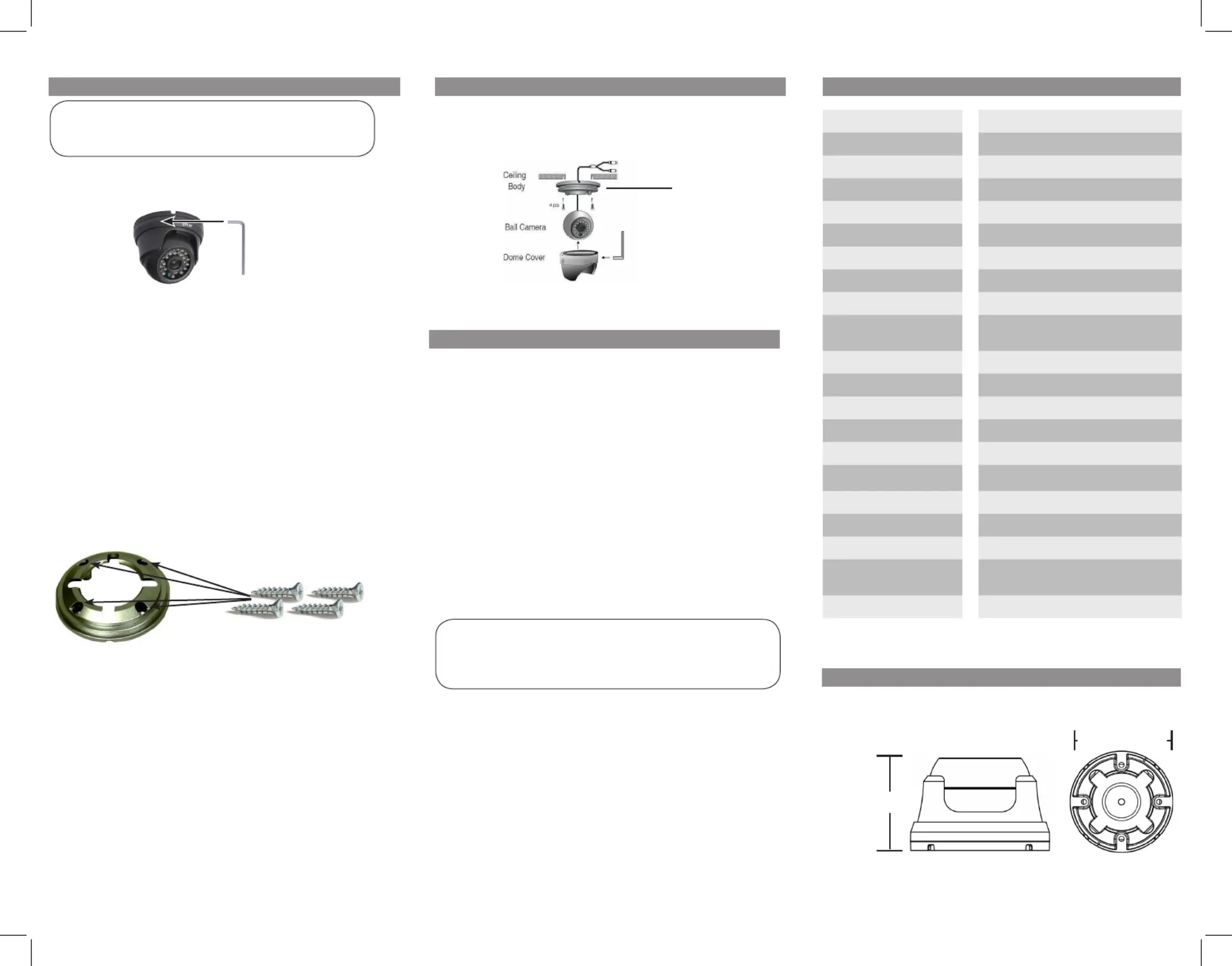

1. Use the included Allen key to loosen the screw

on the dome cover. Camera Base

2. Rotate the camera base counterclockwise to

separate it from the ball camera and dome

cover.

3. Use the camera base to drill holes for the

cables and mounting screws.

NOTE: Insert the included drywall anchors if

installing the camera in drywall.

4. Feed the BNC / power cable through the

camera base. Connect the video and power

cable as shown in the next section ‘Setting up

the Camera‘.

5. Mount the camera base to the wall or ceiling

using the included screws.

6. Position the dome cover over the camera and

screw it clockwise halfway onto the camera

base.

7. Move the ball camera to the desired position.

While holding the ball camera firmly in place,

screw the dome cover the rest of the way

to secure it to the camera base. Holding the

camera prevents it from moving while installing

the dome cover.

93mm / 3.7”

70mm / 2.8”

Installing the Camera (Continued)

8. Use the included Allen key to tighten the screw on

the dome cover.
