PRO3000™

Toner and Probe Users Guide

PRO3000™ Générateur de tonalité et sonde Guide de l’Utilisateur

PRO3000™ Generador de tono y sonda Guía de Uso

PRO3000™ Toner and Probe Users Guide

Introduction

The PRO3000 Toner and PRO3000 Probe helps you identify cables, wires, and wire

pairs. You connect the P

RO3000 Toner to a line, then trace and follow the signal

with the PRO3000 Probe.

Safety Information

The following IEC symbols are used either on the test set or in the manual:

WXWarning

This product is certified for indoor use only.

To avoid electrical shock, do not use the toner or probe if

they are wet. If they get wet, let them dry for 24 hours

before use.

When connecting to metallic network wires, handle

alligator clips by the insulated boot.

The maximum voltage allowed across the test leads is

60 Vdc in toner and polarity modes. Do not connect to

circuits carrying AC voltage in toner or polarity mode. Do

not connect to circuits carrying AC or DC voltage in

continuity mode.

Disconnect clips from any metallic connections before

performing any maintenance. Read all instructions

completely and understand possible hazards to the end

user if maintenance is not performed by authorized

service personnel.

Do not use the toner or probe if they are damaged. Before

you use the toner or probe, inspect the case. Look for

cracks or missing plastic. Pay particular attention to the

insulation surrounding the connectors.

If this product is used in a manner not specified by the

manufacturer, the protection provided by the product may

be impaired.

Installing Batteries

WXWarning

To avoid electrical shock, turn the unit off and disconnect

its leads from any circuit before opening the unit’s battery

door.

Use only 9 volt alkaline batteries (not included). Open the battery compartment

with a screwdriver to insert a new battery. Properly attach the connection wires

and close the compartment. Do not over tighten the screw.

The PRO3000 Probe

The PRO3000 probe is a highly sensitive inductive probe with amplified speaker,

which makes signals transmitted by the P

RO3000 toner audible. The non-

metallic tip allows testing in distribution blocks without disturbing other services

(Figure 1).

WXWarning

Though the tip is non-metallic, never touch the tip to

exposed power sources such as electrical outlets.

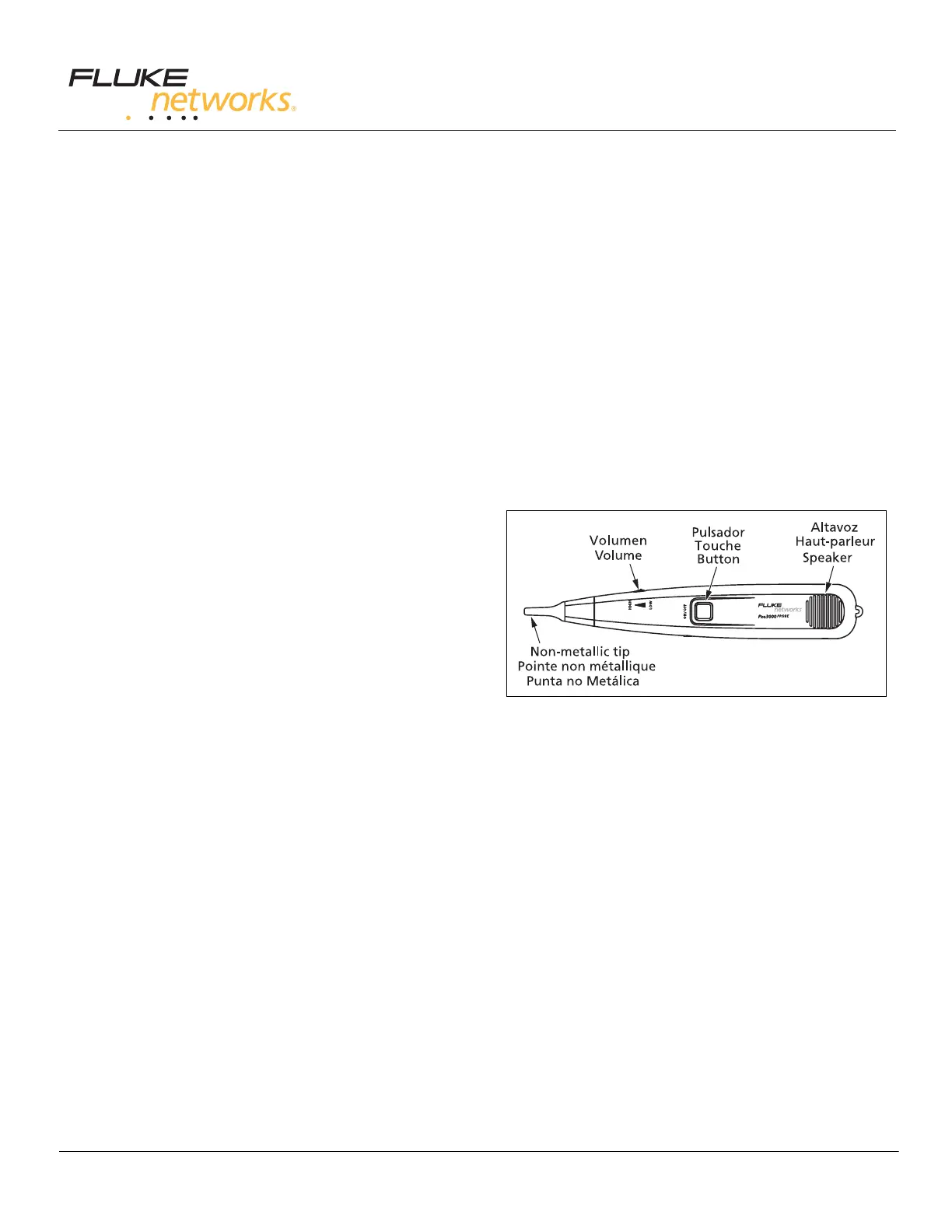

bff01.eps

Figure 1. PRO3000 Probe

The PRO3000 Probe has a 3.5 mm monaural earphone jack on its side. When you

connect the optional earphone, the speaker is muted and you hear the tones in

the earphone. The earphone lets you avoid disturbing people nearby. A

compatible earphone is available from Fluke Networks.

When using the optional earphone, start with a low volume. Always approach

wires cautiously to avoid loud tones in the earphone. Adjust the volume as

necessary.

The probe tip is replaceable. If the tip is damaged, replace it with the spare tip

found inside the probe’s battery compartment.

To remove the tip, turn it counterclockwise a quarter turn and pull it out. To

install a new tip, insert it into the hole in the front of the probe and turn it

clockwise a quarter turn until it stops.

The PRO3000 Toner

The PRO3000 toner emits two distinctive tones: constant and alternating. With

the slide switch in the TONE position, press the tone button once for the

constant tone. Press the button again for an alternating tone. The tone LED is

constantly on or flashing to match the toner mode (Figure 2).

Press the button again to turn off the toner. The tone LED turns off, indicating

that the toner is off.

Warning: Risk of personal injury. See the manual for details.

Caution: Risk of damage or destruction to equipment or software.

See the manual for details.

Warning: Risk of electric shock.

Earth ground

Conformité Européenne. Conforms to relevant European Union

directives.

)

CAN/CSA-C22.2 No. 60950-1-03

CAN/CSA-C22.2 No. 1010.1-92 + CSA-C22.2 No. 1010.1B-97, UL/ANSI

3111-1

Do not put circuit boards in the garbage. Dispose of circuit boards in

accordance with local regulations.
