Sida 1/77
1
Operation Manual
Wi-Fi Operation Manual
Chill Premier
Unit
FA Pro
FA Premier
Single Hose Portable
Double Hose Portable
93001200_02
Kuhl
Kuhl Q
Wallmaster
Friedrich Connect
Friedrich Go
2
Table of Contents
INTRODUCTION 3
IMPORTANT SAFETY INFORMATION 3
PERSONAL INJURY OR DEATH HAZARDS 4
FCC Caution 5
Kuhl, Kuhl Q, And Wallmaster Controls 6
KUHL, KUHL Q, AND WALLMASTER 8
Wi-Fi SET UP INSTRUCTIONS 8
Wi-Fi TROUBLESHOOTING TIPS 12
FA Pro/ FA Premier App Info 14
FA Pro, FA Premier Troubleshooting 25
Chill Premier/ Unit App Info 26
Chill Premier/ Unit Registration 28
Chill Premier/ Unit Login 29
Chill Premier/ UnitTroubleshooting 41
Portable Air Conditioner (ZCP08SA, ZCP10SA, ZCP12SA) App Info 43
Portable Air Conditioner (ZCP08SA, ZCP10SA, ZCP12SA) Registration 45
Portable Air Conditioner (ZCP08SA, ZCP10SA, ZCP12SA) Login 46
Portable Air Portable Air Conditioner Troubleshooting (ZCP08SA, ZCP10SA, ZCP12SA) 58
Portable Air Conditioner (ZCP12DB and ZHP14DB) App Info 60
Portable Air Conditioner (ZCP12DB and ZHP14DB) Registration 62
Portable Air Conditioner (ZCP12DB and ZHP14DB) Login 63
Portable Air Conditioner Troubleshooting (ZCP12DB and ZHP14DB) 75
TABLE OF CONTENTS
3
Your safety and the safety of others is very
important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is a safety Alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol with the word “WARNING”
or “CAUTION”. These words mean:
WARNING
Refrigeration system
under high pressure
Do not puncture, heat, expose to ame or incinerate.
Only certied refrigeration technicians should service
this equipment.
R410A systems operate at higher pressures than R22
equipment. Appropriate safe service and handling
practices must be used.
Only use gauge sets designed for use with R410A.
Do not use standard R22 gauge sets.
NOTICE
CAUTION
WARNING
Installation or repairs made by unqualied persons can result in subjecting the unqualied
person making such repairs as well as the persons being served by the equipment to hazards
resulting in injury or electrical shock which can be serious or even fatal.
Safety warnings have been placed throughout this manual to alert you to potential hazards that
may be encountered. If you install or perform service on equipment, it is your responsibility to
read and obey these warnings to guard against any bodily injury or property damage which may
result to you or others.
INTRODUCTION
IMPORTANT SAFETY INFORMATION
4
SAFETY
FIRST
WARNING AVERTISSEMENT ADVERTENCIA
Do not remove, disable or
bypass this unit’s safety
devices. Doing so may cause
re, Doing so may cause re,
injuries, or death.
Ne pas supprime, désactiver ou
contourner cette l´unité des
dispositifs de sécurité, faire vous
risqueriez de provoquer le feu, les
blessures ou la mort.
No eliminar, desactivar o pasar
por alto los dispositivos de
seguridad de la unidad. Si lo hace
podría producirse fuego, lesiones
o muerte.
ELECTRICAL HAZARDS:
• Unplug and/or disconnect all electrical power to the unit before performing
inspections, maintenance, or service.
• Make sure to follow proper lockout/tag out procedures.
• Always work in the company of a qualied assistant if possible.
• Capacitors, even when disconnected from the electrical power source, retain an
electrical charge potential capable of causing electric shock or electrocution.
• Handle, discharge, and test capacitors according to safe, established, standards, and
approved procedures.
• Extreme care, proper judgment, and safety procedures must be exercised if it
becomes necessary to test or troubleshoot equipment with the power on to the unit.
• Do not spray water on the air conditioning unit while the power is on.
• Electrical component malfunction caused by water could result in electric shock or
other electrically unsafe conditions when the power is restored and the unit is turned
on, even after the exterior is dry.
• Use air conditioner on a single dedicated circuit within the specied amperage
rating.
• Use on a properly grounded outlet only.
• Do not cut or modify the power supply cord or remove the ground prong of the plug.
• Never operate the unit on an extension cord.
• Follow all safety precautions and use proper and adequate protective safety aids
such as: gloves, goggles, clothing, properly insulated tools, and testing equipment
etc.
• Failure to follow proper safety procedures and/or these warnings can result in
serious injury or death.
INTRODUCTION
PERSONAL INJURY OR DEATH HAZARDS
5
INTRODUCTION
FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Any Changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there isno guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and fon, the user is encouraged to try to correct the
interference by one or more ao the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
7

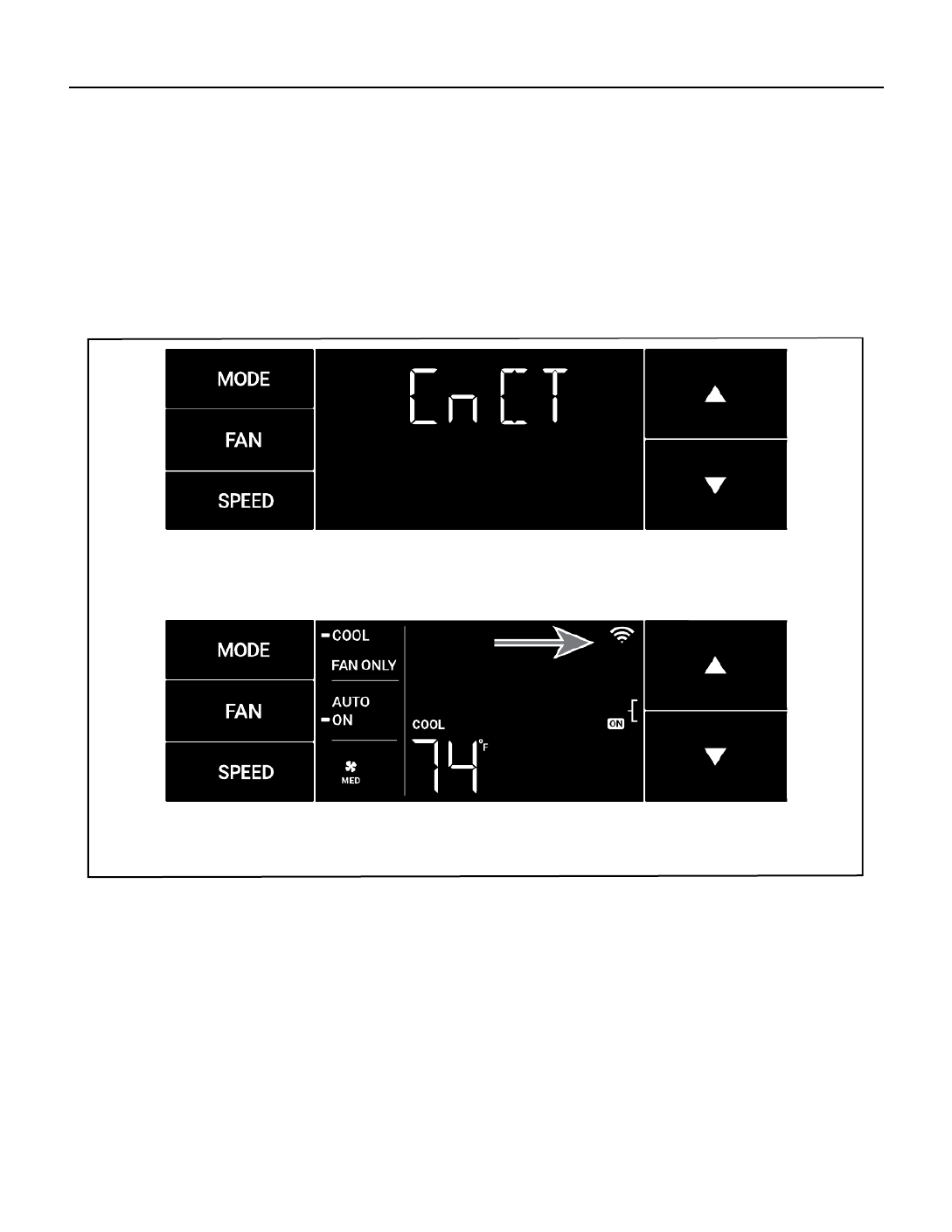

The CnCT Menu (WiFi Connection)
This menu is used to turn on Wi-Fi connection.
This is the CnCT menu. See Figure 202
Pressing the menu button will activate Wi-Fi.
To setup WiFi, refer to Wi-Fi setup instructions.
Figure 202
Figure 203
FRIEDRICH CONNECT
Kuhl, Kuhl Q, And Wallmaster Controls
8
Wi-Fi SET UP INSTRUCTIONS
Below are the set-up instructions for Wi-Fi to use your
unit wirelessly. Follow the instructions below:
1. Write down the following information prior to
beginning this process
(If you do not know this information you can check your
router or contact your internet provider)
a. WI-FI Network Name
(SSID)_______________________
b. WI-FI Network Security Type (Open, wep, wpa,
wpa2) ______________ _________
c. WI-FI Network Password
________________________
2. Using a mobile device such as a smartphone or laptop,
navigate to www.FriedrichConnect.com.
NOTE: If you do not have an account with
FriedrichConnect you will be given the option to create a
new account.
3. Sign-in using your username and password.
4. Click the “Add Device” button.
5. Select the time zone the device is located in and click
the “Next” button.
Step 3 (Login)
Step 4 (Add Device)
Step 5 (Select Time Zone)
FRIEDRICH CONNECT
KUHL, KUHL Q, AND WALLMASTER
10
Wi-Fi SET UP INSTRUCTIONS (Continued)
10. Go to the Wi-Fi settings on your mobile device and
connect to “FriedrichConnect_xxxx” network. (xxxx is the
network name of the Friedrich unit)
Step 10 (Connect WiFi to “Friedrich”)
Step 11 (Click next)
12. A screen will appear asking you to enter your Wi-
Fi credentials.
13. Enter the information as you recorded it at the
beginning of the process.
NOTE: Your device may auto populate the elds
incorrectly.
NOTE: Be sure to enter the WIFI SSID, Network
Security Type, and
Wi-Fi network password exactly as you recorded
them.
NOTE: These elds are case-sensitive.
Step 12 an 13 (Enter WiFi Credentials)
11. Go back to the Friedrich instructions on your mobile
device and click next.
FRIEDRICH CONNECT
KUHL, KUHL Q, AND WALLMASTER
11
14. Click next.
NOTE: You will receive a pop up box message stating “Credentials successfully saved.
Please connect back to your Wi-Fi network and click “Next”.
NOTE: You will receive a message (Waiting for network connection).
15. Go back to the Wi-Fi settings on your mobile device and connect back to your Wi-Fi network.
16. Go back to the Friedrich instructions on your mobile device and click next.
NOTE You will receive a message stating “Looking for recently added device. It will appear in
the list ready. “Please wait, this may take up to 3 minutes”.
FRIEDRICH CONNECT
KUHL, KUHL Q, AND WALLMASTER
NOTE: Please wait and do not close out the box that appears.
If the box is closed before you get a successful message and you do not see your device,
(Friedrich a/c under my devices)
then you will have to restart the setup process again due to the unit not being linked to your
FriedrichConnect account.
NOTE: It will connect to the Friedrich unit before the 3 minute mark in most cases however
it may take up 3 minutes to be connected. Once it is connected you will receive a successfully
connected box.
NOTE: Your Home Screen Wi-Fi symbol will stop ashing and will show steady.
NOTE: A GREEN symbol will appear under the “Status” details and the name of your
Friedrich unit which will appear with a number.
for example: (62601032R01184660025)
