TA B L E O F C O N T E N T S
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
All about the
Use &
Care
of your Refrigerator
Important Safety Instructions 2 ......................
Features at a Glance 4 ...................................
Installation 5 ................................................
Door Removal Instructions 8
..........................
Installing Door Handles 10
.............................
Connecting Water Supply 12 ..........................
Controls 14
...................................................
Automatic Ice & Water Dispenser 22
..............
A05947001 (October 2016)
Automatic Ice Maker - Freezer 24
...................
Storage Features 25 ......................................
Storing Food and Saving Energy 29
................
Normal Operating Sounds and Sights 30 .........
Changing the Filter 31 ...................................
Care and Cleaning 34
....................................
Before you Call 36
.........................................
Major Appliance Warranty 41
.........................
IMPORTANT
Features not purchased with your refrigerator can be purchased at www.frigidaire.com
or by calling 1-800-944-9044.
4
FEATURES AT A GLANCE
*Features may vary according to model
*Flip Shelf
Deli
Drawer
*Water
Filter
*Removable
Ice Bin
*Freezer Ice
Maker
Adjustable Hinges
Freezer Baskets
*Toe Grille
*Door Bin
Spillsafe®
Shelves
Flipper
Mullion
*Air
Filter
Flipper
Guide
*Fresh Food
Ice Maker
*Ice Bin
Crisper
Drawer
*Dairy
Compartment
*LED
Cluster Lights
*Slide-Under
Shelf
*Can Rack
*LED
Cluster
Light
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider.
5
INSTALLATION
CAUTION
Do Not install the refrigerator where the
temperature will drop below 55°F (13°C) or
rise above 110°F (43°C). The compressor
will not be able to maintain proper
temperatures inside the refrigerator.
Do Not block the toe grille on the lower front
of your refrigerator. Sufcient air circulation
is essential for the proper operation of your
refrigerator.
This Use & Care Guide provides general
installation and operating instructions for
your model. We recommend using a service
or kitchen contracting professional to install
your refrigerator. Use the refrigerator only as
instructed in this Use & Care Guide. Before
starting the refrigerator, follow these
important rst steps.
Location
• Choose a place that is near a grounded,
non-GFCI, electrical outlet. use an Do Not
extension cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher, or other heat sources.
• The refrigerator must be installed on a oor
that is level and strong enough to support
a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic ice
maker.
Installation
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top ⅜ inch (9.5 mm)
Back 1 inch (25.4 mm)
Door opening
Your refrigerator should be positioned to allow
easy access to a counter when removing
food. For best use of refrigerator drawers and
freezer baskets, the refrigerator should be in a
position where both can be fully opened.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw

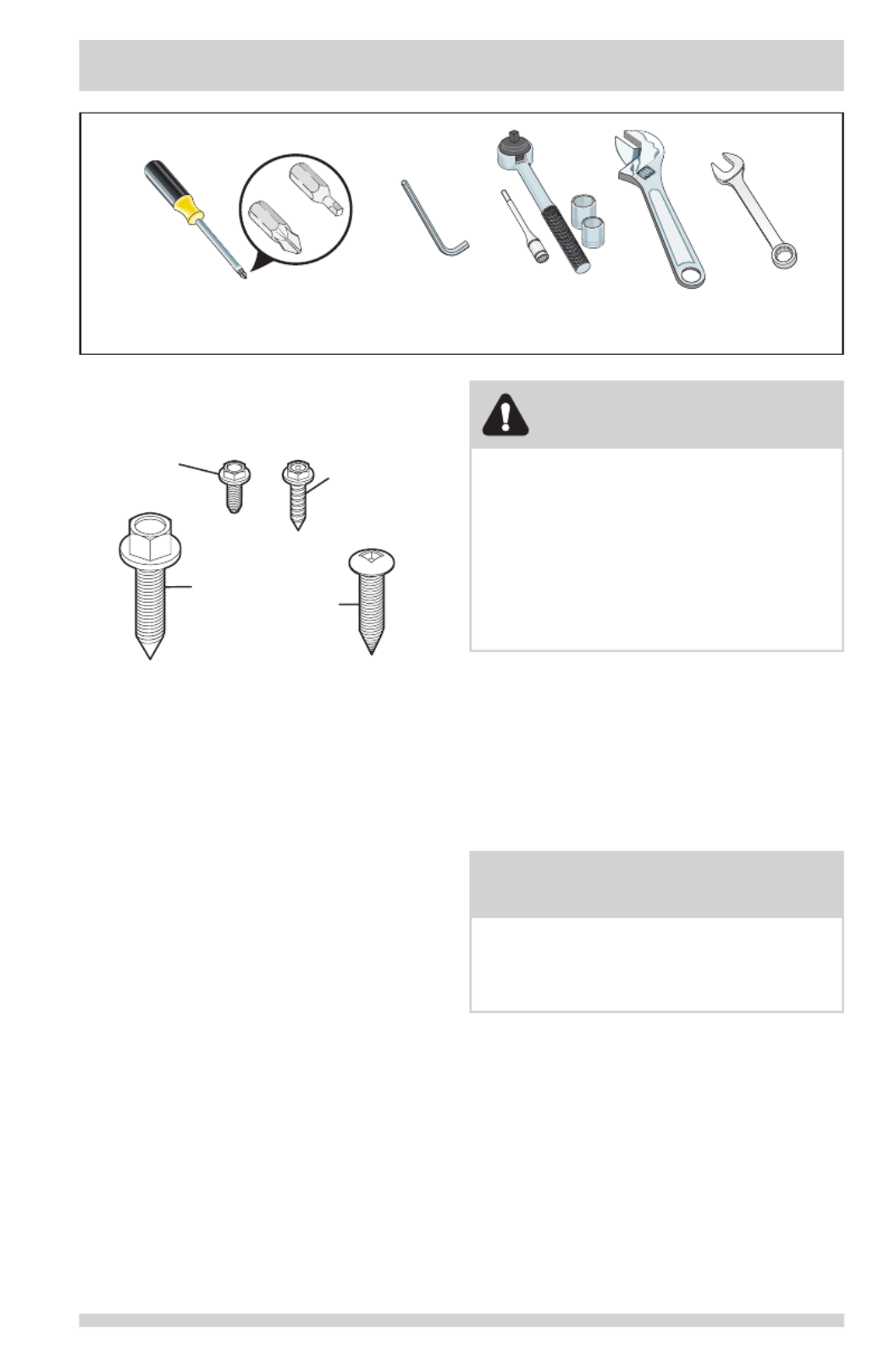

Components Provided:
Tools Necessary:
Phillips Head
or
Quadrex Head
Screwdriver
(OR) OR
⅜" and ¼"
Socket
Wrench
Adjustable
Wrench
OR
⅜"
Fixed
Wrench
ANDAND
6mm
Allen Wrench
6
INSTALLATION
Toe Grille Must
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(2) Retaining Clips
Cabinet Leveling & Refrigerator
Door Alignment (if necessary)
Guidelines for nal positioning of your
refrigerator:
• All four corners of the cabinet must rest
rmly on the oor.
• The front should be slightly elevated to
ensure that doors close and seal properly.
• Doors should align with each other and be
level.
Most of these conditions can be met by raising
or lowering the adjustable front rollers.

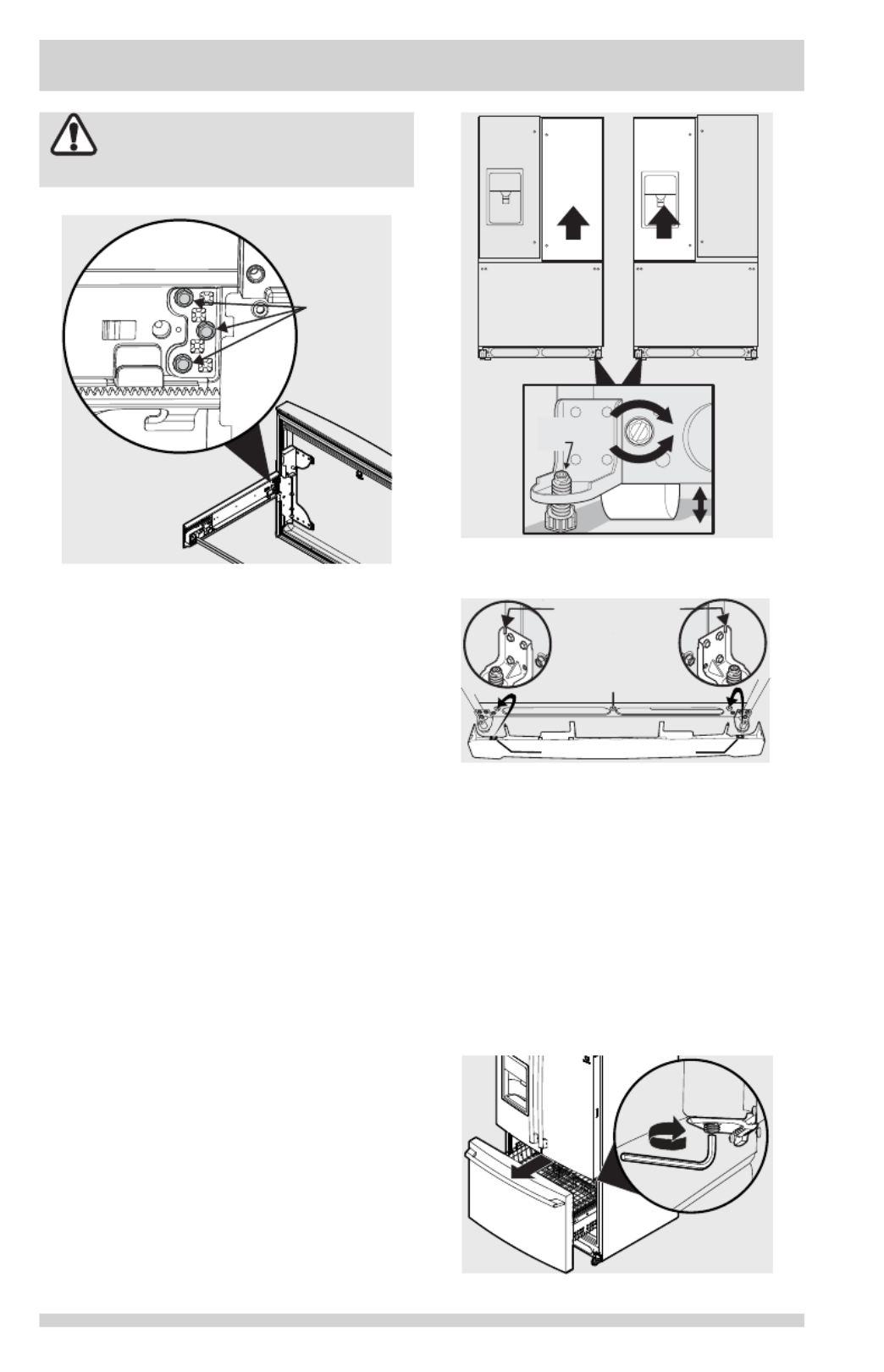

To level the cabinet using the front rollers:
1 Slightly open freezer drawer if the toe grill
is installed. Lift the toe grille and gently
pull forward.
2 Make initial cabinet adjustments by using
the front roller height adjusting screws.
Use a 3/8 inch socket wrench to turn the
adjustment screws (1 per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
4 After unit is leveled, lower anti-tip leg
using a 3/8 inch socket wrench until it
rmly contacts the oor.
Raise
Lower
Anti-tip
Leg
Door
Door
5 Install the toe grille by tting into place.
DO NOT
Loosen
or
Remove
These 3
Hex
Screws
CAUTION
Do Not loosen or remove these 3 hex screws.
Raise
To make nal door height adjustments:
1. Open freezer drawer to make lower hinge
visible.
2. Insert 6mm Allen wrench into the shaft of
the lower hinge.
3. Adjust the height by turning clockwise or
counterclockwise. Turning clockwise will
lower the door. Turning counterclockwise
will raise the door. Default setting is to
the lowest height when you receive your
appliance.
7
Flipper
Mullion
Screw
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
2 Adjust ipper mullion height. For proper
connection with the ipper mullion guide,
there should be a separation about the
thickness of a coin (0.060 inches, or
1.5 mm) between the guide and ipper
mullion.
3 Re-tighten screw.
To adjust the ipper mullion:
1 Loosen the screw located on the ipper
mullion hinge.
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
INSTALLATION
9
DOOR REMOVAL INSTRUCTIONS
Lower Hinge Removal
4 Unscrew the three lower hinge screws and
slide the hinge inwards.
CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal
injury, or damage to the doors or handles.
NOTE
You will be pulling approximately ve feet of
water tube from the back of the refrigerator.
Once both doors are in place, ensure they are
aligned with each other and level (Please see
the Installation section for more details), and
replace the top hinge cover.
NOTE
When reinserting the water tube and
replacing the top hinge cover, use care to be
sure you do not kink the tube.
Press
Press
Approximately
5 feet
Water
Line
Insert tube
up to the
marking
line
NOTE
Upon replacement, the tube needs to be
fully inserted up to the marking line.
To reinstall the refrigerator doors:
Reverse the above steps.
CAUTION
Drawer is heavy. Use caution when lifting.
Remove
Hex Head
Drawer Screw
DO NOT
Remove
Other
Screws
DO NOT
Loosen
or
Remove
These 3
Hex
Screws
1 Remove 4 hex head drawer screws.
2 Lift up drawer to remove.
Removing Freezer Drawer
Re-installing Freezer Drawer
1 Lower drawer back into place.
2 Replace 4 hex head drawer screws and
tighten.
10
INSTALLING DOOR HANDLES
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The
handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the
opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens,
tighten the set screws on the handles.
Door Handle Mounting
Instructions for Frigidaire
& Frigidaire Gallery
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end caps over upper and
lower pre-installed shoulder
bolts (A) that are fastened
into door, ensuring the holes
for the set screws are facing
towards the opposite door.
3 While holding handle rmly
against door, fasten upper and
lower Allen set screws (B) with
supplied Allen wrench.
4 Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards the
rst door.
5 Position freezer handle end
caps over left and right pre-
installed shoulder bolts (A)
that are fastened to the door,
ensuring the holes for the set
screws are facing down.
6 While holding handle rmly
against door, loosely tighten
right Allen set screw (B) with
supplied Allen wrench until
there is no gap between
handle and door.
7 Still holding the handle rmly
to the door, rmly tighten
left Allen set screw (B) with
supplied Allen wrench.
8 Return to the right Allen set
screw (B) and rmly tighten
with supplied Allen wrench.
Mounting Freezer Handle
Mounting Refrigerator Handles
NOTE
When tightening the Allen set screws, it is imperative that
force be applied to the longer arm of the Allen wrench
supplied in the handle packaging.
11
INSTALLING DOOR HANDLES
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
Door Handle Mounting
Instructions for
Frigidaire Professional®
1 Remove handles from carton and
any other protective packaging.
2 Position fresh food handle end
over upper and lower pre-
installed shoulder bolts (A) that
are fastened into door, ensuring
the holes for the set screws are
facing towards the opposite door.
3 While holding handle rmly
against door, fasten further
most upper and further most
lower Allen set screws (B) with
supplied Allen wrench.
4 Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the rst door.
Firmly tighten the inside Allen 5
set screws.
Position freezer handle end 6
over left and right pre-installed
handle shoulder bolts (A)
that are fastened to the door,
ensuring the holes for the set
screws are facing down.
7 While holding handle rmly
against door, loosely tighten
far right Allen set screw (B)
with supplied Allen wrench
until there is no gap between
handle and door.
8 Still holding the handle rmly
to the door, rmly tighten far
left Allen set screw (B) with
supplied Allen wrench.
9 Return to the far right Allen set
screw (B) and rmly tighten
with supplied Allen wrench.
10 Firmly tighten the inside Allen
set screws.
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The
handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the
opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens,
tighten the set screws on the handles.
A
B
A
B
B
A
B
A
Mounting Refrigerator Handles
Mounting Freezer Handle
NOTE
When tightening the Allen set screws, it is imperative that
force be applied to the longer arm of the Allen wrench
supplied in the handle packaging.
12
CONNECTING THE WATER SUPPLY
WARNING
To avoid electric shock, which can cause
death or severe personal injury, disconnect
the refrigerator from electrical power before
connecting a water supply line to the
refrigerator.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing your
new refrigerator. Depending on your local/
state building codes, Frigidaire recommends
for homes with existing valves its Smart
Choice® water line kit 5305513409 with a 6 ft.
(1.8 meters) Stainless Steel Water Line, and
for homes without an existing valve Frigidaire
recommends its Smart Choice® water line kit
5305510264 with a 20 ft. (6 meters) Copper
Water Line with self-tapping saddle valve.
Please refer to www.frigidaire.com/store for
more information.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply
line. Water supply tubing made of ¼
inch plastic is not recommended to be
used. Plastic tubing greatly increases
the potential for water leaks, and the
manufacturer will not be responsible for
any damage if plastic tubing is used for
the supply line.
• DO NOT install water supply tubing in
areas where temperatures fall below
freezing.
• Chemicals from a malfunctioning water
softener can damage the ice maker. If
your home has a water softening system,
ensure the softener is maintained and
working properly.
IMPORTANT
Ensure that your water supply line
connections comply with all local plumbing
codes.
Before Installing The Water
Supply Line, You Will Need:
• Basic Tools: adjustable wrench, at-blade
screwdriver, and PhillipsTM screwdriver
• Access to a household cold water line with
water pressure between 30 and 100 psi.
• A water supply line made of ¼ inch
(6.4 mm) OD, copper or stainless steel
tubing. To determine the length of tubing
needed, measure the distance from the
ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then
add approximately 7 feet (2.1 meters),
so the refrigerator can be moved out for
cleaning (as shown).
• A shutoff valve to connect the water supply
line to your household water system. DO
NOT use a self-piercing type shutoff valve.
• Do not re-use compression tting or use
thread seal tape.
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to
the ice maker inlet valve.
Produktspecifikationer
| Varumärke: | Frigidaire |
| Kategori: | kylskåp |
| Modell: | FFHB2750TS |
Behöver du hjälp?
Om du behöver hjälp med Frigidaire FFHB2750TS ställ en fråga nedan och andra användare kommer att svara dig
kylskåp Frigidaire Manualer
5 Oktober 2025
5 Oktober 2025
30 Juli 2025
29 Juli 2025
29 Juli 2025
29 Juli 2025
11 Juni 2025
11 Juni 2025
11 Juni 2025
11 Juni 2025
kylskåp Manualer
- Gecko
- Scancool
- EVVO
- Carpigiani
- Cool Head
- Bosch
- Salton
- Silvercrest
- Marshall
- Furrion
- Novy
- Thor
- BSK
- Ideal
- Momcube
Nyaste kylskåp Manualer
23 Oktober 2025
23 Oktober 2025
23 Oktober 2025
23 Oktober 2025
23 Oktober 2025
23 Oktober 2025
21 Oktober 2025
21 Oktober 2025
20 Oktober 2025
20 Oktober 2025
