FSR
244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: 973.785.4347 - Fax: 973.785.4207
43307LIT1615

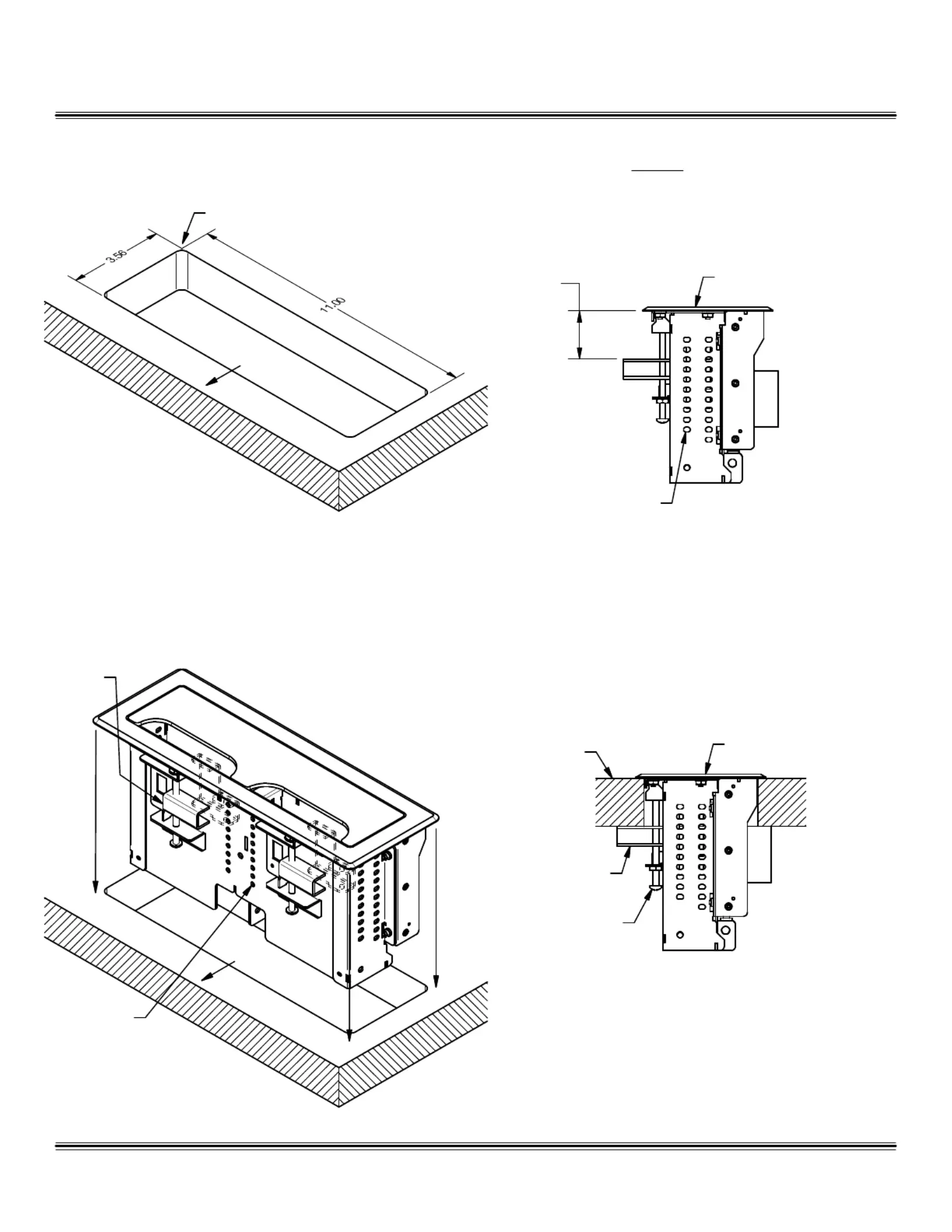

1.
DETERMINE LOCATION AND CUT 11.00 x 3.56 HOLE WITH
1/4 MAX RADIUS CORNERS IN TABLE TOP.
FRONT
2.
INSTALL DESIRED POWER UNITS/INTERNAL BRACKETS INTO
RT6-R2 ASSEMBLY. ADJUST HEIGHT OF UNITS/BRACKETS IN
RT6-R2 ASSEMBLY BEFORE INSTALLING IN THE TABLE.
FOLLOW THE UNIT/BRACKET INSTALLATION INSTRUCTIONS
WHEN PROVIDED. IF RETRACTORS WILL BE INSTALLED,
LEAVE THAT COMPARTMENT OPEN; RETRACTORS WILL BE
ASSEMBLED LATER INTO A CASSETTE THEN INSTALLED
FROM BOTTOM.
RT6-R2 INSTALLATION INSTRUCTIONS
ROTATE LOCKING ARMS CLEAR OF TABLE AND INSERT
RT6-R2 ASSEMBLY INTO HOLE OF TABLE.
3.
FRONT
4.
ROTATE LOCKING ARMS TO SECURE ASSEMBLY TO
TABLE WITH ADJUSTMENT SCREW. LOCK ADJUSTMENT
SCREW WITH INTERGRAL NUT WHERE NEEDED. MAKE
ELECTRICAL CONNECTIONS AS REQUIRED.
SHARP TO 1/4 MAX R.
TABLE THICKNESS
3/4" TO 2.00"
POWER UNIT/BRACKET
HEIGHT-ADJUSTMENT HOLES
RIM
(4) LOCKING
ARM
BRACKET
HEIGHT-
ADJUSTMENT
HOLES
TABLE
(4) LOCKING ARM
(4) LOCKING ARM
ADJUSTMENT
SCREW WITH
LOCK NUT
RIM
