Thank you for purchasing the fi-6110 color image scanner.
This manual explains about the basic operations and handling of the scanner.
For information on scanner installation, connection and software installation,
refer to "Getting Started".
Glossary
Appendix
How to Use This Manual
2
Introduction
Index
Contents
TOP
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
How to Use This Manual
The following shows the tips for using this manual.
Cover page
Contents page
Index page
Common notes:
zTo display or print this manual, either Adobe® Acrobat® (7.0 or later)
or Adobe® Reader® (7.0 or later) is required.
zClick a blue character string (where the mouse pointer changes to a
shape such as ) to move to the linked section.
zIn this manual, you can use the navigation option of Adobe® Acrobat®
or Adobe® Reader®.
For details, refer to the Adobe® Acrobat® or Adobe® Reader® Help.
zUse the [Page Up] key to return to the previous page, and the [Page
Down] key to go to the next page.
Jumps to the
first page of
each chapter.
TOP: Jumps to the cover page.
CONTENTS: Jumps to the contents page.
INDEX: Jumps to the index page.
Jumps to this
page.
Click a title to jump to the page.
Click an index title to jump to the page.
Introduction
3
Appendix
Glossary
Introduction
Index
Contents
TOP
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
Introduction
Thank you for purchasing the fi-6110 color image scanner.
About This Product
The fi-6110 is equipped with an Automatic Document Feeder
(ADF) that allows duplex (double-sided) scanning.
Manuals
The following manuals are included for this product. Read
them as needed.
Manual Description
Safety Precautions
(paper)
Contains important information about the
safe use of this product.
Make sure to read this manual before
using the fi-6110.
Getting Started
(paper, PDF)
Outlines the procedures from installation to
operation of the scanner.
The PDF version is included in the Setup
DVD-ROM.
Operator's Guide
(this manual) (PDF)
Provides detailed information on how to
operate and maintain the scanner daily,
how to replace the consumables, and how
to troubleshoot problems. Included in the
Setup DVD-ROM.
How to Use ScandAll
PRO (PDF)
Provides information on how to scan
documents by using ScandAll PRO.
Included in the Setup DVD-ROM.
TWAIN User's Guide
(PDF)
Explains how to install and operate the
TWAIN driver. Included in the Setup DVD-
ROM.
Image Processing
Software Option User's
Guide (PDF)
Explains how to install and operate the
Image Processing Software Option.
Included in the Setup DVD-ROM.
Error Recovery Guide
(HTML Help)
Details the status of the scanner and
explains how to resolve problems
encountered.
Contains movies that explain how to clean
and replace the consumables. Included in
the Setup DVD-ROM.
Help (scanner driver) Explains how to use and configure the
settings for the scanner drivers. Can be
referenced from each scanner driver.
Help (application) Explains how to use and configure the
settings for the application software. Can
be referenced from each application.
Manual Description
Introduction
4
Appendix
Glossary
Introduction
Index
Contents
TOP
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
Trademarks
Microsoft, Windows, Windows Server, Windows Vista, and
SharePoint are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other
countries.
ISIS and QuickScan are either registered trademarks or
trademarks of EMC Corporation in the United States.
Adobe, the Adobe logo, Acrobat, and Adobe Reader are either
registered trademarks or trade names of Adobe Systems
Incorporated in the United States and/or other countries.
Other company names and product names are the registered
trademarks or trademarks of the respective companies.
Manufacturer
PFU LIMITED
International Sales Dept., Imaging Business Division,
Products Group
Solid Square East Tower,
580 Horikawa-cho, Saiwai-ku, Kawasaki, Kanagawa
212-8563, Japan.
Phone: (81-44) 540-4538
All Rights Reserved, Copyright © PFU LIMITED 2010
Conventions
5
Appendix
Glossary
Introduction
Index
Contents
TOP
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
Conventions
Safety Information
The attached "Safety Precautions" manual describes
important details for users to use this product safely and
correctly. Read the Safety Precautions thoroughly before you
start using this product.
Symbols Used in This Manual
The following indications are used in this manual to obviate
any chance of accident or damage to you, and your property.
Warning labels indicate the warning level and statements. The
symbols indicating warning levels and their meanings are as
follows.
Besides warning indicators, the following symbols are used in
this manual.
Naming Conventions in This Manual
The operating systems and products in this manual are
indicated as follows.
This indication alerts operators to an operation
that, if not strictly observed, may result in severe
injury or death.
This indication alerts operators to an operation
that, if not strictly observed, may result in safety
hazards to personnel or damage to the product.
！
！
！
！
！！
This symbol alerts operators to particularly important
information. Be sure to read this information.
This symbol alerts operators to helpful advice regarding
operation.
Product Indication
Windows® XP Home Edition
(Service Pack 2 or later)
Windows® XP Professional
(Service Pack 2 or later)
Windows® XP Professional x64 Edition
Windows
XP
Windows
(*1)
Windows Server® 2003 Standard Edition
Windows Server® 2003 Standard x64 Edition
Windows Server® 2003 R2, Standard Edition
Windows Server® 2003 R2, Standard x64
Edition
Windows
Server
2003
Windows Vista® Home Basic (32/64-bit)
Windows Vista® Home Premium (32/64-bit)
Windows Vista® Business (32/64-bit)
Windows Vista® Enterprise (32/64-bit)
Windows Vista® Ultimate (32/64-bit)
Windows
Vista
Windows Server® 2008 Standard (32/64-bit)
Windows Server® 2008 R2 Standard (64-bit)
Windows
Server
2008
Windows
(*1)
Windows® 7 Home Premium (32/64-bit)
Windows® 7 Professional (32/64-bit)
Windows® 7 Enterprise (32/64-bit)
Windows® 7 Ultimate (32/64-bit)
Windows 7
Configuring the
Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
Contents
7
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
Contents
How to Use This Manual ................................................................................................................................... 2
Introduction ........................................................................................................................................................ 3
Conventions ....................................................................................................................................................... 5
Chapter 1 Scanner Overview ....................................................................................................................... 13
1.1 Main Features ............................................... ................................. ................. ..................................................... ........ 14
1.2 Parts and Functions ....................... ................ ................................. ................. ............... ............... 15.............................
Front ............................. ................................................. ............................... ........................................................ .......... 15
Back .............................................. ....................................................................................................................... .......... 16
Removable Parts................................................................ ................ .............................. ............... ............................... 17
1.3 Turning the Power ON/OFF .................. ................ ................ .............................. ................. ............... ........................ 18
How to Turn the Power ON ...................... ................ ................................. ................. .................................................... 18
How to Turn the Power OFF ..................................................... ................................................. .................................... 18
1.4 Opening/Closing the ADF ................................... ................................. ....................................................................... 19
How to Open the ADF ................................................... ......................................................... ........................................ 19
How to Close the ADF.................................................................................................................................................... 19
1.5 Setting Up the ADF Paper Chute ............................................................................................................................... 20
1.6 Setting Up the Stacker ................................................................................................................................................ 21
1.7 Resuming from Power Saving Mode ............................... ................................. ......................................................... 22
1.8 Basic Flow of Scanning Operation ............................................................................................................................ 23
Chapter 2 How to Load Documents ............................................................................................................ 26
2.1 Loading Documents ............................................................................. ............................................. .......................... 27
Preparation ........................................................................... ............................. ............................................................. 27
How to Load Documents ........................................................... ................................. .................................................... 28
Configuring the
Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
Contents
8
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
2.2 Documents for Scanning .................................... ................................. ....................................................................... 30
Paper Size..................................... ................................................. ............................... ........ 30.........................................
Paper Quality................................. ................................................. ................................................................................ 30
Loading Capacity............................................. ................................. ................. .............................. ............................... 32
Area Not to Be Perforated .................... ................................................. ................ ................................. ........................ 32
Conditions for Multifeed Detection ..................... .................................................................................................... ........ 33
Conditions for Mixed Batch Scanning ............................................................................................................................ 34
Conditions for Using the Carrier Sheet........................................................................................................................... 36
Chapter 3 Configuring the Scan Settings .................................................................................................. 37
3.1 TWAIN Driver ....................................................... ........................... ............................. ................................................ 38
[Resolution] .......................................................................... ............................. ............................................................. 39
[Scan Type] .......................................................................... ............................. ............................................................. 39
[Paper Size]................................... ................................................. ............................... ........ 39.........................................
[Image Mode] ................................................................................................................................................................. 39
[Scan] Button................................. ................................................. ................................................................................ 39
[Preview] Button ............................................................... ................. ................................. ................................ ............ 40
[Close] / [OK] Button................................. ......................................................................................... ............................. 40
[Reset] Button................................ ................................................. ................................................................................ 40
[Help] Button........................... .............................................. .......................................................................................... 40
[About] Button....................................................................... ............................. ............................................................. 40
[Option] Button ............................................................................... ........................................................................ ........ 40
[Advance] Button ............................................. ................................. .............................................................................. 41
[Config] Button...................................................................... .............. ............................. ....................................... ........ 41
[Browse] Button ............................................... ................ .............................. ................................ ................................. 41
3.2 ISIS Driver .................................................................................................................................................................... 42
[Main] Tab ........................... ................................................. ............................. ..................................................... ........ 43
[Layout] Tab .................................................... ................................. .............................................................................. 43
[Image Processing] Tab ....................... ................................................. ................ ................................. ........................ 44
Configuring the
Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
Contents
9
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
[Paper Handling] Tab ........................................................... ................ ................................. ............... .......................... 45
[Gamma] Tab .................................................................................................................... ................................. ............ 45
[Color Dropout] Tab........................... ................................. ............................................................................................ 46
[Compression] Tab ........................ ...................................................................................... ........................................... 46
[Blank Page Deletion] Tab.................... ................. ................................................. ................ ........................................ 47
[About] Tab........................................................................................................ ..................................................... ........ 47
Chapter 4 How to Use the Operator Panel ................................................................................................. 48
4.1 Operator Panel ............................................................................. ........................................................................ ........ 49
Names and Functions .................................................................................................................................................... 49
Indications on Function Number Display........................................................................................................................ 50
Chapter 5 Various Ways to Scan ................................................................................................................ 51
5.1 Summary ......................................... ................................. ............................................................................................ 52
5.2 Scanning Documents of Different Types and Sizes ................................................................................................ 53
Scanning Both Sides at Once .................. ................................. ..................................................................................... 53
Documents with Different Widths ................................ ................................ .............................. ............... ...................... 54
Documents Larger than A4/Letter Size .......................................................................................................................... 55
Long Page Scanning ............................................................................................................. ............................... .......... 57
5.3 Advanced Scanning .......................................................................................................... ............ 59..............................
Removing a Color from the Scanned Image (Dropout Color) ........................................................................................ 59
Skipping Blank Pages ............................................ ................................. ....................................................................... 62
5.4 Configuring Post-Scan Operations and Handling ............................. ................................................. ...................... 64
Automatically Correcting Skewed Images............................ ................................. ......................................................... 64
Automatically Correcting the Page Orientation .............................................................................................................. 66
Saving Scanned Images in PDF Format ................ ................ ................................. ........................................... ............ 68
Splitting the Scanned Image in Two..................................... ........................................... ............................................... 72
Using the Multi Image Output......................................................................................................................................... 74
Automatically Detecting Color/Monochrome Documents ............................................................................................... 76
Configuring the
Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
Contents
10
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
5.5 Customizing the Scanner Settings ............................................................................................................................ 78
Using a Button on the Scanner to Start Scanning.......................................................................................................... 78
Detecting Multifeed Errors.............................................................................................................................................. 80
Ignoring Multifeed for a Set Pattern............... ................................. .............................. ........................................ .......... 82
Chapter 6 Daily Care .................................................................................................................................... 85
6.1 Cleaning Materials and Locations that Require Cleaning ....................... ................................. ............................... 86
Cleaning Materials............................. ................ ................................. ................. .............. ................................. ............ 86
Location and Frequency.............................. ........................................................... .............................. ................ .......... 86
6.2 Cleaning the Outside ........................................................ ................................. ......................................................... 87
6.3 Cleaning the Inside ...................................... ................ ................................. ................. ............................................. 88
6.4 Cleaning the Carrier Sheet ......................................................................................................................................... 90
Chapter 7 Replacing the Consumables ...................................................................................................... 91
7.1 Consumables and Replacement Cycles ................................................................................................................... 92
7.2 Replacing the Pad Assy ...................................... ................................. ....................................................................... 93
7.3 Replacing the Pick Roller ...................................................... ............................................ ......................................... 94
7.4 Purchasing the Carrier Sheet ............................. ................ ................................. ................. ...................................... 98
Chapter 8 Troubleshooting .......................................................................................................................... 99
8.1 Paper Jam ............................ .................................................................................................................. .................... 100
8.2 Error Indications on Operator Panel ............................... .................................................................... .................... 101
Temporary Errors ......................................................................................................................................................... 102
Device Errors..................................................................................................... ................................................... ........ 102
8.3 Troubleshooting ................................ ............................................................... ......................................................... 104
Scanner cannot be powered ON. ................................................................................................................................. 105
The Function Number Display switches OFF............................................................................................................... 106
Scanning does not start........................ ................................................. ....................................................................... 107
Quality of the scanned photo/picture is poor when scanning in black & white mode. ....................... ....................... .... 108
Quality of scanned text or lines is unsatisfactory. ............................ ................................. ........................................... 109
Configuring the
Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
Contents
11
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
Images are distorted or not clear.................................................................................................................................. 110
Vertical streaks appear on the scanned image. .................................... ................................. ...................................... 111
"E" (or other numbers/letters) is already displayed on the Function Number Display after power-on.......................... 112
Multifeed error occurs frequently.................................................................................................................................. 113
Situation in which the document is not fed into the ADF occurs frequently.................................................................. 115
Paper jams/pick errors occur frequently....................................................................................................................... 116
Scanned images turn out elongated................ ................................. ............................................................................ 117
A shadow appears at the top or the bottom of the scanned image. ............................................................................. 118
There are black traces on the document...................................................................................................................... 119
Paper jams occur frequently when scanning with the Carrier Sheet............................................................................ 120
8.4 Before You Contact the Scanner Service Provider ........................... ................................................. .................... 121
General............................ ................. .............................................. ................ .............................................................. 121
Error Status ......................................................................................... .......................... ....................................... ........ 122
8.5 Checking the Product Labels ................................ ................................. ................ ............................ ...................... 123
Location .................................. ........................................................ .............................. ............................ .................... 123
Chapter 9 Operational Settings ................................................................................................................. 124
9.1 Starting Up the Software Operation Panel .............................................................................................................. 125
9.2 Password Setting .......................................................................... ................................................. ........................... 126
Setting a Password ............................................................ ................................................. ......................................... 126
Setting the [View Only mode] ................................. ................................. ................. ............................................ ........ 127
Clearing the [View Only mode].................................. ................. .............................. ................ ............................ ........ 128
Changing the Password ......................................... ................................. ..................................................................... 129
Clearing the Password ......................... ................................................. ....................................................................... 130
Resetting the Password .......................................................... ........................................................................... .......... 131
9.3 Configuration Items ........................................ ................................. ......................................................................... 132
Device Setting ............................... ................................................. .............................................................................. 132
Device Setting 2 .............................................. ................................. ............................................................................ 134
Configuring the
Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
Contents
12
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Daily Care
Troubleshooting
9.4 Settings Related to Page Counters ......................................................................................................................... 137
Checking and Resetting the Counters [Page Counter] ................................................................................................ 137
Replacement Cycle of Consumables [Life Counter Alarm Setting] .............................................................................. 139
9.5 Settings Related to Scanning ................................................................................................................................... 140
Adjusting the Start Position for Scanning [Offset/Vertical magnification Adjustment] .................................................. 140
Removing Shadows/Streaks that Appear around the Scanned Image [Page Edge Filler (ADF)] ................................ 142
Removing a Color from the Scanned Image [Dropout color]........................................................................................ 143
Number of Paper Feeding Retries................................................................................................................................ 144
9.6 Settings Related to Multifeed Detection .................................................................................................................. 145
Method of Multifeed Detection [Multifeed] ........................................... .............................. ........................................... 145
Specifying an Area to Detect Multifeed
[Document check area specification for Multifeed Detection] ................................................................................... 147
Specifying an Area Not to Detect Multifeed [Intelligent Multifeed Function]............................. ....................... ............. 150
9.7 Settings Related to Waiting Time .............................................................. .......................................... .................... 151
Waiting Time to Enter Power Saving Mode [Power saving] ......................................................................................... 151
9.8 Settings Related to Power ON/OFF ......................................................................................................................... 152
Method of Turning the Scanner ON/OFF [Power SW Control].......................... .............................................. ............. 152
Appendix ...................................................................................................................................................... 153
A.1 Basic Specification ....................................................... ................................. ........................................................... 154
A.2 Installation Specification .................. ................................................. ....................................................................... 156
A.3 Outer Dimensions ..................................................................................................................................................... 157
A.4 Uninstalling the Software ................. ................................................. ....................................................................... 158
Glossary ....................................................................................................................................................... 159
Index ............................................................................................................................................................. 170
Index
Contents
Appendix
Glossary
Introduction
TOP
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Configuring the
Scan Settings
Chapter 1 Scanner Overview
This chapter explains about the names and functions of the scanner parts, as well as the methods for basic operations.
1.1 Main Features............................ ................ ................................................................. ................. ...............14
1.2 Parts and Functions.......................... ................ ................................. ............................................. ............15
1.3 Turning the Power ON/OFF ................. ................................. ......................................................................18
1.4 Opening/Closing the ADF............................................. ........................................... ...................................19
1.5 Setting Up the ADF Paper Chute................................................................................................................20
1.6 Setting Up the Stacker.................................... ................................. ...........................................................21
1.7 Resuming from Power Saving Mode ..........................................................................................................22
1.8 Basic Flow of Scanning Operation .................... .......................................... ..................23................ .............
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
15
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview

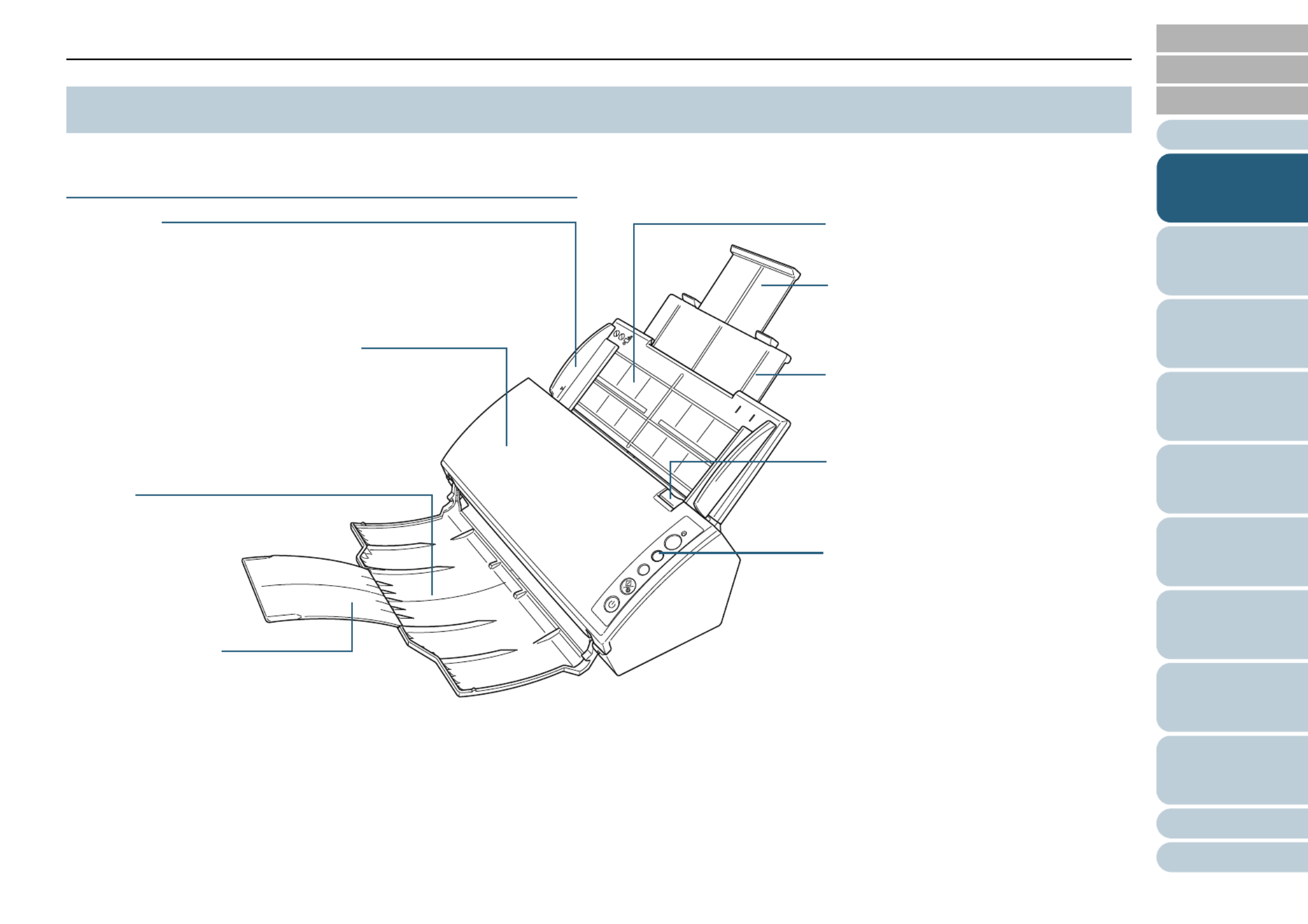

This section shows the names of the scanner parts.
Front
1.2 Parts and Functions
Stacker
Stacks up the ejected documents.
Operator Panel
Consists of the Function Number Display,
buttons, and Check LED.
Can be used to operate the scanner or
check the status.
For details about the operator panel, refer
to "Chapter 4 How to Use the Operator
Panel" (page 48).
ADF (Automatic Document Feeder)
Pulls and feeds the documents one sheet at
a time from the ADF paper chute.
Open to replace consumables or clean the
inside of the scanner.
Side Guide
Guides the documents in width
direction as they are fed into the
scanner. Chute Extension 2
Pull out to adjust to the paper length.
ADF Paper Chute
Holds the documents to be scanned.
ADF Release Tab
Pull this tab to open the ADF.
Stacker Extension
Lift up to adjust to the paper length.
Chute Extension 1
Pull out to adjust to the paper length.
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
16
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Back
USB Connector
Used to connect a USB cable.
Security Cable Slot
Used to connect an anti-theft security cable (commercially available).
Ventilation Port
Holes for ventilating hot air from inside the scanner.
Power Connector
Used to connect the power cable.
Power cable refers to the AC cable and AC adapter connected together.
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
17
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Removable Parts
Pick Roller
For details about removing the pick roller, refer to "7.3 Replacing the Pick
Roller" (page 94).
Sheet Guide
For details about removing the sheet guide, refer to "7.3 Replacing the Pick
Roller" (page 94).
ADF Paper Chute
For details about removing the ADF paper chute, refer to "7.3 Replacing the
Pick Roller" (page 94).
Pad Assy
For details about removing the pad assy, refer to "7.2 Replacing the
Pad Assy" (page 93).
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
18
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
This section explains how to power on/off the scanner.
How to Turn the Power ON
1Press the [Power] button on the scanner's operator panel.
DThe power is turned on, and the [Power] button lights in green.
During initialization, the Function Number Display of the operator
panel changes as follows: "8" J "P" J "0" J "1". The scanner is
ready when "1" is displayed.
How to Turn the Power OFF
1Press the [Power] button on the operator panel for more
than two seconds.
DThe power is turned off, and the [Power] button switches off.
1.3 Turning the Power ON/OFF
The method by which the scanner is powered ON/OFF can be
specified from one of the following:
zPress the [Power] button on the operator panel
zUnplug the power cable then plug it back in
zHave the scanner turn ON/OFF in sync with the
computer's power
For details, refer to "Method of Turning the Scanner ON/OFF
[Power SW Control]" (page 152).
When you press the [Power] button, the Check LED will
flash once. Note that this is an initial diagnosis and not a
malfunction.
Check
Function
Send to
Scan
/Stop
Power
[Power] Button
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
19
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
This section describes how to open and close the ADF.
How to Open the ADF
1Remove all documents from the ADF paper chute.
2Pull the ADF release tab towards you to open the ADF.
How to Close the ADF
1Close the ADF.
Push the center of the ADF until it locks in place.
1.4 Opening/Closing the ADF
Be careful not to have your fingers caught
when the ADF closes.
ADF Release Tab
！
！
！
！
！！
zMake sure that there is no foreign matter inside the
ADF.
zBe careful not to have your fingers caught.
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
20
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Documents loaded in the ADF paper chute are fed into the
scanner one by one.
Using the chute extension 1 and chute extension 2 as shown
below will keep the documents straight and feed them
smoothly.
1Pull out chute extension 1.
2Pull out chute extension 2.
1.5 Setting Up the ADF Paper Chute
Make sure to hold the scanner while you pull out the chute
extension 1.
Chute Extension 1
Make sure to hold the scanner while you pull out the chute
extension 2.
Chute Extension 2
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
21
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Documents loaded in the ADF paper chute are ejected onto
the stacker one by one.
Using the stacker and stacker extension as follows will keep
the documents straight and stack them neatly.
1Pull out the stacker from the top towards you.
2Lift up the stacker extension.
1.6 Setting Up the Stacker
Stacker
Stacker Extension
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
22
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Power saving mode keeps the power consumption low when
the scanner has not been used for a certain period of time.
If the scanner is left powered on for 15 minutes without being
used, it automatically enters power saving mode.
When it enters power saving mode, the Function Number
Display on the operator panel switches off but the [Power]
button remains lit in green.
To resume from power saving mode, perform one of the
following:
zLoad a document in the ADF paper chute
zPress any button on the operator panel
* Note that pressing the [Power] button for more than two seconds will
turn the power off.
zPerform scanning from the scanner driver
1.7 Resuming from Power Saving Mode
The waiting time for entering power saving mode can be
changed in the Software Operation Panel.
For details, refer to "Waiting Time to Enter Power Saving Mode
[Power saving]" (page 151).
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
23
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
This section explains about the basic flow of performing a
scan.
In order to perform a scan, you need a scanner driver and an
application that supports the driver.
There are two scanner drivers bundled with this scanner;
"TWAIN driver" and "ISIS driver", which are compliant to the
TWAIN and ISIS standards, respectively. Also bundled is an
application called "ScandAll PRO" (for TWAIN/ISIS) which
supports both drivers.
The following describes the flow of performing a scan.
1Turn on the scanner.
For details, refer to "1.3 Turning the Power ON/OFF" (page 18).
2Load a document in the ADF paper chute.
Set the document with its front side (scanning side) facing the ADF
paper chute.
For details, refer to "Chapter 2 How to Load Documents" (page 26).
1.8 Basic Flow of Scanning Operation
zFor details about the scanner drivers, refer to:
-"Chapter 3 Configuring the Scan Settings" (page 37)
- TWAIN driver Help
- ISIS driver Help
zFor details about ScandAll PRO, refer to:
- How to Use ScandAll PRO
- ScandAll PRO Help
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
24
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
3Start up the application to use for scanning.
ScandAll PRO will be used here as an example to explain the
procedure.
For details about how to start up ScandAll PRO, refer to "How to Use
ScandAll PRO".
4Select a scanner driver.
5Select a scanner.
When ScandAll PRO is launched
TWAIN driver:
ISIS driver:
Appendix
Chapter 1 Scanner Overview
Glossary
Introduction
Index
Contents
TOP
25
How to Load
Documents
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
6 7Launch the scanner driver from the application. In the scanner driver's setup dialog box, configure the
scan settings and then click the [OK] button.
8Scan the document by clicking the [Scan] menu J [Scan].
For details about scanning with ScandAll PRO, refer to "How to Use
ScandAll PRO".
9Save the scanned image to a file.
TWAIN driver:
ISIS driver:
！
！
！
！
！！
Do not unplug the USB cable or log off the user account
when the scanner and the computer are communicating,
for instance, during scanning.
Procedures and operations slightly vary depending on the
application used.
For more details about scanning with ScandAll PRO, refer
to "How to Use ScandAll PRO".
To perform scanning with other applications, refer to the
manual bundled with the application.
Index
Appendix
Glossary
Introduction
Contents
TOP
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents
Chapter 2 How to Load Documents
This chapter explains how to load documents on the scanner.
2.1 Loading Documents............................. ................. .......................................................... ................ ............27
2.2 Documents for Scanning ..................... ................................. ................................ ............................ ..........30
Contents
Index
Chapter 2 How to Load Documents
Appendix
Glossary
Introduction
TOP
27
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents
This section explains how to load documents on the scanner.
Preparation
1Check the documents.
1 Check if the documents to be loaded are of the same width or
different widths.
Ways to load documents differ depending on whether they are the
same width or not.
If the document width varies, refer to "Conditions for Mixed Batch
Scanning" (page 34) or "Documents with Different Widths" (page
54).
2 Check the number of sheets.
Up to 50 sheets can be loaded (with paper weight of 80 g/m2
(20 lb) and thickness of the document stack under 5 mm).
For details, refer to "Loading Capacity" (page 32).
2Fan the documents.
1 Grab a stack of documents, which should be 5 mm or less.

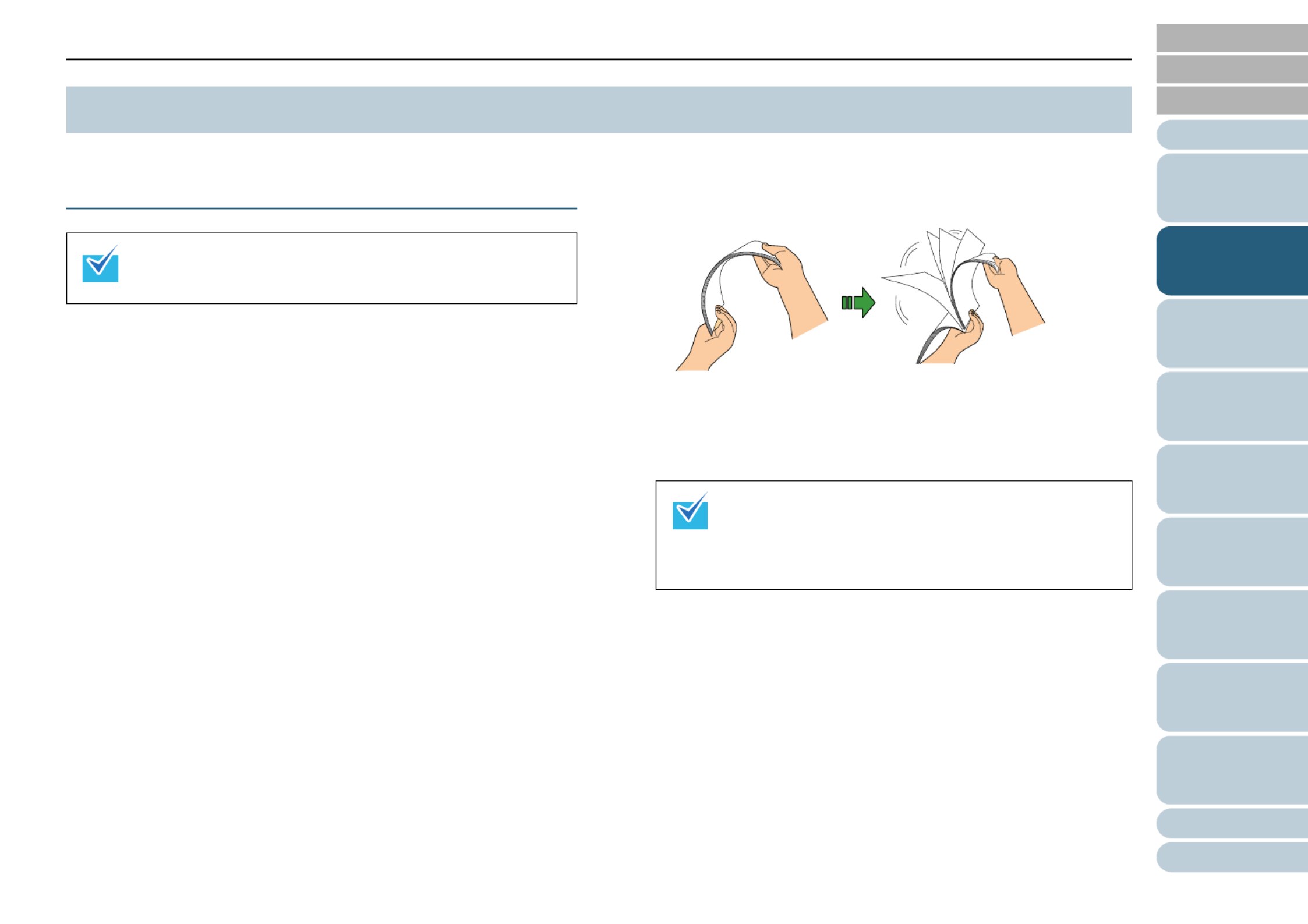

2 Hold both ends of the documents and fan them a few times.
3 Rotate the documents by 90 degrees and fan them in the same
manner.
4 Perform steps 1 to 3 for all documents.
5 Align the edges of the documents.
2.1 Loading Documents
For details about the paper size and quality required for normal
operations, refer to "2.2 Documents for Scanning" (page 30).
For details about how to fan documents, refer to the Error
Recovery Guide.
The Error Recovery Guide is included in the Setup DVD-
ROM. For details about the installation, refer to "Installing
the Scanner Software" in Getting Started.
Contents
Index
Chapter 2 How to Load Documents
Appendix
Glossary
Introduction
TOP
28
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents
How to Load Documents

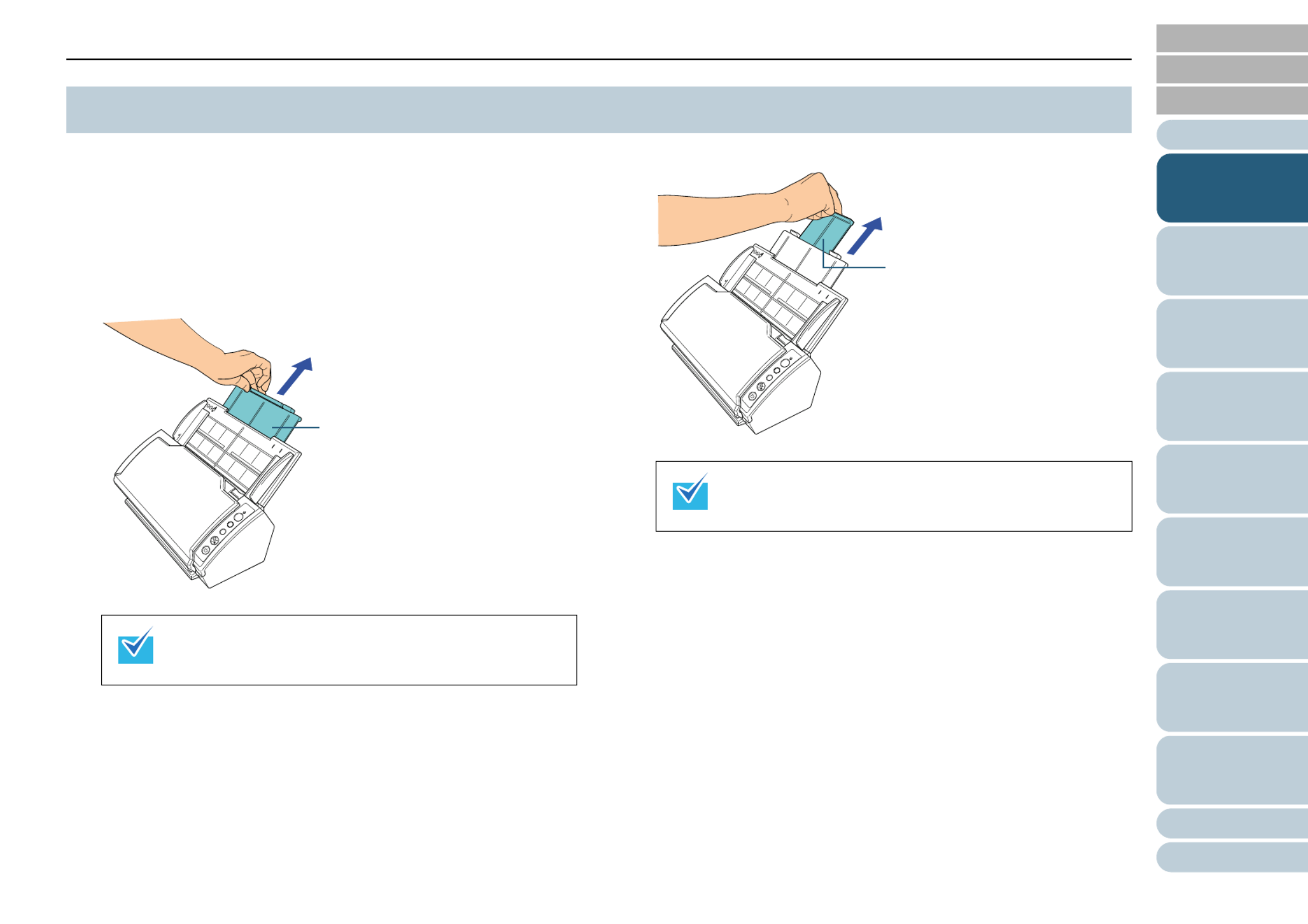

1Pull out the chute extension 1 and chute extension 2
according to the length of the document.
For details, refer to "1.5 Setting Up the ADF Paper Chute" (page 20).
2Load the document in the ADF paper chute.
Set the document with its front side (scanning side) facing the ADF
paper chute.
3Adjust the side guides to the width of the document.
Set the side guides so that there is no space left between the side
guides and the document. Otherwise, the document may be fed
skewed.
！
！
！
！
！！
Remove all paper clips and staples. Reduce the amount
of documents if a multifeed or pick error occurs.
Make sure to keep the documents within the limit which is
indicated by the line on the inside of each side guide.
Line Side Guide
Side Guide
Contents
Index
Chapter 2 How to Load Documents
Appendix
Glossary
Introduction
TOP
29
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents
4Lift up the stacker and stacker extension according to the
length of the document.
For details, refer to "1.6 Setting Up the Stacker" (page 21).
5Start up an application for scanning and perform a scan.
For details about the scanning procedure in ScandAll PRO, refer to
"How to Use ScandAll PRO".
Contents
Index
Chapter 2 How to Load Documents
Appendix
Glossary
Introduction
TOP
32
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents
Loading Capacity
The number of sheets that can be loaded in the ADF paper
chute is determined by the paper size and paper weight of the
document. See the graph below.
Area Not to Be Perforated
An error may occur when there are punched holes in the area
shaded in light blue in the following picture.
Paper weight
(unit)
Conversion
g/m2 52 64 75 80 90 104 127
lb 14 17 20 21 24 28 34
kg 45 55 64.5 69 77.5 90 110
50
35
29
60
60
50
40
30
20
052 64
Paper weight (g/m2)
80 104 127
Capacity (sheets)
50
41
29
24
A4/Letter or smaller
Legal
！
！
！
！
！！
The above condition applies when the document is set to the
center of the pick roller width.
If there are any holes in the 50 mm-wide central column, you
can move the document to the left or right to avoid an error.
( Unit : mm)
Top
Reference point
Front side
Feed direction
Center of document
Bottom
50
Contents
Index
Chapter 2 How to Load Documents
Appendix
Glossary
Introduction
TOP
33
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents
Conditions for Multifeed Detection
Multifeed is an error where two or more sheets are fed through
the ADF at once. It is also called a multifeed when a different
document length is detected.
Multifeed detection is performed by either checking the
overlapping of documents, length of the documents, or the
combination of both. The following conditions are required for
an accurate detection.
Detection by overlapping
zLoad documents of the same paper weight in the ADF paper chute.
zPaper weight: 52 to 127 g/m2 (14 to 34 lb)
zDo not punch holes within 50 mm (1.97 in.) over the vertical center
line of the document. See Fig.1.
zDo not attach other documents within 50 mm (1.97 in.) over the
vertical center line of the document. See Fig.1.
Detection by length
zLoad documents of the same length in the ADF paper chute.
zVariance in document lengths: 1% or less
zDo not punch holes within 50 mm (1.97 in.) over the vertical center
line of the document. See Fig.1.
Detection by overlapping and length
zLoad documents of the same paper weight and length in the ADF
paper chute.
zPaper weight: 52 to 127 g/m2 (14 to 34 lb)
zVariance in document lengths: 1% or less
zDo not punch holes within 50 mm (1.97 in.) over the vertical center
line of the document. See Fig.1.
zDo not attach other documents within 50 mm (1.97 in.) over the
vertical center line of the document. See Fig.1.
Fig. 1
！
！
！
！
！！
The above condition applies when the document is set to the
center of the pick roller width.
zThe rate of multifeed detection may drop with some
documents.
Multifeed cannot be detected within 30 mm from the leading
edge of the document.
zFor the area in Fig. 1, you can also specify a length (feed
direction) in the Software Operation Panel to disable
multifeed detection.
For details, refer to "9.6 Settings Related to Multifeed
Detection" (page 145).
( Unit : mm)
Top
Reference point
Front side
Feed direction
Center of document
Bottom
50
Contents
Index
Chapter 2 How to Load Documents
Appendix
Glossary
Introduction
TOP
34
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents
Conditions for Mixed Batch Scanning
The following conditions apply when scanning a mixed batch
of documents with different paper weights/friction coefficients/
sizes. Always test a few sheets first and see if the documents
can be fed through before scanning a mixed batch of
documents.
For details about scanning, refer to "Documents with Different
Widths" (page 54).
Paper direction
Align the direction of the paper fiber with the feed direction.
Paper weight
For a mixed batch with different paper weight, the following range is
supported for paper weight:
52 to 127 g/m2 (14 to 34 lb)
Friction coefficient
It is recommended to use the same type of paper from the same
manufacturer.
When papers of different manufacturers/brands are mixed, it affects the
feeding performance as the difference in the friction coefficient
increases.
The recommended friction coefficients are as follows:
0.35 to 0.60 (reference value for paper friction coefficient)
Document position
Make sure to place the documents so that every document in the batch
passes through the 37 mm (1.46 in.) width of the pick roller in the center.
Paper size
When you scan a mixed batch with different sizes, not feeding the
documents straight may cause paper jams or part of the image to
appear missing.
It is recommended to check the documents thoroughly before scanning
and also check the image if the document was skewed.
Documents that cannot be scanned in a mixed batch
The following types of documents cannot be mixed in the same batch:
zCarbonless paper
zBond paper
zPerforated documents
zThermal paper
zCarbon-backed paper
zOHP film
zTracing paper
zCarrier Sheet
37 mm
Pick Rolle
r
！
！
！
！
！！
zWhen scanning a mixed batch with different sizes,
documents are more likely to skew because the side guides
do not contact every sheet.
zDo not use [Check Length] or [Check Overlapping and
Length] for multifeed detection.
Contents
Index
Chapter 2 How to Load Documents
Appendix
Glossary
Introduction
TOP
35
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents

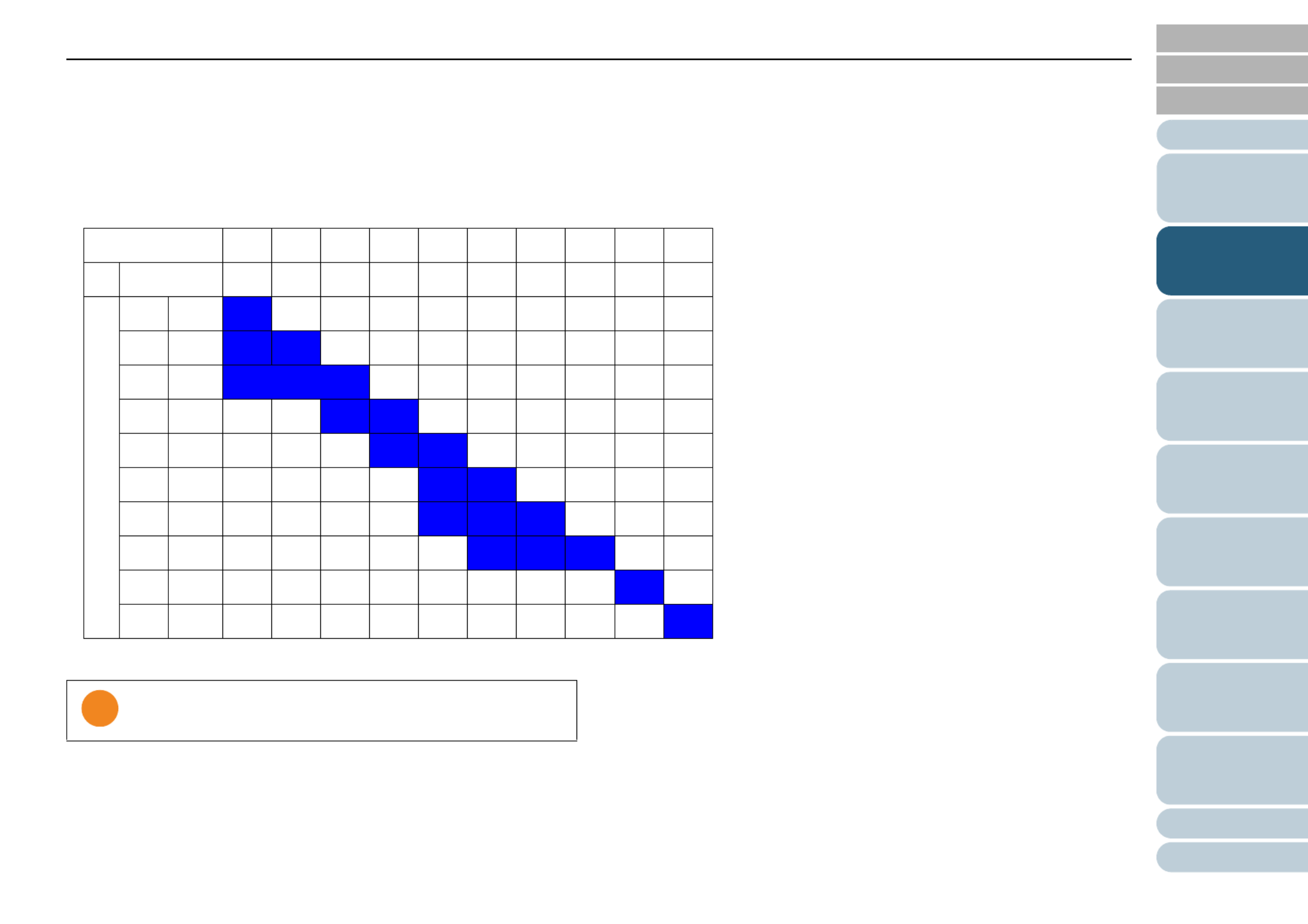

Combinations of standard paper sizes in a mixed batch
Refer to the table below for a guideline of the range available for mixed
batch scanning.
However, note that not feeding the documents straight may cause paper
jams or part of the image to appear missing.
It is recommended to check the documents thoroughly before scanning
and also check the image when the document was skewed.
LTR: Letter size
Maximum size LTR A4 B5 A5 B6 A6 B7 A7 B8 A8
Width (mm) 216 210 182 149 129 105 91 74.3 64.3 52.5
Minimum size
LTR 216
A4 210
B5 182 Available range
A5 149
B6 129
A6 105
B7 91
A7 74.3
B8 64.3
A8 52.5
！
！
！
！
！！
Note that B8 size and A8 size cannot be scanned with other
paper sizes.
Contents
Index
Chapter 2 How to Load Documents
Appendix
Glossary
Introduction
TOP
36
Configuring the
Scan Settings
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Load
Documents
Conditions for Using the Carrier Sheet
■Paper size
The paper sizes that can be scanned are as follows:
zA3 (297 × 420 mm)
zB4 (257 × 364 mm)
z11” × 17” (279.4 × 431.8 mm)
* The above paper sizes must be folded in half to be scanned.
■Paper quality
Paper type
Recommended paper type for scanning is as follows:
zStandard office paper
Paper weight
The following range is supported for paper weight:
zUp to 63.5 g/m2 (17 lb)
Precautions
Take note of the following:
zYou cannot mix the Carrier Sheet and regular documents in the same
batch for scanning.
zUp to three Carrier Sheets can be loaded at once.
zDepending on the amount of memory used by running applications,
there may be insufficient memory to scan a double-page spread
document with the Carrier Sheet in high resolution. In that case,
specify a lower resolution and try scanning again.
zDo not write on, color, stain, or cut the end with a black & white
pattern because the Carrier Sheet will not be recognized properly.
zDo not place the Carrier Sheet upside down. Otherwise, a paper jam
may occur and damage the Carrier Sheet and the document inside.
zDo not leave your document inside the Carrier Sheet for a long time.
Otherwise, the ink on the document may be transferred onto the
Carrier Sheet.
zTo avoid deformation, do not use or leave the Carrier Sheet in high
temperature places such as under direct sunlight or near a heating
apparatus for a long time.
zDo not fold or pull the Carrier Sheet.
zDo not use a damaged Carrier Sheet because it may damage or
cause the scanner to malfunction.
zTo avoid deformation, keep the Carrier Sheet on a flat surface without
any weight on it.
zBe careful not to cut your finger on the edge of the Carrier Sheet.
zIf paper jams occur frequently, feed about 50 sheets of PPC paper
(recycled paper) before scanning with the Carrier Sheet.
The PPC paper (recycled paper) can either be blank or printed.
Appendix
Glossary
Introduction
Index
Contents
TOP
How to Load
Documents
Configuring the
Scan Settings
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Use the
Operator Panel
Chapter 3 Configuring the Scan
Settings
This chapter explains about the scan parameters of the scanner drivers.
3.1 TWAIN Driver............................. ................ ................................ ..............38................. ................. .................
3.2 ISIS Driver ............................................... ................ .............................. ................................ .....................42
Chapter 3 Configuring the Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
38
How to Load
Documents
Configuring the
Scan Settings
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Use the
Operator Panel
The TWAIN driver is a driver that conforms to the TWAIN
standard. It can be used with an application that supports
TWAIN to perform scanning.
Normally, the scanner driver is launched via an application,
and then the scan settings are configured in the setup dialog
box of the driver (some applications may not display the setup
dialog box).
Settings for TWAIN driver are configured in the above dialog
box.
The following are descriptions of the main configuration items.
For details, refer to the TWAIN driver Help.
3.1 TWAIN Driver
Ways to launch the scanner driver differ depending on the
application.
For more details, refer to the manual or the Help files of the
application.
Chapter 3 Configuring the Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
39
How to Load
Documents
Configuring the
Scan Settings
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Use the
Operator Panel
[Resolution]
Specify the resolution for scanning.
You can either select a predefined value from the list, or
specify a custom resolution which can range between 50 dpi
and 600 dpi (in increments of 1 dpi).
Also, selecting the [Predefine] check box allows you to perform
scanning easily by selecting a predefined resolution from
[Best], [Better] and [Normal].
Values in [Predefine] can be changed by clicking the [...]
button.
[Scan Type]
Specify the side(s) to scan.
Scanning side(s) can be selected from the following:
zADF Front Side
zADF Duplex
zLong Page (Front side)
zLong Page (Duplex)
zADF Back Side
zDouble-page spread
[Paper Size]
Select a paper size from the drop-down list.
Up to three custom sizes can be added to the list by using the
[...] button.
You can also change the order in which the items (sizes) are
listed.
[Image Mode]
Specify the type of the scanned image.
[Scan] Button
Click this button to start scanning by the current settings.
Item Description
Black & White Scans in binary (black & white) mode.
Halftone Scans via halftone processing in binary (black & white)
mode.
Grayscale Scans in gradations from black to white. Select
[Grayscale] (256) or [4bit Grayscale] (16 grayscale).
Color Scans in color mode. Select [24 bit Color], [256 Color],
or [8 Color].
Chapter 3 Configuring the Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
40
How to Load
Documents
Configuring the
Scan Settings
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Use the
Operator Panel
[Preview] Button
Allows you to preview the scanned image.
Perform a test scan by the current settings and display the
result in the Preview window.
[Close] / [OK] Button
Click this button to save the current settings and close the
window.
[Reset] Button
Click this button to undo the changes made.
[Help] Button
Displays the TWAIN driver Help which can also be displayed
by the [F1] key.
[About] Button
Displays the version information of TWAIN driver.

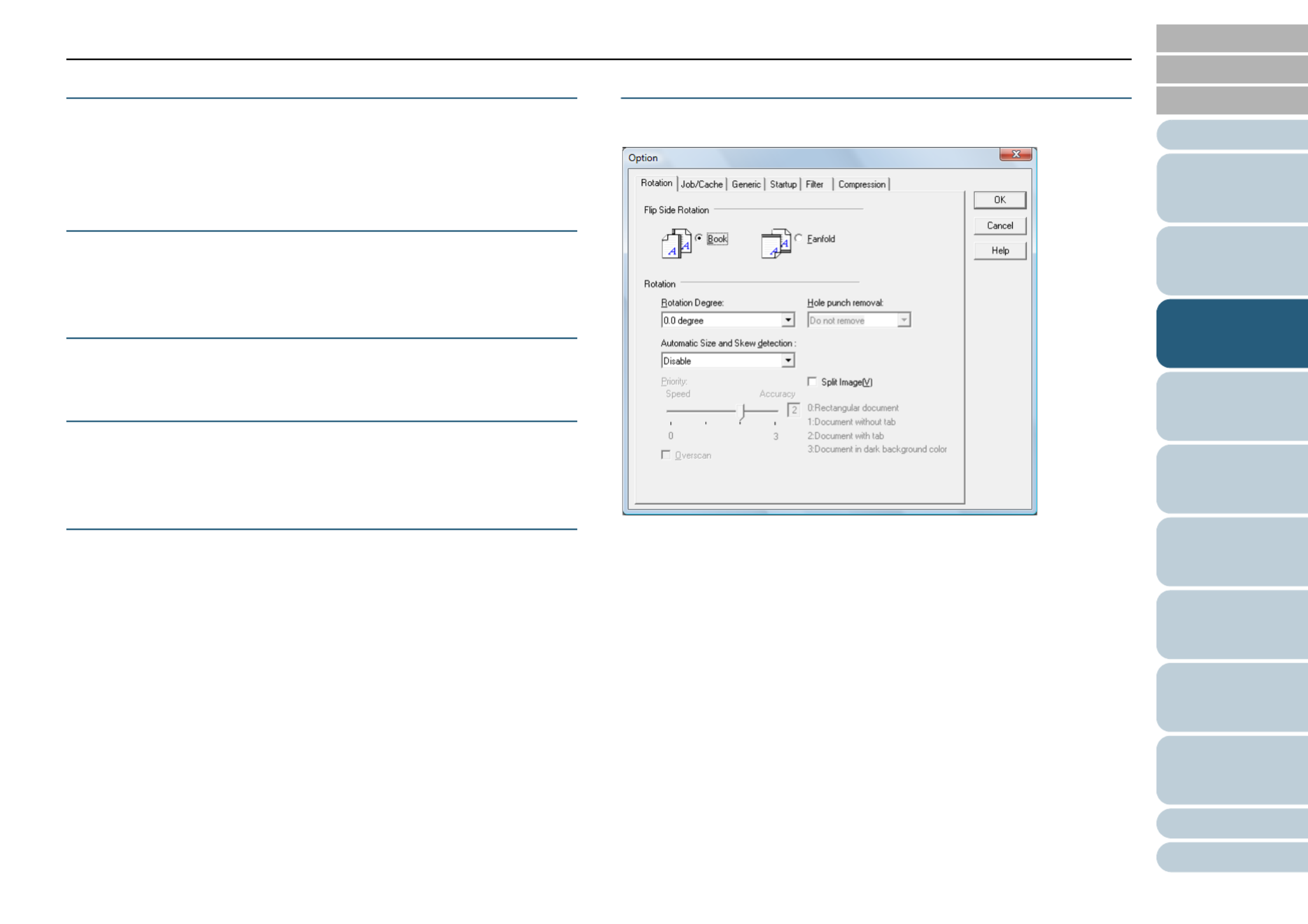

[Option] Button
Configure the optional settings in the following window.
z[Rotation] tab
Configure settings such as the binding direction of double-sided
documents, image rotation, deskew, page size detection, end of page
detection, overscan, and splitting the image in two.
z[Job/Cache] tab
Configure settings such as caching, multifeed detection, and blank
page skip.
z[Generic] tab
Specify the measurement unit to display in the [TWAIN Driver (32)]
dialog box.
Select from inch, mm, and pixel.
z[Startup] tab
Configure the settings of the operator panel on the scanner.
Chapter 3 Configuring the Scan Settings
Appendix
Glossary
Introduction
Index
Contents
TOP
41
How to Load
Documents
Configuring the
Scan Settings
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
How to Use the
Operator Panel
z[Filter] tab
Select the filter for image processing.
z[Compression] tab
Specify the compression rate for JPEG transfer.
[Advance] Button
Click this button to configure detailed settings related to image
processing.
Items such as gamma pattern, dropout color, reverse and
edge extract can be configured.
[Config] Button
Click this button to manage the setup files.
Scan settings can be changed easily if you save the settings
configured in the [TWAIN Driver (32)] dialog box onto a file
under [Setting File].
[Browse] Button
Click this button to view a list of connected scanners.
Item Description
Digital Endorser Adds alphanumeric character strings on the
scanned image data.
Page Edge Filler Fills in the margins of the scanned image in
a specified color.
Produktspecifikationer
| Varumärke: | Fujitsu |
| Kategori: | Scanner |
| Modell: | FI-6110 |
Behöver du hjälp?
Om du behöver hjälp med Fujitsu FI-6110 ställ en fråga nedan och andra användare kommer att svara dig
Scanner Fujitsu Manualer
20 Oktober 2024
17 Oktober 2024
11 Oktober 2024
3 September 2024
25 Augusti 2024
24 Augusti 2024
24 Augusti 2024
23 Augusti 2024
19 Augusti 2024
18 Augusti 2024
Scanner Manualer
- Trust
- Silvercrest
- Avision
- CDVI
- Kenko
- Cobra
- Konig
- Rittz
- Renkforce
- Jobo
- Soundsation
- Lenco
- Veho
- Dyka
- CZUR
Nyaste Scanner Manualer
30 Mars 2025
22 Februari 2025
19 Februari 2025
15 Februari 2025
28 Januari 2025
17 Januari 2025
9 Januari 2025
8 Januari 2025
7 Januari 2025
31 December 2025
