Home screen operations
Home screen operations
Operational Overview
POWER switch
POWER switch
- Power on/off.
- Adjusts display brilliance.
- Changes hue.
Tap
Displays the home screen.
Home icon
Home icon
Display icons
(max. 10)
Home screenHome screenHome screen
Home screenHome screen
Long tap a display icon to edit, delete, resize, or
change its location.
Display icon long tapped
Edit
Delete
Size
(large or
small)
Tap
How to select a display
How to select a display
- From the home screen (see above)
- From the quick page
The quick page has the display
icons selected to large size on
the home screen.
Quick pageQuick pageQuick page
Quick pageQuick page
“eGuide” provides
an abbreviated
operator’s guide.
Tap
MULTI FUNCTION DISPLAY
TZTL12F/TZTL15F
Operator’s Guide
Model
The purpose of this guide is to provide the basic operation for this equipment. For detailed information,
see the operator’s manual in the supplied CD-ROM. You can get the latest version of the manual by
accessing the quick response code at the back of this guide.
iPhone, iPod and iPad are trademarks of Apple Inc. Android is a trademark of Google Inc. All brand and
product names are trademarks, registered trademarks or service marks of their respctive holders.
Tap
How to edit a display icon
2

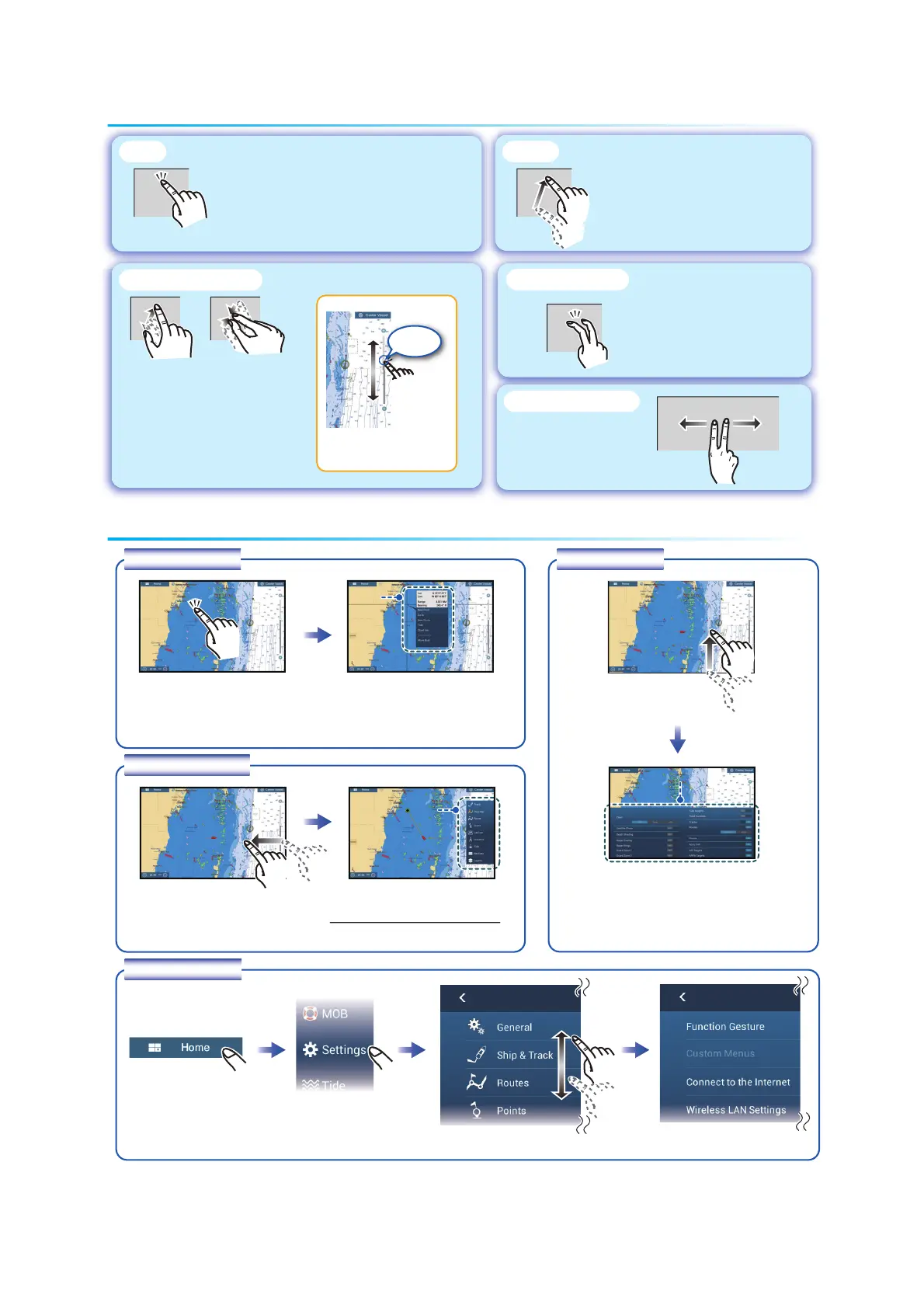

Touchscreen operations
Touchscreen operationsTouchscreen operations
Tap
- Select an item on a menu.
- Select an object to show the
corresponding pop-up menu.
- Move the chart.
- Scroll the menu.
Zoom in Zoom out
Do the function assigned to
[Function Gesture] in the
[Settings] - [General] menu.
Drag
Two finger pinch
Two finger tap
Menu operation
Menu operation
- Zoom in, zoom out the
plotter and weather displays.
- Change the range on the
radar display.
Slider barSlider barSlider bar
Slider barSlider bar
Drag
Tap operation also
available.
Pop-up menu
Tap any part of the
screen or an object.
Tap the required function.
(”>” indicates additional options.)
Layer menu
Tap the required function.
Layer menuLayer menuLayer menu
Layer menuLayer menu
Slide-out menu
Tap the required function.
Slide
menu
Slide
menu
Slide
menu
Slide
menu
Slide
menu
Swipe leftward from the
right edge.
Icon color and function state
Yellow: ON, White: OFF
Tap the [Home] icon.
Tap [Settings].
Tap the required menu. Tap the required option.
Settings menu
Two finger drag
Change the viewpoint
position on the 3D
display.
Zoom
in
Zoom
in
Zoom
in
Zoom
in
Zoom
in
Zoom
out
Zoom
out
Zoom
out
Zoom
out
Zoom
out
Pop-up
menu
Pop-up
menu
Pop-up
menu
Pop-up
menu
Pop-up
menu
Swipe upward from
the bottom edge.
3

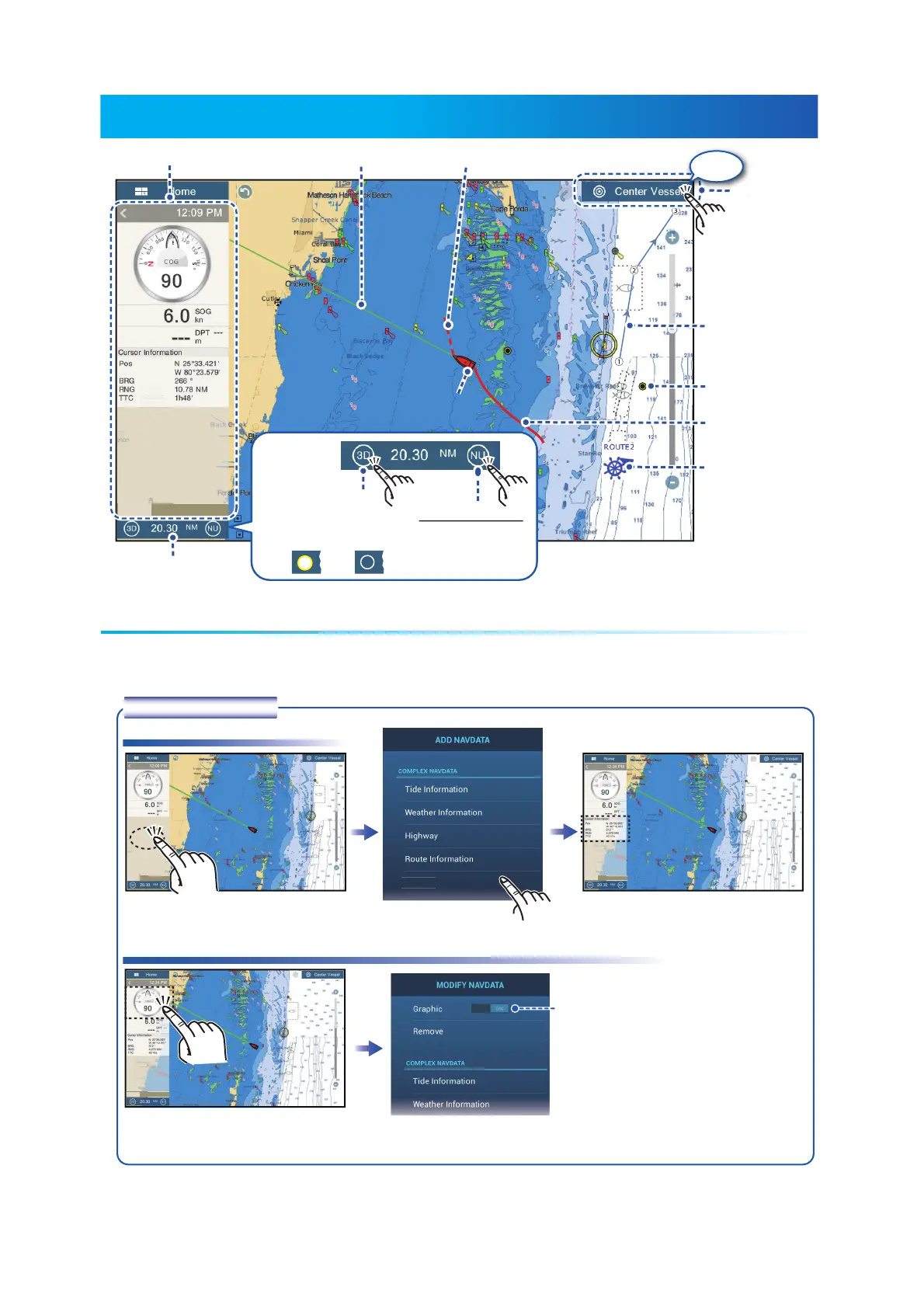

Plotter
Display range
Data area
Heading line
Inactive route
(expanded)
Point
Track
COG
COG
Return own
ship to screen
center
Re
t
Tap
Orientation Mode
Switch between
NU and HU.
Switch between 2D
and 3D. (Drag upward
with two fingers also.)
2D:
3D
3D:
3D
Swipe from the left edge of the screen rightward to show the data area at the left edge of the screen. Tap
“<” to hide the data area.
How to add a data box
How to add a data box
How to remove or change the contents of a data box
How to remove or change the contents of a data box
Tap the data to add.
Tap an unoccupied space.
Ex. “Cursor” data added to the data
box
Data Area (Data Box)
Data Area (Data Box)
Tap the data to remove or change.
Tap the data to remove or change.Tap the data to remove or change.
Data box settings
Remove: Tap [Remove].
Change: Tap the data to use.
Use flipswitch to set data format.
(ON: Analog, OFF: Digital)
Boat icon
Boat icon
C
urso
r
Inactive route
(sleeping)
(Departure or
arrival point,
selectable on
[Layers] menu.)
DATA ROUTE RADAR
DATA ROUTE RADAR
DATA ROUTE RADAR
DATA ROUTE RADAR
DATA ROUTE RADAR
