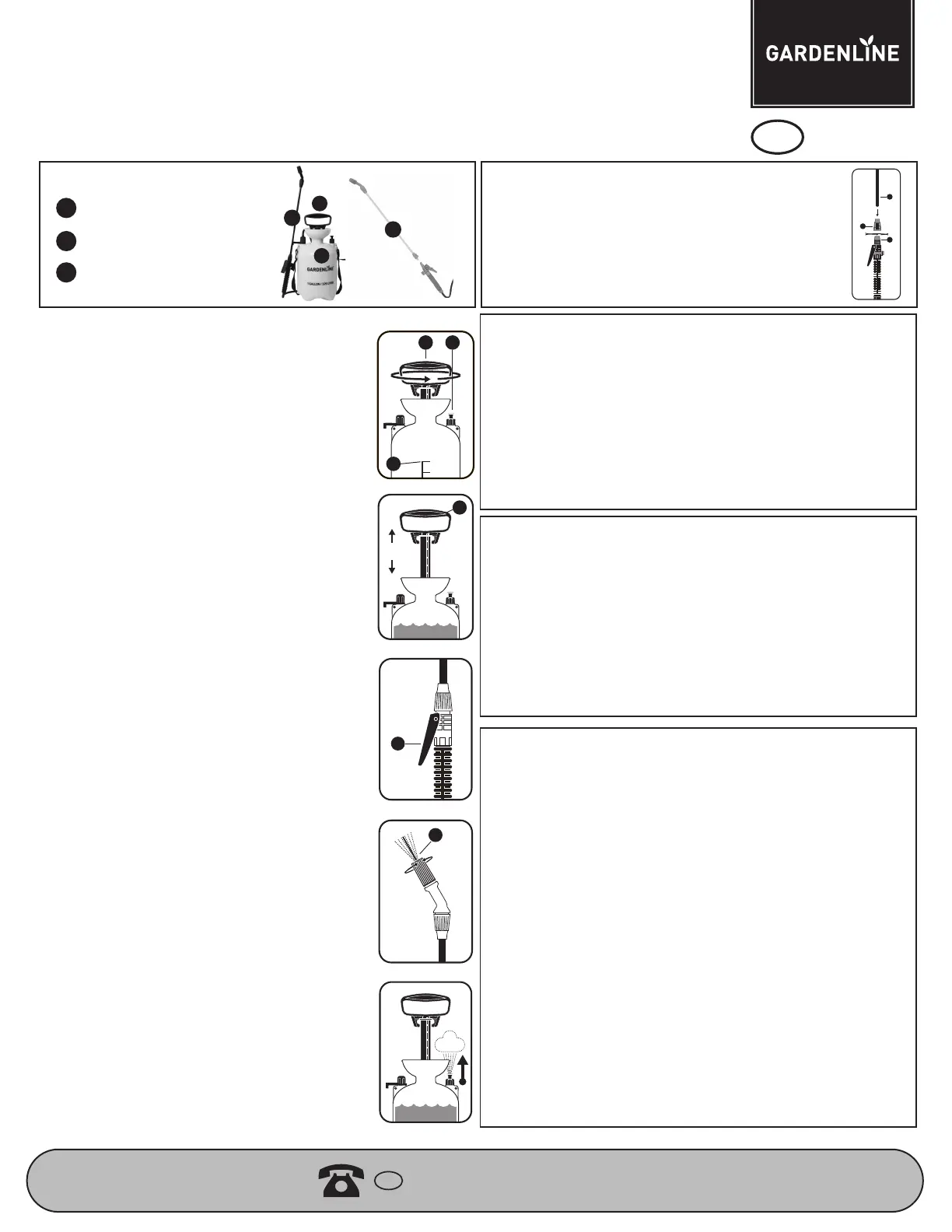

Multi-Purpose Sprayer

Instructions

Please read entire manual before attempting assembly, or usage.

Product components

USA

AFTER SALES SUPPORT

SERVICIO POSVENTA

USA

1877 330 3366

MODEL: 47341

PRODUCT CODE: 47341 04/2017

Pump & handle

Tank

Trigger handle, hose,

wand and nozzle.

Empty contents after each use. Clean tank, pump, and wand with mild

soap and water. Spray soap and water solution through nozzle, hose,

and controller to remove all traces of chemicals.

After cleaning, thoroughly rinse inside and out with clean water. Spray

clean water through nozzle, hose, and controller.

Allow parts to dry before storage. Store sprayer in a clean dry area out

of reach of children.

Do not store in extremely hot or cold temperatures.

Lubricate pump o-ring with petroleum jelly or water proof grease once

per year.

Maintenance and storage

Attach wand

1) Rotate wand nut (A) counter clockwise to loosen.

2) Insert wand shaft (B) through the nut and into handle (C)

until fully seated.

3) Rotate wand nut clockwise to secure wand.

Filling the tank (Fig 2)

1) With the pump handle (A) in the down position,

rotate counterclockwise to loosen.

2) Fill tank according to the manufacturer’s

instructions for the chemical being used.

3) Replace pump assembly and rotate handle

clockwise to tighten.

Warning: Do not open bottle / remove pump until

pressure has been released by pulling pressure

release valve (B).

Caution: Do not exceed “max fill” line (C)

Pressurizing the tank (Fig 3)

1) Rotate handle (A) to the central “unlock” position

& lift up.

Note: Use caution not to loosen the pump from the

tank.

2) Pump the handle up and down approximately

20-30 times to pressurize the tank.

3) Lower pump handle and rotate handle to “locked”

position.

Spraying (Fig 4)

1) To begin spraying, depress the thumb lever (a) on

controller.

2) To stop spraying, release thumb lever.

3) For continuous spraying, depress and slide thumb

lever forward to “lock-on” position.

Note: In “lock-on” position, sprayer will continue to

operate until the thumb lever is pulled backward

and released.

Nozzle adjustment (Fig 5)

1) To adjust spray pattern, rotate nozzle (a):

Clockwise = jet

Counter-clockwise = fine mist

Caution: Do not adjust nozzle with thumb lever

depressed. Do not unscrew the nozzle completely.

Pressure release (Fig 6)

1) To Release Tank Pressure, Lift Pressure Release

valve (a) up.

Caution: Never put face or body over pump or

pressure release valve when operating pump or

valve.

(Fig 3)

(Fig 4)

(Fig 6)

(Fig 5)

(Fig 2)

MAX

2.0

(Fig 2)

Safety

WARNING: Read and understand all instructions before using.

failure to follow all instructions listed below may result in

serious personal injury.

Always wear protective clothing, gloves, eye protection, and respirator.

Inspect sprayer before using, do not use if parts appear damaged or

worn.

Do not smoke while operating. Do not use near open flame or source

of possible ignition.

Always keep out of reach of children.

Always point nozzle in safe direction.

Never use in windy conditions.

Never put face or body over pump or pressure release valve when

operating pump or valve.

Never open tank until pressure has been released.

Always release pressure and clean sprayer after each use, prior to

storage.

Only use with agricultural chemicals. Never use with flammable,

caustic, or corrosive solutions.

Follow manufacturers instructions for mixing, storage, and safe

disposal of solution being used.

Operate sprayer only in well ventilated areas.

Product check

Make sure all hoses and fitting are tight, from the tank to the hose, the

hose to the trigger handle and trigger handle to wand.

Make sure there are no cracks or signs of deterioration in hose, pump

or tank.

Using the sprayer with deterioration may result in major injury. Replace

immediately.

Fill tank to fill line with plain water, pump 10 times, point spray away

form you and test.

If there are any issues, do not fill with chemicals. Replace sprayer.
