DNCK440EA/GA—GE Commercial Smart Card Electric Dryer

Listed by

Underwriters

Laboratories

Specification Revised 2/02

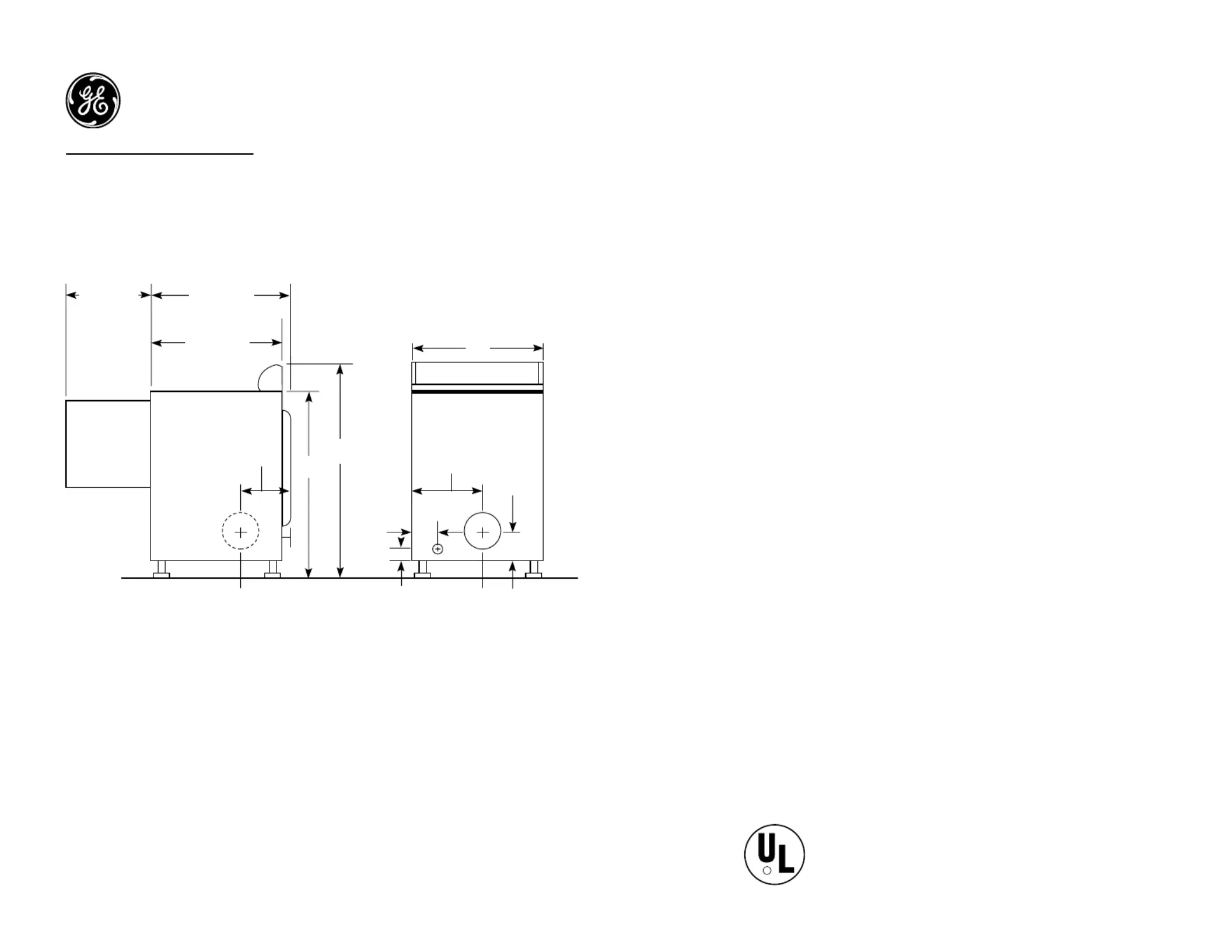

Dryer Dimensions (in inches)

Exhaust Options:

Electric: 4-way via rear, right, left and bottom. Maximum recommended exhaust duct length

is 45 feet of 4” rigid ducting with two 90° elbows and a 4” dampered wall cap.

Gas: When viewed from the front of the unit, exhaust 3-way via rear, left and bottom.

Maximum recommended exhaust duct length is 15 feet of 4 rigid ducting with two 90” °

elbows and a 4 dampered wall cap.”

Circuit Requirements:

An individual, properly-grounded branch circuit, protected by a 30-amp circuit breaker or a

time-delay fuse, is required.

Electric Dryer Rating:

208/240V, 5600W, 24A, 60Hz

208V, 4400W, 22A, 60Hz

A special 208 volt heater, part # WE11X0101 is avaialable to reduce drying time in

208 volt installations.

Gas Circuit Requirements: An individual branch circuit fused for 15- or 20-amp is required

for each dryer.

Gas Dryer Rating: 115V; 60Hz

Gas (BTU/Hr): 22000. Factory equipped for natural gas. tested for LP gas. A conversion Kit is

required for LP gas.

Note: Dryer wall outlet must be located within 36" of service cord entry and accessible

when dryer is mounted in position.

Installation Information: For complete information, see installation instructions packed

with your dryer.

36 42

23-1/2

2-1/2

25-1/2*

Side View Rear View

5-1/4

25-3/4

23-1/2

11-1/2

*24-1/2" from the edge of the side panel to the front.

25-1/2" from front to edge of endcaps.

For answers to your Monogram,

® GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

GE Appliances

Specification Revised 2/02

DNCK440EA/GA—GE Commercial Smart Card Electric Dryer

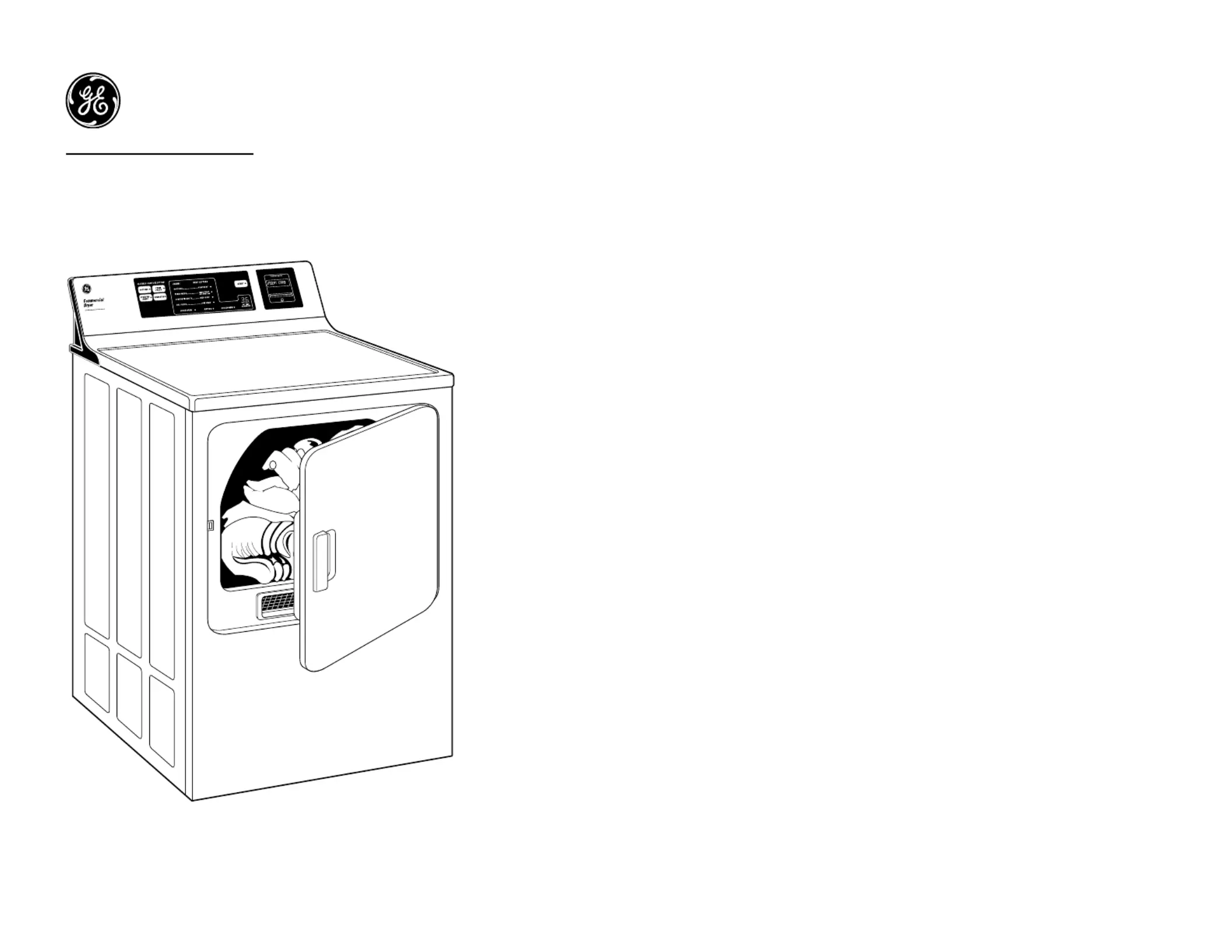

Features and Benefits

•Super 7.0 Cu. Ft. Capacity

•3 Dry Cycles: High Heat; Medium Heat; Low Heat

•4 Heat Selections

•Cool Down (with High Heat Cycle)

•ESD Smart Card Reader with Alphanumeric Display and Control Card

• Digital Cycle Countdown with LED Indicators

•Quiet Package

• Lockable Lint Filter

• Reversable Door Swing

• DuraDrum™Interior

• Model DNCK440EAWC–White

• Model DNCK440GAWC–White

GE Appliances

Specification Revised 2/02

DNCK440EA/GA—GE Commercial Smart Card Electric Dryer

Dryer Exhausting Information Use Metal Duct Only—For complete information, see installation instructions packed with your dryer.

Ducting Materials:

For best performance, this dryer should be vented with 4 diameter all rigid metal exhaust duct. If ” “all rigid metal”

duct cannot be used, then flexible all metal“ ” venting can be used, but it will reduce the maximum recommended

duct length.

Exhaust Length Calculation:

1. Determine the number of 90°turns needed for your installation. If you exhaust to the side

or bottom of dryer, add one turn.

2. The maximum length of 4 rigid (aluminum or galvanized) duct which can be tolerated is shown ’

in the table. The maximum length for flexible ducts are less than for rigid duct.

A turn of 45°or less may be ignored. Two 45 elbow. A°turns within the duct length should be treated as a 90°

turn over 45 should be treated as a 90° ° elbow.

Exhausting the dryer to the outside is strongly recommended to prevent large amounts of moisture and

lint from being blown into the room. Gas dryers or any dryer located in a closet must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire hazard

or moisture could cause damage. Never terminate the exhaust into a common duct or plenum with a kitchen

exhaust, since the combination of lint and grease could create a fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting, etc. The wall

cap must also be located at least 12 above the ground or any other obstruction with the opening pointed Down.”

Other terminations, such as louvered wall boxes, are acceptable provided they are equivalent to a 4 opening”

dampered wall cap.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

Special Installation Requirements

Alcove or Closet Installation:

•If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.

•The dryer MUST be exhausted to the outside.

•Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:

0” either side

3” front and rear

• ” Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52 .

•Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of open area

equally distributed. If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in.

of open area equally distributed.

•The closet should be vented to the outdoors to prevent gas pocketing in case of a gas leak in the supply line.

•No other fuel-burning appliance shall be installed in the same closet with the dryer.

Bathroom or Bedroom Installation:

•The dryer MUST be exhausted to the outdoors.

•The installation must conform with the local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI

Z223.

Minimum Clearances other than Alcove or Closet Installation:

•Minimum clearances to combustible surfaces

0” both sides

3” rear

Listed by

Underwriters

Laboratories

2-1/2

0 90 ft. 60 ft. 55 ft. 45 ft.

1 60 ft. 45 ft. 40 ft. 30 ft.

Super & Extra-Large 2 45 ft. 35 ft. 30 ft. 20 ft.

6.0 Capacity Models 3 35 ft. 25 ft. 20 ft. 15 ft.

All Electric Dryers 4 25 ft. 15 ft. 15 ft. 10 ft.

0 45 ft. 30 ft. 30 ft. 15 ft.

Super & Extra-Large 1 35 ft. 20 ft. 20 ft. 10 ft.

6.0 Capacity Models 2 25 ft. 10 ft. 10 ft. —

All Gas Dryers 3 15 ft. — — —

0 60 ft. 48 ft. 30 ft. 18 ft.

1 52 ft. 40 ft. 22 ft. 14 ft.

Extra-Large 5.7 2 44 ft. 32 ft. 14 ft. 10 ft.

Capacity Electric 3 32 ft. 24 ft. — —

and Gas Dryers 4 28 ft. 16 ft. — —

Number

90°

Turns

Maximum Length of 4"

Dia. Rigid Metal Duct

Maximum Length of 4"

Dia. Flexible Metal Duct

Exhaust Hood Type Exhaust Hood Type

Domestic

Dryer Models

4" Opening

2-1/2"

Opening

4" Opening

2-1/2"

Opening

Best Performance

For answers to your Monogram,

® GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.
