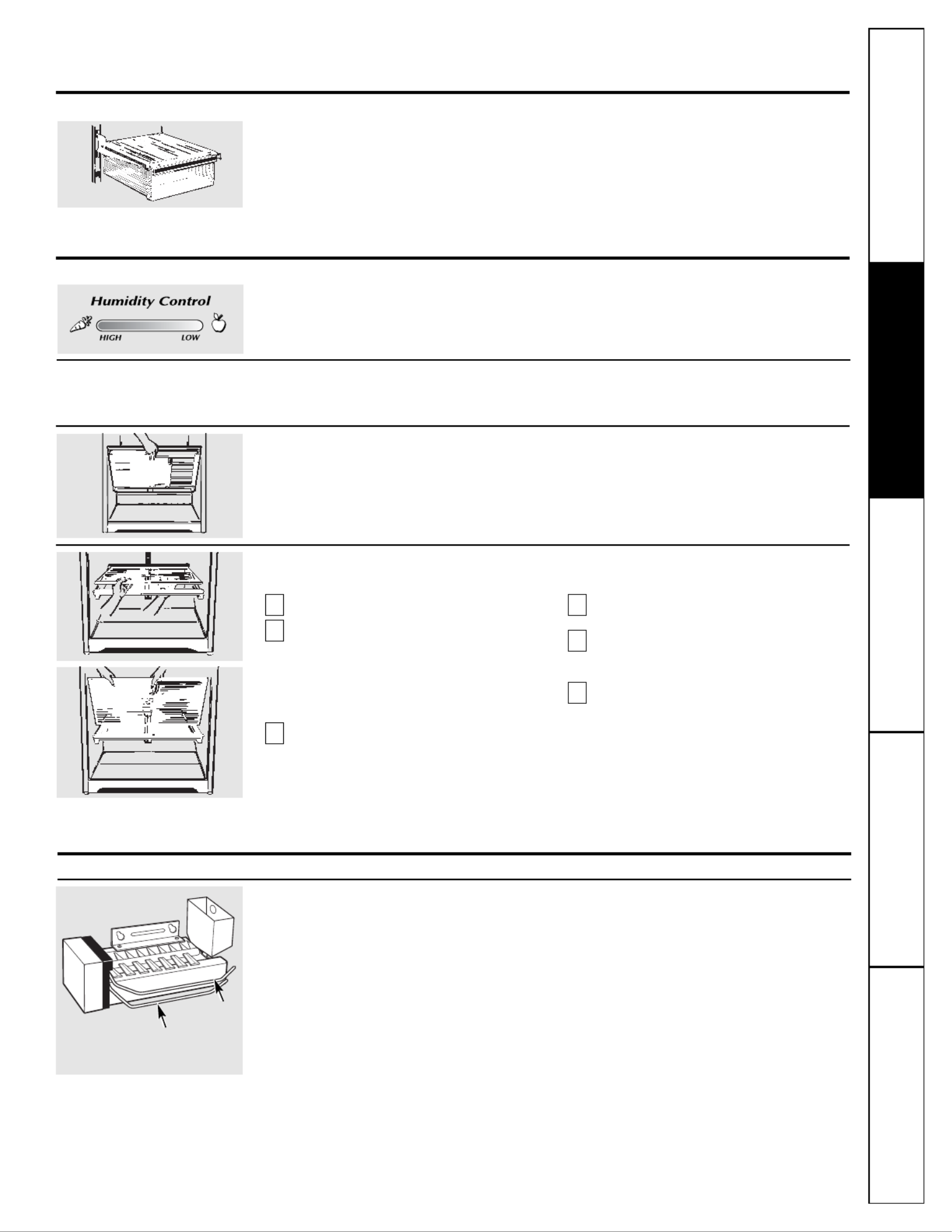

About the automatic icemaker.
A newly-installed refrigerator may take 12 to 24 hours to begin making ice.
Automatic Icemaker (on some models)
The icemaker will produce approximately
100–130 cubes in a 24-hour period,
depending on the freezer compartment
temperature, room temperature, number of
door openings and other use conditions.
If the refrigerator is operated before the water
connection is made to the icemaker, move the
feeler arm to the
STOP
(up) position.
When the refrigerator has been connected
to the water supply, move the feeler arm to
the
ON
(down) position.
You will hear a buzzing sound each time
the icemaker fills with water.
The icemaker will fill with water when it cools
to 15°F. A newly-installed refrigerator may take
12 to 24 hours to begin making ice cubes.
Throw away the first few batches of ice to
allow the water line to clear.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler
arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequently, old ice cubes
will become cloudy, taste stale and shrink.
NOTE: In homes with lower-than-average water
pressure, you may hear the icemaker cycle multiple
times when making one batch of ice.
Icemaker Accessory Kit
If your refrigerator did not already come
equipped with an automatic icemaker, an
icemaker accessory kit is available at extra cost.
Check the back of the refrigerator for
the specific icemaker kit needed for
your model.
Feeler Arm in
the STOP
(up) position
Feeler Arm in
the (down)ON
position
5
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
About storage drawer and cover removal.
Not all features are on all models.
Twin Drawer Shelf
To remove:
Remove the drawers.
Reach in, push the front of glass cover
up, and at the same time, pull it forward
as far as it will come.
Tilt it and take it out. Avoid cleaning the cold
glass cover with hot water because the extreme
temperature difference may cause it to break.
Remove the drawer frame. (Always
remove the glass cover before you take
out the drawer frame.)
Lift the frame off the supports at each side
and back, pull it forward, tilt it and take it out.
To replace:
Lower the frame until it rests on the
supports at each side and back.
Replace the glass cover, pushing its rear
edge firmly into the rear frame channel
and gently lowering the front into place.
Replace the drawers.
3
2
1
3
2
1
Drawer and Cover Removal
Drawers can be removed easily by grasping the sides and lifting up slightly while pulling
drawers past the
stop
location.
Full-Width Drawer with
Plastic Cover
To remove the cover,
lift it off its supports,
pull it forward, tilt it and take it out.
Adjustable Humidity Drawer (on some models)
Slide the control all the way to the
HIGH
setting to provide high humidity
recommended for most vegetables.
Slide the control all the way to the
LOW
setting to provide lower humidity levels
recommended for most fruits.
The snacks drawer can be moved to the
most useful location for your family’s
needs.
Snacks Drawer
Not all features are on all models.
About the storage drawers. ge.com
8

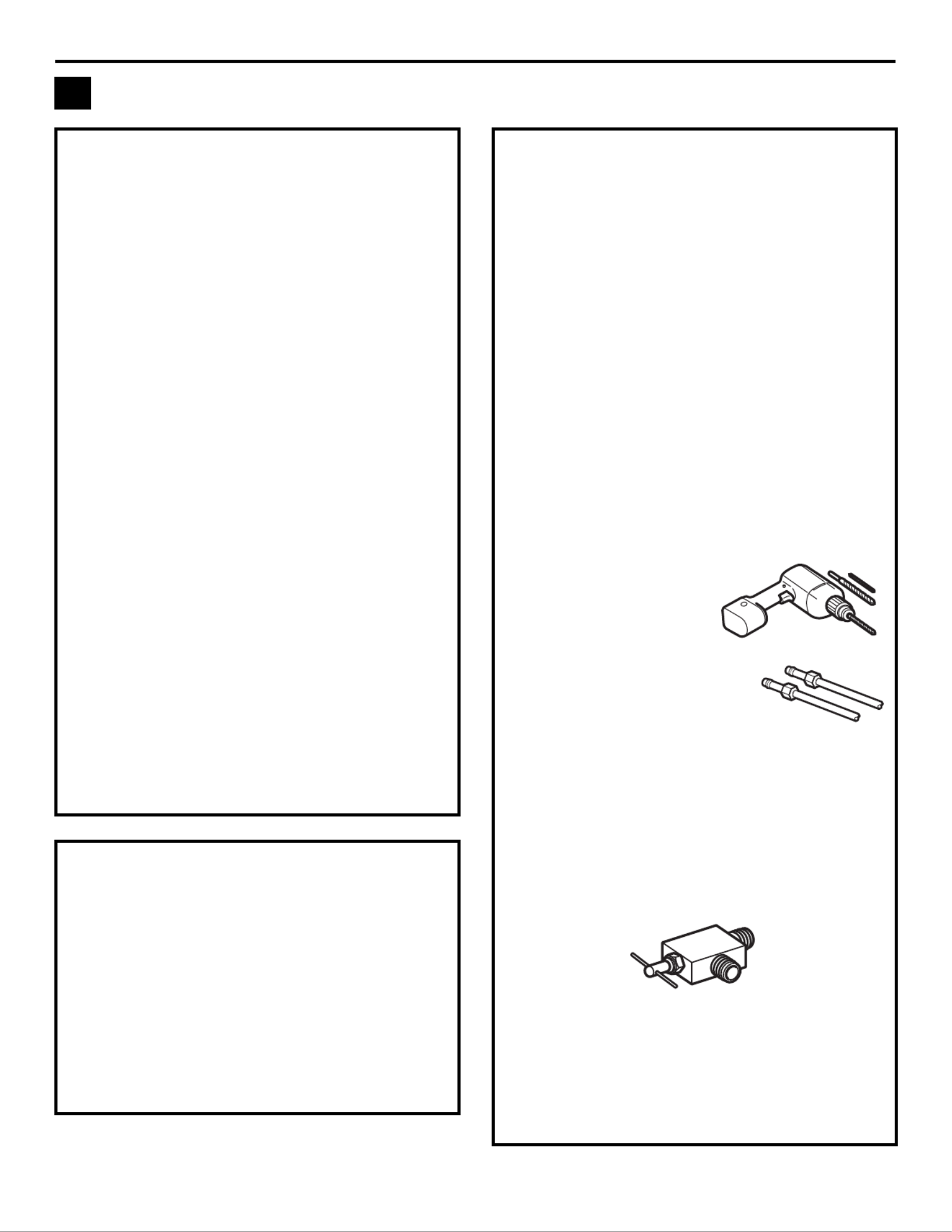

WHAT YOU WILL NEED
•Copper or GE SmartConnect™Refrigerator Tubing
kit, 1/4″outer diameter to connect the refrigerator
to the water supply. If using copper, be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8′
(2.4 m). Be sure there is sufficient extra tubing
(about 8 [2.4 m] coiled into 3 turns of about 10′ ″
[25 cm] diameter) to allow the refrigerator to move
out from the wall after installation.
INSTALLING THE WATER LINE (ON SOME MODELS)
Installation Instructions
BEFORE YOU BEGIN
Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of
tubing you need. Approved plastic water supply lines
are GE SmartConnect™Refrigerator Tubing
(WX08X10006, WX08X10015 and WX08X10025).
When connecting your refrigerator to a GE Reverse
Osmosis Water System, the only approved installation
is with a GE RVKit. For other reverse osmosis water
systems, follow the manufacturer’s recommendations.
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call a qualified
plumber to correct water hammer before installing
the water supply line to the refrigerator.
To prevent burns and product damage, do not hook
up the water line to the hot water line.
If you use your refrigerator before connecting the
water line, make sure the feeler arm is in the
STOP
(up) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double
insulated or grounded in a manner to prevent the
hazard of electric shock, or is battery powered.
All installations must be in accordance with local
plumbing code requirements.
1
WHAT YOU WILL NEED (CONT.)
GE SmartConnect™Refrigerator Tubing Kits are
available in the following lengths:
6′ (1.8 m) – WX08X10006
15′ (4.6 m) – WX08X10015
25′ (7.6 m) – WX08X10025
Be sure that the kit you select allows at least 8′(2.4 m)
as described above.
NOTE: The only GE approved plastic tubing is that
supplied in GE SmartConnect™Refrigerator Tubing
kits. Do not use any other plastic water supply line
because the line is under pressure at all times. Certain
types of plastic will crack or rupture with age and
cause water damage to your home.
•A GE water supply kit (containing tubing, shutoff
valve and fittings listed below) is available at extra
cost from your dealer or from Parts and Accessories,
1.800.661.1616.
•A cold water supply. The water pressure must be
between 20 and 120 p.s.i. (1.4–8.1 bar).
•Power drill.
•1/2″or adjustable wrench.
•Straight and Phillips
blade screwdriver.
•Two 1/4″outer diameter compression nuts and
2 ferrules (sleeves)—to connect
the copper tubing to the shutoff
valve and the refrigerator water valve.
OR
•If you are using a GE SmartConnect™Refrigerator
Tubing kit, the necessary fittings are preassembled
to the tubing.
•If your existing copper water line has a flared fitting
at the end, you will need an adapter (available at
plumbing supply stores) to connect the water line to
the refrigerator OR you can cut off the flared fitting
with a tube cutter and then use a compression
fitting. Do not cut formed end from GE
SmartConnect™Refrigerator tubing.
•Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with a
minimum inside diameter of 5/32 at the point of″
connection to the COLD WATER LINE. Saddle-type
shutoff valves are included in many water supply kits.
Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
Installation Instructions
Install the shutoff valve on the nearest frequently used drinking water line.
SHUT OFF THE MAIN WATER
SUPPLY AND UNPLUG
REFRIGERATOR
Turn on the nearest faucet (counterclockwise) long
enough to clear the line of water.
1
9

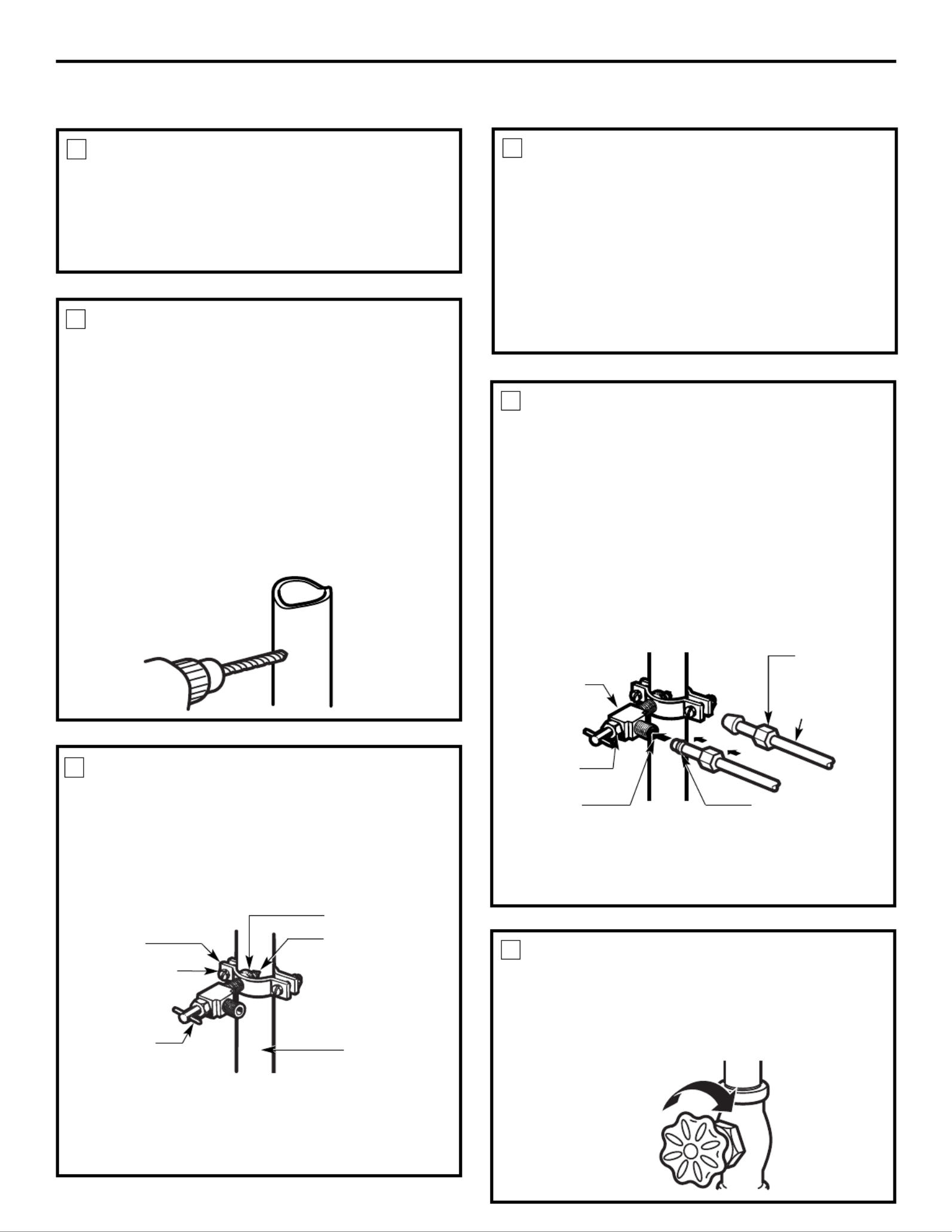

Choose a location for the valve that is easily
accessible. It is best to connect into the side of a
vertical water pipe. When it is necessary to connect
into a horizontal water pipe, make the connection
to the top or side, rather than at the bottom, to
avoid drawing off any sediment from the water pipe.
Drill a 1/4″hole in the water pipe (even if using a
self-piercing valve), using a sharp bit. Remove any
burrs resulting from drilling the hole in the pipe.
Take care not to allow water to drain into the drill.
Failure to drill a 1/4″ hole may result in reduced
ice production or smaller cubes.
DRILL THE HOLE FOR THE VALVE
2
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush the
tubing.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
FASTEN THE SHUTOFF VALVE
3
Washer
Inlet End
Clamp Screw
Vertical Cold
Water Pipe
Saddle-Type
Shutoff Valve
Pipe Clamp FLUSH OUT THE TUBING
Turn the main water supply on (counterclockwise)
and flush out the tubing until the water is clear.
Shut the water off at the water valve after about
one quart (1 liter) of water has been flushed
through the tubing.
6
CONNECT THE TUBING
TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve.
Make sure the tubing is fully inserted into the
valve. Tighten the compression nut securely.
For plastic tubing from a GE SmartConnect™
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then tighten
one additional turn with a wrench. Overtightening
may cause leaks.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5
Saddle-Type
Shutoff Valve
Compression
Nut
SmartConnect™
Tubing
Packing Nut
Outlet Valve Ferrule (sleeve)
ROUTE THE TUBING
Route the tubing between the cold water line and
the refrigerator.
Route the tubing through a hole drilled in the wall
or floor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing
(about 8 feet [244 cm] coiled into 3 turns of about
10″[25 cm] diameter) to allow the refrigerator to
move out from the wall after installation
.
4
CONNECT THE TUBING TO THE
REFRIGERATOR (CONT.)
Fasten the tubing into the clamp provided to
hold it in a vertical position. You may need to
pry open the clamp.
7
Installation Instructions
10

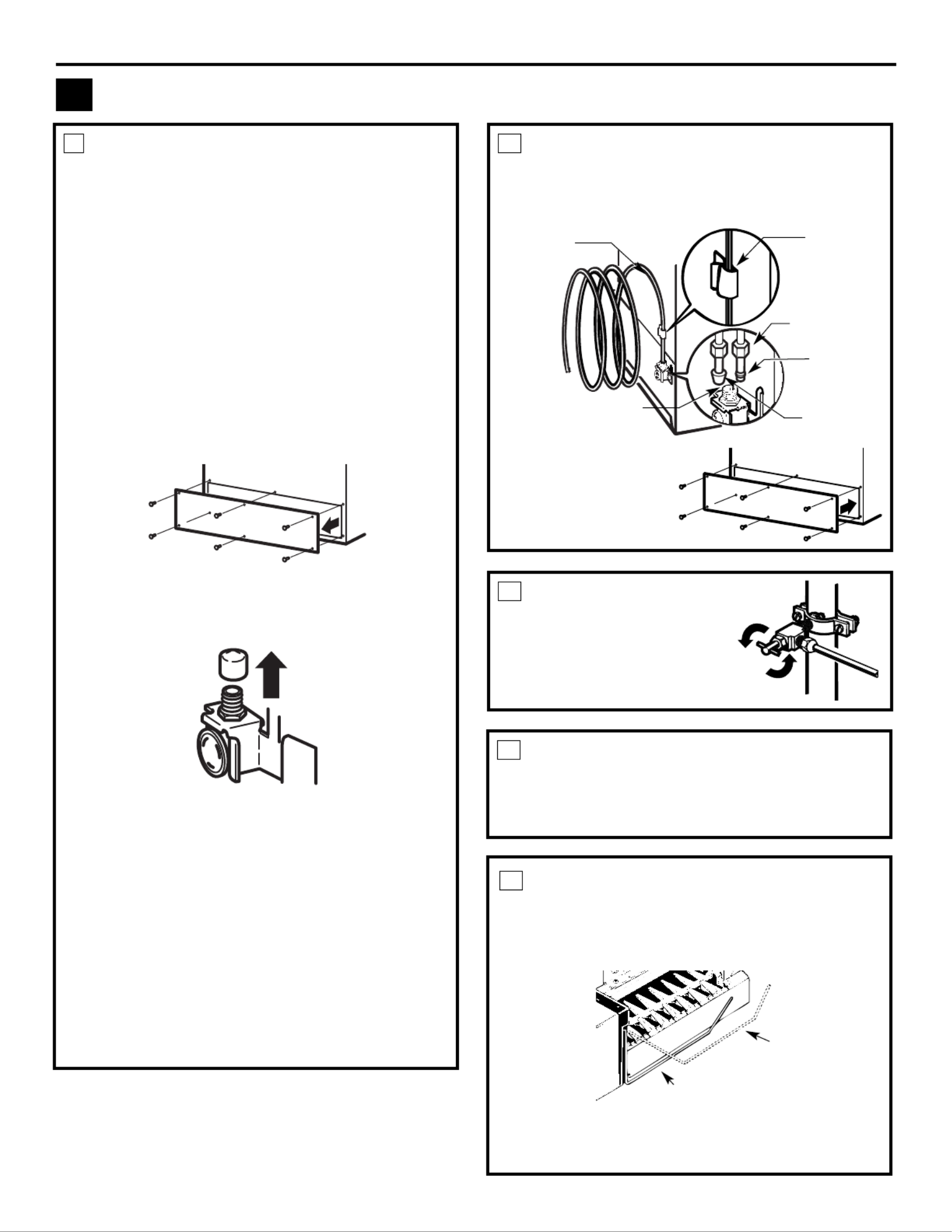

CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
•Before making the connection to the refrigerator,
be sure the refrigerator power cord is not plugged
into the wall outlet.
•We recommend installing a water filter if your
water supply has sand or particles that could clog
the screen of the refrigerator’s water valve. Install
it in the water line near the refrigerator. If using
GE SmartConnect™Refrigerator Tubing kit,
you will need an additional tube (WX08X10002)
to connect the filter. Do not cut plastic tube to
install filter.
Remove the access cover.
Remove the plastic flexible cap from the water
valve (refrigerator connection).
Place the compression nut and ferrule (sleeve)
onto the end of the tubing as shown. On GE
SmartConnect™Refrigerator Tubing kit,
the nuts are already assembled to the tubing.
Insert the end of the tubing into the water valve
connection as far as possible. While holding the
tubing, tighten the fitting.
For plastic tubing from a GE SmartConnect™
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then
tighten one additional turn with a wrench.
Overtightening may cause leaks.
7
TURN THE WATER
ON AT THE
SHUTOFF VALVE
Tighten any connections
that leak.
8
Tubing Clamp
1/4″Compression
Nut
Ferrule
(sleeve)
SmartConnect™
Tubing
Refrigerator
Connection
1/4″Copper
Tubing
PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the wall.
Push the refrigerator back to the wall.
9
Move the feeler arm to the
ON
(down) position. The
icemaker will not begin to operate until it reaches
its operating temperature of 15°F (–9°C) or below.
It will then begin operation automatically.
START THE ICEMAKER
Feeler Arm in the
STOP (up) position
Feeler Arm in
the ON (down) position
10
NOTE: In lower water pressure conditions, the
water valve may turn on up to 3 times to deliver
enough water to the icemaker.
Reattach the access cover.
INSTALLING THE WATER LINE (CONT.)
1
Installation Instructions
3.1 Tape the door shut with masking tape.
REMOVE THE FRESH FOOD DOOR
3
3.4 Set the door outside-up on a non-scratching surface.
3.3 Remove the tape and tilt the door away from the
cabinet. Lift the door from the pin in the bottom
hinge bracket. (If the plastic washer sticks to the
door bottom, put it back on the hinge.)
3.2 Using a 5/16″hex-head socket screwdriver and
a 5/16″ open-end wrench, remove the two
screws holding the center hinge to the cabinet.
Lift the center hinge to free its pin from the
socket in the top of the door, and set hinge and
screws aside. Be careful not to lose the center hinge
spacer and washer.
3.7 Take one of the screws removed in step 2 and start
it in the outermost screw hole on the opposite side.
Do not drive it all the way down—leave enough space
under the screw head for thickness of the bracket.
12
REVERSING THE HARDWARE
4
REVERSING THE DOOR SWING (CONT.)
2
3.5 Transfer the two screws from the opposite side of the
cabinet to the screw holes vacated by the center
hinge removal.
3.6 Transfer the washer (if your model has one) to the
opposite side.
3
REMOVE THE FRESH FOOD DOOR (CONT.)
4.1 Move the bottom hinge bracket and plastic washer from
the right side to the left side.
Plastic
Washer
Hinge
Bracket
Switch the hinge pin to the
opposite side of the bracket.
OWNERSHIP REGISTRATION
P.O. BOX 1780
MISSISSAUGA, ONTARIO
L4Y 4G1
(FOR CANADIAN CONSUMERS ONLY)
Please place in envelope and mail to:
Veuillez mettre dans une enveloppe et envoyez à :
19
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
Please place in envelope and mail to:
✁
Cut here
✁Cut here
For refrigerators installed in the U.S.
For refrigerators installed in Canada
23
Soutien au
consommateur
Conseils de dépannageFonctionnementMesures de sécurité Installation
INSTRUCTIONS IMPORTANTES DE SÉCURITÉ.
LISEZ TOUTES LES INSTRUCTIONS AVANT
D’UTILISER VOTRE RÉFRIGÉRATEUR.
www.electromenagersge.ca
BRANCHEMENT ÉLECTRIQUE
Ne coupez ou n’enlevez jamais, en n’importe quelles conditions, la troisième broche (mise à la terre) de
votre cordon d’alimentation. Pour votre sécurité personnelle, vous devez bien mettre à la terre cet
appareil électroménager.
Le cordon d’alimentation de cet appareil est muni
d’une fiche à trois broches (bipolaire avec terre)
qui se met dans une prise murale à trois trous
(bipolaire avec terre), pour réduire le risque de
secousse électrique occasionné par cet appareil.
Faites vérifier la prise murale et le circuit
électrique par un électricien qualifié pour vous
assurer que la prise murale est bien mise à la terre.
Si vous avez une prise murale à deux broches
seulement (sans terre), vous êtes personnellement
responsable et obligé de la faire remplacer par une
bonne prise murale avec terre, bien mise à la terre.
Vous devez toujours brancher votre réfrigérateur à
sa propre prise électrique, qui doit avoir un voltage
correspondant à celui de la plaque signalétique de
votre réfrigérateur.
Le rendement de votre réfrigérateur sera meilleur
et vous éviterez ainsi de surcharger les circuits
électriques et de surchauffer le câblage de votre
maison, et éviterez ainsi tout risque d’incendie
provoqué par des câbles surchauffés.
Ne débranchez jamais votre réfrigérateur en
tirant sur le cordon d’alimentation. Tenez toujours
la fiche fermement et enlevez-la de la prise en tirant
droit.
Réparez ou remplacez immédiatement tout
cordon d’alimentation usé ou endommagé.
N’utilisez jamais de cordon fissuré ou usé
sur sa longueur ou à l’une de ses extrémités.
Pour écarter votre réfrigérateur du mur, faites
attention dene pas écraser ou d’endommager
le cordon d’alimentation.
LISEZ ET SUIVEZ SOIGNEUSEMENT CES MESURES DE SÉCURITÉ.
CONSERVEZ CES INSTRUCTIONS
AVERTISSEMENT!
UTILISATION DE RALLONGES ÉLECTRIQUES
Nous vous recommandons fortement de ne pas utiliser de rallonge électrique, à cause d’un danger de
risques possibles de sécurité dans certaines conditions.
Cependant, si vous devez absolument utiliser un cordon rallonge électrique, il est absolument requis que
vous utilisiez un cordon rallonge trifilaire, avec mise à la terre, certifié UL (aux États-Unis) ou ACNOR
(au Canada), avec prise et fiche à trois conducteurs, et à notation électrique de 15 ampères (minimum)
et 120 volts.
Produktspecifikationer
| Varumärke: | GE |
| Kategori: | kylskåp |
| Modell: | GTH18DCRLBB |
Behöver du hjälp?
Om du behöver hjälp med GE GTH18DCRLBB ställ en fråga nedan och andra användare kommer att svara dig
kylskåp GE Manualer
10 September 2025
10 September 2025
10 September 2025
10 September 2025
20 Augusti 2025
19 Augusti 2025
19 Augusti 2025
14 Augusti 2025
13 Augusti 2025
13 Augusti 2025
kylskåp Manualer
- Hanseatic
- Tristar
- Zerowatt
- Eldom
- Medion
- Grundig
- Vedette
- Cookology
- Matrix
- Khind
- Wine Klima
- WhiteLine
- Hestan
- Thomson
- Richome
Nyaste kylskåp Manualer
23 Oktober 2025
23 Oktober 2025
23 Oktober 2025
23 Oktober 2025
23 Oktober 2025
23 Oktober 2025
21 Oktober 2025
21 Oktober 2025
20 Oktober 2025
20 Oktober 2025
