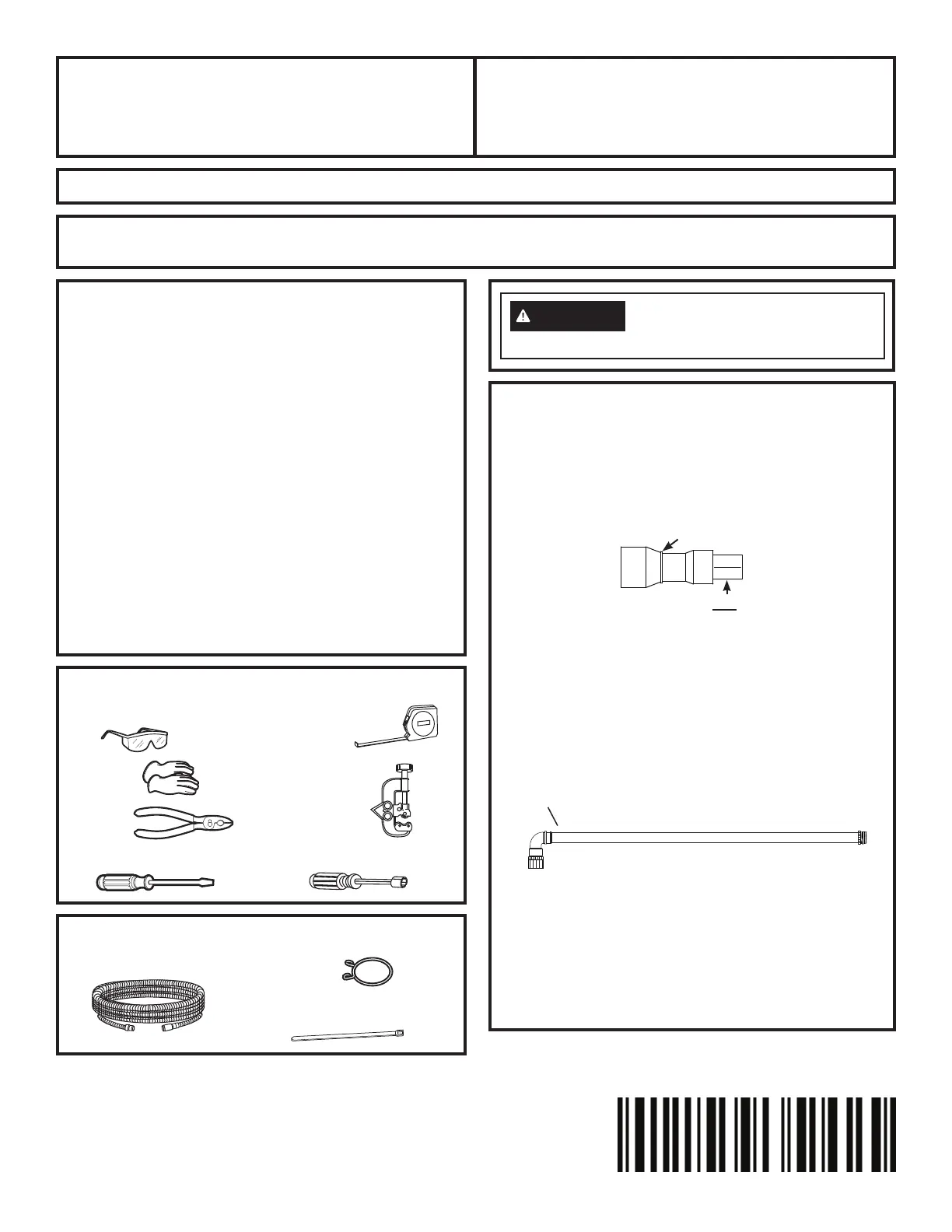

TOOLS YOU WILL NEED
Ŷ
Ŷ
Gloves
Ŷ
Ŷ
Safety Glasses
Ŷ
Ŷ
Tubing Cutter
Ŷ
Ŷ
Measuring Tape
Ŷ
Ŷ
6' Drain Hose
CONTENTS
Ŷ
Ŷ
Pliers
Ŷ
Ŷ
Drain Hose Hangers
Ŷ
Ŷ
Hose
Clamps
CONNECT DRAIN LINE
TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
16’ FROM THE REAR OF THE DISHWASHER FOR
PROPER DRAIN OPERATION.
Ŷ
The molded end of the drain hose will fit 5/8” through
1” diameter inlet ports on the air gap or waste tee.
Ŷ
Determine size of inlet port. If required, cut drain
hose connector on the marked line, to fit the inlet
port.
Ŷ
Replace the provided uni-couple drain hose with the
6’ long hose which can be connected directly to the
waste tee or to the high drain loop attached to the
waste tee.
NOTE: Air gap must be used if waste tee or disposer
connection is less than 18” above floor to prevent
siphoning unless the unit is above the connection to
the waste tee or disposer connection.
Ŷ
Complete the installation by following the Installation
Instructions that came with your dishwasher.
1”
5/8”
IMPORTANT: Do not cut
this portion of hose.
Cutting Line
Dishwasher
Connection
House
Drain Hose on
Dishwasher
Ŷ
Ŷ
Flat-blade screwdriver
Ŷ
Ŷ
Nutdriver and 1/4" Socket
012050721631-4000302 Rev 105-25
Disconnect power before
installing. Failure to do so could
result in serious injury or death.
WARNING
Questions? Call 833-4BODEWELL (833-426-3393) or visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit our Website at: GEAppliances.ca
Drain Hose Kit
PCDDR01KIT
Installation
Instructions
ENGLISH / FRANÇAIS / ESPAÑOL
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT– Save these instructions for
local electrical inspector’s use.
•IMPORTANT – Observe all governing
codes and ordinances.
•IMPORTANT – This kit is intended to
be used only with PZF560 Series Profile Compact
Dishwashers - See the Owner’s Manual for details.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Installation must be performed by a qualified installer.
• Proper installation is the responsibility of the installer.
