GE Monogram®

Installation

Instructions

36" Downdraft

Gas Cooktops

Models

ZGU365

Before you begin—Read these instructions completely and carefully.

IMPORTANT: Save these instructions for local inspector’s use.

IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.

NOTE TO INSTALLER: Be sure to leave these instructions with the Consumer.

NOTE TO CONSUMER: Keep these instructions with your Owners Manual

for future reference.

This appliance must be properly grounded. See “Power Supply”, page 8.

WARNING

Proper installation is the responsibility of the

installer. Product failure due to improper

installation is not covered under the GE

Appliance Warranty. See the Owners Manual

for warranty information.

For Monogram local service in your area,

1-800-444-1845.

For Monogram service in Canada,

1-888-880-3030.

For Monogram Parts and Accessories, call

1-800-626-2002.

If you have a question concerning the installa-

tion of this product, call the GE Answer

Center® Consumer Information Service at

800.626.2000, 24 hours a day, 7 days a week. If

you received a damaged cooktop, you should

immediately contact your dealer or builder.

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical switches.

3. Extinguish any open flame.

4. Immediately call your gas supplier.

FOR YOUR SAFETY

Do not store or use combustible materials,

gasoline or other flammable vapors and

liquids in the vicinity of this or any other

appliance.

Natural Gas Installation Code, CAN/CGA-

B149.1 or the current Propane Installation

Code, CAN/CGA-B149.2, and with local

codes where applicable.

• This cooktop has been design-certified by

the American Gas Association according to

ANSI Z21.1, latest edition and Canadian Gas

Association according to CAN/CGA-1.1

latest edition.

• Your cooktop must be electrically grounded

in accordance with local codes or, in the

absence of local codes, in accordance with

the National Electrical Code (ANSI/NFPA

70, latest edition). In Canada, electrical

grounding must be in accordance with the

current CSA C22.1 Canadian Electrical Code

Part 1 and/or local codes.

Contents Design Information

Models Available ........................................................... 3

Accessories ..................................................................... 3

Dimensions and Clearances ......................................... 3

Advance Planning ......................................................... 4

Ductwork Advance Planning ........................................ 4

Tools and Materials Required ...................................... 4

Cabinetry/Ductwork

Cut the Opening ........................................................... 5

Venting Options ............................................................ 6

Ductwork Fittings .......................................................... 7

Power Supply Locations ............................................... 8

Installation

Step 1: Install Downdraft Vent ..................................... 9

Step 2: Install Ductwork ............................................. 10

Step 3: Install Pressure Regulator .............................. 10

Step 4: Install the Cooktop ........................................ 11

Step 5: Electrical Connections ................................... 12

Step 6: Connect Power ............................................... 12

Step 7: Assemble Burners, Check Ignition ............... 12

Step 8: Install Filters,

Check Operation of Downdraft ................................. 13

JXRB57 Kit, Indoor Remote Blower Location ........ 14

JXBC57 Kit, Outdoor Remote Blower Location ...... 17

• Installation of this cooktop must conform

with local codes, or in the absence of local

codes, with the National Fuel Gas Code,

ANSI Z223.1, latest edition. In Canada,

installation must conform with the current

ATTENTION

Cet appareil doit être correctement mis à la terre. Voir << Alimentation électrique >> à la page 8.

Models

Available

ZGU365

36" gas downdraft cooktops

Design Information

G as Downdraft Cooktop

These models are shipped for natural gas

operation. They can be converted to liquid

propane. (Order JXLP56 conversion kit.)

These gas downdraft cooktops are equipped

with an vent system which can be retracted

when not in use.

• JXBA56WW, white or JXBA56BB, black

motor and blower assembly is required for

both models. Be sure to order the color that

matches the cooktop.

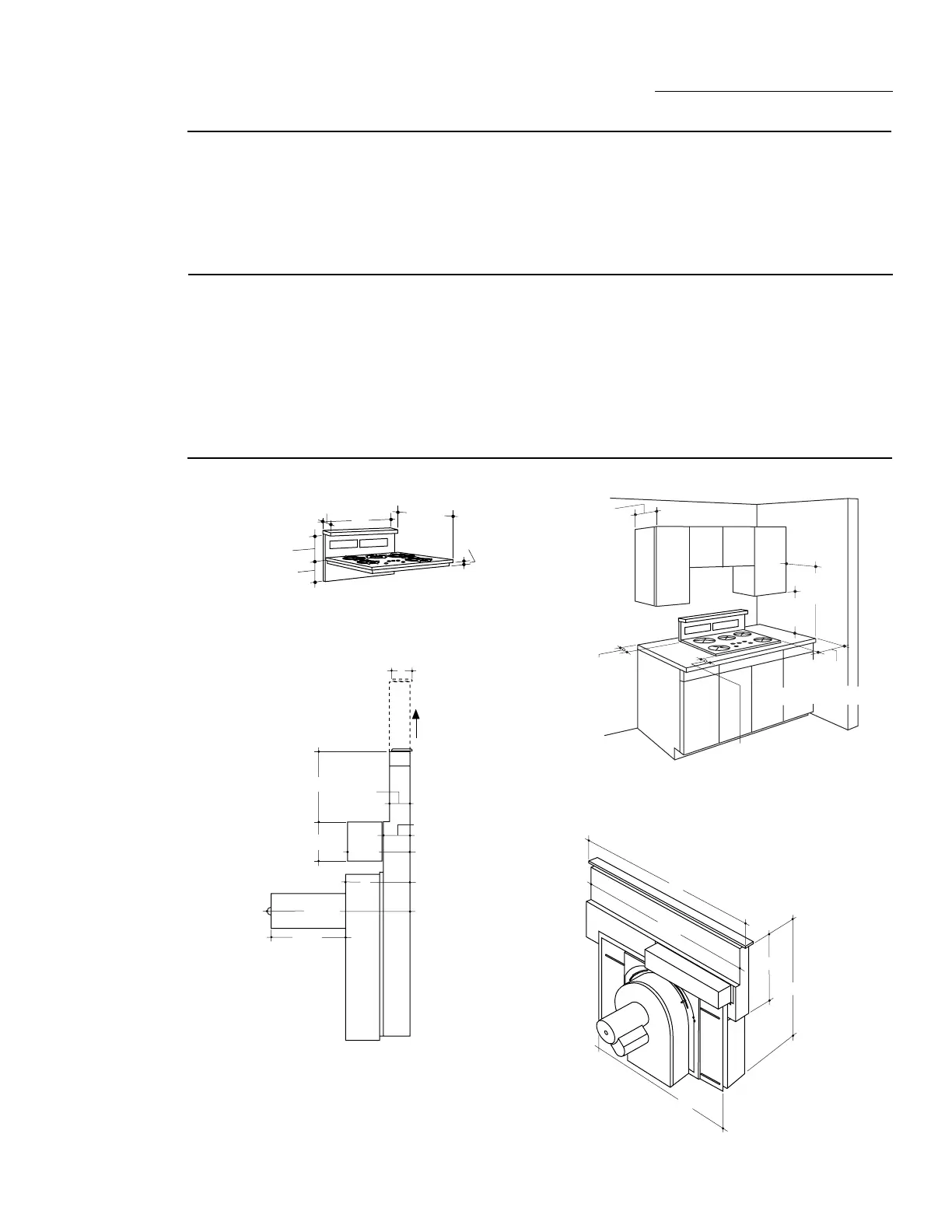

Dimensions

and Clearances

Accessories •JXRB57 optional accessory for indoor

remote location of the blower/motor

assembly. Use this kit when the blower and

motor assembly will be located outside of or

below the cabinet floor.

• JXBC57 optional outdoor cover accessory

may be ordered for installation of blower

and motor assembly on the outside wall.

14-3/4"

36"

33-3/4"

26"

27"

2-1/4"

3-1/4"

12-3/8"

5-3/8"

3-1/4"

7-1/2"

6-3/8"

8-1/2" Lift

13"

Max.

3-7/8" Min.

From Cooktop

to Rear Vertical

Combustible

When Installed

8" Min. to

Wall When

Installed Both Sides

1-1/2" Min.

When Installed

18"

Min.

30"

Min.

36" 19-3/4"

8-3/4" 2"

15"
