Servicing Information

Regular servicing every year or 5000 cycles of your Torque Tool is important to ensure it

continues to perform correctly.

Safety & Maintenance

This Torque Tool is a precision instrument and should be used for its

intended purpose only

Only hold the tool using the handgrip

Always ensure that the tool is in correct alignment with the fastener

Torque tools should be regularly calibrated and inspected to ensure correct operation

Ensure the tool is clean and free from oil, grease and water before use

Do not use extension bars to increase the leverage of the handle

Never dip into cleaning uid or petroleum

Instruction Part Number P16960 Issue 3

How to use and care for your TBN Preset Breaking

Torque Wrench

Tool Specication

Models: TBN 2, 2 G, 10 & 10 G (Torque Range 0.4 –10 N.m)

Repeatability: +/- 6% of Torque Setting

ISO 6789 Class: Type 2, Class A

Calibration Period: Every 12 Months or 5000 cycles (minimum)

Mechanism: Breaking - Incorrect tightening is Unlikely

EPA Compliant:

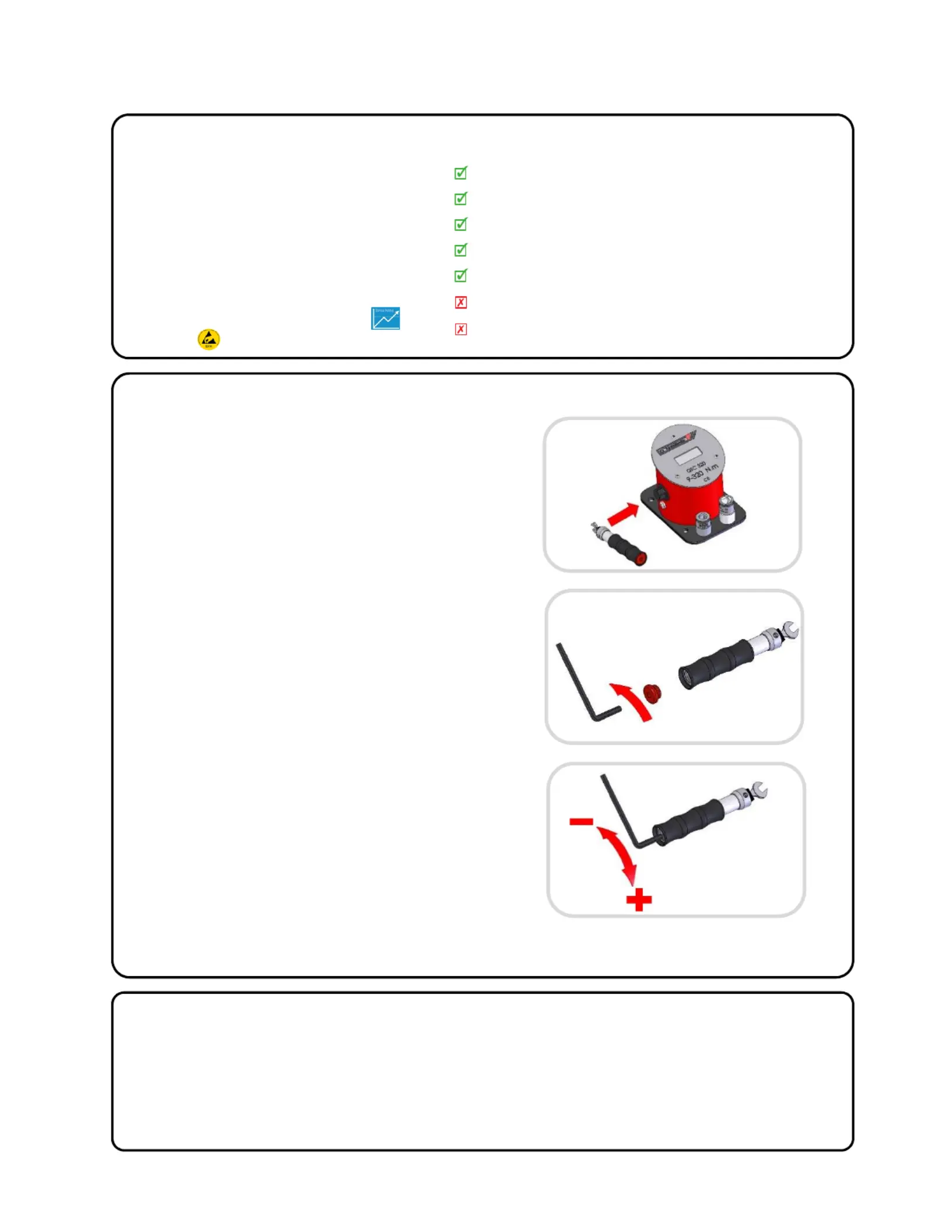

How to adjust your Torque Wrench

(1) To check setting:

Use a Torque Analyser.

(2) To adjust the torque setting:

Use a 5 mm hexagon key to remove the end cap.

Then use the same 5mm hexagon key to turn the

torque adjuster.

(3) To increase torque:

Using the 5mm key provided, rotate clockwise

until the correct torque is shown consistently

on the Analyser. (10 readings)

(3)To reduce torque:

When adjusting, always approach the required

torque from a lower setting.

To reduce the torque, rotate the hexagonal key

anti clockwisepass your setting, then increase

torque to the required value.

To set torque:

The adjustment mechanism locks

automatically when the hexagonal key is removed.

To use Torque Wrench:

The TBN Wrench is designed for use with special end ttings.

Produktspecifikationer

Varumärke:	Gedore
Kategori:	skruvdragare
Modell:	TBN 2
Produkttyp:	Momentnyckel med klick
Modell:	Mekanisk
Handtagets färg:	Svart
Fyrkanttappens storlek:	1/4 "
Momentomfång:	0.2 - 2 nm
