Congratulations on your purchase of the Gefen 1U Rack Tray. Your complete satisfaction is very important to us.

This product has been designed for rack mounting of specic half-rack wide Gefen products. It helps keep your installation secure

and organized. This tray takes up just 1 Rack Unit (1U) height (1.75”), but can also accommodate lower prole as well as taller

enclosures (as long as there is clearance above the tray). For a list of compatible Gefen products, please see the EXT-RACK-1U

page at www.gefen.com.

1U Rack Tray

EXT-RACK-1U

EXT-RACK-1U-GRY

QUICK START GUIDE

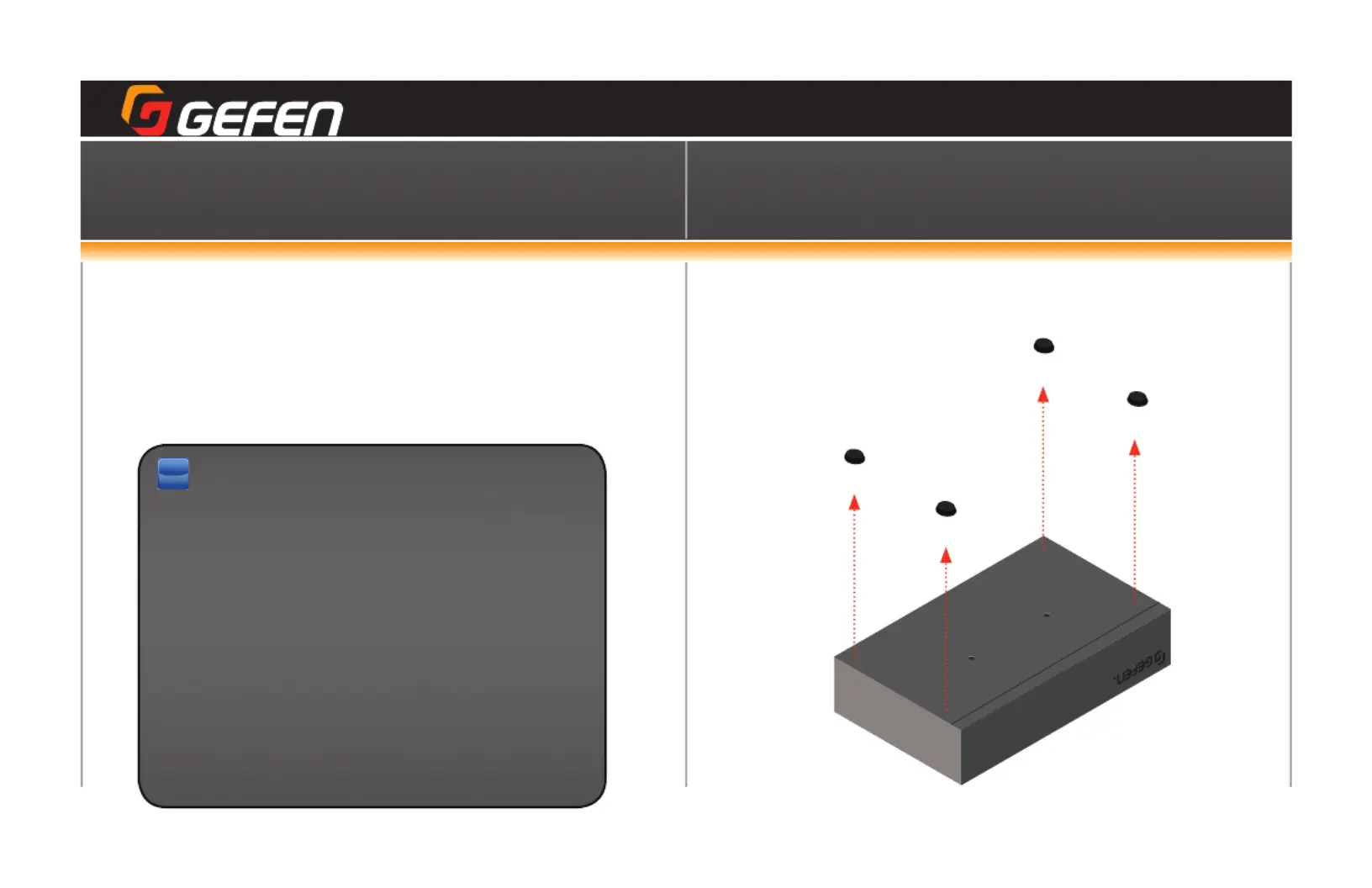

1. Turn the unit upside down and remove the rubber feet if attached.

Make sure you have everything that came with your product:

(1) 1U Rack Tray (EXT-RACK-1U or EXT-RACK-1U-GRY)

(1) Quick-Start Guide (QSG-EXT-RACK-1U)

In case of difculties, or if you have any questions, please get in touch with the

Gefen Technical Support. Refer to the last page of this Quick Start Guide for contact

information.

Start Here

Installation

Remove Rubber Feet

1. Product-to-rack mounting screws are provided NOT

with this rack tray. These screws may or may not be

included with your product, depending on the model. To

nd out, please check the contents list in your product’s

user manual or QSG. If these screws did not come with

your Gefen product, you will need to purchase them

separately. Please use 6-32 at head machine screws,

approximately 3/16” or 5mm long. The use of longer

screws could damage your product. Such damage will not

be covered under warranty.

2. This rack tray is available in two nishes to complement

a variety of Gefen enclosures: Bronza (EXT-RACK-1U) and

Metallic Gray (EXT-RACK-1U-GRY).

3. For a list For a list of compatible products, please see the

EXT-RACK-1U web page at www.gefen.com

IMPORTANT NOTES

QUICK START GUIDE

2. Line up the holes on the unit and the rack tray.

3. Install 2 at head, 6-32 thread, 5mm or 3/16” long machine screws

that are either provided with the product or need to be purchased

separately (depending on product model).

4. Ensure that unit has been installed securely in the rack tray.

Secure product to the Rack Tray

QUICK START GUIDE

Produktspecifikationer

Varumärke:	Gefen
Kategori:	Inte kategoriserad
Modell:	EXT-RACK-1U-GRY
Bredd:	483 mm
Djup:	150 mm
Höjd:	43 mm
Rackkapacitet:	1U
Användbar bredd:	432 mm
Produktens färg:	Grå
Antal per förpackning:	1 styck
