Page 101 of Revision A 550-0 427
Bezelled w/ Homelink
Frameless
ADVGEN8EXP
Frameless w/ Homelink
TOOLS REQUIRED:
Safety Glasses
Utility Knife
Pliers
#2 Phillip's Screwdriver
Clean Rag
Electrical Tape
4mm Flat Screwdriver
Flashlight
DC Voltmeter
Fish-Wire (Coat Hanger)
#T20 Torx Driver
Panel Removal Tool
Gentex by VOXX Corporation
Installation Instructions
ADVGEN45A4PW4
ADVGEN40A4
ADVGEN45AB5
ADVGEN45A4
ADVGENFL85EXP
ADVGENFL80EXP
Page 102 of Revision A 550-0 427
Perform the following pre-installation steps:
1. Place kit components on a clean, padded surface.
2. Record your programmed radio stations.
3. Remove driver side scuff plate. (Fig. 1)
4. Remove driver side door seal. (Fig. 2)
5. Remove driver side kick plate / cowl cover. (Fig. 3)
6. Remove driver side grab handle if equipped. (Fig. 4)
7. Remove driver side A-pillar trim. (Fig. 5)
INSTALLATION PRECAUTIONS / NOTES:
use excessive force when removing OEM mirror from windshield. Do not
push fish-wire too far into dash to avoid damage to existing components. Do not
place wire harness against objects with sharp edges that may cause electrical shorting. Do not
-pillar (side impact or SRS) airbags, verify mirror harness path remains On vehicles equipped with A
clear of airbag. Harness should follow and be secured to, existing OEM wiring with tie wraps.
-dimming mirror harnesses do not interfere with brake, clutch, emergency brake or air Verify that auto
bag
1
Preparation
1
2
3
4
5
Page 103 of Revision A 550-0 427

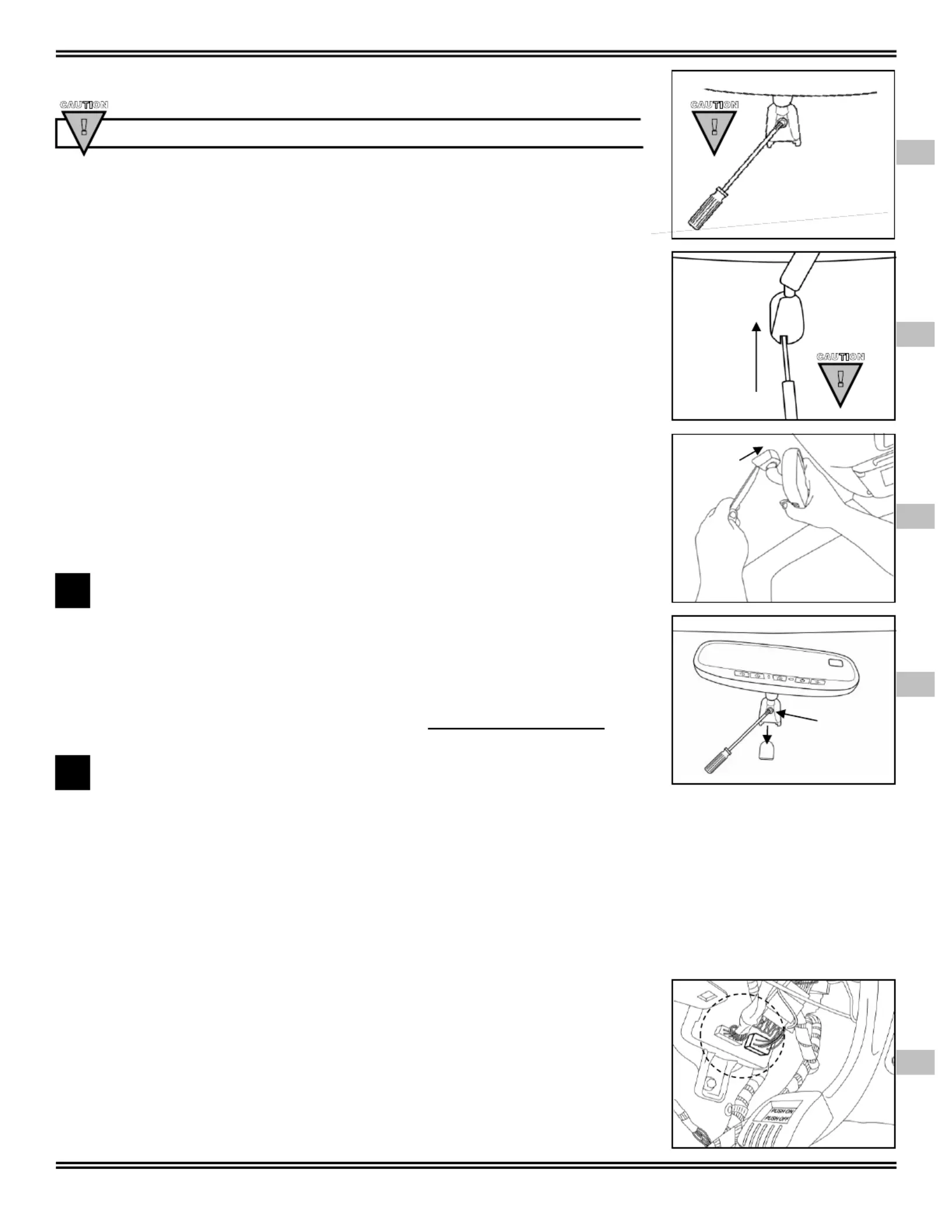

8. Remove OEM mirror. (Fig. 6,7 or 8)
a) Loosen #T20 torx screw on mirror mount and slide mirror
upwards off from windshield button. (Fig. 6)
- - - - OR
b) Insert 4mm into opening at bottom of mirror mount to disengage
locking tab and slide mirror upwards off from windshield button.
(Fig. 7)
NOTE: Gently wiggling mirror while sliding upwards will assist
removal.
- - - -OR
c) Insert panel removal tool g at bottom of mirror mount into openin
to disengage locking tab and slide mirror upwards off from
windshield button.
(Fig. 8)
NOTE: Gently wiggling mirror while sliding upwards will assist
removal.
1. Attach auto-dimming mirror.
a) Hold the mirror and slide the mirror downwards over wind- shield
button until fully seated. (Fig. 9)
b) Using #T20 torx driver, tighten the mirror mounting bracket
screw to 1.3 ft-lbs (17.8 kg- cm). DO NOT OVERTIGHTEN
You will need to find a supply wire in your vehicle that provides NOTE:
+12V when vehicle is running or the key is in the ON or ACC
position. You will also need to find a supply wire that provides
+12V constant power when vehicle is both ON and OFF. Your
automotive repair shop may sometimes be able to advise readily
available locations for connecting to these power sources.
The cigarette lighter or power port receptacle may be a source of A TIP:
switched +12V or constant +12V, depending on vehicle make.
1. Locate ignition (+12V switched) wire.
a) Using a multi-meter, find a wire exiting the fuse block or junction
block that tests +12V and is controlled by the ignition switch.
Operate vehicle accessories (power windows, door locks, power
mirrors, etc.) to ensure that voltage does not drop on this wire.
(Fig. 10)
b) Ensure power in this wire is off when vehicle key is OFF and
label wire "IGNITION."
2
Auto-Dimming Mirror Installation
CAUTION
!
Do not use excessive force. Damage to windshield could occur.
3
Route -Dimming Mirror Harness to Vehicle Power Auto
1.3 ft- lbs
CAUTION
!
6
8
9
10
7
CAUTION
!
