GeoVision GV-CR420 Bruksanvisning


Läs gratis den bruksanvisning för GeoVision GV-CR420 (24 sidor) i kategorin övervakningskamera. Guiden har ansetts hjälpsam av 23 personer och har ett genomsnittsbetyg på 4.3 stjärnor baserat på 12 recensioner. Har du en fråga om GeoVision GV-CR420 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Sida 1/24
CR420V101-A

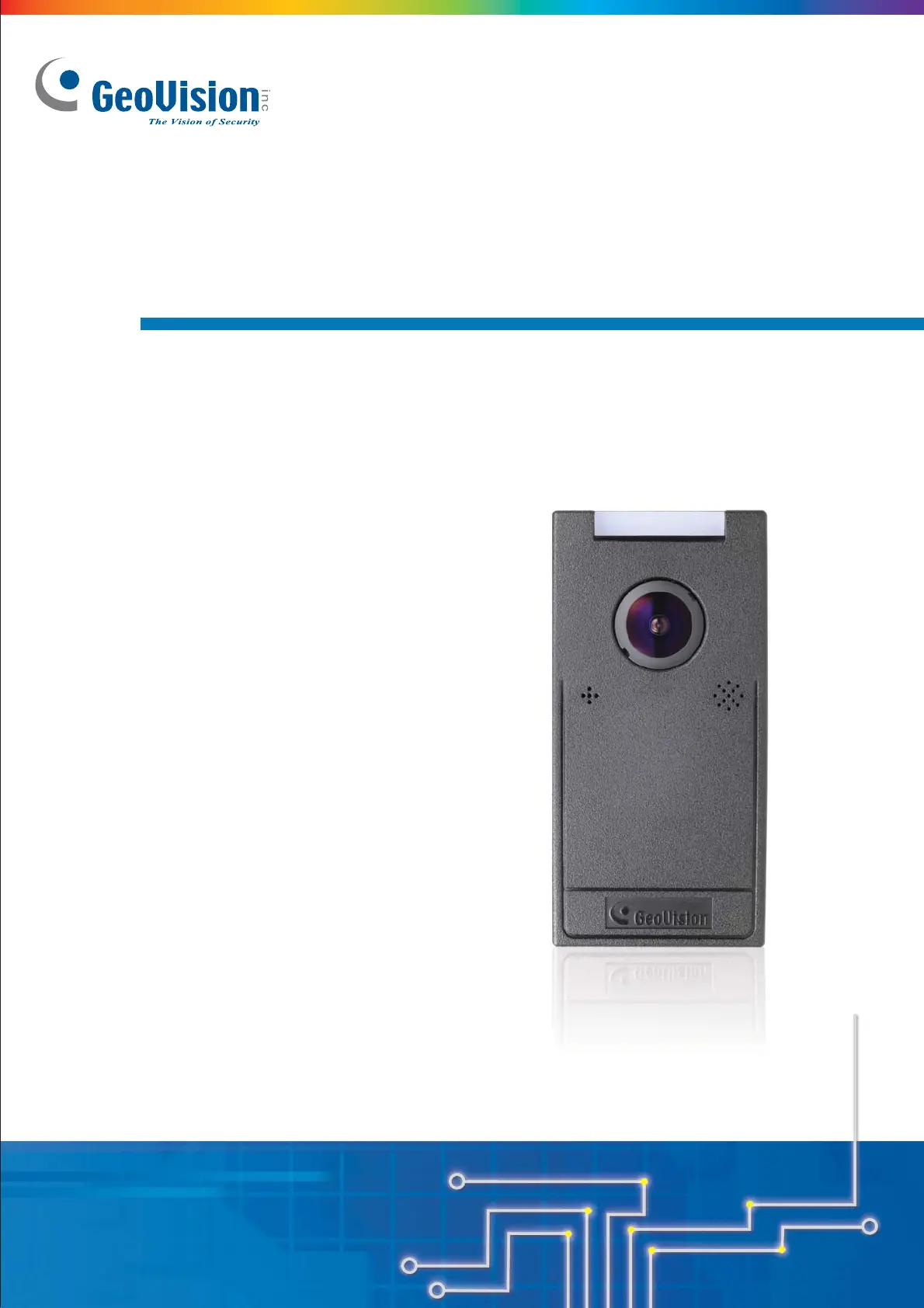

GV-Camera Reader
Before attempting to connect or operate this product, please
read these instructions carefully and save this manual for future use.
GV-CR420 User's Manual
© 2013 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows XP
are registered trademarks of Microsoft Corporation.
February 2013
i
Contents
Naming and Definition .............................................................v
Chapter 1 Introduction ..........................................................1
1.1 Key Features ......................................................................................................... 3
1.2 Packing List ........................................................................................................... 4
1.3 Optional Accessories ............................................................................................. 4
1.4 System Requirements............................................................................................ 5
1.5 Limitations and Optimal Installation for Face Detection.......................................... 6
1.6 Physical Description............................................................................................... 7
1.7 Connecting the Cables and Wires.......................................................................... 8
1.8 Installation ............................................................................................................. 9
Chapter 2 Access Control Configurations ........................11
2.1 Connecting to GV-AS Controller ...........................................................................12
2.1.1 Through Wiegand Interface.......................................................................13
2.1.2 Through RS-485 Interface ........................................................................15
2.1.3 Through Network Connection ...................................................................17
2.2 Setting Up GV-ASManager ...................................................................................19
2.2.1 Adding GV-AS Controller ..........................................................................19
2.2.2 Setting Up Access Control Schedule ........................................................21
2.2.3 Receiving Live View from Camera Reader................................................23
Chapter 3 Establishing Network Connection ..................25
3.1 Checking the Dynamic IP Address........................................................................26
3.2 Assigning an IP Address.......................................................................................28
Chapter 4 Accessing the Camera Reader .........................30
4.1 Accessing Your Surveillance Images ....................................................................30
4.2 Functions Featured on the Main Page ..................................................................31
4.2.1 The Live View Window ..............................................................................32
4.2.2 The Control Panel of the Live View Window..............................................34
4.2.3 Snapshot of a Live Video ..........................................................................37


Produktspecifikationer

Varumärke: GeoVision
Kategori: övervakningskamera
Modell: GV-CR420
Vikt: 170 g
Bredd: 134.6 mm
Djup: 42.5 mm
Höjd: 65.8 mm
LED-indikatorer: Ja
Processorfrekvens: 13.56 MHz
Wi-Fi: Nej
Videoformat som stöds: H.264, M-JPEG
Maximal upplösning: 2048 x 1944 pixlar
Inbyggd hårddisk: Nej
Fast brännvidd: 1.05 mm
Zoomkapacitet: Nej
Certifiering: CE, FCC, C-Tick
Optisk sensorstorlek: 1/2.5 "
Bildsensortyp: CMOS
Optisk zoom: - x
Inbyggd mikrofon: Ja
vitbalans: Auto, Manual
Modell: IP-säkerhetskamera
Kabelteknik: 10/100Base-T(X)
RS-485-portar: 1
Produktens färg: Grå
Slutartid: 1/5 ~ 1/8000 s
brett dynamiskt omfång (WDR): Ja
Strömförsörjning via Ethernet (PoE) stöd: Nej
Antal LAN (RJ-45) anslutningar: 1
Strömförbrukning (vanlig): 15 W
Temperatur vid drift: 0 - 40 ° C
Intervall för relativ operativ luftfuktighet: 10 - 90 %
Hållbarhetscertifiering: RoHS
AC-inspänning: 12 V
Anslutningsteknologi: Kabel
Dag / nattläge: Ja
Monteringssätt: Vägg
Minimibelysning: 2 lx
Kameraslutningstyp: Elektronisk
Mörkerseende: Ja
Totalt megapixel: 4 MP
Bildfrekvens: 15 fps
Nätverksansluten (Ethernet): Ja
Stöd för nätverksprotokoll: HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF
Likströmsingång: Ja
PTZ-styrning: Nej
Justering av fokus: 2.8
Strömförbrukning: 350 mA
