GV-I/O Box 4E September 16, 2021

- 1 -

GV-I/O Box 4E

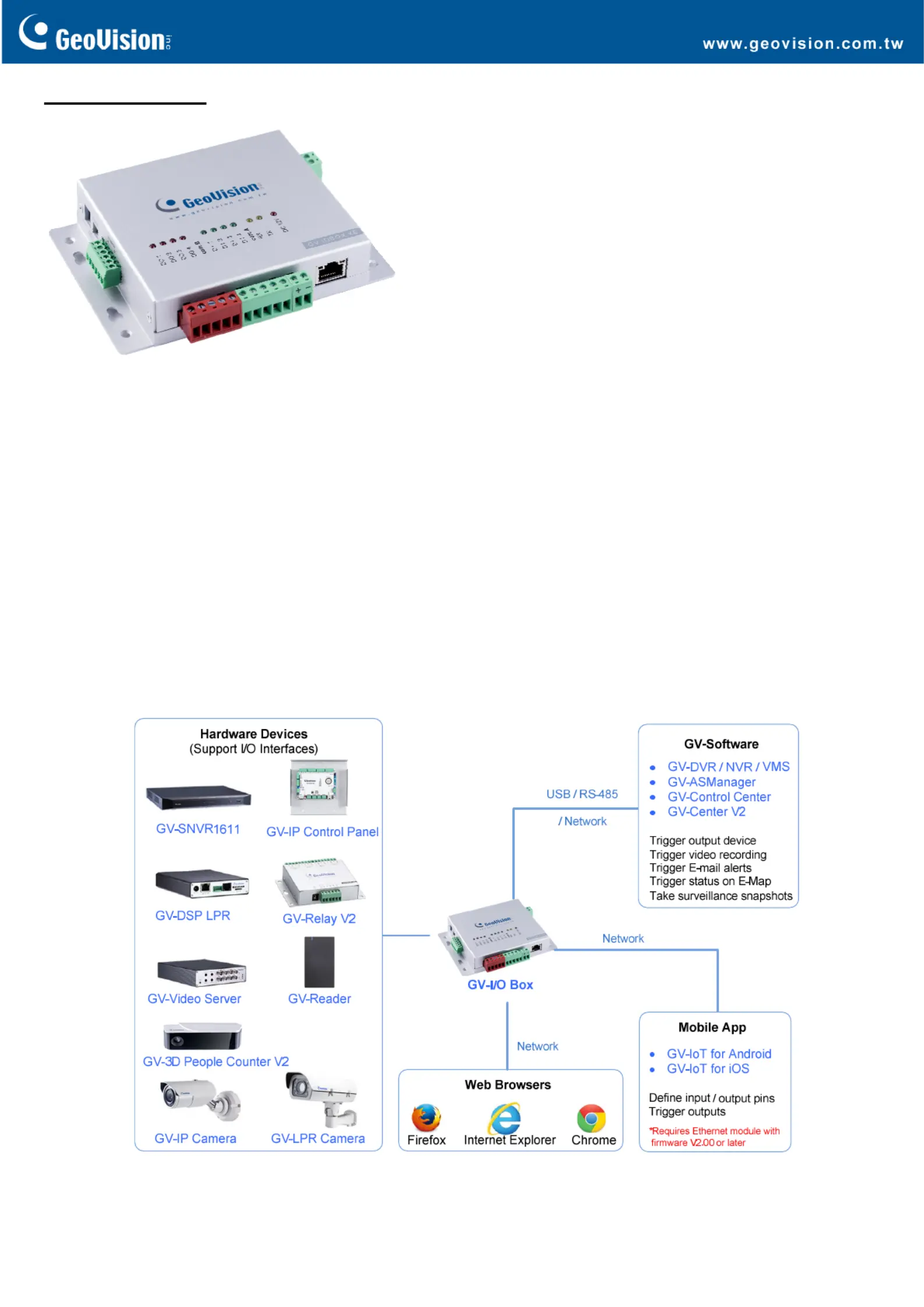

Introduction

Asmallbutcapabledevice,GV‐I/OBox4E DCprovides outputs. 4 inputsand 4 relay Itprovidesboth andACoutputvoltages,PoE,

TCP / IPandRS‐485portforPCconnection.GV‐I/OBox4EalsosupportsGV‐IoTappforremotemanagementviamobiledevices.



Features

 4 4inputsand outputs 

 TCP    ‐     / IP and RS 485 ports for PC connection

 DC      12V, 3A / PoE+ (IEEE 802.3at)

 Connectivity       ‐      of up to 9 units of GV I/O Box 4 / 8 /16 ports

 Up          ‐to 16 connections from GeoVision software to control one GV I/

OBox

 Support  ‐     for GV IoT mobile app for remote management 



Note: Firefox browserisnotsupportedcurrently.



GV-I/O Box 4E September 16, 2021

- 2 -



Specifications

32‐bitWindows        7 / 8 / 8.1 / 10 / Server2008

OSSupported

64‐bitWindows        7 / 8 / 8.1 / 10 / Server2008 R2  / Server2012R2

CompatibleS/W

GV‐      ‐DVR / NVR / VMS, GV ASManager,GV‐ControlCenter,GV‐CenterV2

*GV‐  ASManager and GV‐     Control Center only accept network connectionfromGV‐  IO Box.

2Wiegand      interfaces, 26 ~ 64 bit format

Wiegand Interface

12V DC powersupply,200mA

RS RS‐485Connection 1‐485interfacefor 9 GV‐I/OBoxconnections,Distance600 m (1968.5 24ft), AWG

Input 4 inputs, Dry Contact,NO NC /

Output 4 relayoutputs(DC30V, 3A; 110V 250V  AC ~AC,3A)

EthernetRJ‐45,    10 / 100 Mbps

Power PoE+12V 3ADC,  /(IEEE802.3at,provides   up to 25.5W)

OperatingTemperature0° 32°F 149 C ~65°  C /  ~°F

OperatingHumidity5% 95% RH ~ (Non‐Condensing)

Dimensions111.4 1.08 3.98 x 27.5 x 101mm / 4.39 x xin(caseincluded)

Weight235  g / 0.52lb(caseincluded)

IngressProtectionIP54

RegulatoryCE, FCC, RoHS

Note:

1. TheWiegandInterfacedoesnothave any functionin Firmware earlier. V1.01or 

2. GV‐I/O        ‐     ‐ ‐     Box 4E can only be connected using CAT 5e cables, TIA / EIA 568 B, with the maximum DC resistanceof9.38ohms / 100

m.
