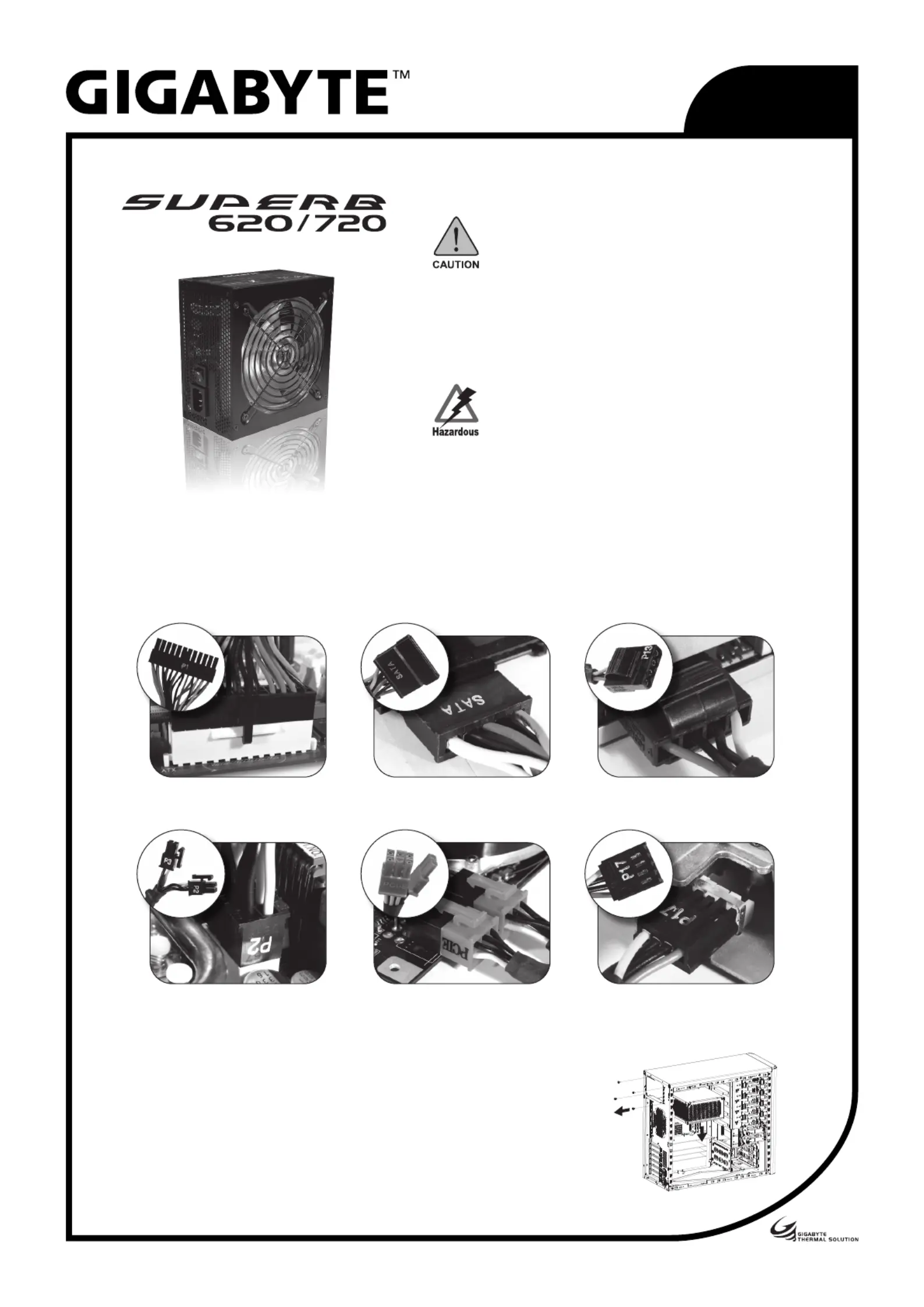

The following are not covered by the warranty:

1. Using the product incorrectly or in a manner other than the designed purpose.

2. Nonobservance of the proper operation provided.

3. Malfunction due to interference from other devices

4. Unapproved modification of the product.

5. Consequential damage to other objects due to the product’s fault.

6. Malfunction arising from natural hazards E.g. earthquake, lightning, fire, and floods.

7. The product’s warranty label has been removed or damaged.

8. The devices inside, including power supply, hard disk, CD-ROM drive,

motherboard, ventilator, etc, are not detached from the casing prior to

transportation of the computer system, resulting in damage to the casing or

computer-related devices.

9. Any loss/damage caused by failure to follow the installation process within the

user manual.

Do not open this power supply unit!

No serviceable components inside!

Qualified service personnel only!

Incorrect connector installation may possibly burn out the motherboard and other

components.

Features

• Complies to Intel ATX 12V v2.3

• 12cm intelligent transparent cooling fan

• Triple rails of +12V

• PCI-E 2.0 ready : 6+2 pin

• Multiple safety protection features : OPP/OCP/OVP/OTP

• Sleeved cabling

• Quad Core CPU ready

• Color-coded copper heat-sink

• RoHS ready

• Active PFC

24-Pin Main Power Connector

Head

S-ATA HDD Connector Head 4-Pin Peripheral Connector

Head

Part 1

If your system does not have a power supply installed, please skip to Part 2.

1. Turn off power and disconnect power cable.

2. Disconnect all connectors from your existing power supply.

3. Remove your existing power supply.

Part 2

1. Install your SUPERB Power Supply.

2. Connect all power connectors to the motherboard and all devices as needed.

4+4-Pin ATX/EPS CPU Power

Connector Head

PCI-E 2.0, 6+2-Pin Connector

Head

FDD Connector Head

English

Produktspecifikationer

Varumärke:	Gigabyte
Kategori:	Inte kategoriserad
Modell:	Superb 720
Vikt:	2000 g
Bredd:	140 mm
Djup:	150 mm
Höjd:	86 mm
Certifiering:	CE, cUL, TUV, FCC, BSMI, C-Tick, WEEE
Toppeffekt:	720 W
Power Factor Correction (PFC) typ:	Aktiv
Kombinerad effekt (-12V):	6 W
Produktens färg:	Svart
Produktstorlek (BxDxH):	140 x 150 x 86 mm
Hållbarhetscertifiering:	RoHS
AC-inspänning:	115 - 230 V
Fläktdiameter:	120 mm
Växelström Frekvens:	50 - 60 hz
På / av-knapp:	Ja
Ljudnivå Lc IEC:	- dB
ATX strömkontakt (24-pin):	Ja
Antal fläktar:	1 fläkt/-ar
Ändamål:	PC
Total effekt:	610 W
Kylning typ:	Aktiv
Periferiska (Molex) strömkontakter (4-pin):	4
Antalet SATA strömkontakter:	7
Kombinerad effekt (+3,3 V):	170 W
Kombinerad effekt (+12 V):	504 W
Kombinerad effekt (+5 V):	170 W
Max utström (+3,3 V):	25 A
Max utström (+5 V):	25 A
Max utström (-12V):	0.5 A
Max utström (+5 VSB):	2.5 A
Strömförsörjningsenhet formfaktor:	ATX
Moderkort strömkontakt:	24-pin ATX
PCI Express strömkontakter (6 +2 pin):	2
CPU strömkontakt (4 +4 pin):	Ja
Typ av kablage:	Icke-Modulär
80 plus-certifiering:	80 PLUS
Fan plats:	Sida
Kombinerad effekt (+5 VSB):	12.5 W
Diskettenhet strömkontakt:	1
Max utström (+12 V1):	18 A
Max utström (+12 V2):	18 A
Högsta ingångsström (vid 110V):	+12V1, +12V2, +12V3, +3.3V, +5V, +5Vsb, -12V A
Max utström (+12 V3):	18 A
