Sida 1/2

LED CHANNEL

1 1

2 2

3 3

4 4

1+4 5

2+4 6

3+4 7

04 05 06

18 18

Once powered off, both F1 and F2

will return to their previous setting.

The F2 can be programmed to run timed

actions indicated via a ashing LED.

To program F2 button:

1) Press F2 & TURBO at the same time

and the LED will illuminate.

2) Press your button combinations

one at a time.

3) Press F2 again and the LED will

turn off.

4) To cancel: Press F2 & TURBO at the

same time and the LED will illuminate.

Press F2 again and the LED will

turn off.

F2 Programming example: F2 to deliver the

sequence L1, action pause, R2, O

Pressing F2 will deliver the following

sequence; with the LED ashing for each

action: Pressing L1, Releasing L1, No key

pressed, No key released, Pressing R2,

Releasing R2, Pressing O, Releasing O.

PROGRAMMING F1/F2 BUTTONS

The F1 & F2 buttons can be programmed to

run a sequence of up to 8 actions.

The F1 & F2 buttons can be assigned with

the following action buttons:

, , , , L1, L2, R1, R2, L3, R3, D-Pad.

The F2 button can also be assigned with

the Select/Pause button.

The default modes for F1 & F2 are:

F1 = L3, F2 = R3.

To program F1 button:

1) Press F1 & TURBO at the same time

and the LED will turn on.

2) Press your button combinations

one at a time.

3) Press F1 again and the LED will turn off.

4) To cancel: Press F1 & TURBO at the

same time and the LED will turn on.

Press F1 again and the LED will turn off.

F1 Programming example:

F1 to deliver the sequence L1, X, R2, O

Pressing F1 will deliver L1, X, R2, O and the LED

will illuminate when F1 is pressed, however all the

L1, X, R2, O buttons are assigned once only.

SeT UP

1) Plug the USB Dongle into a

USB Port on the PS3 and then

turn the console on.

2) Press the Home Button on

your controller.

3) Pairing will begin automatically

and once paired the corresponding

controller LED(s) will illuminate.

leGAlS

This product complies with the following regulations.

wARNINGS

This symbol indicates important

installation, operational or maintenance

instructions. Always follow these

instructions closely.

eNvIRONMeNT

Please help to conserve the environment

by recycling the cardboard packaging of

this product.

This product should NOT be disposed of

in normal household waste. It should be

disposed of separately. Please take it

to an electrical waste collection point.

PROGRAMMING TURBO

Pressing an action button assigned with

turbo will simulate the button being pressed

rapidly e.g. “boost repower”. Supported

buttons are , , , , L1, L2, R1, R2

To enable turbo: Press & hold Turbo then

press the action button you wish to turbo. The

Turbo LED will ash 8 times per second when

it is assigned.

To disable turbo: Repeat the steps above and

the Turbo LED will turn off.

More than one button can

be assigned the turbo function

at the same time.

Once powered off, all buttons return

to default mode without Turbo.

OPeRATION

Operation time: This controller offers up

to 25 hours of gaming.

Charging time: Charging should take

between 3.5 to 4.5 hours.

To power on your controller: Press the

home button once and the LED will light.

To power off your controller: Press &

hold the home button for 10 seconds.

Low Battery: The chosen channel LED

will ash 4 times per second.

Charging via PS3: The chosen channel

LED will ash 2 times per second during

charging and turn solid when complete.

Charging via charging dock/PC/Mac:

The 4 LEDs on the controller will ash

2 times per second during charging and

turn off when charging is complete.

The SC-1 will automatically turn off

after 10 minutes of inactivity (when

connected to your PS3).

The SC-1 will automatically turn off

after 1 minute of inactivity when it is

not connected to the PS3.

THUMBSTICK SeNSITIvITY

The SC-1 has 4 sensitivity levels available to

help improve accuracy during gameplay.

To adjust thumbstick sensitivity:

1) Press & hold the Turbo button,

then toggle the thumbstick left and

right to obtain faster speed settings.

2) Corresponding LEDs will light when

your desired setting is achieved:

LED 1 = Default speed

LED 1+2 = 1.5x faster in speed

LED 1+2+3 = 2x faster in speed

LED 1+2+3+4 = 4x faster in speed

3) Repeat sensitivity adjustment on the

remaining thumbstick if desired.

Once powered off, the thumbsticks

will return to default mode.

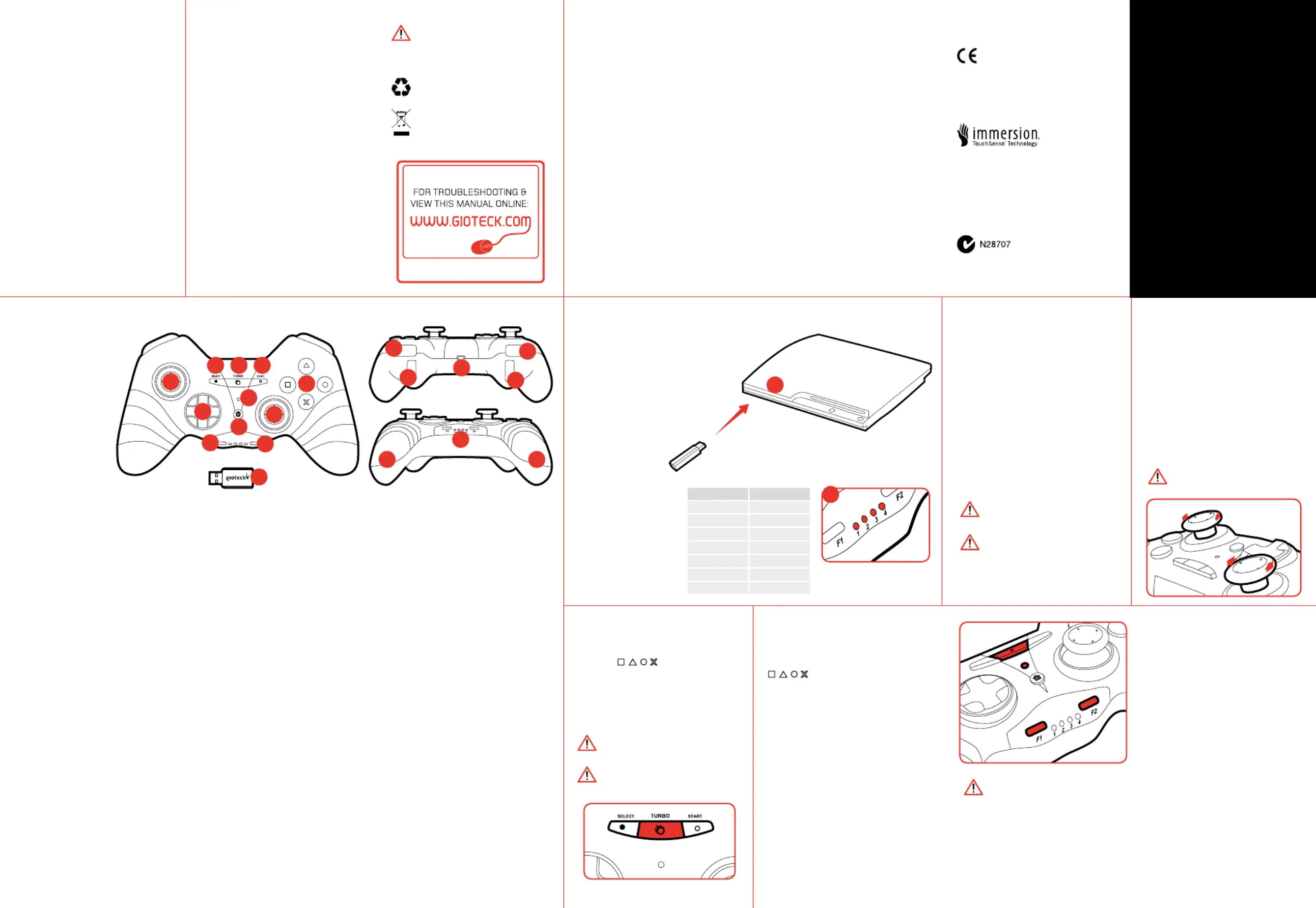

01 | L3 Thumbstick

02 | R3 Thumbstick

03 | Directional Pad

04 | Select Button

05 | Turbo Button

06 | Start Button

07 | Turbo LED Indication

08 | Home Button

09 | Action Buttons

10 | F1 Function Button

11 | F2 Function Button

12 | R1 Trigger

13 | R2 Trigger

14 | L1 Trigger

15 | L2 Trigger

16 | Mini-USB Port

17 | Player Channel LEDs

18 | Rumble Motors (X2)

19 | USB Dongle

01 | Joystick L3

02 | Joystick R3

03 | Control de dirección

04 | Botón Select

05 | Botón Turbo

06 | Botón Start

07 | Indicador LED del turbo

08 | Botón de inicio

09 | Botones de acción

10 | Botón de función F1

11 | Botón de función F2

12 | Disparador R1

13 | Disparador R2

14 | Disparador L1

15 | Disparador L2

16 | Puerto mini USB

17 | LED de canal del jugador

18 | Motores de vibración (X2)

19 | Llave (dongle) USB

01 | Levetta analogica L3

02 | Levetta analogica R3

03 | Pad direzionale

04 | Pulsante di selezione

05 | Pulsante Turbo

06 | Pulsante di avvio

07 | LED indicatore funzione Turbo

08 | Pulsante Home

09 | Pulsanti di comando

10 | Pulsante funzione F1

11 | Pulsante funzione F2

12 | Tasto R1

13 | Tasto R2

14 | Tasto L1

15 | Tasto L2

16 | Porta mini USB

17 | LED indicatori canale di gioco

18 | Motori a vibrazione (X2)

19 | Dongle USB

01 | Joystick L3

02 | Joystick R3

03 | Controlo de direção

04 | Botão Select

05 | Botão Turbo

06 | Botão Start

07 | Indicação LED de Turbo

08 | Botão de Início

09 | Botões de Ação

10 | Botão de Função F1

11 | Botão de Função F2

12 | Disparador R1

13 | Disparador R2

14 | Disparador L1

15 | Disparador L2

16 | Porta Mini USB

17 | LEDs de Canal de Jogador

18 | Motores de Vibração (X2)

19 | Adaptador USB

01 | L3 Thumbstick (palcové tlačítko)

02 | R3 Thumbstick (palcové tlačítko)

03 | Ovladač směru

04 | Tlačítko pro výběr

05 | Turbo tlačítko

06 | Tlačítko start

07 | LED indikace Turbo

08 | Tlačítko pro návrat

09 | Akční tlačítka

10 | F1 Funkční tlačítko

11 | F2 Funkční tlačítko

12 | Spoušť R1

13 | Spoušť R2

14 | Spoušť L1

15 | Spoušť L2

16 | Port USB Mini

17 | Kanálové indikátory LED

18 | Motory (X2)

19 | Bezpečnostní klíč USB

01 | Manette L3

02 | Manette R3

03 | Pad directionnel

04 | Bouton Sélection

05 | Bouton Turbo

06 | Bouton Démarrer

07 | Indicateur LED Turbo

08 | Bouton Home

09 | Boutons d'action

10 | Bouton de fonction F1

11 | Bouton de fonction F2

12 | Gâchette R1

13 | Gâchette R2

14 | Gâchette L1

15 | Gâchette L2

16 | Port mini-USB

17 | LED de la voie du joueur

18 | Moteurs vibrants (X2)

19 | Branchement USB

01 | L3 Thumbstick

02 | R3 Thumbstick

03 | Steuerkreuz

04 | Select-Taste

05 | Turbo-Taste

06 | Start-Taste

07 | Turbo LED-Anzeige

08 | Home-Taste

09 | Aktionstasten

10 | F1 Funktionstaste

11 | F2 Funktionstaste

12 | Auslösetaste R1

13 | Auslösetaste R2

14 | Auslösetaste L1

15 | Auslösetaste L2

16 | Mini-USB Port

17 | Spielkanal-LEDs

18 | Schwingungsmotoren (X2)

19 | USB-Stick

PReCAUTIONS

This product has been designed with the highest

concern for safety. However, any electrical

device, if used improperly, has the potential to

cause harm. To help ensure risk-free operation

please pay attention to the following guidelines.

• Use only as intended. This is a

precision product, handle with care.

• Contains small parts. Not suitable for

children under 3 years of age.

• Store in a dry & dust free area.

Do not store in areas of extreme heat

or cold, and avoid direct sunlight or

heat sources eg. heaters.

• Do not allow the product to get wet or

dirty; doing so may cause damage.

• Do not clean with benzene, paint

thinner, acetone, alcohol, or other

such solvents.

• Do not take the product apart; doing so

will void your warranty and may cause

electrical shock.

Thank you for purchasing

the SC-1 Wireless Controller

from Gioteck.

We hope that this product will

go beyond your expectations

for a quality made accessory.

Please read this manual

thoroughly before using the

product and review the PS3™

manual for additional details

regarding PS3™ operation.

Thank you & enjoy!

WIRELESS SPORTS

CONTROLLER FOR PS3™

To assign your controller to a

different channel, go to:

Accessory Settings >

Reassign Controller.

Gioteck hereby declares that this controller is in

compliance with the essential requirements and other

provisions of Directive 2004/108/EC and R&TTe

1999/5/EC. To view the full version of the Declaration

of Conformity please go online to doc.gioteck.com

TouchSense Technology Licensed from Immersion

Corporation. TouchSense Technology for Spinning

Mass Tactile Feedback Devices protected by one or

more of the following United States Patents:

5831408, 5844392, 5857986, 5907487, 5959613,

6020875, 6088017, 6104158, 6246390, 6252583,

6271833, 6275213, 6278439, 6343349, 6400352,

6411276, 6424333, 6715045, 6801008, 7131073,

7199790, 7209117, 7299321, 7327348, 7345672,

7502011 and other patents pending.

FCC Statement

Caution: The user is cautioned that changes or modications

not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) this device may not

cause harmful interference,and (2) this device must accept any

interference received, including interference that may cause

undesired operation. However, there is no guarantee

that interference will not occur in a particular installation.

The device and its antenna must not be co-located or

operating in conjunction with any other antenna or transmitter.

Gioteck are not responsible for any interference caused by

un-authorized changes to this equipment. This equipment

generates, uses, and can radiate radio frequency energy and,

if not installed correctly, may cause harmful interference to radio

communications. This equipment has been tested and found

to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in

a residential installation. If this equipment does cause harmful

interference to radio/television reception try the following:

• Reorient or relocate the receiving antenna. • Increase the

separation between the equipment and receiver. • Connect

the equipment into an outlet on a circuit different from that

to which the receiver is connected. • Consult the dealer or

an experienced radio/TV technician for help. This equipment

complies with FCC radiation exposure limits set forth for an

uncontrolled environment. End user must follow the specic

operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter. / Le présent

appareil est conforme aux Partie 15 des règlements de la FCC et CNR

d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée vaux deux conditions suivantes : (1) l’appareil

ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit

accepter tout brouillage radioélectrique subi, même si le brouillage

est susceptible d’en compromettre le fonctionnement. Cet appareil est

conforme aux limites d’exposition au rayonnement RF stipulées par la FCC

et IC pour une utilisation dans un environnement non contrôlé. L’utilisateur

nal doit suivre les instructions de fonctionnement spéciques pour le

respect d’exposition aux RF. Lesémetteurs ne doivent pas être placées près

d’autres antennes ou émetteurs ou fonctionner avec ceux-ci.

Canadian Compliance Statement

This device complies with Industry Canada license-exempt

RSS standard(s). Operation is subject to the following two

conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, including interference

that may cause undesired operation of the device./ Cet appareil

est conforme aux norms CNR exemptes de licence d’Industrie Canada.

Le fonctionnement est soumis aux deux conditions suivantes: (1) cet

appareil ne doit pas provoquer d’interférences et (2) cet appareil doit

accepter toute interférence, y compris celles susceptibles de provoquer un

fonctionnement non souhaité de l’appareil.

Industry Canada Statement

Complies with the Canadian ICES-003 Class B specications.

/ Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada. This device complies with RSS 210

of Industry Canada. This Class B device meets all the

requirements of the Canadian interference-causing equipment

regulations. / Cet appareil numérique de la Classe B respecte toutes

les exigences du Règlement sur le matériel brouilleur du Canada.

WIRELESS

SPORTS

CONTROLLER

FOR PS3

Produktspecifikationer

Varumärke:	Gioteck
Kategori:	Kontroller
Modell:	SC-1 (PS3)
Färg på produkten:	Zwart
Vikt:	41900 g
Bredd:	1200 mm
Djup:	500 mm
Höjd:	1206 mm
Förpackningens vikt:	48200 g
Förpackningens bredd:	1350 mm
Djuppackning:	185 mm
Förpackningshöjd:	545 mm
Snäll:	Vaste vloerstandaard
Husmaterial:	Glass, Steel
Monteringsmetod:	Vloer
Maximal viktkapacitet:	50 kg
Antal skärmar som stöds:	1
Förbättrad kabelhantering:	Ja
Antal-produkter-ingår:	1 stuk(s)
Maximal skärmstorlek:	50 "
Minsta skärmstorlek:	32 "
Antal hyllor ingår:	3
