Sida 1/11

Automatic control switch comfort top unit

Order-No. : 0661 ..

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. At the same time, take into account all circuit breakers that supply dangerous

voltage to the device or load.

Danger of electric shock. Device is not suitable for disconnection from supply voltage.

The load is not electrically isolated from the mains even when the device is switched off.

Do not press on the sensor window. Device can be damaged.

The device is not suitable for use as a burglar alarm or other alarm.

These instructions are an integral part of the product, and must remain with the end

customer.

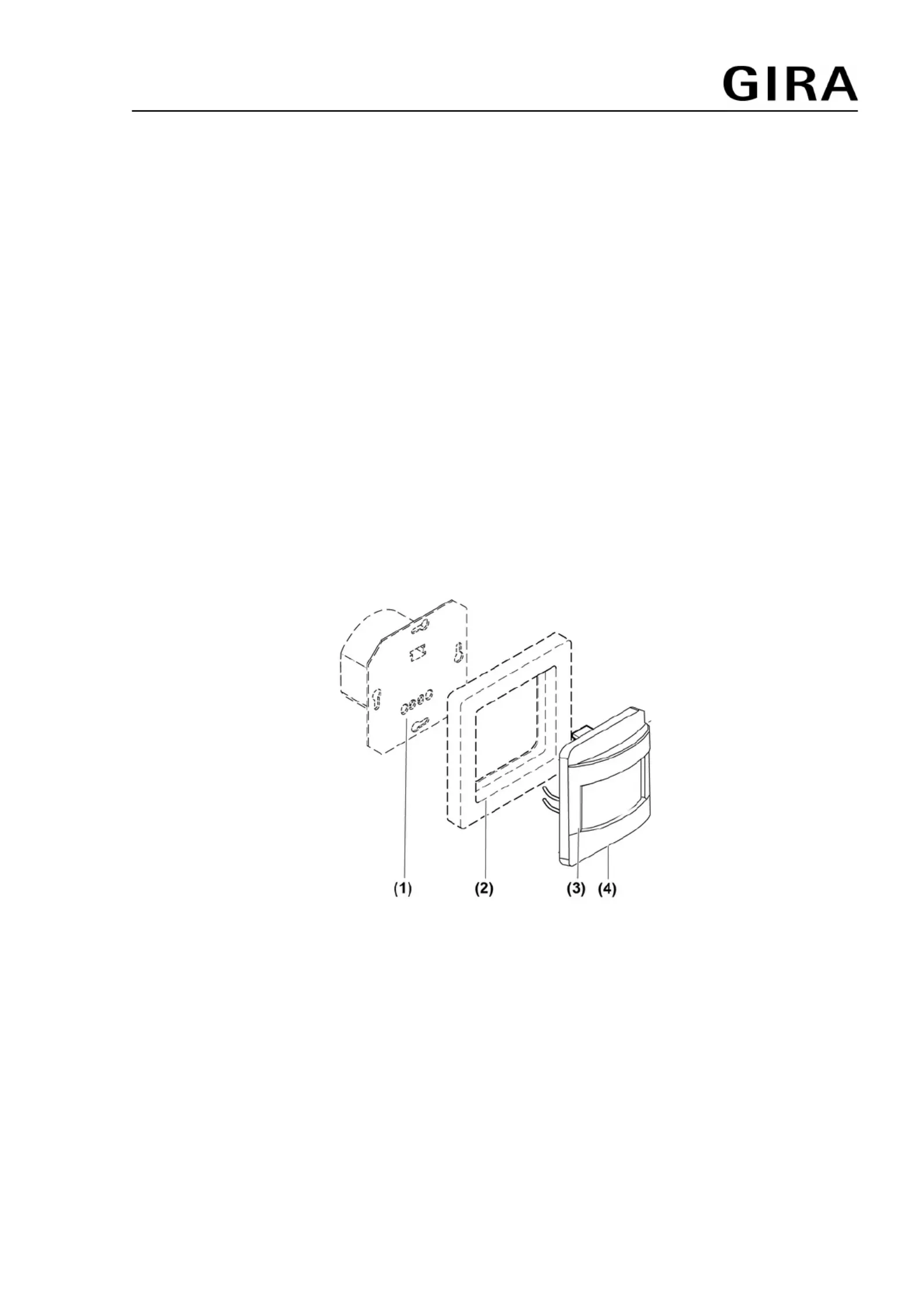

2 Device components

Figure 1

1/11

32540232 24.11.2011

Automatic control switch comfort top unit

10499158 I00

System 2000

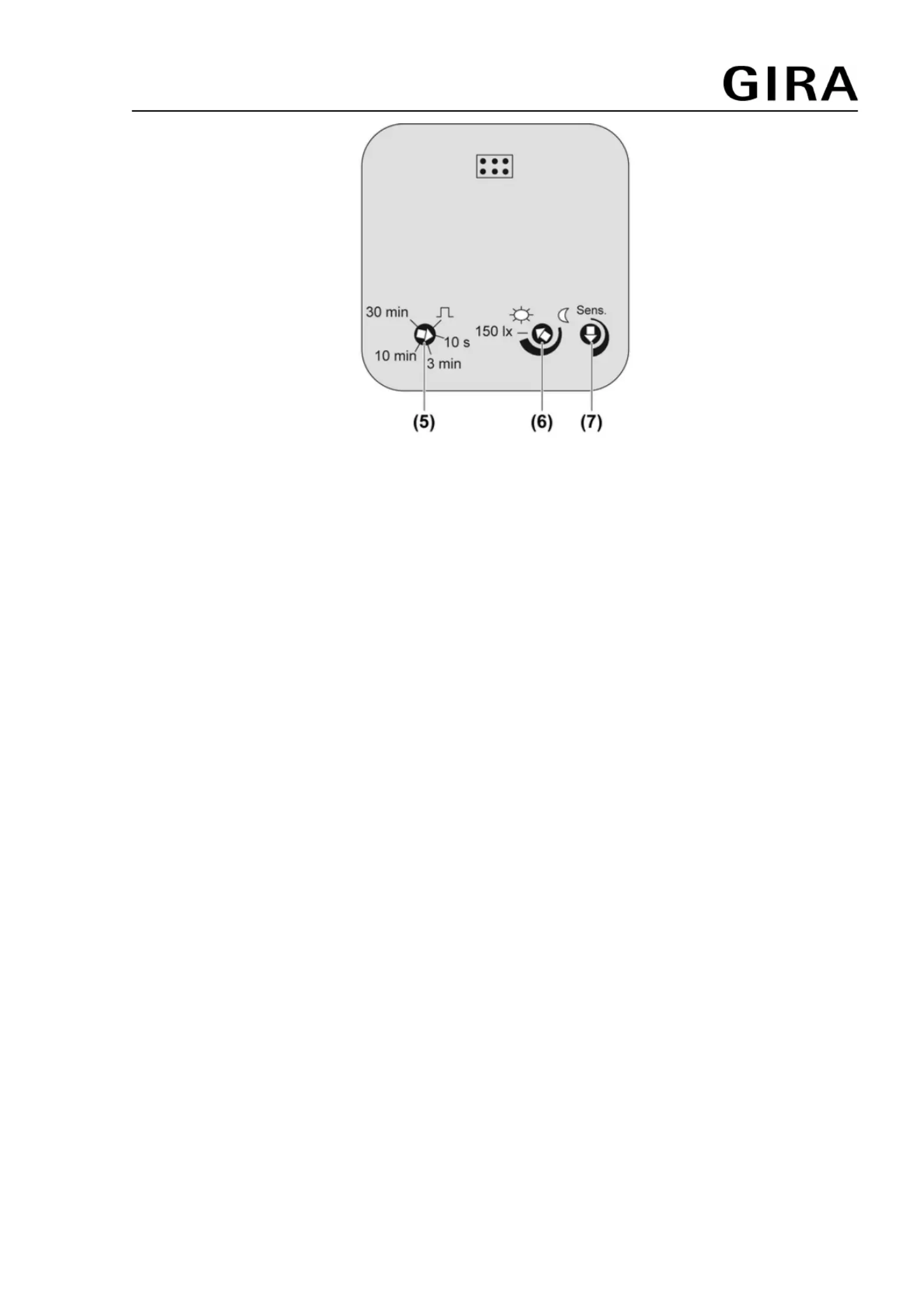

Figure 2: Adjusters on the rear

(1) Flush-mounted insert

(2) Frame

(3) Motion detector cover

(4) Operating mode switch

(5) Adjuster, run-on time

(6) Adjuster, brightness

(7) Adjuster, sensitivity

3 Function

Intended use

- Automatic switching of lighting depending on the heat motion and ambient brightness.

- Operation with concealed insert for dimming, switching or extension insert, 3-wire

- Mounting on concealed insert

Product characteristics

- Run-on time, sensitivity and brightness threshold settable

- Teach function to adjust the brightness threshold

- Operating mode switch for Automatic operation, Continuous on or Continuous off

- Short-time operation, e.g. to control acoustic signal encoders

- Manual switch-on possible via extension insert, 2-wire, or installation button

- With the dimmer insert, it is possible to change the brightness using a 2-wire extension

insert

- Switch-on brightness can be saved with the dimmer insert

- With the dimmer insert, the dim-down function is possible at the end of the run-on time

- 18 lens segments in 2 recording levels

- Extension of the detection area in combination with the 3-wire extension insert

- Detection area can be limited using cover plate

- High protection against ambient light

Automatic operation

The controller detects heat motions of people, animals and objects.

- The light is switched on if a person enters the monitored detection area and the brightness

is below the set threshold.

Each detected movement restarts the run-on time.

- The light is switched off if no more movement is detected in the detection area and the set

run-on time has elapsed.

32540232 10499158 I00 24.11.2011

2/11

System 2000

Automatic control switch comfort top unit

High protection against ambient light: To prevent the motion detector from switching to Night

mode is there is brief shadow or Day mode if there is brief light, the Day/Night and Night/Day

switchover takes place only after 10 seconds.

Behaviour in case of a mains failure

- Less than 0.2 seconds: the old switching position is restored after mains return.

- 0.2 seconds to approx. 2 seconds: when the power returns, the lighting is switched on

again for the run-on time.

- Longer than 2 seconds: when the power returns, the motion detector carries out a self test

for approx. 90 seconds. The lighting is switched on during the self test. Then the lighting

switches off briefly, and then on again for the length of the run-on time.

i In the Continuous on and Continuous off operating modes, the light is switched on or off

after the self test.

i A power failure of longer than 2 seconds causes the loss of the switch-on brightness and

the brightness threshold, saved via the Teach function.

4 Operation

Switch on the light via extension

A 2-wire extension or an installation button is connected.

o Press button for less than 0,4 seconds.

The Light is switched on independently of the brightness for the run-on time.

i If the run-on time setting dial (5) is set to , Short-time operation, then the light is M

switched on for approx. 0.5 seconds, even if the button is pressed for longer.

Switch light on with minimum brightness

Motion detector cover is combined with a dimmer insert.

A 2-wire extension is connected.

Light is switched off

o Press button at bottom for longer than 0.4 seconds.

Light is switched on at minimum brightness and stays at this brightness for as long as

motion is detected.

Operate with 2-wire extension

Motion detector cover is combined with a dimmer insert.

Light is switched on.

o Press top button for a long time.

The light gets brighter up to maximum brightness.

o Long press on bottom of button.

Light gets darker to minimum brightness.

i Manual switch-on is not possible.

Save switch-on brightness

The light is switched to this brightness value on each switch-on. In the as-delivered state, the

switch-on brightness is set to the maximum brightness.

Motion detector cover is combined with a dimmer insert.

A 2-wire extension is connected.

o Set light to the required brightness.

o Press the extension for at least 3 seconds.

For confirmation the lighting switches off briefly and then on again to the saved switch-on

brightness.

i The saved switch-on brightness is deleted after a power failure.

32540232 10499158 I00 24.11.2011

3/11

System 2000

Automatic control switch comfort top unit
