Touch dimming top unit
Order-No. : 2260..
Touch switching top unit
Order-No. : 2261..
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
Dimmer cover (Figure 1)

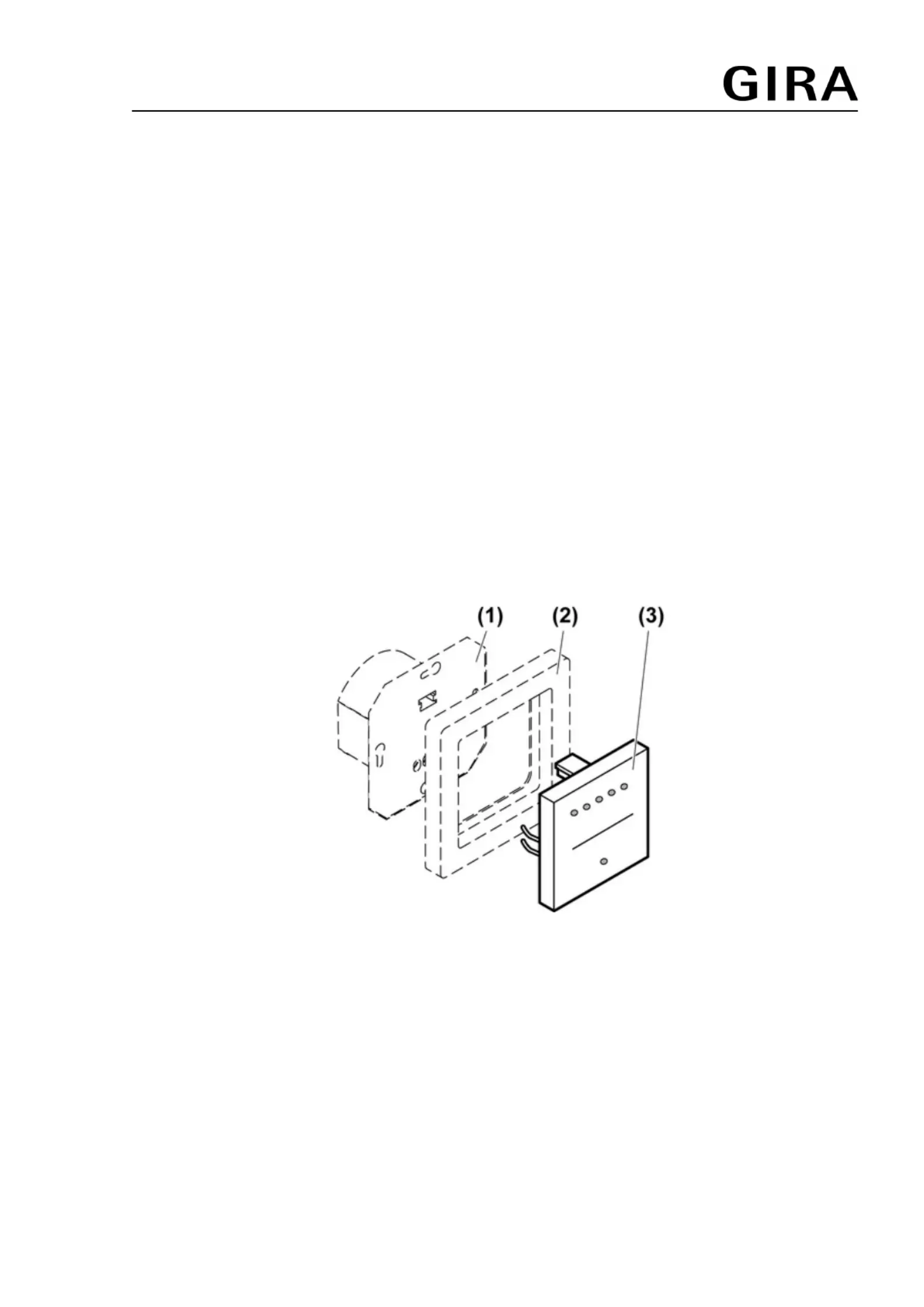

Figure 1: Device components
(1) Flush-mounted insert
(2) Frame
(3) Dimmer cover
1/5
32562522 20.05.2011
Touch top unit
10499160 I00
System 2000
Switch cover (Figure 2)

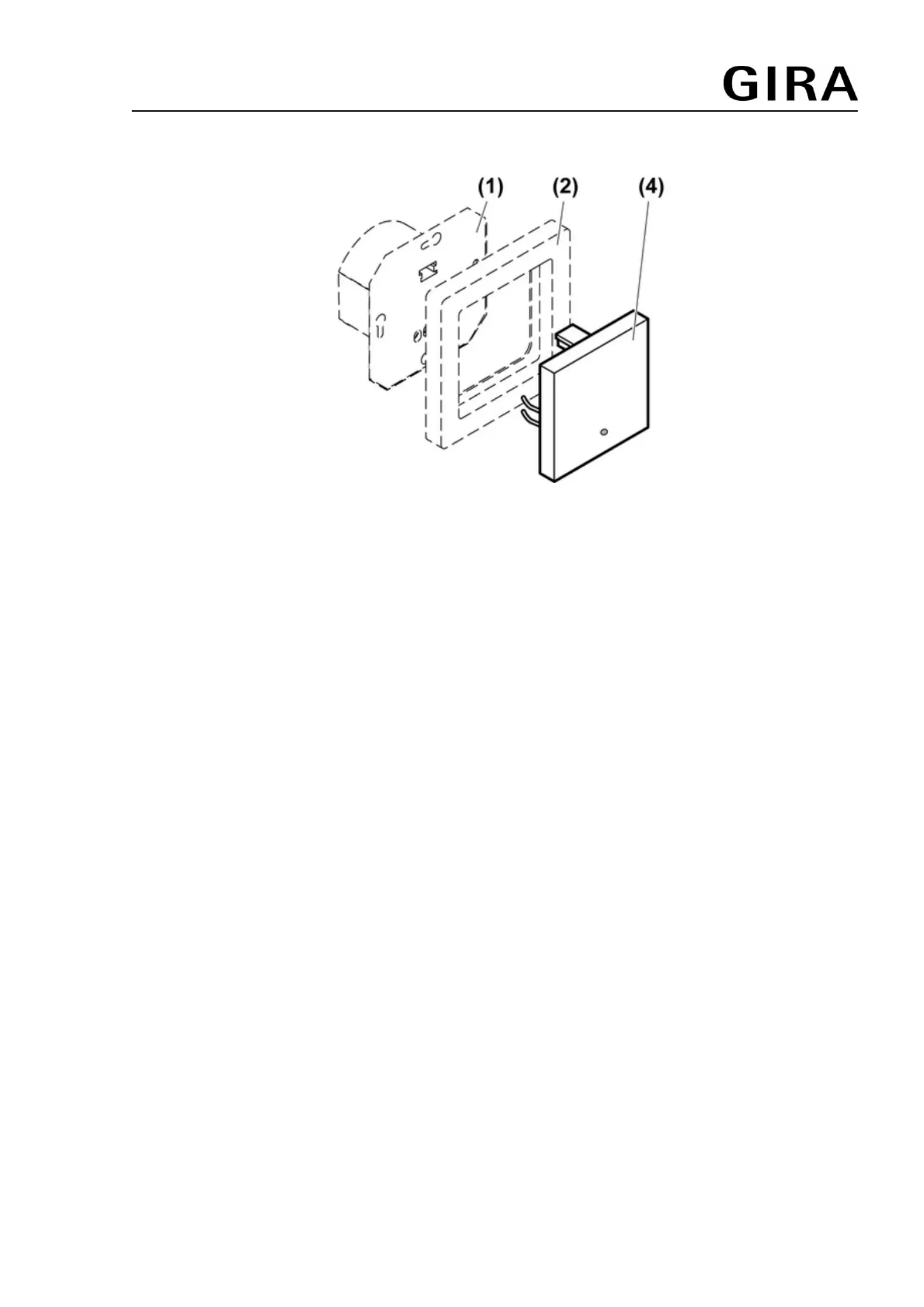

Figure 2: Device components
(1) Flush-mounted insert
(2) Frame
(4) Switch cover
3 Function
Intended use
- Manual operation of lighting
- Operation with flush-mounted insert for dimming or switching
- Mounting on flush-mounted insert
Product characteristics
- Operation through touching the control surfaces
- Audible feedback when a touch is detected
- Switching on to eight permanently specified dimming levels, only dimmer cover
- Switch-on brightness can be saved permanently, only dimmer cover
- Indication of switching state and brightness value via LED
i The cover cannot be operated on extensions.
32562522 10499160 I00 20.05.2011
2/5
System 2000
Touch top unit
4 Operation
Dimmer cover (Figure 3)

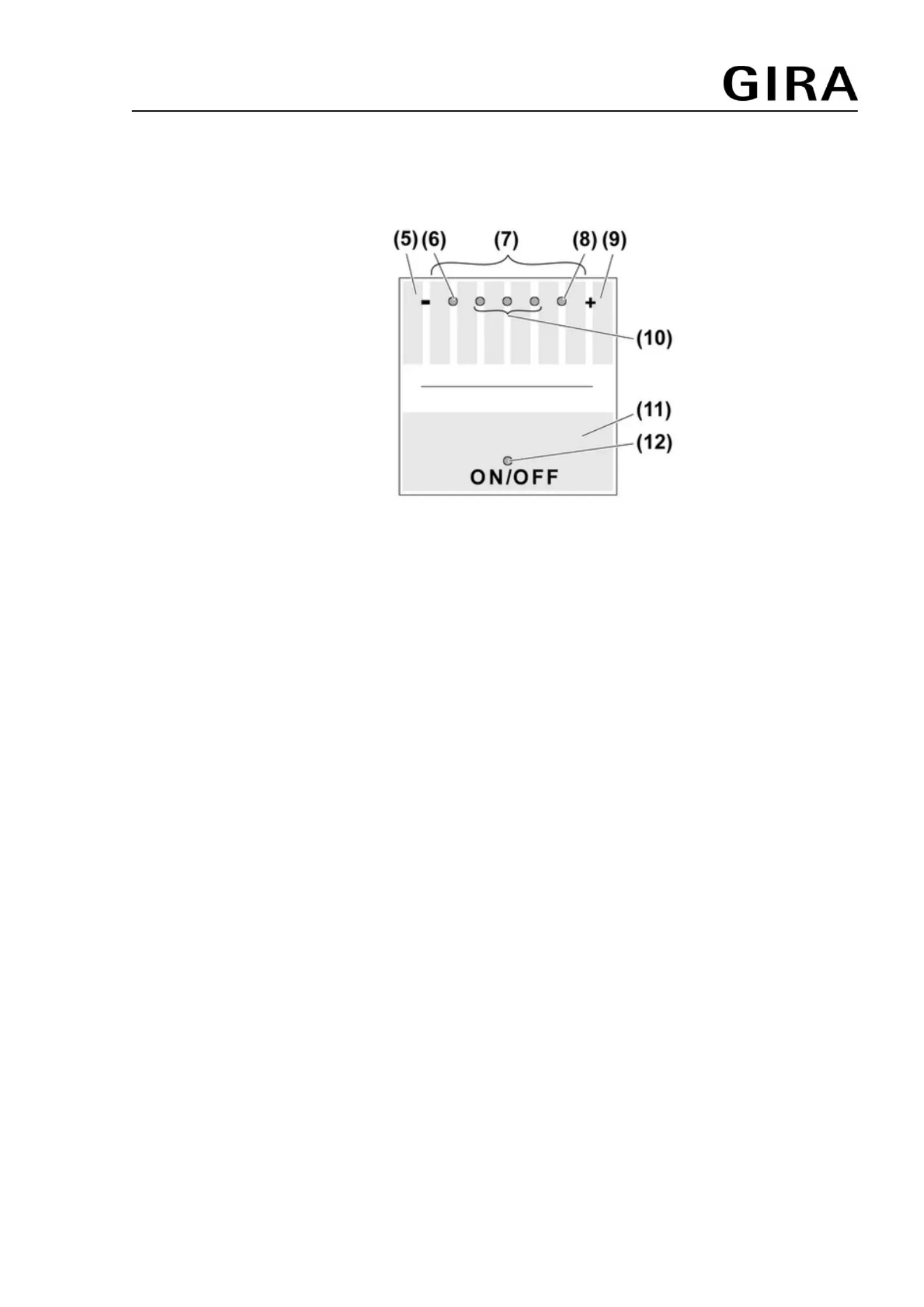

Figure 3: Dimmer cover
(5) Minimum brightness control surface, minus sign
(6) LED minimum brightness
(7) Intermediate value control surfaces
(8) LED maximum brightness
(9) Maximum brightness control surface, plus sign
(10) LED intermediate values
(11) Switch on/off control surface
(12) LED switching state
LED on = Light switched off
Touching a control surface switches the light accordingly. A brief acknowledgement tone
sounds every time a touch is detected. The upper half of the dimmer cover is subdivided into
eight control surfaces (Figure 3). Each control surface corresponds to a dimming level. The
lower half of the dimmer cover is used for switching on and off.
Switching light to a dimming state
o Touch a control surface on the upper half of the button.
Maximum brightness: right control surface +
Minimum brightness: left control surface –
Switching the light off
Light is switched on.
o Press lower control surface for shorter than 3 seconds.
Light is switched off upon release.
Switching light to switch-on brightness
Light is switched off.
o Press lower control surface for shorter than 3 seconds.
Saving switch-on brightness
Switch-on brightness when switching on with the lower control surface of the dimmer cover.
o Set light to required brightness.
o Press lower control surface for longer than 3 seconds.
32562522 10499160 I00 20.05.2011
3/5
System 2000
Touch top unit
