LABKON Series
_________________________________________________________________________________________________
2 GMC-I Messtechnik GmbH
GOSSEN METRAWATT LABKON Series
SWITCHING-MODE DC POWER SUPPLY
GOSSEN METRAWATT LABKON Series is a series of programmable switching-mode DC power supplies with RS232 and
USB (optional) or GPIB (optional) interfaces. The good durability, simple operation, low noise, excellent output accuracy as
well as the adjustment from 0V make this series of reliable power supplies the right choice for many applications. It provides
flexible and stable DC power for various design and test environments.
Versatile Bench-Top Features
High definition liquid crystal display
Full-featured keyboard and knobs
High-efficient switching-mode power supply
Low ripple and noise which rivals the linear power supply
Excellent line and load regulation
Up to 10 operating states storage and recall
Portable, ruggedized case and flexible system functions
Standardized RS232 interface, optional GPIB or USB
SCPI ( Standard Commands for Programmable Instruments) compatibility
Direct setting of I/O Parameters from front-panel
LABKON Series
_________________________________________________________________________________________________
GMC-I Messtechnik GmbH 3

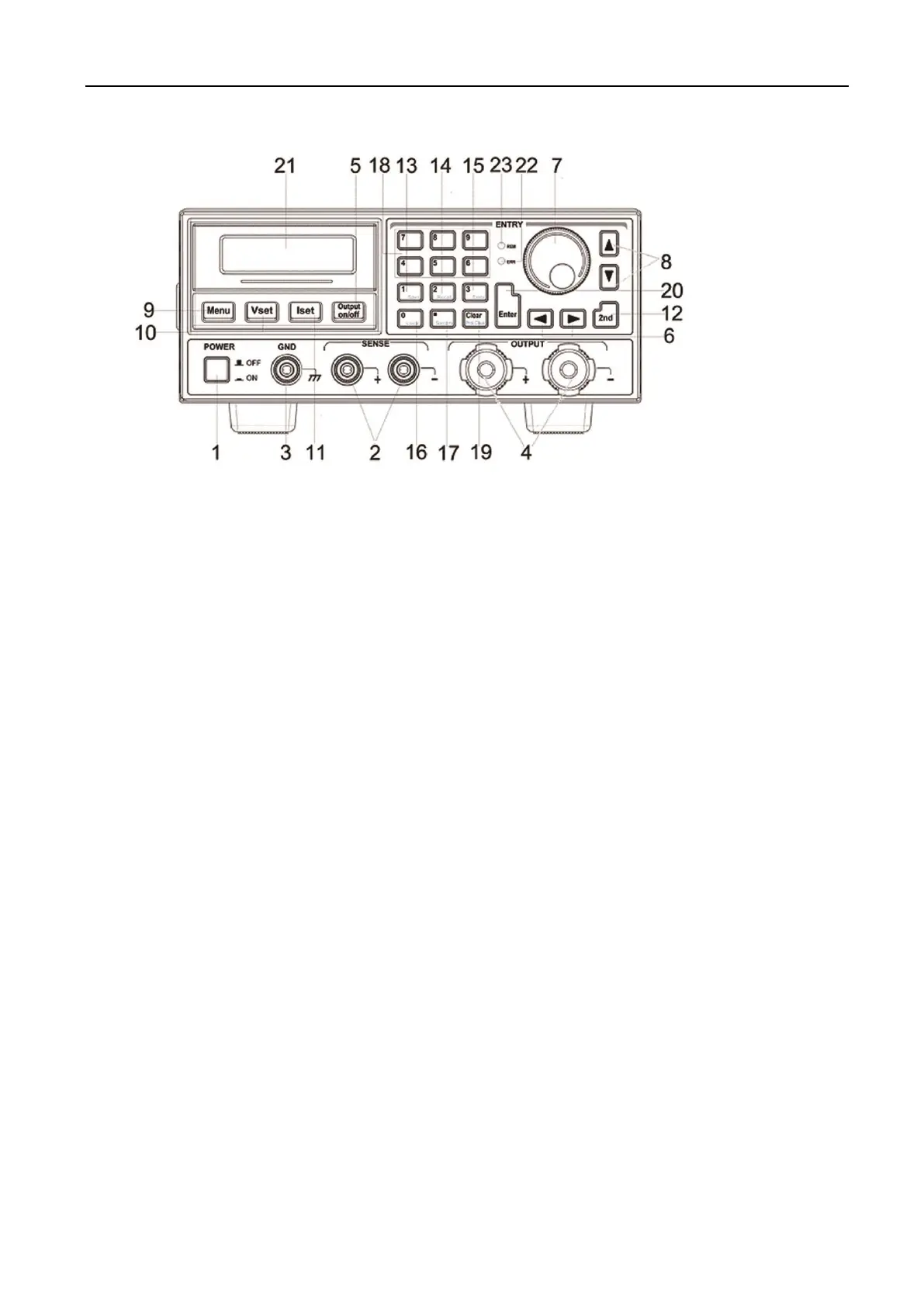

The Front Panel at a Glance
1. AC power switch 2. Sense terminals
3. Earth ground terminal 4. Supply output terminals
5. Output on/off key 6. Left/Right key
7. Control knob 8. Up/Down key
9. Menu setting key 10. Voltage setting key
11. Current setting key 12. Switch key (second menu level)
13. Store key (second menu level) 14. Recall key (second menu level)
15. Error key (second menu level) 16 Local key (second menu level)
17. Secure key (second menu level) 18. Number key
19. Clear key (second menu level) 20. Enter key
21. Display screen 22. ERR annunciator
23. REM annunciator
1. AC power switch: Turns the AC power on and off.
2. Sense terminals: Senses voltage level at device under test (DUT), the positive pole is in red, the negative pole is in
black.
3. Earth ground terminal: It is connected to the chassis and earth ground.
4. Supply output terminals: Supply output, the positive output terminal is in red, the negative output terminal is in black.
5. Output on/off key: Turns the power supply output on/off.
6. Left/Right key: Moves the blinking digit to left or right, or selects different options.
7. Control knob: Adjusts the value of the blinking digit or selects different options by turning clockwise or counter clockwise.
8. Up/Down key: Turns the menu page.
9. Menu setting key: Enters menu setting contents.
10. Voltage setting key (VSET): Displays or modifies the present voltage setting value.
11. Current setting key (ISET): Displays or modifies the present current setting value.
