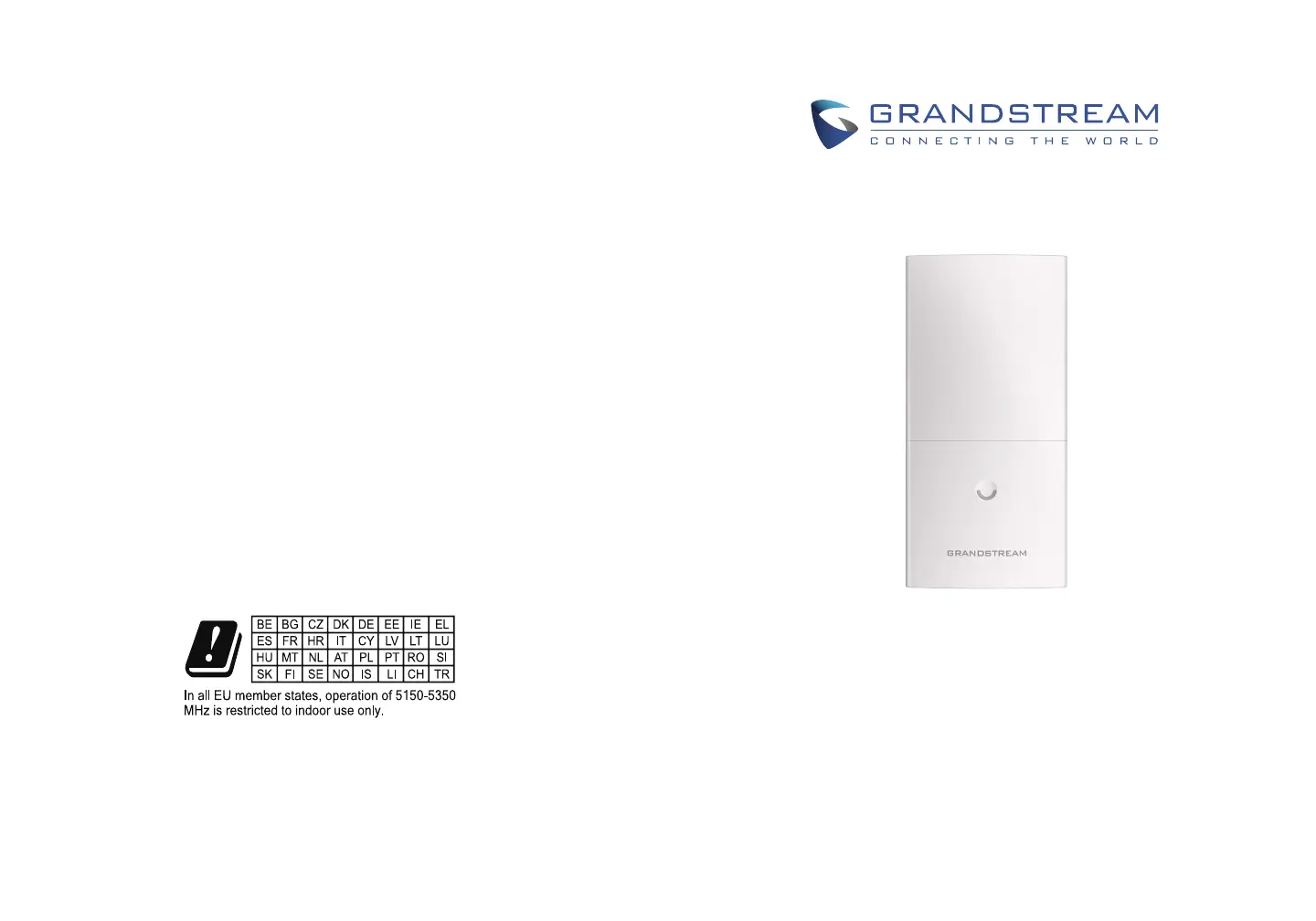

Outdoor Long Range 802.11ac Wave-2

WiFi Access Point

Quick Installation Guide

GWN7600LR

Content

English................................................................................1

简体中文............................................................................8

Español..............................................................................14

Français..............................................................................21

Deutsch..............................................................................28

Italiano...............................................................................35

Русскй...............................................................................42

Português.......................................................................... 49

Polski................................................................................ 56

~1~

~2~

OVERVIEW

This long range WiFi access point is designed to provide extended cov-

erage support and is ideal for outdoor WiFi solutions thanks to its wa-

terproof casing and heat resistant technology. The GWN7600LR comes

equipped with dualband 2x2:2 MU-MIMO with beam-forming technology

and a sophisticated antenna design for maximum network throughput

and extended WiFi coverage range of up to 300 meters. To ensure easy

installation and management, the GWN7600LR uses a controller-less

distributed network management design and an embedded controller

within the product’s web user interface. This allows each access point to

manage a network of up to 30 GWN APs independently without need-

ing separate controller hardware/software and without a single point-

of-failure. Its easy installation and management features packed with

extra coverage support and advanced performance features, make the

GWN7600LR an ideal outdoor access point for mid-size wireless net-

work deployments.

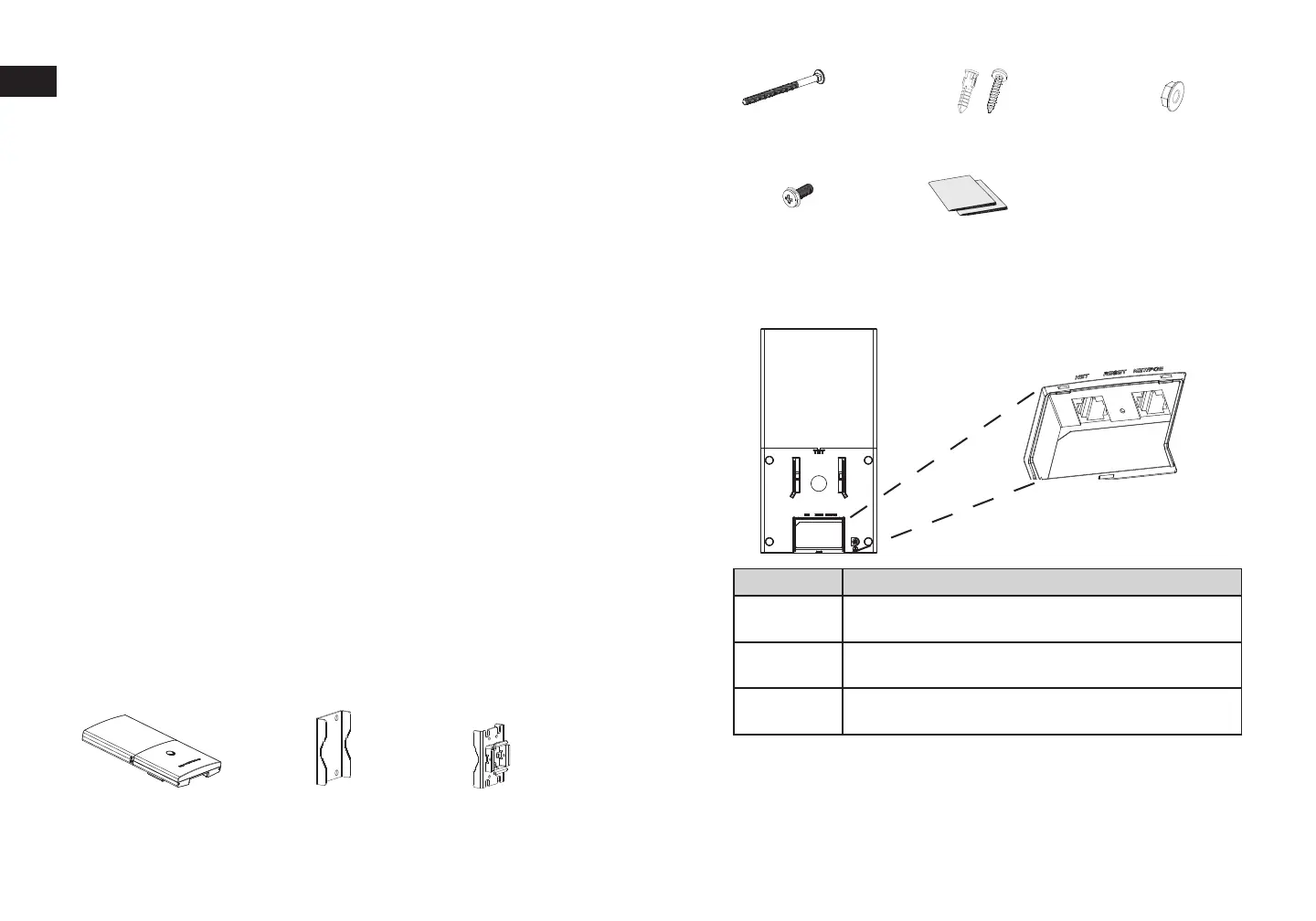

1 x GWN7600LR

Access Point

1 x Quick Installation Guide

1 x GPL Statement

4 x Screw

(PM8 x 115)

4 x Screws and

Anchors

4 x Locknut

1 x Base Bracket

PACKAGE CONTENTS

2 x Assembled

Screw

1 x Cover Bracket

GWN7600LR PORTS

Port Description

NET/POE Ethernet RJ45 port (10/100/1000Mbps) supporting

PoE/ PoE+.

NET Ethernet RJ45 port (10/100/1000Mbps) to your

router or another GWN76xx.

RESET

Factory reset button. Press for 7 seconds to reset

factory default settings.

POWERING AND CONNECTING THE GWN7600LR

● Do not attempt to open, disassemble, or modify the device.

● Do not expose this device to temperatures out the range of -30 °C to

60 °C for operating and -30°C to 70°C for storage

● Do not expose the GWN7600LR to environments outside of the follow-

ing humidity range: 5-95% RH (non-condensing).

● Do not power cycle your GWN7600LR during system boot up or rm-

ware upgrade. You may corrupt rmware images and cause the unit to

malfunction.

PRECAUTIONS

GWN7600LR can be powered on via PoE switch using following steps:

Step 1: Plug a RJ45 Ethernet cable into the network port of the GWN-

7600LR.

Produktspecifikationer

Varumärke:	Grandstream
Kategori:	Åtkomstpunkt
Modell:	GWN7600LR
Vikt:	708 g
Bredd:	150 mm
Djup:	35 mm
Höjd:	290 mm
LED-indikatorer:	Status
Placering:	Stav
Frekvensband:	2400 - 24835, 5150 - 5250, 5725 - 5850 GHz
Snabbstartsguide:	Ja
Certifiering:	FCC, CE, RCM, IC
Frekvensomfång:	80 MHz
MIMO-typ:	Multi User MIMO
Maximal dataöverföringshastighet:	867 Mbit/s
2,4 GHz:	Ja
5 GHz:	Ja
Antennfunktioner:	Integrerad antenn
Maximal dataöverföringshastighet (5 GHz):	867 Mbit/s
Förpackningsvolym:	423 cm ^
Produktens färg:	Vit
Monteringssats:	Ja
Låddjup:	187 mm
Vikt inkl. förpackning:	1844 g
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	2
Temperatur vid drift:	-30 - 60 ° C
Temperaturintervall (förvaring):	-30 - 70 ° C
Fuktighet (förvaring):	5 - 95 %
Internationellt skydd (IP) kod:	IP66
Kryptering/säkerhet:	WEP, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP
Maximal räckvidd utomhus:	300 m
Stöd för nätverksprotokoll:	IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Överföringseffekt:	26 dBmW
Antenner mängd:	4
Antenn ökningsnivå (max):	5 dBi
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Funktioner för Service Set Identifier (SSID):	Hidden SSID
Antenntyp:	Intern
Intern:	Nej
Antal SSID som stöds:	16
MIMO:	Ja
