We reserve to change all of part of the articles or contents of this document, without prior notice.

Nos reservamos el derecho de cambiar total o parcialmente las características de nuestros artículos o contenido de este documento sin previo aviso.

Nous nous réservons le droit de modier totalement oru en partie les caracteristiques de nos articles ou le contenu de ce document san pré avis.

Wir behalten uns das recht vor die eigenschaften unserer produkte oder den inhalt diese prospektes teilweise oder wollstanding, ohne vorherige benachichtigung su andern.

Ci riservamo il diritto di cambiare totalemente o parzialmente le caratteristiche tecniche dei nostri prodotti ed il contenuto di questo documento senza nessum preavviso.

Wij behouden ons het recht voor geheel of gedeeltelijk de kenmerken van onze artikelen of de inhouk van deze handleiding zonder voorafgaand bericht te wijzigen.

Reservamo-nos no dereito de alterar, total ou parcialmente as caracteristicas os nossos artigos ou o conteúdo deste documento sem aviso prévio.

HI90230.12

.gre.es

DISTRIBUIDO POR : MANUFACTURAS GRE S.A. ARITZ BIDEA Nº 57, BELAKO INDUSTRIALDEA, APARTADO 69 - 48100 MUNGUIA (VIZCAYA) ESPAÑA, Nº Reg. Ind. 48-06762 - MADE IN CHINA

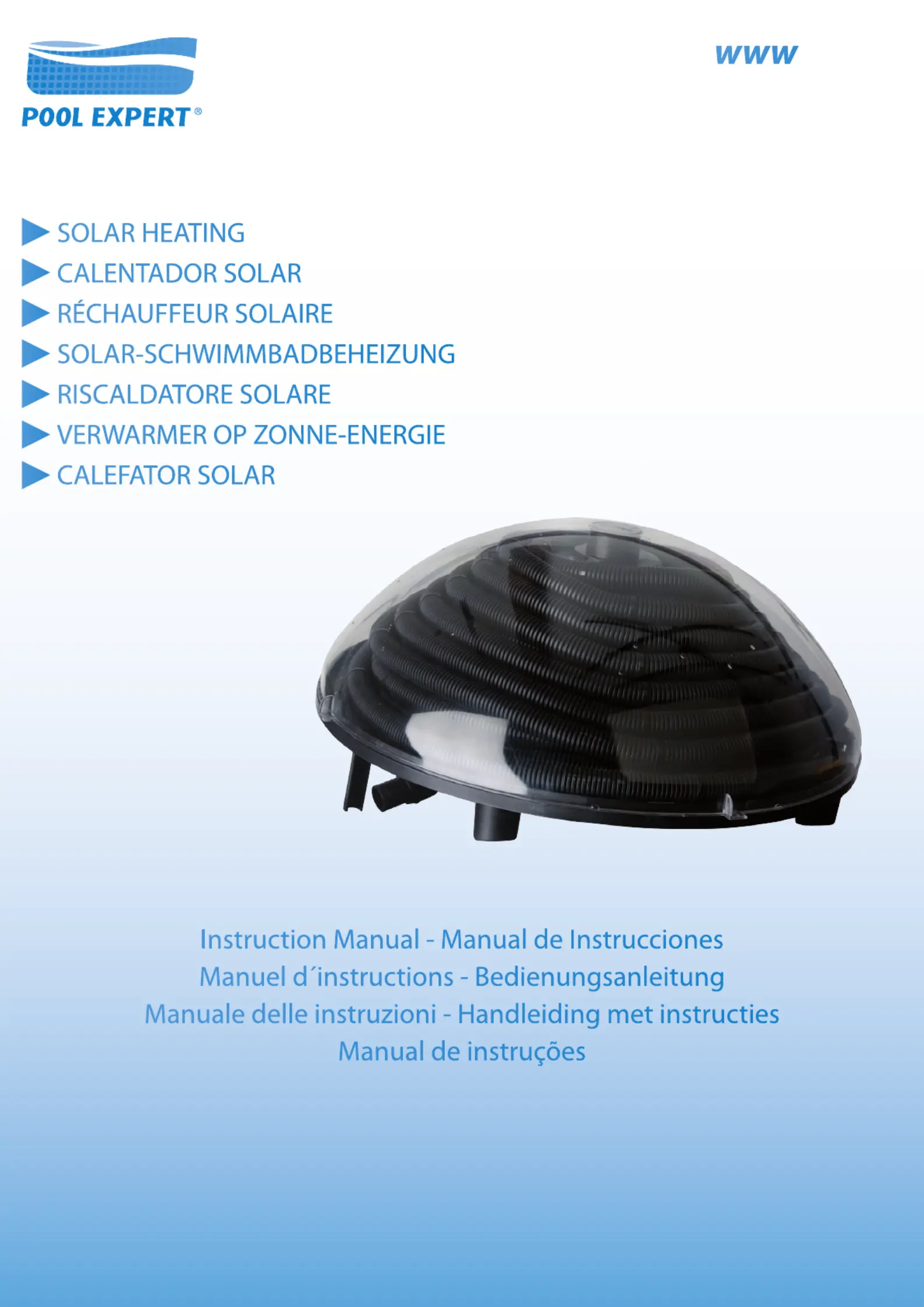

Solar heater for swimming pools

Method of use

Operation

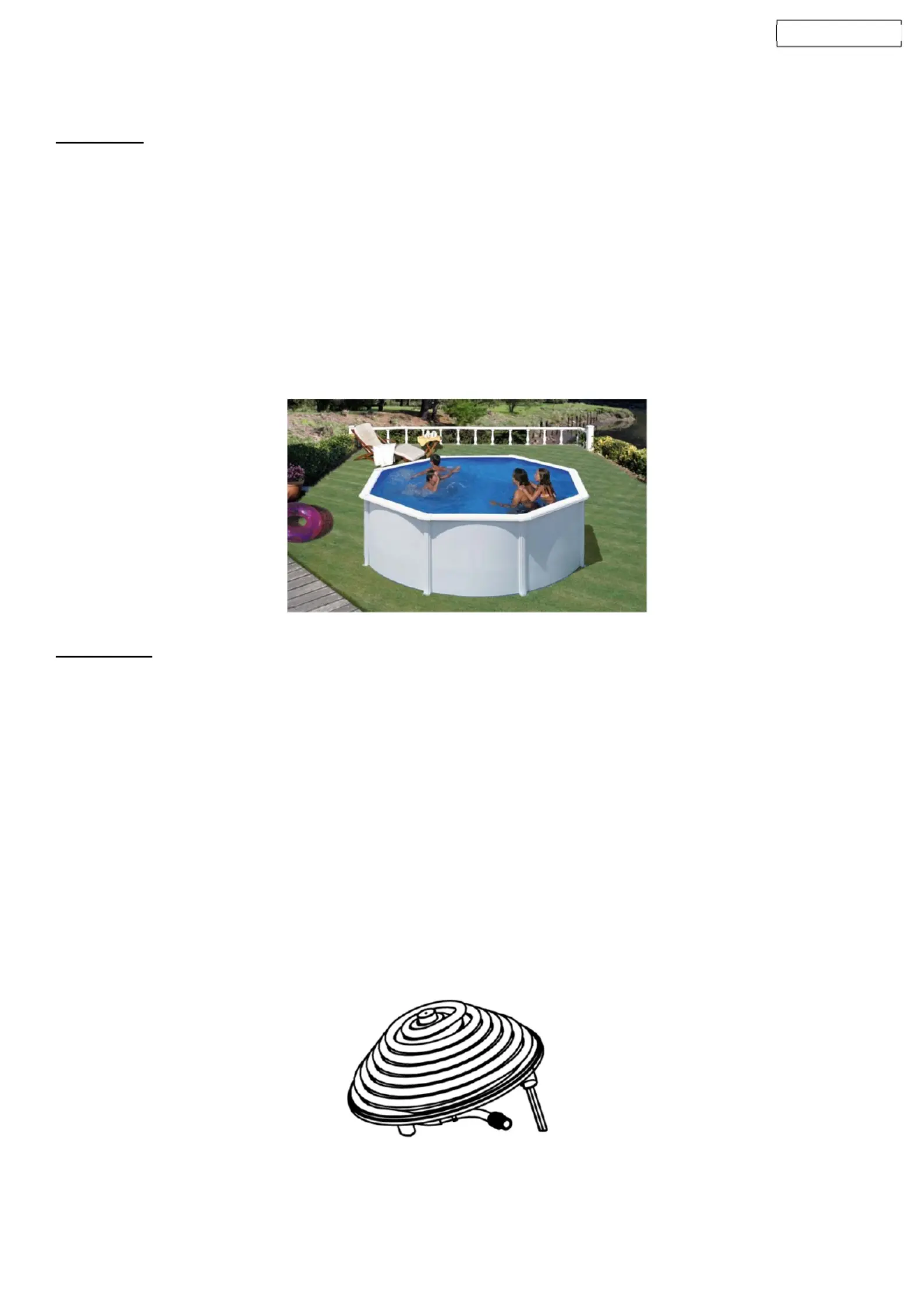

A filtering unit for the pool that allows heating the water with a solar heater.

The minimum power of the pump should be 2,000 l/h. The solar heater should be situated next to

the swimming pool towards the south with a 30º inclination.

The foldable feet of the heater allow placing the heater with the correct inclination.

Solar energy accumulates below the transparent lid and later is distributed toward the water

supply tube. The heating that is om the solar heaters noted at the outlet fr depends on the speed

of the water flow.

Materials

Sun is needed to start the solar heater. This may remain connected although there is no sunlight as

it only causes a very slight loss of power when it is connected.

Current filtering units can be used with the 32 and 38 mm hosepipe connectors.

Additionally the solar heater can also be installed on t house. All that is he roof of your garden

necessary is to ensure that the filtering equipment will have sufficient power at that height or that

the filter is well equipped to resist higher pressures (1m height represents 0.1 bar of pressure). If

additional sections of tubing are used or the position is higher, the power of the pump will be

reduced.

Always face the heater to the south and make sure it receives sunshine all day.

The foldable feet will facilitate obtaining the correct 30º inclination. We recommend using the

same angle for roof-top installations.

There is a white cover inside the box that is for use on extremely hot days to avoid the water

overheating.

Easy assembly

The only tool you need is a screwdriver to fix the hosepipe to the solar heater. There are long

hosepipes included for easy installation. If you need to connect more than one solar heater, the

short piece of hosepipe can be used. We recommend not assembling more than 4 solar heaters in

series. If more are needed, for a very large pool, we recommend assembling 2 or 3 series in

parallel.

We recommend using one solar installation for pools up to 7.5 - 10 m

(This is merely a suggested size as the result depends on exposition time and solar power).

Easy assembly

Open the box and check that all the elements are included according to the following list:

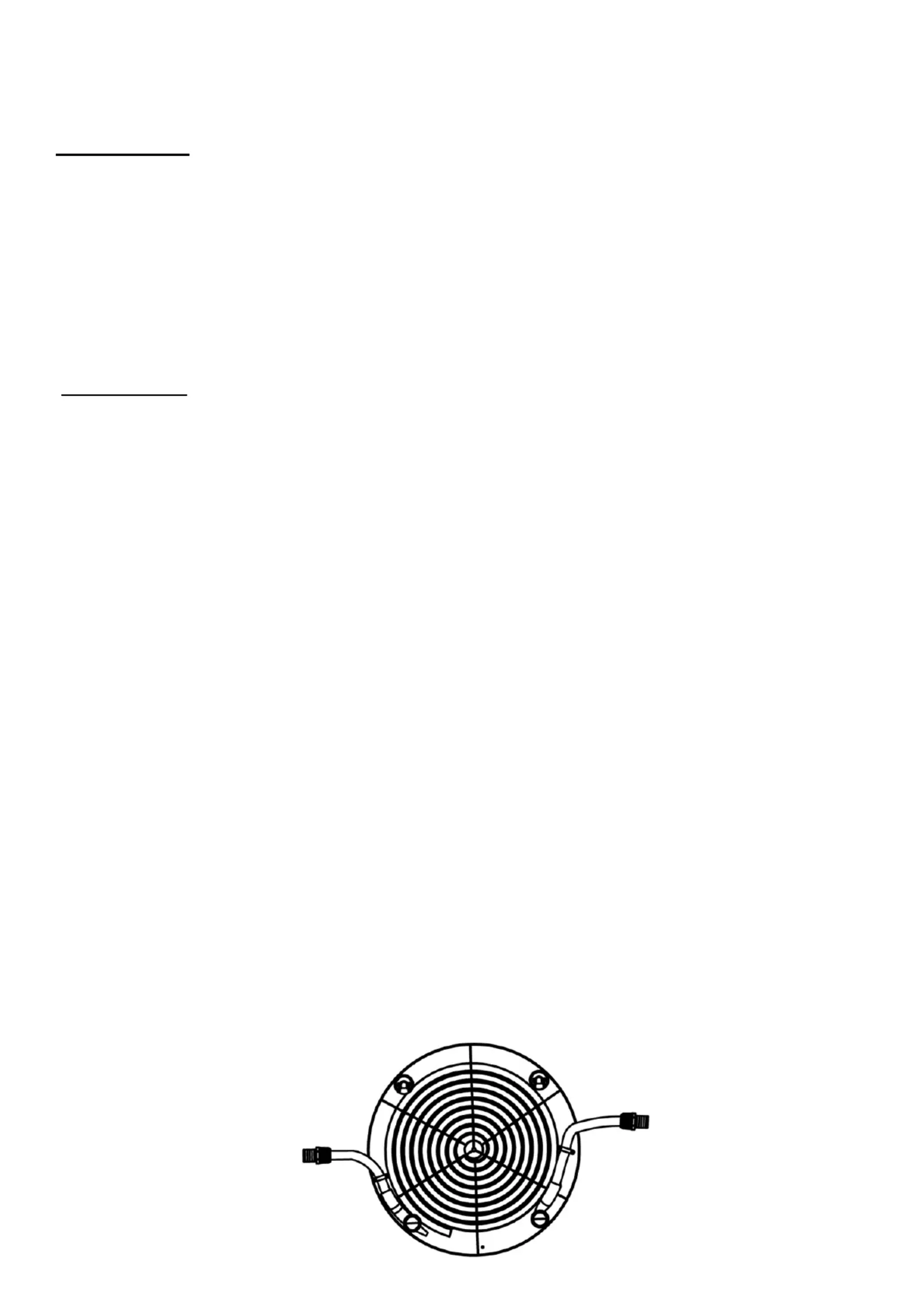

Solar heater with detachable transparent lid

Unfold the feet at the bottom part to obtain a 30º inclination

Long tube (1.2 m) for connecting the solar heater to the pool

Short tube for coupling 2 heaters at the same time

2 adaptors for 32/38 mm connection

Bag with metallic clamps

Rubber reduction pies 38/32 mm

White cover

Instruction manual

Find the correct position to locate the solar heater

Stop the pump and make sure there is no water in the circuit

Assemble the feet of lower part of the solar installation.
