We reserve to change all of part of the articles or contents of this document, without prior notice.
Nos reservamos el derecho de cambiar total o parcialmente las características de nuestros artículos o contenido de este documento sin previo aviso.
Nous nous réservons le droit de modier totalement oru en partie les caracteristiques de nos articles ou le contenu de ce document san pré avis.
Wir behalten uns das recht vor die eigenschaften unserer produkte oder den inhalt diese prospektes teilweise oder wollstanding, ohne vorherige benachichtigung su andern.
Ci riservamo il diritto di cambiare totalemente o parzialmente le caratteristiche tecniche dei nostri prodotti ed il contenuto di questo documento senza nessum preavviso.
Wij behouden ons het recht voor geheel of gedeeltelijk de kenmerken van onze artikelen of de inhouk van deze handleiding zonder voorafgaand bericht te wijzigen.
Reservamo-nos no dereito de alterar, total ou parcialmente as caracteristicas os nossos artigos ou o conteúdo deste documento sem aviso prévio.
HIPP030/050/075.13
PP030 PP050 PP075
DISTRIBUIDO POR : MANUFACTURAS GRE S.A. ARITZ BIDEA Nº 57, BELAKO INDUSTRIALDEA, APARTADO 69 - 48100 MUNGUIA (VIZCAYA) ESPAÑA, Nº Reg. Ind. 48-06762
MADE IN CHINA

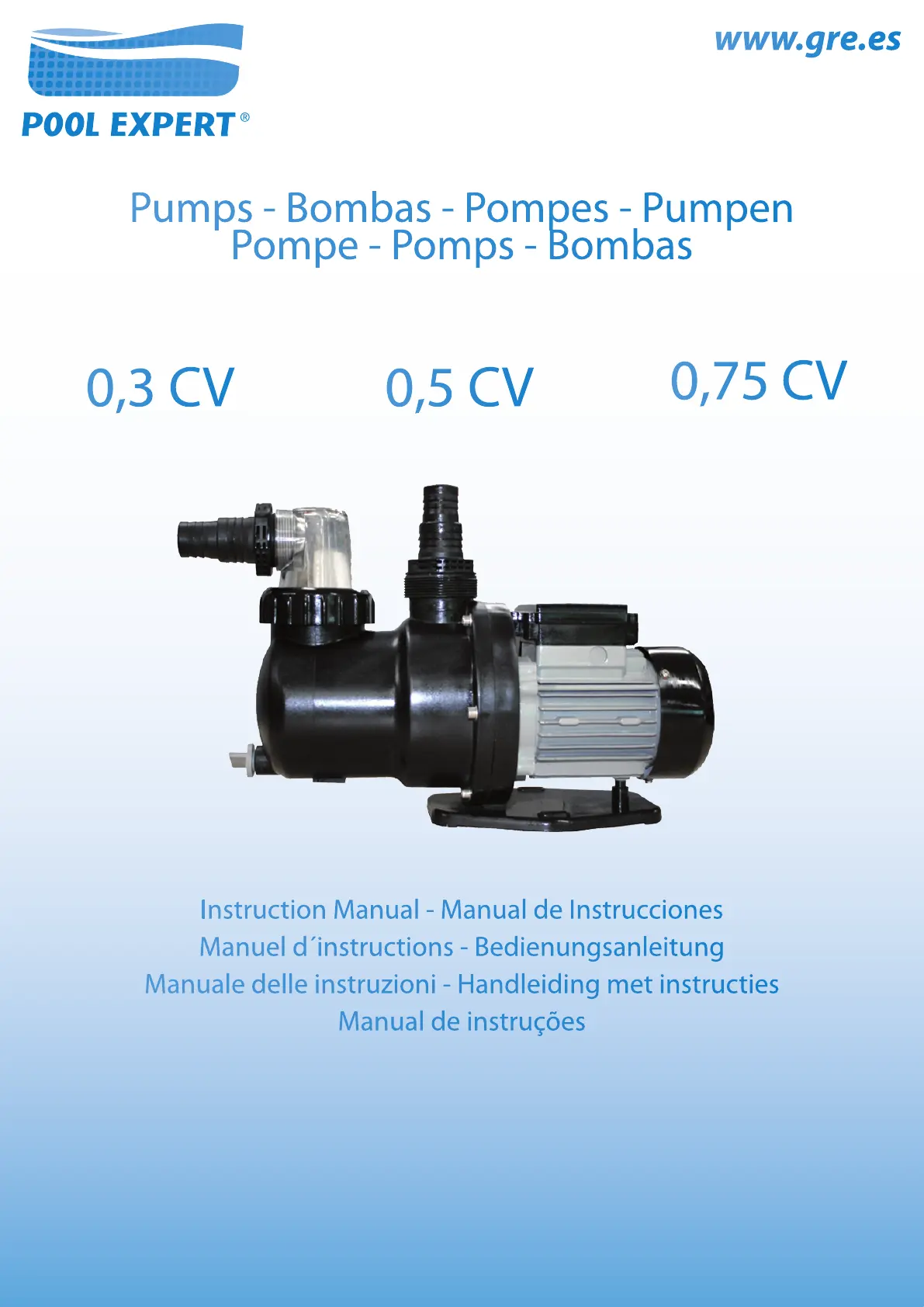

Self-priming SWIMMING POOL PUMP
BOMBA DE PISCINA autocebante
POMPE DE PISCINE auto-amorçante
Selbstansaugende SCHWIMMBADPUMPE
POMPA DI PISCINA auto-aspirante
Zelfaanzuigende ZWEMBADPOMP
BOMBA PISCINA autocomeçando
0,3 - 0,5 - 0,75 CV
EN ES FR DE IT NL PT
nº Description Descripción Description Beschreibung: Descrizione: Beschrijving: Descrição
1 Pre-lter
cover
Tapa del
prelto
Buse Vorlterdeckel Coperchio
preltro
Deksel van
voorlter
Tampa
pre-ltro
2 Pre-lter
nut
Tuerca
preltro
Anneau de la buse Vorlterschraube Anello preltro Moer
voorlter
Anel pre-ltro
3 Pre-lter
O-ring seal
Junta torica
para preltro
Joint thorique de la
buse
O-Ring für Vorlter Guarnizione
preltro
O-ring voor
voorlter
Junta pre-ltro
4 Pre-lter Preltro Crépine Vorlter Preltro Voorlter Pre-ltro
5 Casing Carcasa Enveloppe Gehäuse Corpo pompa Behuizing Corpo bomba
6 Purging
plug
Tapon de
purga
Bouchon de vidange Abussdeckel Tappo di scarico Aftapplug Tampão
desaguamento
7 Purging
plug seal
Junta tapon
de purga
Joint du bouchon de
vidange
Dichtung des
Abussdeckels
Guarnizione tappo
di scarico
Dichting
aftapplug
Junta tampão
desaguamento
8 Front plate Placa frontal Plaque frontale Vorderabdeckung Targa frontale Frontale plaat Placa frontal
9 Washer Arandela Rondelle Unterlegscheibe Rondella Pakking Anilha
10 Diuser Diusor Diuseur Diusor Diusore Diusor Difusor
11 Air-screw Helice Hélice Helix Turbina Schroef Turbina
12 O-ring Junta tórica Joint thorique O-Ring Guarnizione O-ring Tampão
13 Rear plate Placa trasera Plaque arrière Hinterabdeckung Targa posteriore Achterste
plaat
Placa traseira
14 Motor
assembly
plate
Placa de
montaje del
motor
Plaque de montage du
moteur
Montageabdeckung
des Motors
Targa
d’assemblaggio
del motore
Monteerbasis
voor motor
Placa da
montagem do
motor
15 Motor Motor Moteur Motor Motore Motor Motor
16 Connection
box
Caja de
conexiones
Boîtier de connections
electriques
Schirmanschlusskasten Scatola morsetti Aansluitkast Caixa de bornes
Dimensions - Dimensiones - Dimensions - Größe - Dimensioni - Afmeting - Dimensões
A: 65,7 mm
B: 210 mm
E: 200 mm
F: 265 mm
G: 47,8 mm
H: 136,5 mm
I: 175 mm
J: 407,5 mm
C: 190 mm
D: 90 mm
Allow for sufficient access space for pump maintenance and make sure that the technical plate of
the pump is visible.
During the installation of the pump, position it so there is 1 meter of free space around it.
ELECTRICITY
Place the motor on the floor before connecting it to the mains. Otherwise, the motor could cause a
serious and even mortal electric shock. Do not place it on the floor over a gas pipe.
To avoid a dangerous or mortal electric shock, disconnect the power supply of the motor before
working on the electrical connections.
If it short-circuits, this will indicate there is an electricity problem. If it short-circuits and cannot be
restarted, ask a qualified electrician to verify and repair the electrical system.
The pump should be powered from an insulated transformer or via a circuit breaker or
residual-current device of 30mA maximum.
The power supply should exactly correspond to the voltage indicated on the plate of the
motor. Incorrect voltage could provoke a fire and/or damage the motor, and would
cancel the guarantee. In case of doubt, check with an electrician.
The electric cable is included and comes with a “Y” connection. If it is necessary to replace the
electricity cable, the new cable should also be of the appropriate type. The guarantee will be
cancelled in the case of any unauthorised modification of the components.
The electrical installation has to be according to current legislation.
If the electrical cable is damaged, the manufacturer, its agent, or any other qualified person should
replace it to avoid any damage.

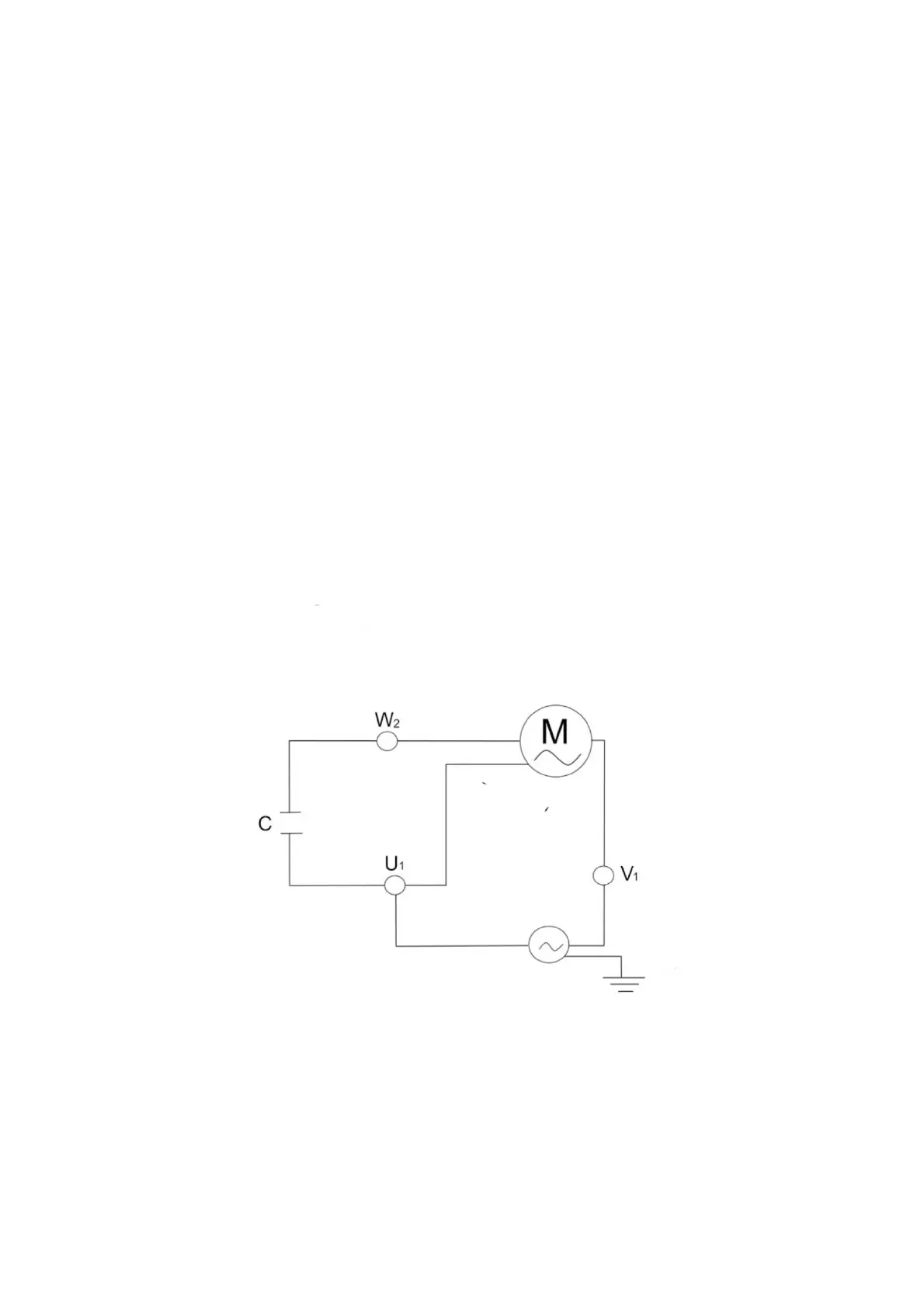

The pump is equipped with complete thermal protection. Follow the assembly diagram below for
correct electrical installation.
The electrical installation should be done by someone qualified in working with electrical equipment.
This equipment is not designed for those with physical, sensory or mental handicap or people
lacking in experience, unless done under supervision or with instructions of use from a person in
charge of safety.
Do not permit children nor adults to sit or lean on the equipment. Children should be supervised to
ensure that they do not play with the equipment.
Adjust the value of the thermal relay appropriately depending on the pump current.
Unsuitable mains connections involve the risk of electrocution
Red
Brown
Energy Earth
connection
