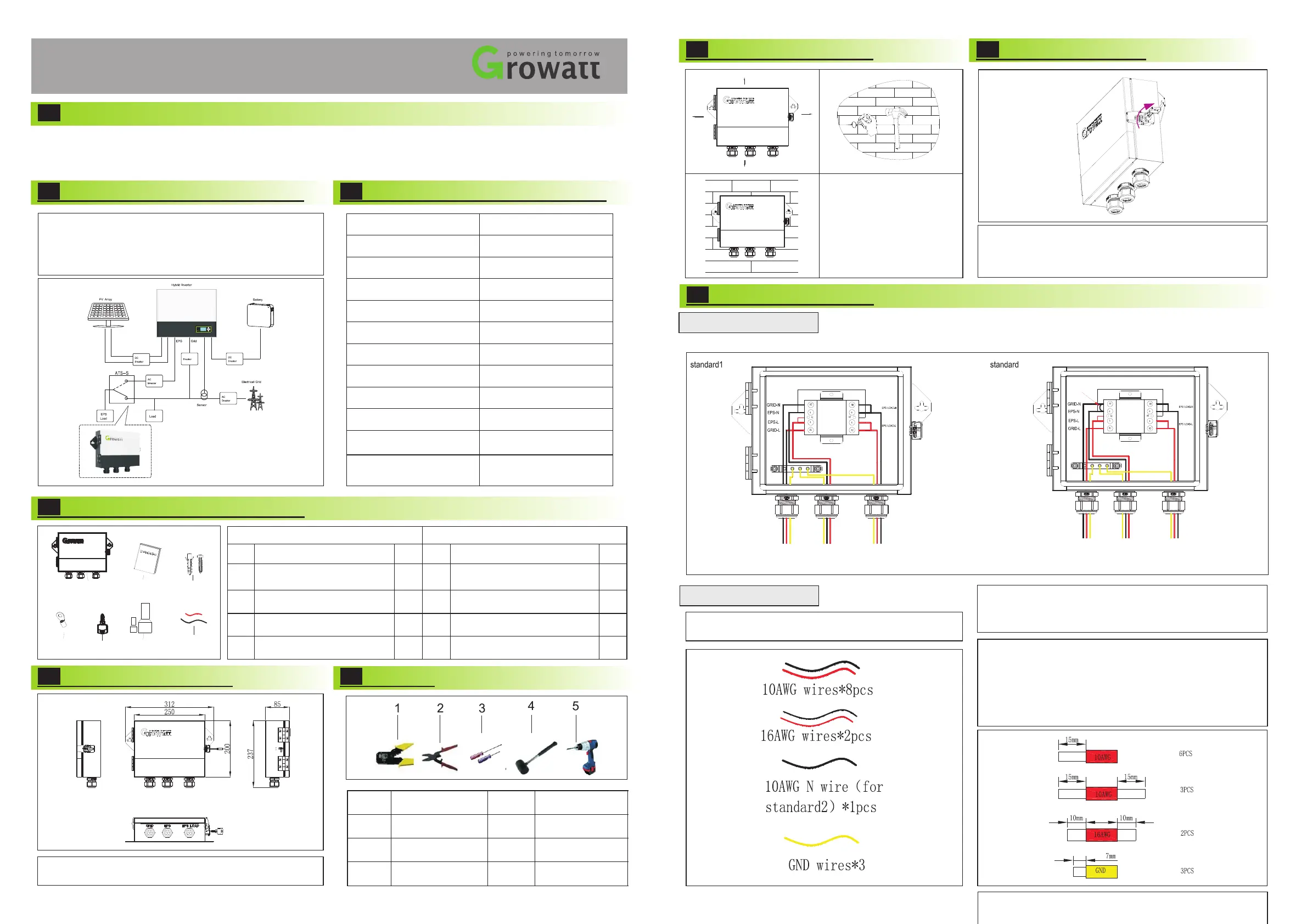

Sida 1/3

1.1.

ATS-S

User Manual

Introduction

The Auto-Transfer Switch Single Phase (ATS-S)controls the switching of the contactors to provide power to the EPS load in both grid-tied

and off-grid conditions. The ATS-S integrates a contactor to provide users with a simple connection. It is used with Growatt Hybrid inverter

and AC coupled inverter (single phase). Configured with ATS-S, when the power outage, ATS-S can automatically switch to Off-Grid state,

it can continue to supply power to the EPS load, the load can continue to run.

The location of ATS in the system-S

General Information - Parts List

Configuration

Model Name

Growatt ATS S-

Grid Normal Voltage

230V 50/60Hz

Grid Max Current

30A

EPS Normal Voltage

230V 50/60Hz

EPS Max Current

30A

Load Normal Voltage

230V 50/60Hz

Load Max Current

30A

Cooling Concept

Natural

Ingress Protection

IP65

Installation

Wall Mountable

-25℃ ~ +50℃

Compatible Model

Operation Ambient

Temperature

Growatt Hybrid inverter and AC

coupled inverter (single phase )

Opening step of ATS-S

Open the ATS-S

As shown above, please put the key into the Keyhole on the ATS-S

right, clockwise rotation of 90°, the lower end of the first lock up

gently move Open, remove the lock at the upper end of the buckle,

then you can open the cover, Step of locking the cover opposite to

the above.

Wiring Connection

There are two type wire connection diagram of ATS , show as below:-S

9.1 total wire diagram

As shown in chart 2.1, the input side ATS-S is connected with

EPS and GRID of SPH/SPA inverter, the output side is connected

with EPS LOAD, and the position in the system is shown in the

circle in the chart 2.1. EPS LOAD default connect with Grid

power, if Grid is lost, EPS LOAD will turn to EPS output of hybrid

inverter.

Item ItemItem Name Item Name

Qty Qty

ATS-S （ Auto-Transfer Switch

Single Phase ）

User Manual

Anchor Bolt

O -type terminal

2 2

Key

Cold pressed terminal(large /small)

Contactor control line

Part List Part List

Dimension & Weight

Dimension (L x W x H)：312*237*85mm

Weight : 2.38KG

Tool

NO NO

Description Description

Pipe clamp

Diagonal plier

Screwdriver

Rubber hammer

Driller

1.To leave at least 300mm

space from ATS-S

2.Make the position of 2

holes(282mm) .

3.Drill holes with φ10 drill

Depth: at least 40mm.

1. Wires below are needed before installation(16AWG wire

has been configured in accessory bag).

9.2 wires making

2.Use the diagonal plier to trip 15mm of insulation from one side of

the 10AWG wires(6pcs);

Use the diagonal plier to trip 15mm of insulation from two side of

the 10AWG wires (2pcs,If it is standard 2, you need 3pcs);

Use the diagonal plier to trip 10mm of insulation from two side of

the 12AWG wires(2pcs);

Use the diagonal plier to trip one side of GND wire about

7mm(3pcs).

Note:

1.These include 2pcs 10AWG wire (1pcs red, 1pcs black) for

shorting contactor ports 2 and 4, 6 and 8, Its length is about 60cm,

10 AWG N wire (for standard2)length is about 50cm.

Standard 1 is for general using, and standard 2 is for like Australia where Neutral line can't be switched. When connect with ATS S,

please check which standard is suit for you.

300mm
