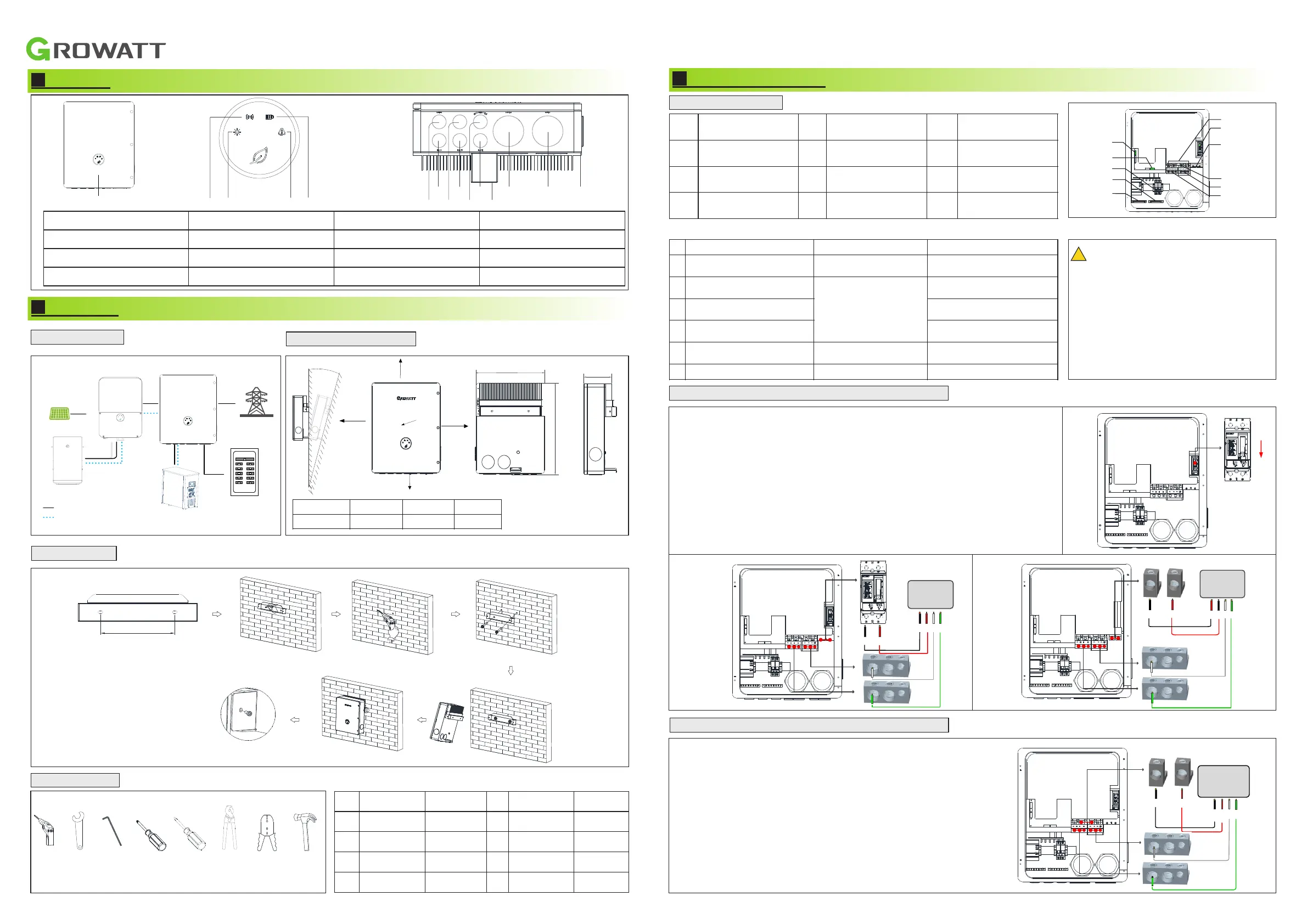

SYN 200-XH-US Quick Guide
Overview
Installation
2.1 System overview
2.2 Installation requirements
2.3 Wall mounting
1
3
2
3
4
5
1：Front panel
2：Grid indicator
3：Communication indicator
4：Status Indicator
5：Fault indicator
6：Inverter wiring port
7：Load wiring port
8：Grid wiring port
9：Heat sink
10：COM wiring port
11： Reserved wiring port
12：Generator wiring port
13：Wall mount bracket
No.
Name
Size
No.
Name
Size
1
Electric drill
Φ6mm
2
wrench
Φ10mm
3
Allen wrench
Φ5&6&8mm
4
Cross rise
Φ5mm
5
From flat
Φ1mm
6
Wire cutter
/
7
Wire stripper
/
8
hammer
/
3.
Electrical connection
3.1Electrical connection
2.4 Required tools
1 2 3 6
7 8

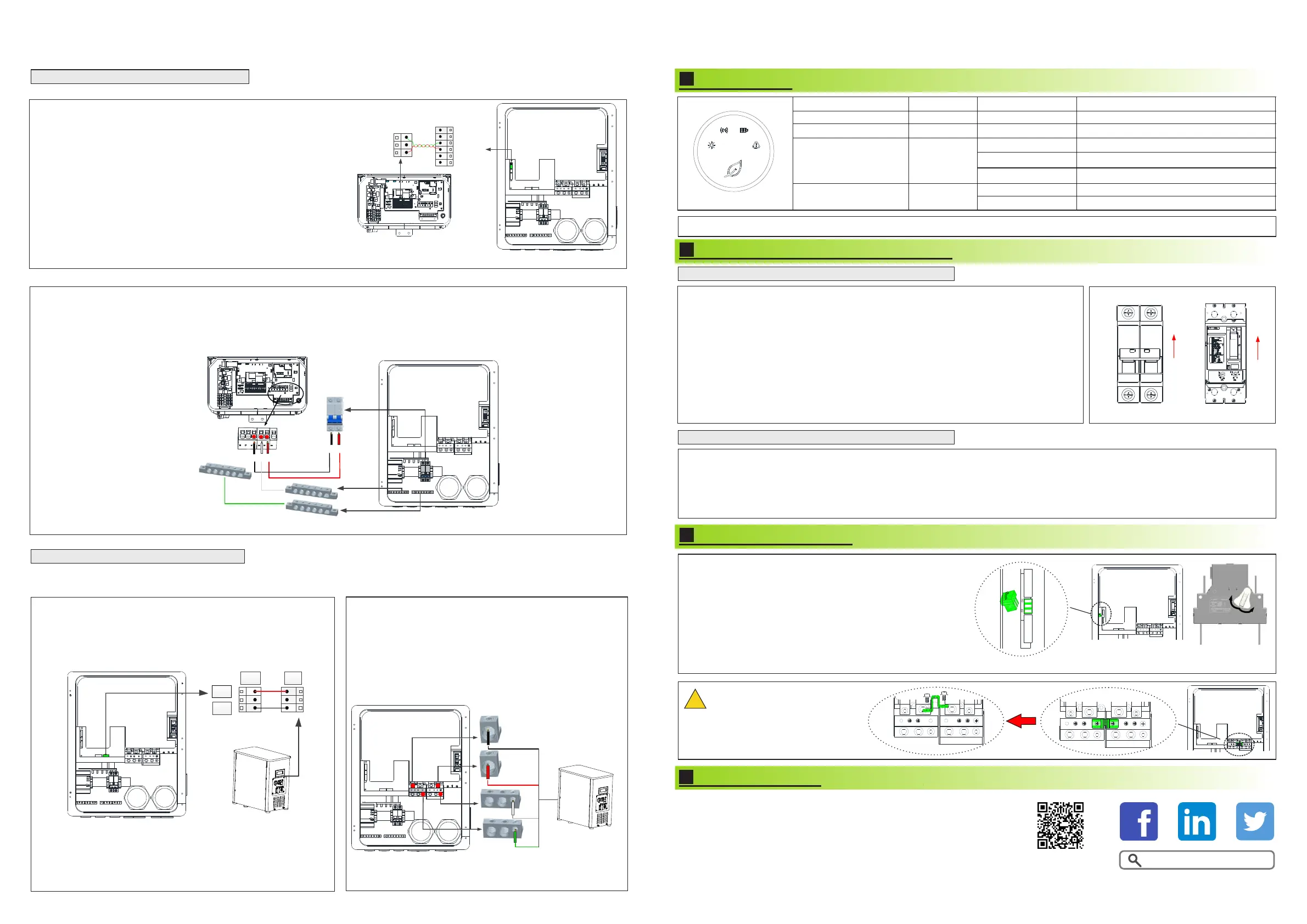

3.2 Connecting the SYN 200-XH-US to the Grid panel.
≤15°
≥300mm
≥300mm
≥500mm
≥300mm
≥300mm
Inverter
SYN 200-XH-US
Grid
Generator
Batery
PV
ON
A
B
C
DD
E
F
G
H
I
J
K
4 5
A
Inverter
communication port
B
Generator control
port
C
Inverter wiring port
D
Inverter Ground
Terminals
E
Inverter Neutral
Terminals
F
Generator wiring port
G
Grid switch
H
Grid wiring port
I
Load Panel wiring
prot
J
Main Neutral
Terminals
K
Main Ground
Terminals
Use
Type
Size
1
Grounding Conductors
(Load/Generator/Inverters)
Yellow-green jacketed or
solid bare copper
7~1/0 AWG(Load/Generator)
8~6 AWG(Inverters)
2
AC output conductors
(Load/Grid)
Multi-color jacket,
copper
0-4/0AWG
3
Generator Input
conductors
4~0 AWG
4
Inverter Input
conductors
6~5 AWG
5
12V power
output conductors
Red and black multi-
color copper
16~14 AWG
6
Communication cable
CAT5E suggested
/
Cables prepared by the customer：
!
Note:
It is recommended to use two or three
polychromatic multi-core copper cables cables
for Grid/Load/ Generator/ Inverter connection.
Recommended using yellow-green single
multi-core cables for PE connection.
Recommended using shielded twisted pair
cable for RS485 connection.
D
H
Grid_L1 Grid_L2
Grid
N
PE
L1 L2 N
PE
W
Load Panel
10 11 12 13
6 6 6 7 8 9
1
OFF
ON
2
Grid
L1L2N
PE
L1
L2
3
Load_L1
Load_L2
L1L2N
PE
N
AC Loads Panel
PE
Power wrie
Communication wrie
SYN 200-XH-US 447.5/17.62
Dimsesion W(mm/inch) H(mm/inch)
555.5/21.87 180.8/7.12
D(mm/inch)
240mm
3.3 Connecting the SYN 200-XH-US to the Load panel.
1.Release the Allen screws of the upper cover and open the upper cover.
2. Install a conduit of the required diameter into the Grid conduit entry. Use the conduit
holder to support the conduit.
3. For versions with circuit breaker. Pull down the main breaker until it shows OFF.
Ensure that the main breaker is OFF, as shown in Figure 1.
4. Pass the cable from the grid through the grid conduit to the terminals of the circuit
breaker. Tighten the terminal screws with a torque of 230 in*lbs / 26N*m, as shown in
Figure 2.
5. For version without circuit breaker. Pass the cable from the grid through the grid
conduit to the GridL1 and GridL2 terminals of the SYN 200-XH-US. Tighten the terminal
screws with a torque of 221in*lbs / 25N*m, as shown in Figure 3.
6. Connect the neutral and grounding wires to the neutral and grounding terminals.
Tighten the terminal screws with a torque of 221in*lbs / 25N*m.
1.Install a conduit of the required diameter into the Loads conduit entry.
Use the conduit holder to support the conduit.
2. Pass the cable from the AC Loads panel through the Loads conduit to the
Load_L1 and Load_L2 terminals of the SYN 200-XH-US. Tighten the
terminal screws with a torque of 221in*lbs / 25N*m.
3. Connect the neutral and grounding wires to the neutral and grounding
terminals. Tighten the terminal screws with a torque of 221in*lbs / 25N*m,
as shown on the right.
