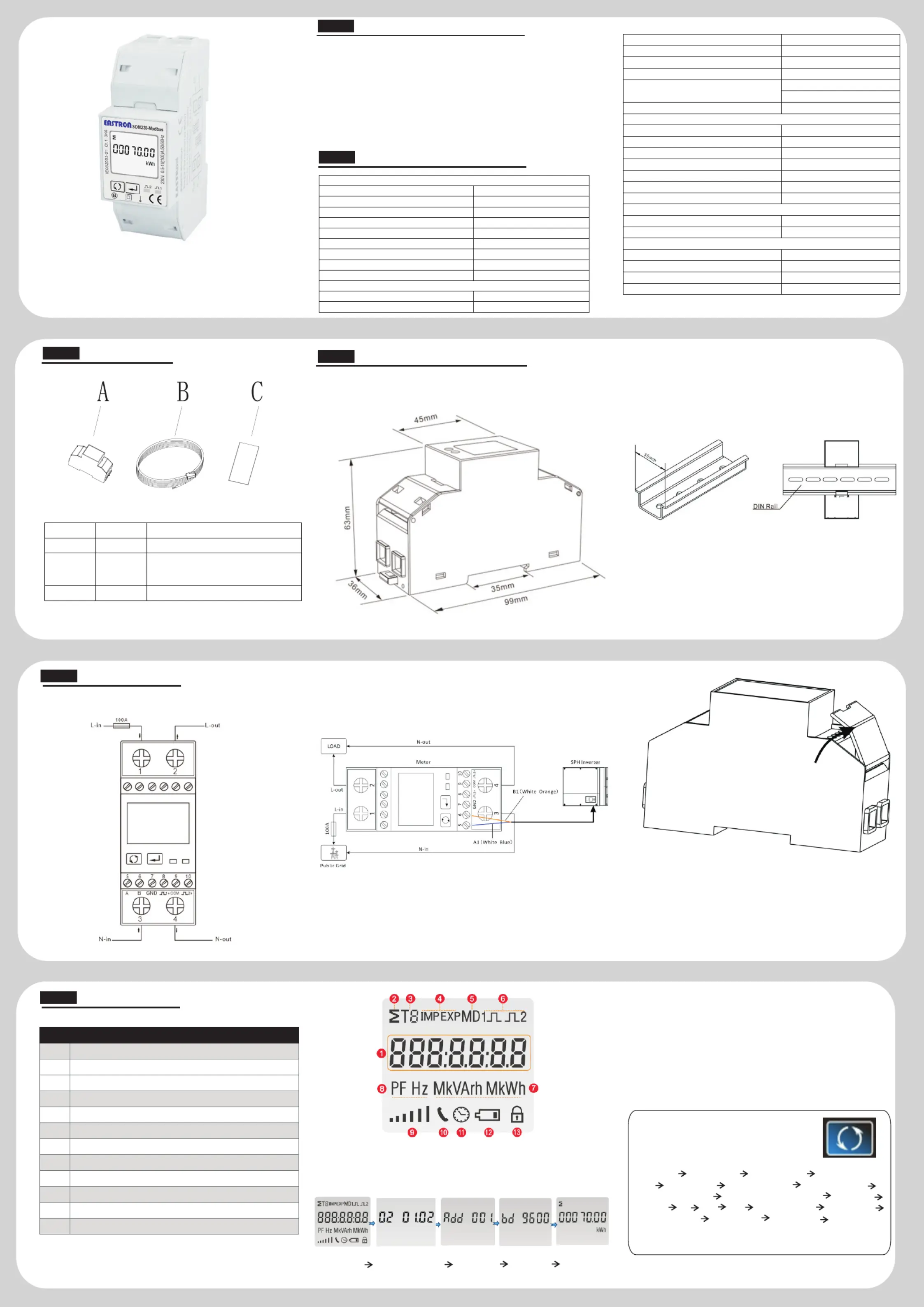

Sida 1/2
S
S
S
SSt
t
t
tte
e
e
eep
p
p
pp1
1
1
11.
.
.
..
S
S
S
SSt
t
t
tte
e
e
eep
p
p
pp2
2
2
22.
.
.
..
Dimension (Unit: mm)
S
S
S
SSt
t
t
tte
e
e
eep
p
p
pp4
4
4
44.
.
.
..
S
S
S
SSt
t
t
tte
e
e
eep
p
p
pp3
3
3
33.
.
.
..
Overview
The energy-meters “with a blue back-lighted LCD screen for
prefect reading” are used to measure single-phase like resid-
ential, Utility and Industrial application. The unit measures
and displays various important electrical parameters, and
provide a communication port for remote reading and monito-
ring. Bi-directional energy measurement makes the unit a
good choice for solar PV energy metering.
Technical Parameters
General Specifications
Voltage
230Vac
Voltage range
176~276Vac
Base current(Ib)
10A
Current range
0.5~100A
Power consumption
＜2W/10VA
Frequency
50/60Hz(±10%)
AC voltage withstand
4KV for 1 minute
Impulse voltage withstand
6KV-1.2uS wavform
Max. Reading
999999.9kWh
Accuracy
Voltage
0.5% of range maximum
Current
0.5% of nominal
Frequency
0.2% of mid
-
frequency
Power factor
1% of Unity
Active power
1% of range
maximum
Reactive power
2% of range maximum
Active energy
Class 1 IEC62053
-21
Class B EN50470 -3
Reactive energy
1% of range maximum
Enviroment
Operating temperature
-25℃
to +55℃
Storage and transportation temperature
-
40
℃
to +70℃
Reference temperature
23℃±2℃
Relative humidity
0 to 95%, non
-condensing
Altitude
up to 2500m
Installation category
CAT III
Degree of pollution
2
Communication
Communication
RS485 output for Modbus RTU
Baud rate
9600
Mechanics
Din rail dimensions
36x99x63 ( WxHxD) DIN 43880
Mounting
DIN rail 35mm
Sealing
IP51 (indoor)
Material
self-
extinguishing UL94V
- 0
Unpacking
Item
Number
Description
A
1
Single phase meter
B
1
RS485 cable
（
standard length 5m
）
C
1
User Manual
The Ingress Protection rate is IP51 and the pollution degree
is PD2, So meter must be install in door. The whole
installation chart shows as below:
before screw the cable. Please open the cover of meter:
The standard communication cable between meter and
inverter is 5m, if it is not enough, Customers can be exten-
ded through the network cable.
Note: be careful the wire of input and output of L/N, if lines
are wrong, it may destroy the meter.
LCD display
S
S
S
SSt
t
t
tte
e
e
eep
p
p
pp6
6
6
66.
.
.
..
When it is powered on, the meter will initialize and do self-
checking.
Full screen software version Modbus ID Baud rate total kWh
Scroll display by Button
After initialization and self-checking program, the
meter display the measured values. The default page
is total kWh. If the user wants to check other
information, he needs to press the scroll button on the
front panel.
The display order by scroll button
Total kwh import kwh export kwh resettable
kwh total kVarh import kVarh export kVarh
resettable kVarh Max. power demand voltage
current W Var VA power factor frequency
pulse constant Modbus ID baud Fate continuous
running time.
Single-phase Meter User Manual
Installation
S
S
S
SSt
t
t
tte
e
e
eep
p
p
pp5
5
5
55.
.
.
..
Wire diagram:
Item
Descriptions
1
7 digits used to display measured values or RTC
2
Total value
4
Import information, Export information
5
Max. Demand for Power or Current
6
Pulse output 1 and Pulse ou
tput 2
7
Measurement units
8
PF = power factor Hz = frequency
9
Bar display of Power
10
Communication indicator
11
Time information
12
Low battery warning
13
Lock symbol
SDM230-Modbus
