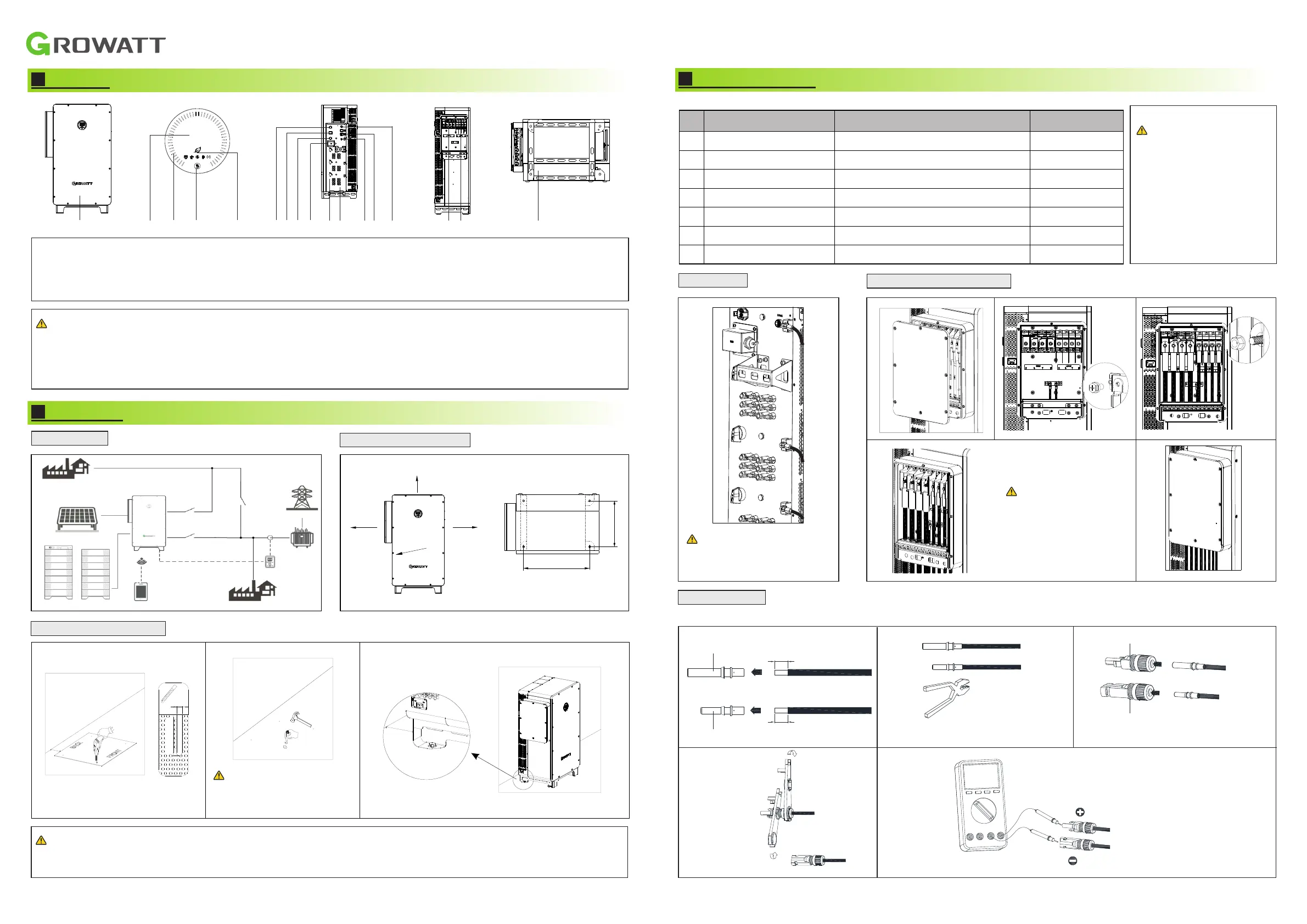

1.The content of this document is continually reviewed and amended, where necessary. Growatt reserves the right to make changes to the
material at any time and without notice. Unless otherwise agreed, this document is for quick installation guidance only. All information and
suggestions in this document do not constitute a warranty of any kind, express or implied. Growatt reserves all rights for final explanation.
2.This document is for quick installation guidance. For details, please refer to the User Manual.
3.Machine damage caused by failure to follow the instructions is not covered under any warranty.
1. When determining the installation position of the inverter, please consider the position of the batteries and the distribution panel.
2. For export limitation, you are advised to connect an energy meter and current transformers to the inverter.
When drilling holes, avoid the
water pipes and power cables
buried under the ground.
Please prepare the cables listed below before electrical connections.
1
2
3
4
3.3.1 Assembling the PV connector
1
2
3
4
5
1.Make sure all switches are
OFF before connecting the
cables. For personal safety, do
not operate when power-on.
2.If the diameter of the cable
does not match the terminal, or
the cable is aluminum wire,
please contact our after-sales
personnel.
8- 10 mm
8-10 mm
Positive metal contact
Negative metal contact
Ensure that the cable cannot be pulled out from the
terminal after crimping.
Pull the PV cables back to check that they are connected
securely.
Ensure secure connection
by tightening the locking
nut.
Positive metal connector
Negative metal connector
Make sure the cable polarity is correct.
Battery BOX
Quick Installation Manual
WIT 50-100K-HU Quick Guide
≥1000mm
≥1000mm
≥1000mm
≥
1
0
0
m
m
0
399.5mm
574.5mm
When drilling holes, avoid the
water pipes and power cables
buried under the ground.
1
1
17
2
3
4
5
10
11
12
13
6
7
8
9
14
MPPT
MPPT
MPPT
BMS-COM
COM1
DRMS
BMS-AC
COM2
BAT-
BAT+
DC SWITCH 3
DC SWITCH 2
DC SWITCH 1
After cables are connected,
apply fireproof mud to the
waterproof silicone mat
inside the AC junction box.
Lock the cover of the AC
junction box after the
fireproof mud is applied.
5
1.
Overview
(13)Battery connector (14)BMS power supply port
(15)GRID connector
(16)LOAD connector
(1)Front panel
(2)OLED display screen
(3)Battery status indicator
(4)Push button
(9)USB port
(5)System indicator
(6)BMS communication port
(7)Parallel communication port
(8)Monitor communication port
(10)DC switch
(11)PV connector (12)Network communication port
Notes:
2.
Installation
System overview
2.1 Installation requirements
2.2 Floor-mounted installation
2
3.
Connecting cables
3.1 Grounding
3.2 GRID and LOAD connection
Notes:
Notes:
3.3 DC connection
Notes:
3
Notes:
Notes:
Φ12mm
(0.47'')
70mm(2.76'')
0
.
1
m
0
.
1
m
15
16
(17)Base
Primary Load
PV
BATT
Phone
PCS
AC
Break
Load
Break
Bypass
Break
Secondary Load
Grid
Meter
No.
Cable
Type
Recommended
specifications
1
Grounding cable
A multi-core copper cable (yellow and green)
2
50mm
2
GRID cable
A multi-copper cable
2 2
120mm -300mm
3
LOAD cable
A multi-copper cable
2 2
70mm -150mm
4
PV input cable
Photovoltaic cable
2 2
4mm -6mm
5
Battery power cable
A single-core copper cable (red and black)
2
50mm
6
BMS power supply cable
A multi-core copper cable
2 2
0.5mm -2.5mm
7
Other communication cable
RS485
/
100.0 KW
