Haier Commercial Air Condition
ADDRESS: NO.1 Haier Road,Hi-tech Zone, Qingdao 266101 P.R.China Haier reserves the right to make change without any notice.
Web: Http://www.haier.com
Submittal Data Sheet
Duct Medium ESP (80/120 Pa)
AD302MNERA

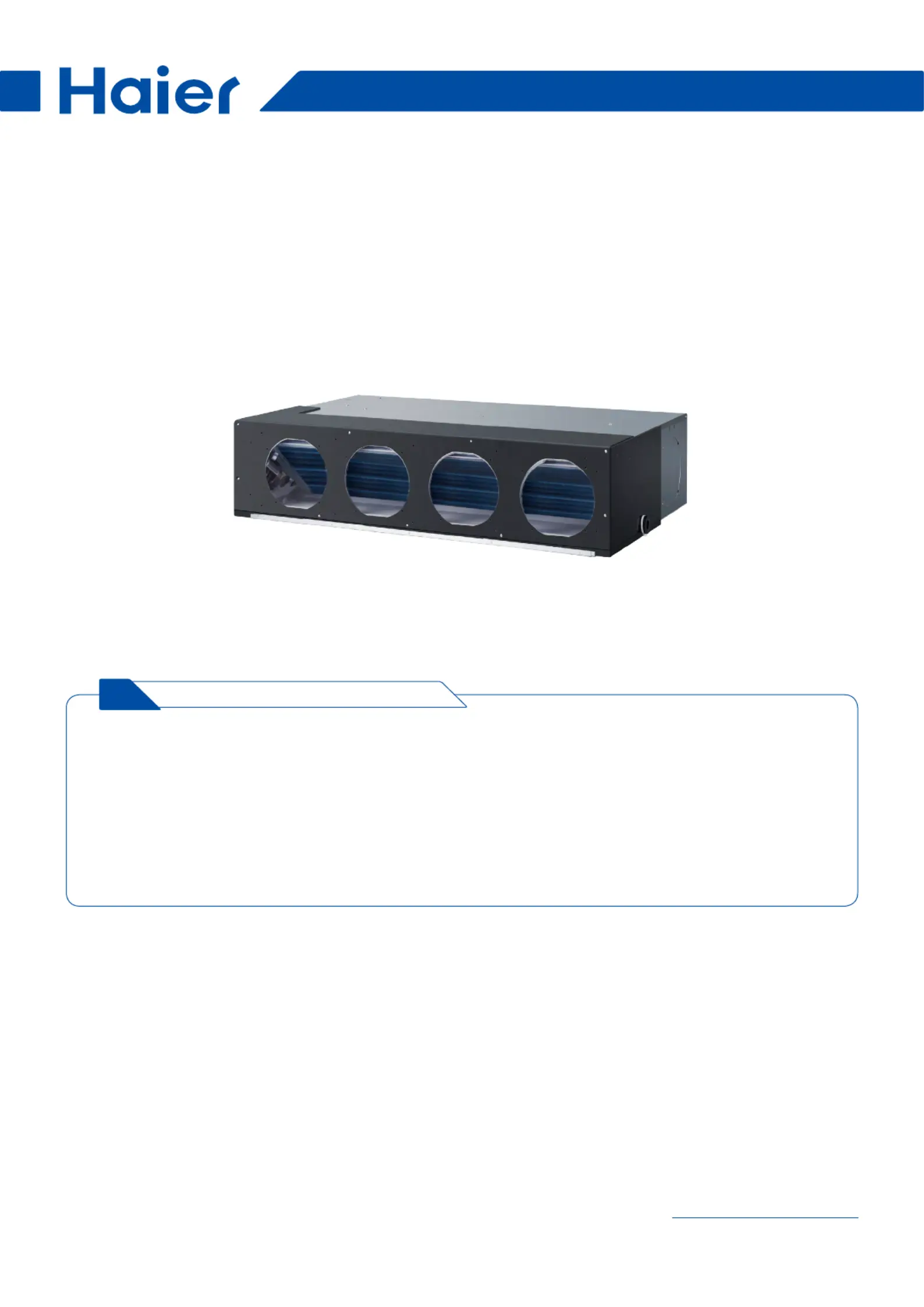

• Only 270mm thickness makes it easier for installation in limited space.
• Optional external drain pump
• Flexible duct connection
• Low sound level
• ESP 80/120Pa
FEATURES & BENEFITS
Haier Commercial Air Condition
ADDRESS: NO.1 Haier Road,Hi-tech Zone, Qingdao 266101 P.R.China Haier reserves the right to make change without any notice.
Web: Http://www.haier.com
Submittal Data Sheet
Indoor unit name:
Indoor unit model:
Type:
Rated cooling capacity(kW):
Sensible capacity(kW):
Cooling input power(kW):
Power supply(V/Hz/Ph):
Power supply connections:
Min. circuit Amps MCA (A):
Dimensions(H×W×D)(mm):
Panel(H×W×D)(mm):
Net weight(kg):
Panel weight(kg):
Airow rate (H/M/L)(m3/h):
Moisture removal(m3/h):
Gas pipe connection(mm):
Liquid pipe connection(mm):
Condensate connection(mm):
Sound pressure(H/M/L)(dBA):
Sound power level(H/M/L)(dBA):
AD302MNERA
Duct
9
6
0.49
220-230/50/60/1
L,N, Ground
3
9.6
270×1135×742
/
50
/
10
0.49
1600/1453/1295
Φ15.88
Φ9.52
Φ38
49/47/43
62/60/56
80/120
Indoor(°C DB/WB):27/19
Ambient(°C DB/WB):35/24
Indoor(°C DB/WB):20/14.5
Ambient(°C DB/WB):7/6
Rated heating capacity(kW):
Heating input power(kW):
Rated cooling conditions:
Rated heating conditions:
Rated piping length (m):
Rated height separation(m):
PERFORMANCE
INDOOR UNIT DETAILS
Ext. static pressure
(Rated/Max)(Pa):
Duct Medium ESP
(80/120 Pa)
Max. fuse Amps MFA (A)：
Haier Commercial Air Condition
ADDRESS: NO.1 Haier Road,Hi-tech Zone, Qingdao 266101 P.R.China Haier reserves the right to make change without any notice.
Web: Http://www.haier.com
Submittal Data Sheet

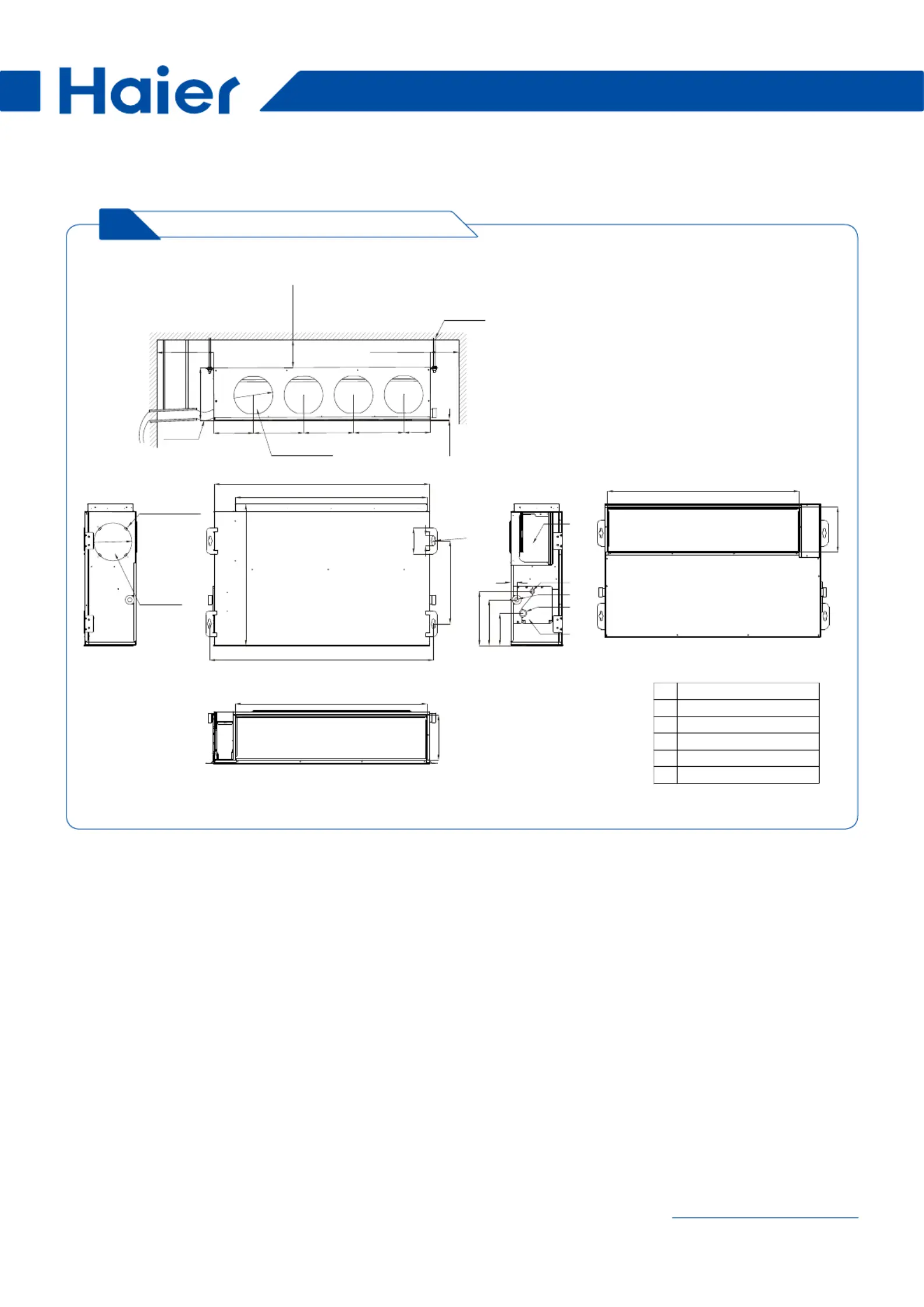

DIMENSIONAL DRAWING
203 140
264
264
264
1015
1135
*437(gap between suspending rod）
Ø200
1015
240
170
240
285
32
instal when air returns from
back side
R11
52
137
above 300mm above 150mm
0-5mm
Ø205
fresh air inlet
1179 (gap between suspending bolt)
drainage
hose
above 20mm
270
742
suspending
bolt4-M10
4-Φ3.2 flanging holes
spreads are distributed
on a circle
air outlet4-Φ205
①
②
③
④
⑤
240
1015
insal when air
returns from
bottom
the installation distance marked with * can
be adjusted according to installation
space(largest:510mm,smallest:370mm)
Part Name
maintenance board
gas pipe connection port
drainage pipe connection port
SN
1
2
3
4
5
electric box
liquid pipe connection port
