Hamlet HXDAS35 Bruksanvisning

Hamlet hårddisk HXDAS35

Läs gratis den bruksanvisning för Hamlet HXDAS35 (12 sidor) i kategorin hårddisk. Guiden har ansetts hjälpsam av 3 personer och har ett genomsnittsbetyg på 3.5 stjärnor baserat på 2 recensioner. Har du en fråga om Hamlet HXDAS35 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/12

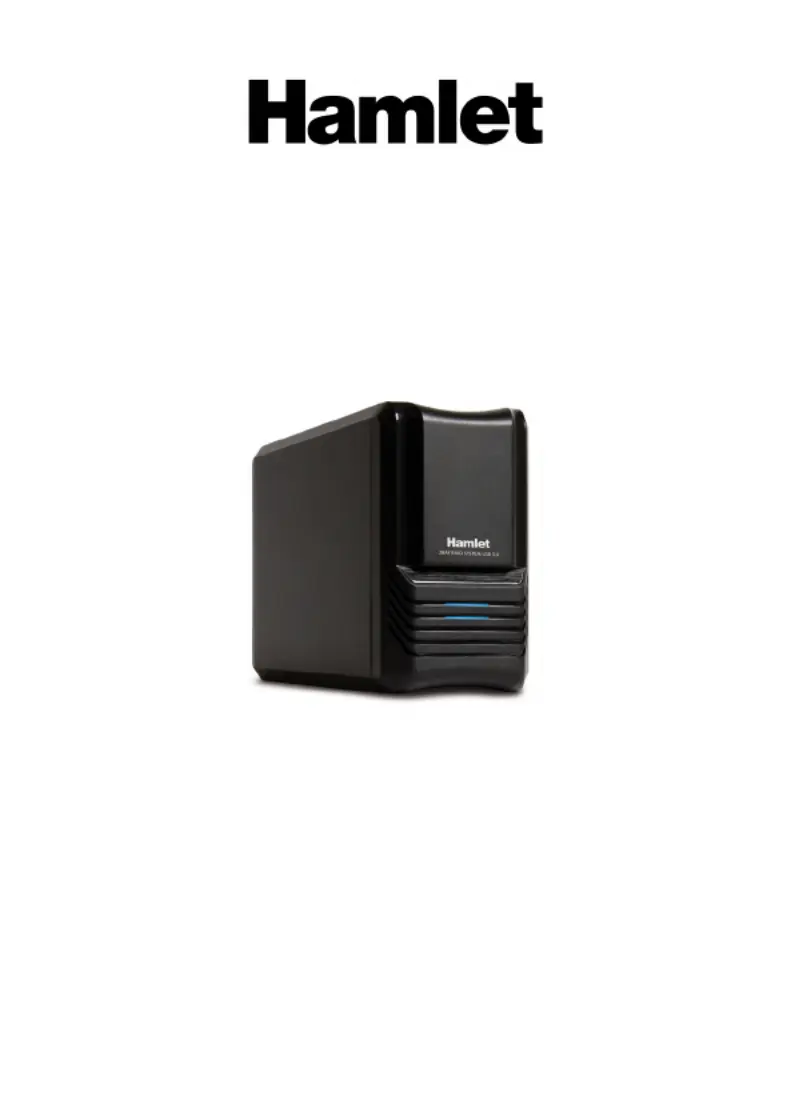

2BAY RAID SYSTEM USB 3.0 DESKTOP

RAID Enclosure for Two 3.5” SATA Hard Drives

USER MANUAL

HXDAS35

www.hamletcom.com

Dear Customer,

thanks for choosing an Hamlet product. Please carefully

follow the instructions for its use and maintenance and,

once this item has run its life span, we kindly ask You to

dispose of it in an environmentally friendly way, by

putting it in the separate bins for electrical/electronic

waste, or to bring it back to your retailer who will collect it for free.

We inform You this product is manufactured with materials and

components in compliance with RoHS Directive 2011/65/EU

( )2002/95/CE ; WEEE Directive 2002 /96/CE, 2003/108/CE Italian

Legislative Decree 2005/151 and EMC Directive

2004/108/EC : for the following standards EN 55022:

2010 2: 2006 + A1: 2009 + A2: 2009, EN 61000-3- ,

EN 61000 EN 55024: 2010-3- , 3: 2008 .

The complete CE declaration of conformity of the product can be

obtained by contacting Hamlet at info@hamletcom.com.

The information on the importer for your country can be found in the

“About Us” section of the Hamlet website at www.hamletcom.com.

Trademarks and changes

All trademarks and company names mentioned in this manual are

used for description purpose only and remain property of their

respective owners.

The material in this document is for information only and subject to

change without notice.

Important information

Any loss, corruption or destruction of data while using a Hamlet

drive is the sole responsibility of the user, and under no

circumstances will Hamlet be held liable for the recovery or

restoration of this data. To help prevent the loss of your data, it is

highly recommended that you keep TWO copies of your data; one

copy on your external hard drive, for instance, and a second copy

either on your internal hard drive, another external hard drive or

some other form of removable storage media.

Introduction

Features

• Supports JBOD, RAID0,RAID1,Normal mode

• Enhanced data protection and high-performances storage

• Support with USB3.0 high speed reach up to 5.0Gbps

• - - Supports Plug play and Hot plug

• Support mode select by RAID switch

Specifications

• Inner Interface: SATA

• Outer Interface: USB3.0

• nDate Tra sfer rate: Support USB 3.0 super speed (5Gbps)-

• Complies with USB 2.0 high speed (480Mbps), USB 1.1 Low

speed (1.5Mbps)

• Suitability: 2 x 3.5” SATA HDD

• - - Supports Plug play and Hot plug

• Power Supply: AC 100~240V, 50~60Hz ; DC 12V, 2.5A

• Material: a luminum and plastic

• Cooling Fan: One 25x25mm Cooling Fan

• OS Compatibility: Windows XP/Vista/7/8, Linux and Mac OS

10.4 or above

• Dimension: 200 x 120 x 68 mm (L x W x H)

System Requirements

• Minimum Pentium II/50MHz or Apple G4 processor

• Minimum 64MB RAM

• Windows XP/VISTA/7/8, Mac OS 10.4 and above

• One available USB port

Supported Hard Drives

• I/ One or two 3.5” SATA II hard drives (1.5/3.0 Gbps)

• C apacity up to 2TB or more

• Hard drives of identical capacities are recommended

• Supports large volumes in excess of 3TB

Produktspecifikationer

Varumärke:	Hamlet
Kategori:	hårddisk
Modell:	HXDAS35
Produkttyp:	HDD-hölje
Bredd:	68 mm
Djup:	200 mm
Höjd:	120 mm
LED-indikatorer:	Ja
Kompatibla operativsystem:	Windows XP/Vista/7/8\r\nLinux\r\nMac OS 10.4+
Maximal lagringskapacitet:	8 TB
Antal USB 3.2 Gen 1 (3.1 Gen 1)-portar:	3
Antal lagringsenheter som stöds:	2
Dataöverföringshastighet:	5 Gbit/s
Produktens färg:	Svart
Extern strömadapter:	Ja
Kabel inkluderad:	USB
RAID-nivåer:	0, 1,JBOD
Lagringsenhetsgränssnitt som stöds:	Serial ATA, Serial ATA II
Lagringsenhetens storlek:	3.5 "
