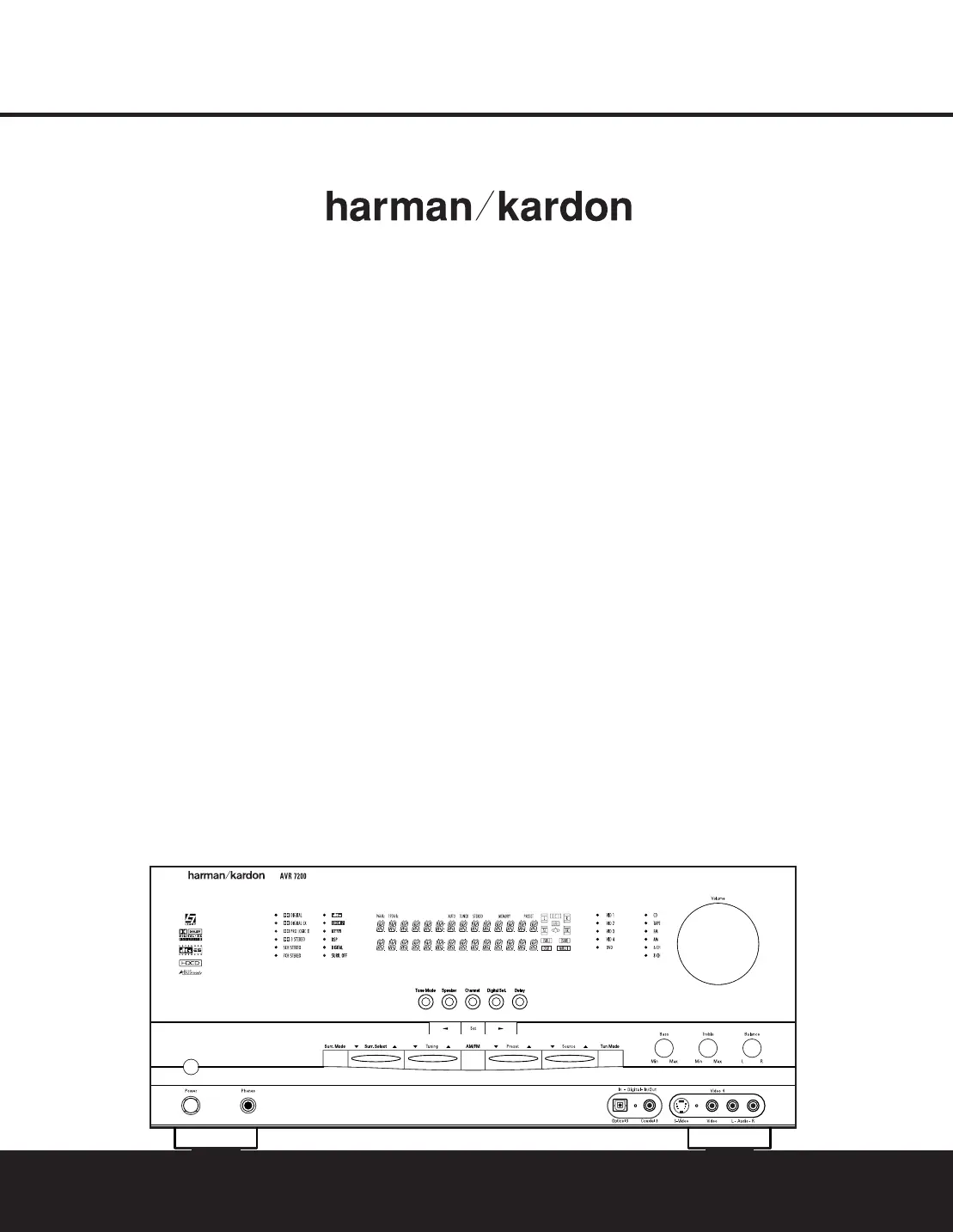

AVR 7200
AUDIO/VIDEO RECEIVER
OWNER’S MANUAL
Power for the Digital Revolution.
®
®
AVR 7200 AUDIO/VIDEO RECEIVER
3Introduction
4Important Safety Information
4Unpacking
5Front-Panel Controls
7Front-Panel Information Display
8Rear-Panel Connections
11 Main Remote Control Functions
14 Zone II Remote Control Functions
15 Installation and Connections
18 System Configuration
18 Speaker Placement
18 System Setup
19 Input Setup
20 Surround Setup
21 Speaker Setup
23 Delay Settings
24 Output Level Adjustment
24 Using EzSet™
25 Manual Output Level Adjustment
27 Operation
27 Basic Operation
27 Remote Control Operation
27 Source Selection
28 6-Channel/8-Channel Direct Input
28 Volume Control
28 Surround Mode Selection
29 Surround Mode Chart
30 Digital Audio Playback
32 Tuner Operation
32 Recording
32 Front-Panel Connections
33 Output Level Trim Adjustment
34 Advanced Features
34 Surround Amplifier Channel Assignment
34 Display Brightness
34 Turn-On Volume Level
34 OSD Settings
36 Multiroom Operation
36 Multiroom Setup
36 Multiroom Operation
38 Configuring the Remote
38 Preprogrammed Code Entry
39 Automatic Code Entry
39 Learning Commands
40 Changing Devices
41 Macro Programming
42 Punch-Through Configuration
43 Volume Punch-Through
43 Channel Punch-Through
44 Transport Punch-Through
44 EzSet Configuration
45 Renaming
46 Resetting the Remote
48 Troubleshooting Guide
48 Processor Reset
49 Technical Specifications
49 Trademark Acknowledgements
2 TABLE OF CONTENTS
Typographical Conventions
In order to help you use this manual with the remote control, front-panel controls and rear-panel connections,
certain conventions have been used.
EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel
connection jack
EXAMPLE – (OCR type) indicates a message that is visible on-screen or on the front-panel
information display
EXAMPLE – (Synchro type) indicates a message that is displayed on the remote control’s LCD screen
1– (number in a square) indicates a specific front-panel control
¡– (number in a circle) indicates a rear-panel connection
a– (number in an oval) indicates a button or indicator on the remote
A– (letter in a square) indicates an indicator in the front-panel display
å
– (letter in an oval) indicates a button on the Zone II remote
INTRODUCTION
Thank you for choosing Harman Kardon
®! With
the purchase of a Harman Kardon
®
AVR 7200, you
are about to begin many years of listening enjoyment.
Designed to provide all the excitement and detail of
movie soundtracks and
every nuance of musical selec-
tions, the AVR 7200
is truly a multichannel receiver for
the new millennium.
The AVR 7200 has been engineered so that it is easy
to take advantage of all the power of its digital tech-
nology. However, to obtain the maximum enjoyment
from your new receiver, we urge you to read this
manual. A few minutes spent learning the functions of
the various controls will enable you to take advantage
of all the power the AVR 7200 is able to deliver.
If you have any questions about this product, its instal-
lation or its operation, please contact your retailer or
custom installer. They are your best local source of
information.
Description and Features
The AVR 7200 is among the most versatile and multi-
featured A/V receivers available, incorporating a wide
range of listening options. In addition to Dolby*Digital
and DTS®decoding for digital sources, a wide array of
matrix surround-encoded or stereo surround modes is
available for use with sources such as CD, VCR, TV
broadcasts and the AVR 7200’s own FM/AM tuner.
Along with Dolby Digital EX, Dolby Pro Logic*II,
DTS Neo:6®
, Dolby 3 Stereo, and Hall and Theater
modes, the AVR 7200 offers Harman
International’s
exclusive Logic 7
®
process in both 5.1 and 7.1 versions
to create a wider, more enveloping
field environment
and more defined fly-overs and pans. Another
Harman Kardon exclusive is VMAx®
, which uses
proprietary processing to create an open, spacious
sound field even when only two front speakers are
available. Finally, the AVR 7200 offers decoding of
MP3 data, so that you may listen to the latest music
selections directly from compatible computers or play-
back devices with the power and fidelity you expect
from Harman Kardon.
In addition to providing a wide range of listening
options, the AVR 7200 is easy to configure so that it
provides the best results with your speakers and spe-
cific listening-room environment. On-screen menus
make it simple to enter settings for speaker configura-
tions and bass management, and an EzSet
™remote
with LCD display measures a system’s output levels
and automatically calibrates them for perfectly bal-
anced sound field presentation.
For the ultimate in flexibility, the AVR 7200 features
connections for five video devices, all with both com-
posite and S-Video inputs. Two additional audio
inputs are available, and six digital inputs make the
AVR 7200 capable of handling all the latest digital
audio sources. For compatibility with the latest HDTV
video sources and progressive scan DVD players, the
AVR 7200 also features two-input, wide-bandwidth,
low-crosstalk component video switching.
The front panel offers coax and optical digital inputs
and outputs for direct connection to digital recorders,
along with analog audio/video connections that may be
switched to outputs for use with portable recorders –
a Harman Kardon exclusive. Two video recording out-
puts, preamp-out and a color-coded eight-channel
input with complete digital bass management, make
the AVR 7200 virtually future-proof, with everything
needed to accommodate tomorrow’s new formats
right onboard.
The AVR 7200’s flexibility and power extend beyond
your main home theater or listening room. The
AVR 7200 includes a sophisticated multizone control
system that allows you to select one source for use in
the main room and a different source for audio and
video distribution to a second zone. Complete volume
control in the second zone is possible with a separate
infrared control link. To make it easy to operate the
AVR 7200 from a remote zone, a separate “Zone II”
remote is included. Additional multiroom options
include the option to assign two of the AVR 7200’s
output channels to the multiroom system and the
ability to link the AVR 7200 to innovative A-BUS
®
keypads for multiroom operation without the need for
external amplifiers.The AVR 7200’s powerful amplifier
uses traditional Harman Kardon high-current design
technologies to meet the wide dynamic range of any
program selection.
Harman Kardon invented the high-fidelity receiver fifty
years ago. With
state-of-the-art circuitry and time-hon-
ored circuit designs, the AVR 7200 is the perfect com-
bina
tion of the latest in digital audio technology, a
quiet
yet powerful analog amplifier in an
elegant, easy-to-use
package.
For Canadian model
Modèle pour les Canadien
■A wide range of digital and matrix surround
modes, including Dolby
®
Digital, Dolby Digital EX
,
Dolby Pro Logic®II, DTS®
, DTS-ES®Discrete and
Matrix, and DTS Neo:6®
■Seven channels of high-current amplification
with two channels assignable to either surround
back or multiroom applications
■
Harman Kardon’s exclusive Logic 7
®
processing
,
available for the first time with both 7.1 and
5.1 processing in a variety of modes and two
modes of VMAx®
■MP3 decoding for use with computers and
digital audio players
■™remote control with LCD display
automatically sets
output levels for optimum
performance
■High-bandwidth, HDTV-compatible component
video switching
■Switchable front-panel analog A/V jacks and
discrete front-panel coaxial and optical digital
inputs and outputs for easy connection to
portable digital devices and video game
consoles
■Extensive bass management options, includ-
ing three separate crossover groupings and
full digital bass management on the 6/8-
channel direct inputs for use with DVD-Audio
or SACD players
■RS-232 port for external control
■On-screen menu and display system
■Extensive multiroom options, including a stan-
dard Zone II remote, assignable amplifier
channels and A-BUS Ready®capability for lis-
tening to a separate source in a remote zone
■HDCD®decoding for enhanced CD playback
T
Cet appareil numérique de la classe B est conforme
à la norme NMB-003 du Canada.
Sur les modèles dont la fiche est polarisee:
ATTENTION: Pour éviter les chocs électriques, introduire
la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqu’au fond.
This class B digital apparatus complies with Canadian
ICES-003.
For models having a power cord with a polarized plug:
CAUTION: To prevent electric shock, match wide blade
of plug to wide slot, fully insert.
INTRODUCTION 3
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To prevent electric shock,
do not use this (polarized)
plug with an extension cord,
receptacle or other outlet
unless the blades can
be fully inserted to
prevent blade exposure.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
®, HDCD®, High Definition Compatible Digital
®and Pacific Microsonics
™
are either registered trademarks
or trademarks of Pacific Microsonics, Inc., in the United States and/or other countries. HDCD system manufactured
under license from Pacific Microsonics, Inc.

Produktspecifikationer

Varumärke: Harman Kardon
Kategori: mottagare
Modell: AVR 7200

Behöver du hjälp?

Om du behöver hjälp med Harman Kardon AVR 7200 ställ en fråga nedan och andra användare kommer att svara dig


mottagare Harman Kardon Manualer

Harman Kardon

Harman Kardon CA1500M Bruksanvisning

27 December 2024
Harman Kardon

Harman Kardon CA5250 Bruksanvisning

27 December 2024
Harman Kardon

Harman Kardon CA280 Bruksanvisning

27 December 2024
Harman Kardon

Harman Kardon CA260 Bruksanvisning

27 December 2024
Harman Kardon

Harman Kardon CA470 Bruksanvisning

27 December 2024
Harman Kardon

Harman Kardon AVR 300 Bruksanvisning

2 Oktober 2024
Harman Kardon

Harman Kardon AVR AV Bruksanvisning

3 September 2024
Harman Kardon

Harman Kardon HK 3390 Bruksanvisning

2 September 2024
Harman Kardon

Harman Kardon AVR 3650 Bruksanvisning

1 September 2024
Harman Kardon

Harman Kardon AVR 1550 Bruksanvisning

1 September 2024

mottagare Manualer

Nyaste mottagare Manualer

Yamaha

Yamaha Aventage RX-A4A Bruksanvisning

9 April 2025
Yamaha

Yamaha Aventage RX-A8A Bruksanvisning

9 April 2025
Phonocar

Phonocar PH544 Bruksanvisning

5 April 2025
DJI

DJI D-RTK 3 Bruksanvisning

4 April 2025
Alpine

Alpine MRX-F65 Bruksanvisning

2 April 2025
QSC

QSC SPA-Qf 60x2 Bruksanvisning

2 April 2025
Harper

Harper HDT2-5010 Bruksanvisning

2 April 2025
Harper

Harper HDT2-2010 Bruksanvisning

2 April 2025
Pro-Ject

Pro-Ject Stereo Box DS Bruksanvisning

30 Mars 2025
Streacom

Streacom TL1 Bruksanvisning

30 Mars 2025
